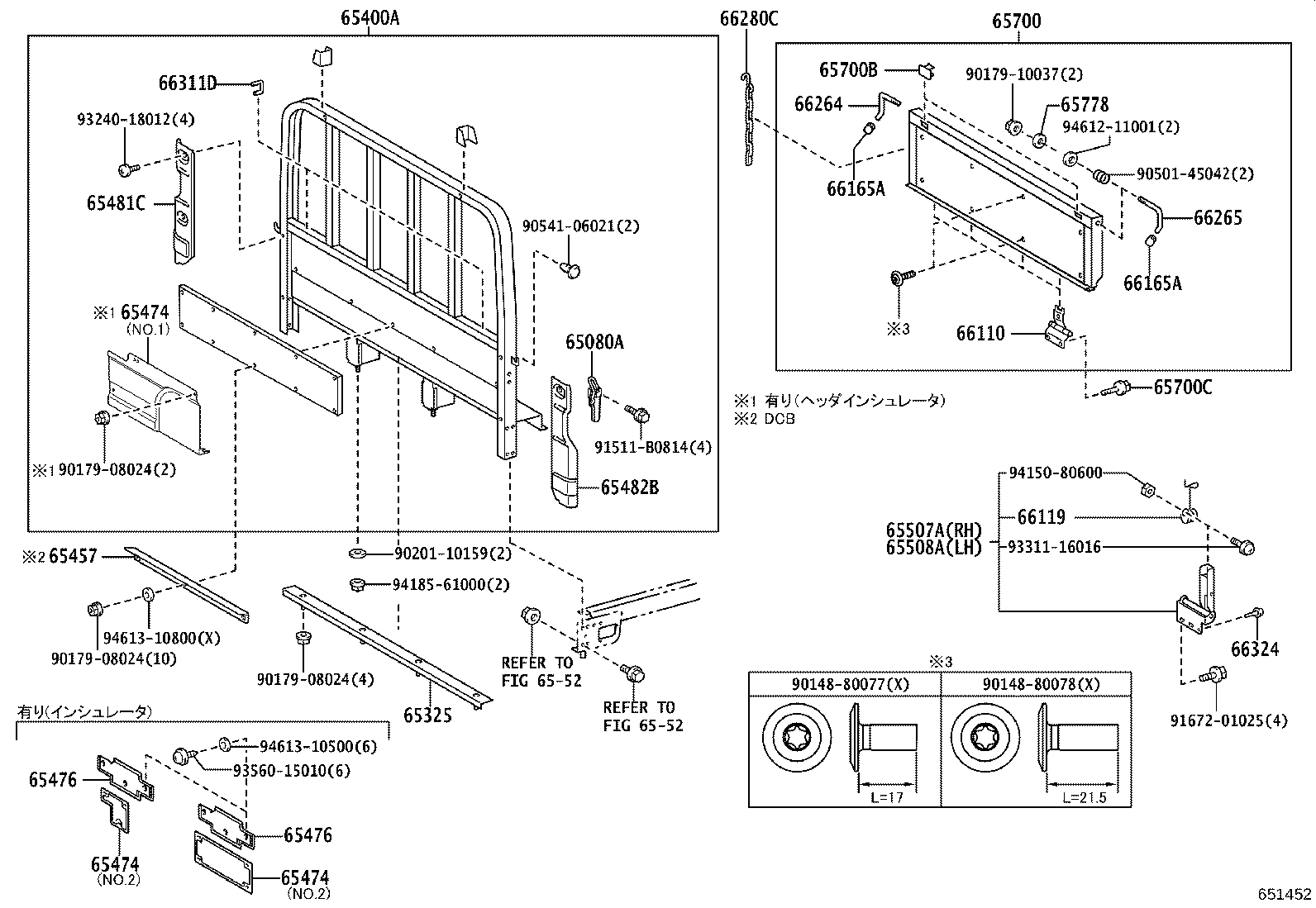

XZU685-TQMMY (2021)
Toyota Dyna
(2103- )XZU645..30T..CBU ; (2103- )XZC655,XZU640,65#,685,695..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65080A - HANDLE ASSY, SIDE GATE LATCH | ||||
| 65080-92701 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65325 - PLATE, FLOOR BOARD, FRONT | ||||
| 65325-37090 |
XZU645..30T..CBU;XZC655,XZU640,65#,685,695..CBU |
1 | ||
| 65400A - GUARD ASSY, REAR BODY | ||||
| 65400-37Q60 |
XZU685,695..T4..CBU;XZU645,655..T4..30T..CBU |
1 | ||
| 65474 - INSULATOR, HEADER | ||||
| 65474-25090 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..CBU 左側,NO.2 |
1 | ||
| 65474-37170 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..CBU 右側,NO.2 |
1 | ||
| 65474-37150 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..CBU NO.1 |
1 | ||
| 65474 - INSULATOR, HEADER | ||||
| 65474-25090 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..CBU 左側,NO.2 |
1 | ||
| 65474-37170 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..CBU 右側,NO.2 |
1 | ||
| 65474-37150 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..CBU NO.1 |
1 | ||
| 65474 - INSULATOR, HEADER | ||||
| 65474-25090 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..CBU 左側,NO.2 |
1 | ||
| 65474-37170 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..CBU 右側,NO.2 |
1 | ||
| 65474-37150 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..CBU NO.1 |
1 | ||
| 65476 - INSULATOR, HEADER BOARD, NO.2 | ||||
| 65476-37040 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..CBU |
2 | ||
| 65476 - INSULATOR, HEADER BOARD, NO.2 | ||||
| 65476-37040 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..CBU |
2 | ||
| 65481C - PROTECTOR, FRONT CORNER, RH | ||||
| 65481-37020 |
XZU645..30T..CBU;XZC655,XZU640,65#,685,695..CBU |
1 | ||
| 65482B - PROTECTOR, FRONT CORNER, LH | ||||
| 65482-37020 |
XZU645..30T..CBU;XZC655,XZU640,65#,685,695..CBU |
1 | ||
| 65507A - SUPPORT SUB-ASSY, CORNER, RH | ||||
| 65507-37051 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 65508A - SUPPORT SUB-ASSY, CORNER, LH | ||||
| 65508-37051 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-37251 |
XZU645..30T..CBU;XZC655,XZU640,65#,685,695..CBU |
1 | ||
| 65700B - PLUG, HOLE(FOR TAIL GATE) | ||||
| 90950-01430 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65700C - BOLT, W/WASHER(FOR TAIL GATE) | ||||
| 91551-80820 |
XZU645..30T..CBU;XZC655,XZU640,65#,685,695..CBU |
8 | ||
| 65778 - STOPPER, TAIL GATE STAY | ||||
| 65772-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 66110 - HINGE ASSY, TAIL GATE | ||||
| 66110-37021 |
XZU645..30T..CBU;XZC655,XZU640,65#,685,695..CBU |
4 | ||
| 66119 - SPRING, TAIL GATE CHECK BALL | ||||
| 90035-08024 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU 右側 |
1 | ||
| 90035-08023 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU 左側 |
1 | ||
| 66165A - CAP, GATE LATCH HANDLE | ||||
| 66165-87402 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 66165A - CAP, GATE LATCH HANDLE | ||||
| 66165-87402 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 66264 - HANDLE, TAIL GATE LATCH, RH | ||||
| 66264-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66265 - HANDLE, TAIL GATE LATCH, LH | ||||
| 66265-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66280C - CHAIN ASSY, TAIL GATE | ||||
| 66280-37030 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 66311D - HOOK, ROPE | ||||
| 66312-37030 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 66324 - CUSHION, TAIL GATE SIDE | ||||
| 90541-09107 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| Common parts | ||||
| 90148-80077 | ||||
| 90148-80078 | ||||
| 90179-08024 | ||||
| 90179-10037 | ||||
| 90201-10159 | ||||
| 90501-45042 | ||||
| 90541-06021 | ||||
| 91511-B0814 | ||||
| 91672-01025 | ||||
| 93240-18012 | ||||
| 93311-16016 | ||||
| 93560-15010 | ||||
| 94150-80600 | ||||
| 94185-61000 | ||||
| 94612-11001 | ||||
| 94613-10500 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 6552 | ||||
