XZU685-TKMQY6 (2021)
Toyota Dyna

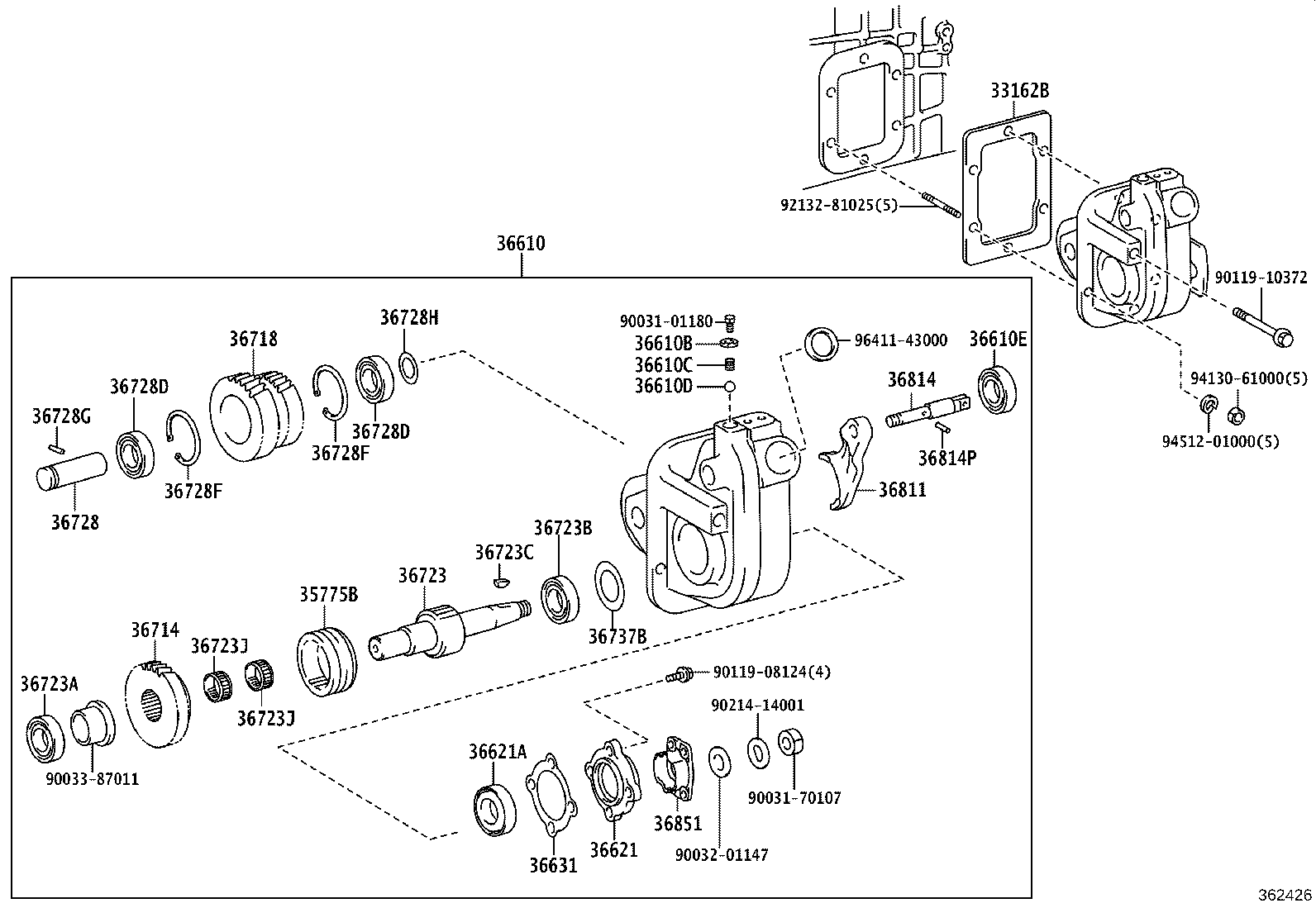

(2103- )XZU685..IV6 ; (2103- )XZU675..T4..IV3
ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ(ﾌﾗﾝｼﾞﾀｲﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37050 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37031 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37520 |
XZU685..IV6;XZU675..T4..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36610-37590 |
XZU685..IV6 |
1 | ||
| 36610B - GASKET, SEAT (FOR POWER TAKE-OFF) | ||||
| 90430-12004 |
XZU60#,640,642,650,652,685..MTM..IV6 厚さ=2 |
1 | ||
| 90430-12006 |
XZU60#,640,642,650,652,685..MTM..IV6 厚さ=1 |
1 | ||
| 90430-12001 |
XZU60#,640,642,650,652,685..MTM..IV6 厚さ=0.5 |
1 | ||
| 36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90035-01053 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF) | ||||
| 90360-10001 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-20010 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-37080 |
XZU600..6F..40T;XZU675..T4..IV3;XZU602,640,642,650,652,685..MTM..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36621-37090 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-37030 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-37241 |
XZU685..IV6 |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-37161 |
XZU685..IV6 |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-37140 |
XZU685..IV6;XZU675..T4..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36723-37180 |
XZU685..IV6 |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-22001 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-22001 |
XZU685..IV6 厚さ=16.25 |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07011 |
XZU600..6F..40T;XZU675..T4..IV3;XZU602,640,642,650,652,685..MTM..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-37060 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
XZU685..IV6 |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
XZU685..IV6 |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
XZU685..IV6;XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
XZU685..IV6;XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25001 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.05 |
1 | ||
| 90564-25002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.1 |
1 | ||
| 90564-25003 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.2 |
1 | ||
| 90564-25004 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.5 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42002 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.07−0.13 |
1 | ||
| 90564-42003 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.17−0.23 |
1 | ||
| 90564-42001 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.02−0.08 |
1 | ||
| 90564-42004 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.47−0.53 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-37030 |
XZU685..IV6 |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-37090 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT) | ||||
| 90254-06006 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37010 |
XZU600..6F..40T;XZU675..T4..IV3;XZU602,640,642,650,652,685..MTM..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| Common parts | ||||
| 90031-01180 | ||||
| 90031-70107 | ||||
| 90032-01147 | ||||
| 90033-87011 | ||||
| 90119-08124 | ||||
| 90119-10372 | ||||
| 90214-14001 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 96411-43000 | ||||

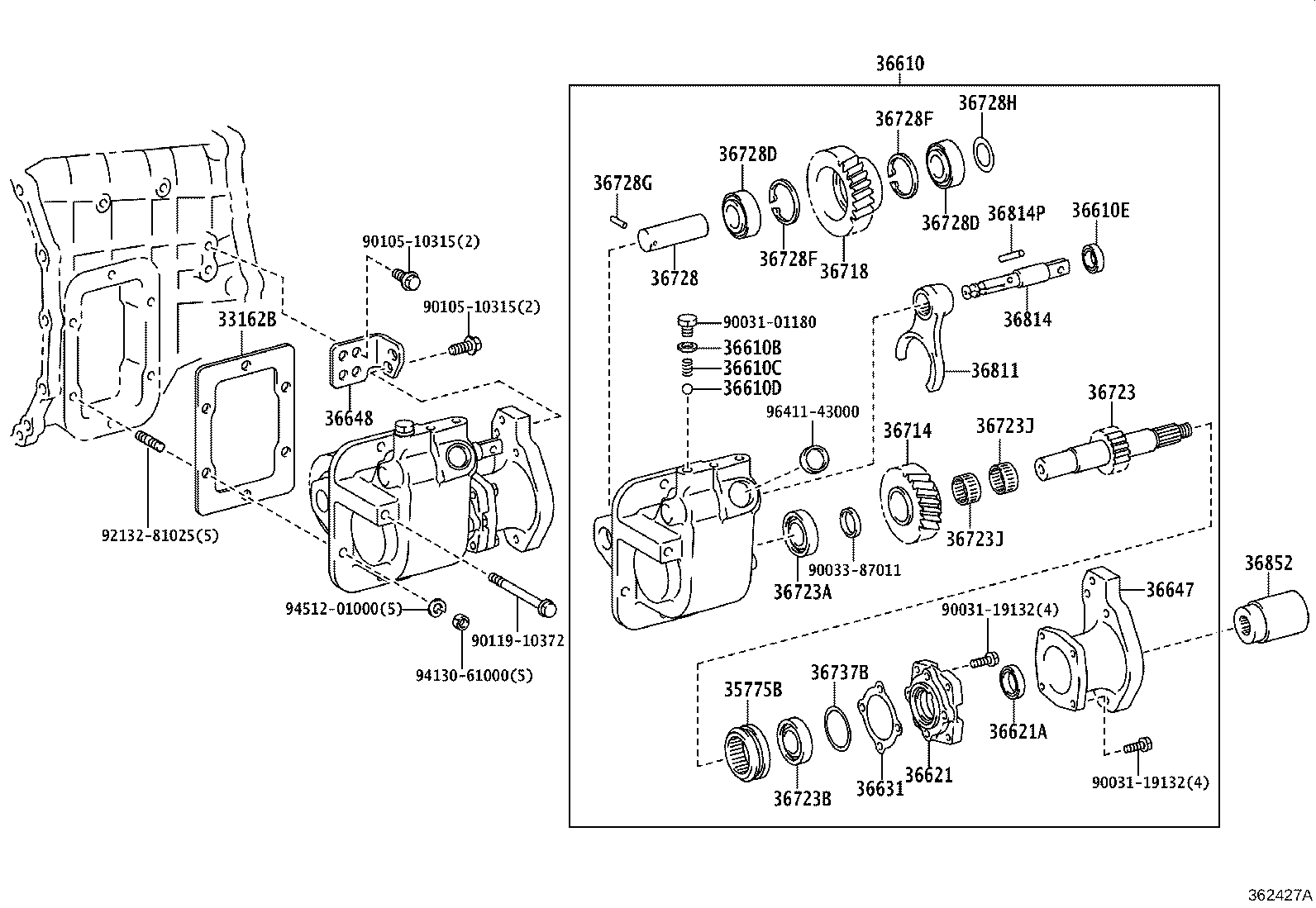

(2103- )XZU685..IV6 ; (2103- )XZU675..T4..IV3
ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ(ｱﾀﾞﾌﾟﾀﾀｲﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37050 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37031 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37520 |
XZU685..IV6;XZU675..T4..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36610-37590 |
XZU685..IV6 |
1 | ||
| 36610B - GASKET, SEAT (FOR POWER TAKE-OFF) | ||||
| 90430-12004 |
XZU60#,640,642,650,652,685..MTM..IV6 厚さ=2 |
1 | ||
| 90430-12006 |
XZU60#,640,642,650,652,685..MTM..IV6 厚さ=1 |
1 | ||
| 90430-12001 |
XZU60#,640,642,650,652,685..MTM..IV6 厚さ=0.5 |
1 | ||
| 36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90035-01053 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF) | ||||
| 90360-10001 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-20010 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-37080 |
XZU600..6F..40T;XZU675..T4..IV3;XZU602,640,642,650,652,685..MTM..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36621-37090 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-37030 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 36647 - ADAPTER, POWER TAKE-OFF PUMP | ||||
| 36647-37010 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36648 - BRACKET, POWER TAKE-OFF PUMP ADAPTER | ||||
| 36648-37010 |
XZU600..6F..40T;XZU602,640,642,650,652,685..MTM..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36648-37010 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-37241 |
XZU685..IV6 |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-37161 |
XZU685..IV6 |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-37140 |
XZU685..IV6;XZU675..T4..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36723-37180 |
XZU685..IV6 |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-22001 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-22001 |
XZU685..IV6 厚さ=16.25 |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-37060 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
XZU685..IV6 |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
XZU685..IV6 |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
XZU685..IV6;XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
XZU685..IV6;XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25001 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.05 |
1 | ||
| 90564-25002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.1 |
1 | ||
| 90564-25003 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.2 |
1 | ||
| 90564-25004 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.5 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42002 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.07−0.13 |
1 | ||
| 90564-42003 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.17−0.23 |
1 | ||
| 90564-42001 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.02−0.08 |
1 | ||
| 90564-42004 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.47−0.53 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-37030 |
XZU685..IV6 |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-37090 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT) | ||||
| 90254-06006 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36852 - COUPLING, POWER TAKE-OFF OUTPUT SHAFT | ||||
| 36852-37010 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36852-37010 |
XZU600..6F..40T;XZU602,640,642,650,652,685..MTM..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| Common parts | ||||
| 90031-01180 | ||||
| 90031-19132 | ||||
| 90033-87011 | ||||
| 90105-10315 | ||||
| 90119-10372 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 96411-43000 | ||||
(2103- )XZU650..6F..20T,30T,35T ; (2103- )XZU605..T5..6F..20T..IV3 ; (2103-
ﾃﾞﾝｷｼｷ(ｱﾀﾞﾌﾟﾀﾀｲﾌﾟ) 25KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37050 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 33162-37050 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 33162-37050 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37031 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 35775-37031 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 35775-37031 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37520 |
XZU685..IV6;XZU675..T4..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36610-37520 |
XZU685..IV6;XZU675..T4..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36610-37520 |
XZU685..IV6;XZU675..T4..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36610-37590 |
XZU685..IV6 |
1 | ||
| 36610-37590 |
XZU685..IV6 |
1 | ||
| 36610-37590 |
XZU685..IV6 |
1 | ||
| 36610B - GASKET, SEAT (FOR POWER TAKE-OFF) | ||||
| 90430-12001 |
XZU60#,640,642,650,652,685..MTM..IV6 厚さ=0.5 |
1 | ||
| 90430-12001 |
XZU60#,640,642,650,652,685..MTM..IV6 厚さ=0.5 |
1 | ||
| 90430-12004 |
XZU60#,640,642,650,652,685..MTM..IV6 厚さ=2 |
1 | ||
| 90430-12004 |
XZU60#,640,642,650,652,685..MTM..IV6 厚さ=2 |
1 | ||
| 90430-12004 |
XZU60#,640,642,650,652,685..MTM..IV6 厚さ=2 |
1 | ||
| 90430-12006 |
XZU60#,640,642,650,652,685..MTM..IV6 厚さ=1 |
1 | ||
| 90430-12006 |
XZU60#,640,642,650,652,685..MTM..IV6 厚さ=1 |
1 | ||
| 90430-12006 |
XZU60#,640,642,650,652,685..MTM..IV6 厚さ=1 |
1 | ||
| 90430-12001 |
XZU60#,640,642,650,652,685..MTM..IV6 厚さ=0.5 |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-20010 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 90311-20010 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 90311-20010 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-37080 |
XZU600..6F..40T;XZU675..T4..IV3;XZU602,640,642,650,652,685..MTM..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36621-37080 |
XZU600..6F..40T;XZU675..T4..IV3;XZU602,640,642,650,652,685..MTM..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36621-37080 |
XZU600..6F..40T;XZU675..T4..IV3;XZU602,640,642,650,652,685..MTM..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36621-37090 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36621-37090 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36621-37090 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 90311-25110 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 90311-25110 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-37030 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 36632-37030 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 36632-37030 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 36647 - ADAPTER, POWER TAKE-OFF PUMP | ||||
| 36647-37010 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36647-37010 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36647-37010 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36648 - BRACKET, POWER TAKE-OFF PUMP ADAPTER | ||||
| 36648-37010 |
XZU600..6F..40T;XZU602,640,642,650,652,685..MTM..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36648-37010 |
XZU600..6F..40T;XZU602,640,642,650,652,685..MTM..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36648-37010 |
XZU600..6F..40T;XZU602,640,642,650,652,685..MTM..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36648-37010 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36648-37010 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36648-37010 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-37241 |
XZU685..IV6 |
1 | ||
| 36714-37241 |
XZU685..IV6 |
1 | ||
| 36714-37241 |
XZU685..IV6 |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-37161 |
XZU685..IV6 |
1 | ||
| 36718-37161 |
XZU685..IV6 |
1 | ||
| 36718-37161 |
XZU685..IV6 |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-37140 |
XZU685..IV6;XZU675..T4..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36723-37140 |
XZU685..IV6;XZU675..T4..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36723-37140 |
XZU685..IV6;XZU675..T4..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36723-37180 |
XZU685..IV6 |
1 | ||
| 36723-37180 |
XZU685..IV6 |
1 | ||
| 36723-37180 |
XZU685..IV6 |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-22001 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 90366-22001 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 90366-22001 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-22001 |
XZU685..IV6 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU685..IV6 厚さ=16.25 |
1 | ||
| 90366-22001 |
XZU685..IV6 厚さ=16.25 |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
2 | ||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
2 | ||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
2 | ||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
2 | ||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-37060 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 36728-37060 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 36728-37060 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
XZU685..IV6 |
2 | ||
| 90366-25011 |
XZU685..IV6 |
2 | ||
| 90366-25011 |
XZU685..IV6 |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
XZU685..IV6 |
2 | ||
| 90366-25011 |
XZU685..IV6 |
2 | ||
| 90366-25011 |
XZU685..IV6 |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 90254-04002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 90254-04002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25001 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.05 |
1 | ||
| 90564-25001 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.05 |
1 | ||
| 90564-25001 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.05 |
1 | ||
| 90564-25002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.1 |
1 | ||
| 90564-25002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.1 |
1 | ||
| 90564-25002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.1 |
1 | ||
| 90564-25003 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.2 |
1 | ||
| 90564-25003 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.2 |
1 | ||
| 90564-25003 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.2 |
1 | ||
| 90564-25004 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.5 |
1 | ||
| 90564-25004 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.5 |
1 | ||
| 90564-25004 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.5 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42002 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.07−0.13 |
1 | ||
| 90564-42002 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.07−0.13 |
1 | ||
| 90564-42003 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.17−0.23 |
1 | ||
| 90564-42003 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.17−0.23 |
1 | ||
| 90564-42001 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.02−0.08 |
1 | ||
| 90564-42001 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.02−0.08 |
1 | ||
| 90564-42004 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.47−0.53 |
1 | ||
| 90564-42004 |
XZU602,640,642..6F..40T;XZU600,605,650,652,685..MTM..(IV5,IV6) 厚さ=0.47−0.53 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-37030 |
XZU685..IV6 |
1 | ||
| 36811-37030 |
XZU685..IV6 |
1 | ||
| 36811-37030 |
XZU685..IV6 |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-37090 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36814-37090 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36814-37090 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT) | ||||
| 90254-06006 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 90254-06006 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 90254-06006 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT) | ||||
| 90254-06006 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 90254-06006 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 90254-06006 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36852 - COUPLING, POWER TAKE-OFF OUTPUT SHAFT | ||||
| 36852-37010 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36852-37010 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36852-37010 |
XZU60#,640,642,650,652,685..MTM..IV6 |
1 | ||
| 36852-37010 |
XZU600..6F..40T;XZU602,640,642,650,652,685..MTM..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36852-37010 |
XZU600..6F..40T;XZU602,640,642,650,652,685..MTM..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 36852-37010 |
XZU600..6F..40T;XZU602,640,642,650,652,685..MTM..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 82715-3VM60 | ||||
| 90031-19132 | ||||
| 90105-10315 | ||||
| 90110-08024 | ||||
| 90119-10372 | ||||
| 90179-16032 | ||||
| 90201-16038 | ||||
| 90204-08007 | ||||
| 90501-26102 | ||||
| 90560-25015 | ||||
| 90560-28008 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 96411-43000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
