XZU685-TKMQY (2021)
Toyota Dyna
(2103- )XZU685..SCB..CBU ; (2103- )XZU640,645..30T..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

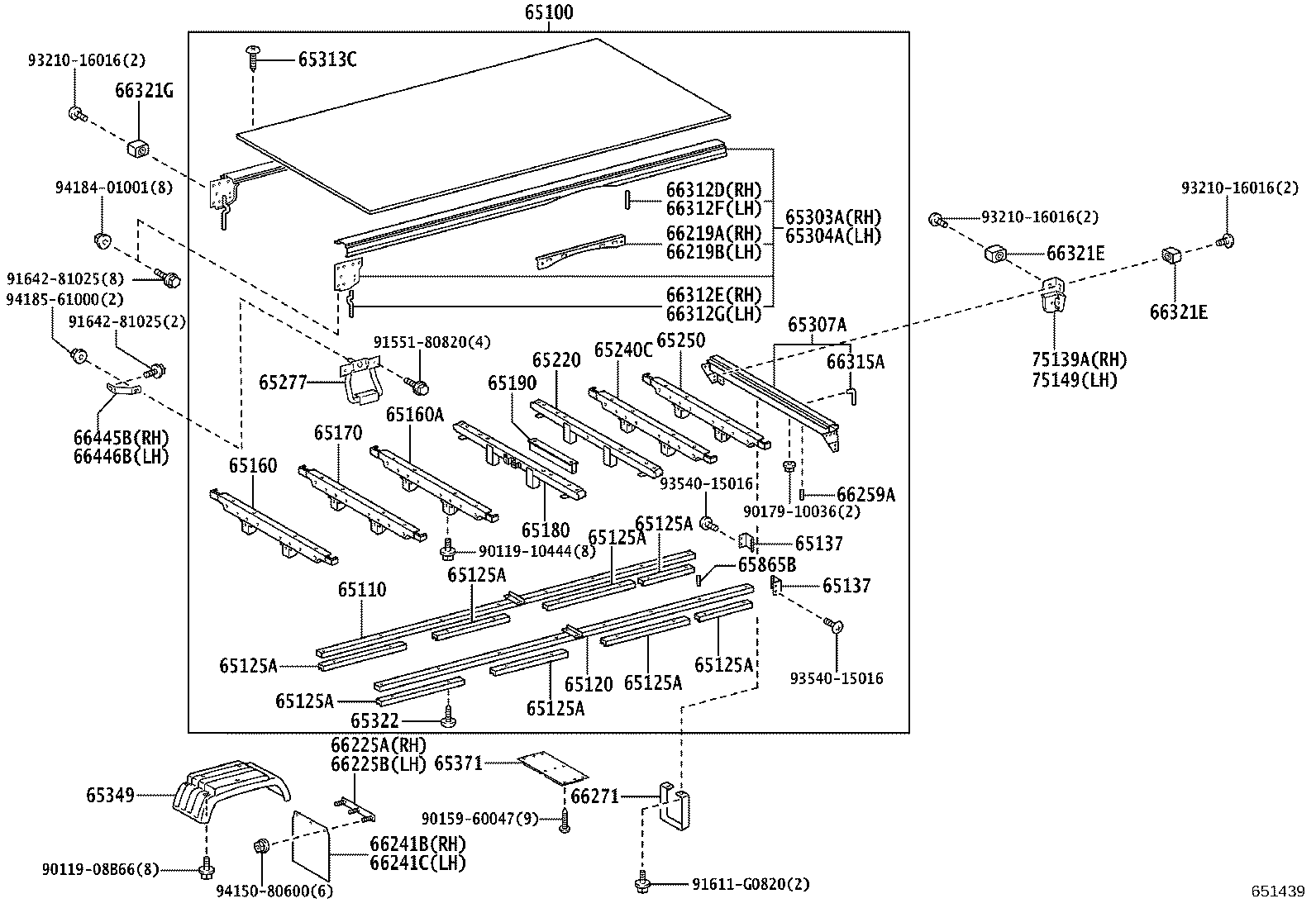

| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-3VP10 |
XZU640,645,685..T3..30T..CBU |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-37G70 |
XZU640,645,685..T3..30T..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-37G60 |
XZU640,645,685..T3..30T..CBU |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZU640,645..CBU;XZU685..30T..CBU;XZU655..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37820 |
XZU640,645..CBU;XZU685..30T..CBU;XZU655..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU685..T3..CBU;XZU675..T4..20T..CBU;XZU605,655..DCB..CBU;XZC675,XZU640,645..CBU;XZU605,655..T4..30T..CBU 長さ=534 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZU640,645..CBU;XZU685..30T..CBU;XZU655..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37820 |
XZU640,645..CBU;XZU685..30T..CBU;XZU655..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU685..T3..CBU;XZU675..T4..20T..CBU;XZU605,655..DCB..CBU;XZC675,XZU640,645..CBU;XZU605,655..T4..30T..CBU 長さ=534 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZU640,645..CBU;XZU685..30T..CBU;XZU655..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37820 |
XZU640,645..CBU;XZU685..30T..CBU;XZU655..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU685..T3..CBU;XZU675..T4..20T..CBU;XZU605,655..DCB..CBU;XZC675,XZU640,645..CBU;XZU605,655..T4..30T..CBU 長さ=534 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZU640,645..CBU;XZU685..30T..CBU;XZU655..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37820 |
XZU640,645..CBU;XZU685..30T..CBU;XZU655..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU685..T3..CBU;XZU675..T4..20T..CBU;XZU605,655..DCB..CBU;XZC675,XZU640,645..CBU;XZU605,655..T4..30T..CBU 長さ=534 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZU640,645..CBU;XZU685..30T..CBU;XZU655..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37820 |
XZU640,645..CBU;XZU685..30T..CBU;XZU655..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU685..T3..CBU;XZU675..T4..20T..CBU;XZU605,655..DCB..CBU;XZC675,XZU640,645..CBU;XZU605,655..T4..30T..CBU 長さ=534 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZU640,645..CBU;XZU685..30T..CBU;XZU655..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37820 |
XZU640,645..CBU;XZU685..30T..CBU;XZU655..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU685..T3..CBU;XZU675..T4..20T..CBU;XZU605,655..DCB..CBU;XZC675,XZU640,645..CBU;XZU605,655..T4..30T..CBU 長さ=534 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZU640,645..CBU;XZU685..30T..CBU;XZU655..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37820 |
XZU640,645..CBU;XZU685..30T..CBU;XZU655..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU685..T3..CBU;XZU675..T4..20T..CBU;XZU605,655..DCB..CBU;XZC675,XZU640,645..CBU;XZU605,655..T4..30T..CBU 長さ=534 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZU640,645..CBU;XZU685..30T..CBU;XZU655..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37820 |
XZU640,645..CBU;XZU685..30T..CBU;XZU655..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU685..T3..CBU;XZU675..T4..20T..CBU;XZU605,655..DCB..CBU;XZC675,XZU640,645..CBU;XZU605,655..T4..30T..CBU 長さ=534 |
2 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37060 |
XZU640,652,685,695..CBU;XZC655,XZU645,650,655..T3..CBU |
2 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37060 |
XZU640,652,685,695..CBU;XZC655,XZU645,650,655..T3..CBU |
2 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37350 |
XZU695..T3..CBU;XZC655,XZU640,645,65#,685..SCB..T3..CBU |
1 | ||
| 65160A - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37350 |
XZU640,645,685..T3..30T..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37530 |
XZU695..T3..20T..CBU;XZU640,645,685..T3..30T..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37B11 |
XZC655,XZU640,645,65#,685,695..SCB..T3..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37370 |
XZC605,655,XZU605,640,645,65#,685,695..(T3,T5)..CBU |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37671 |
XZC655,XZU640,645,65#,685,695..T3..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65170-37350 |
XZC655,XZU640,645,65#,685,695..T3..CBU |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37530 |
XZC655,XZU640,645,65#,685,695..T3..CBU |
1 | ||
| 65277 - STEP, SIDE, FRONT | ||||
| 66207-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-37K30 |
XZU685..SCB..CBU;XZU640,645..30T..CBU |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-37K10 |
XZU685..SCB..CBU;XZU640,645..30T..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37A11 |
XZC655,XZU640,645,65#,685,695..T3..CBU |
1 | ||
| 65313C - SCREW(FOR FLOOR BOARD) | ||||
| 90149-50065 |
XZU685..SCB..CBU;XZU640,645..30T..CBU |
68 | ||
| 65322 - NAIL | ||||
| 90290-05004 |
XZU655..DCB..CBU;XZU605,655..30T..CBU;XZU650,685,695..T3..CBU;XZC675,XZU640,645,652,675..(T3,T4)..CBU;XZC605,655,XZU605,655..(T3,T5)..20T..CBU |
16 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37080 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU 左側 |
1 | ||
| 65349-37070 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU 右側 |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65039-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..SCB..(T3,T4,T5)..CBU |
1 | ||
| 65865B - PIN, COVER TOP GUIDE | ||||
| 65865-37020 |
XZU650..T3..CBU;XZU605,655..DCB..CBU;XZU605,655..30T..CBU;XZC605,655,XZU605,655..(T3,T5)..20T..CBU;XZC675,XZU640,645,652,675,685,695..(T3,T4)..CBU |
1 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-37120 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..(20T,30T,35T)..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66219-37120 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..(20T,30T,35T)..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37271 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37271 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37B92 |
XZU695..SCB..CBU;XZC655,XZU65#,685..T3..(20T,30T,35T)..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37B92 |
XZU695..SCB..CBU;XZC655,XZU65#,685..T3..(20T,30T,35T)..CBU |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU655,695..DCB..CBU;XZC645,XZU640,645,685..SCB..CBU |
6 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU645..30T..CBU;XZC605,655,675,XZU605,640,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU655,695..DCB..CBU;XZC645,XZU640,645,685..SCB..CBU |
6 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
XZC655,XZU640,645,65#,685,695..T3..CBU |
4 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-37020 |
XZU645..30T..CBU;XZC655,XZU640,65#,685,695..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-37020 |
XZU645..30T..CBU;XZC655,XZU640,65#,685,695..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-37020 |
XZU645..30T..CBU;XZC655,XZU640,65#,685,695..CBU |
2 | ||
| 66445B - BRACE, FRAME TO REAR BODY | ||||
| 65365-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66446B - BRACE, FRAME TO REAR BODY, NO.2 | ||||
| 65366-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 75139A - BRACKET, REFLEX REFLECTOR, RH | ||||
| 75139-37080 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 75149 - BRACKET, REFLEX REFLECTOR, LH | ||||
| 75149-37080 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90119-10444 | ||||
| 90159-60047 | ||||
| 90179-10036 | ||||
| 91551-80820 | ||||
| 91611-G0820 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 94150-80600 | ||||
| 94184-01001 | ||||
| 94185-61000 | ||||
