XZU685-PKMMY3 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

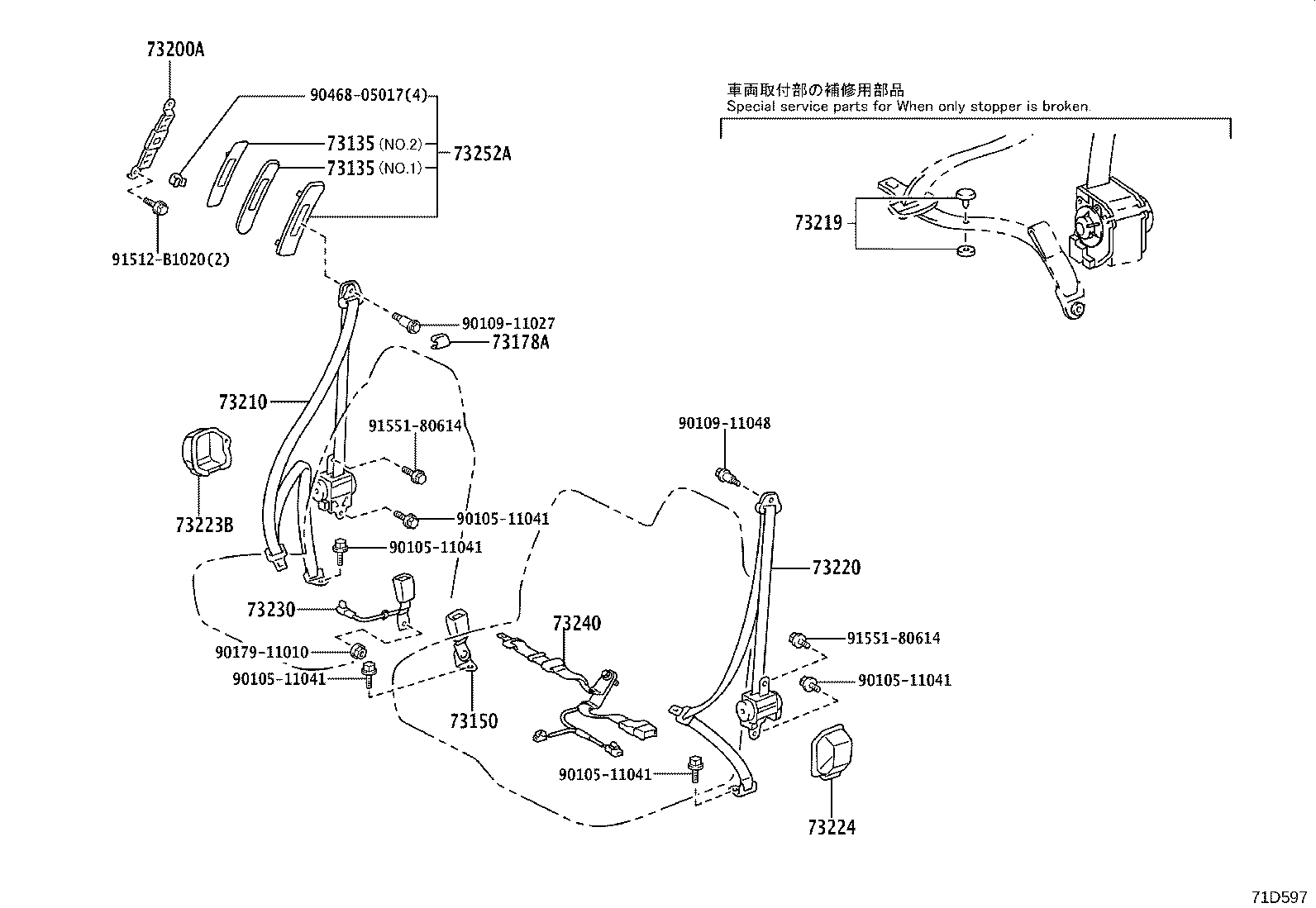

ILLUST NO. 1 OF 2(2103- )DCB

Click highlighted areas on diagram

ﾌﾛﾝﾄｼｰﾄ

diagram 73135 73135 73150 73178A 73200A 73210 73219 73220 73223B 73224 73230 73240 73252A 9010511041 9010511041 9010511041 9010511041 9010511041 9010911027 9010911048 9017911010 9046805017 91512B1020 9155180614 9155180614
Part # Description Qty Price
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-35010B2

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

GRAY,TRIM1#,NO.1:ｲﾗｽﾄ参照

 1
73135-35020B2

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

GRAY,TRIM1#,NO.2:ｲﾗｽﾄ参照

 1
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-35010B2

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

GRAY,TRIM1#,NO.1:ｲﾗｽﾄ参照

 1
73135-35020B2

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

GRAY,TRIM1#,NO.2:ｲﾗｽﾄ参照

 1
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-37160B0

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020P2

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

GRAY,TRIM1#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-34030

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-37520B0

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

GRAY,TRIM1#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

XZU600,605,640,655,685,695..DCB

ﾌﾞﾗｯｸ

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-37530B0

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

GRAY,TRIM1#

 1
73210-37550B0

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1#

 1
73223B - COVER, FRONT SEAT BELT RETRACTOR, RH
73223-37020

XZU600,605,640,655,685,695..DCB

 1
73224 - COVER, FRONT SEAT BELT RETRACTOR, LH
73224-37010

XZU600,605,640,655,685,695..DCB

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-37470B0

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-37430B0

XZU600,605,640,655,685,695..DCB

SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1#

 1
73230-37420B0

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
73252A - COVER, SHOULDER BELT ANCHOR ADJUST
73252-37021B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
Common parts
90105-11041
90109-11027
90109-11048
90179-11010
90468-05017
91512-B1020
91551-80614

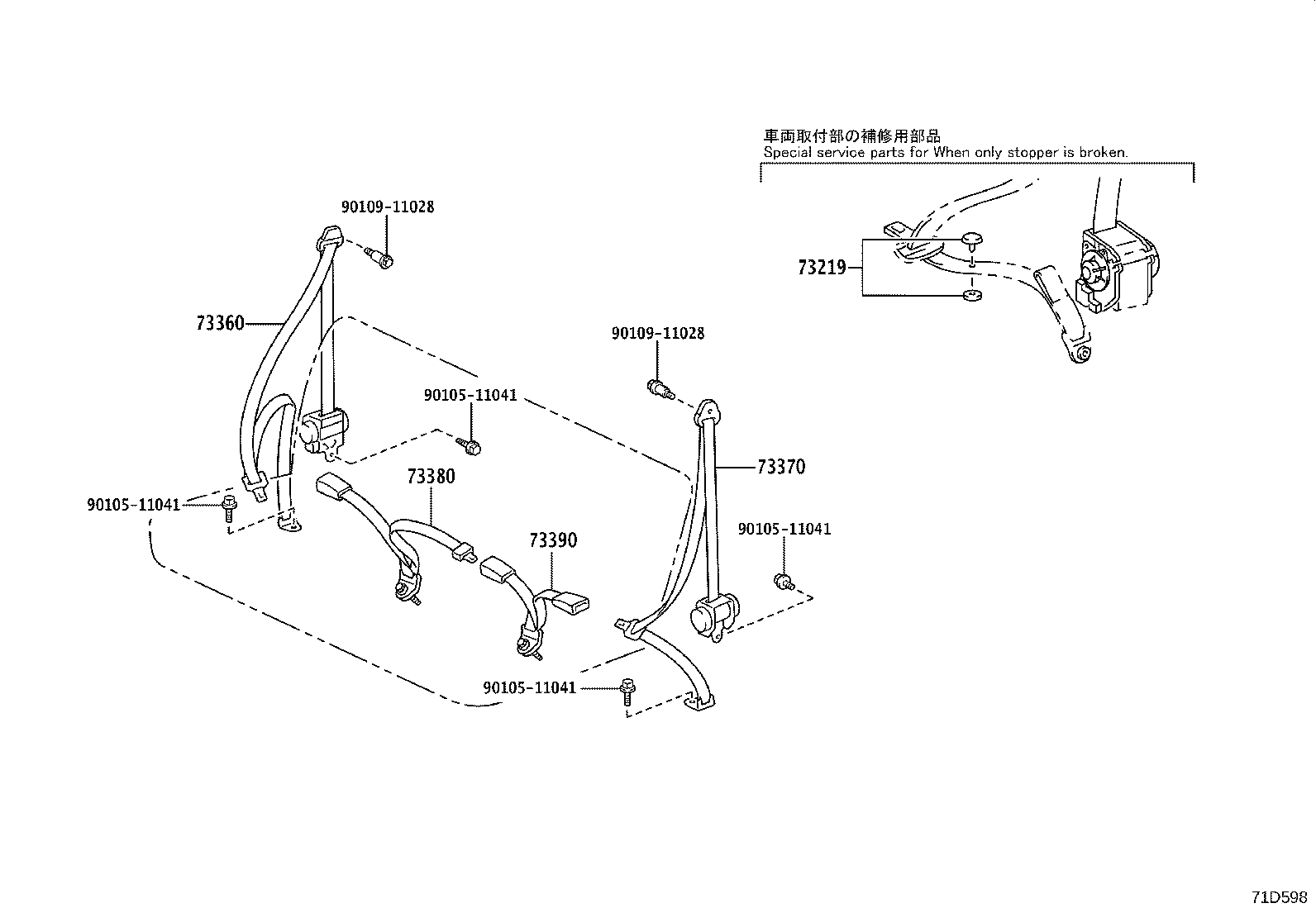

ILLUST NO. 2 OF 2(2103- )DCB

Click highlighted areas on diagram

ﾘﾔｼｰﾄ

diagram 73219 73360 73370 73380 73390 9010511041 9010511041 9010511041 9010511041 9010911028 9010911028
Part # Description Qty Price
73219 - STOPPER, TONGUE PLATE
73219-33010

XZU600,605,640,655,685,695..DCB

ﾌﾞﾗｯｸ

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-37100B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-37100B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-37100B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73390-37060B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
Common parts
90105-11041
90109-11028
