XZU675D-TWMQY (2021)
Toyota Dyna
(2103- )XZC675,XZU675,685,695
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-37140 |
XZC675,XZU675,685,695 # |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36211-37010 |
XZC675,XZU675,685,695 |
1 | ||
| 36211E - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT) | ||||
| 90363-60009 |
XZC675,XZU675,685,695 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90363-40093 |
XZC675,XZU675,685,695 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 36211E - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT) | ||||
| 90363-60009 |
XZC675,XZU675,685,695 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90363-40093 |
XZC675,XZU675,685,695 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 36211J - SHIM (FOR TRANSFER INPUT SHAFT) | ||||
| 90564-67090 |
XZC675,XZU675,685,695 厚さ=0.68 |
1 | ||
| 90564-67086 |
XZC675,XZU675,685,695 厚さ=0.52 |
1 | ||
| 90564-67085 |
XZC675,XZU675,685,695 厚さ=0.48 |
1 | ||
| 90564-67083 |
XZC675,XZU675,685,695 厚さ=0.40 |
1 | ||
| 90564-67087 |
XZC675,XZU675,685,695 厚さ=0.56 |
1 | ||
| 90564-67091 |
XZC675,XZU675,685,695 厚さ=0.72 |
1 | ||
| 90564-67088 |
XZC675,XZU675,685,695 厚さ=0.60 |
1 | ||
| 90564-67089 |
XZC675,XZU675,685,695 厚さ=0.64 |
1 | ||
| 90564-67084 |
XZC675,XZU675,685,695 厚さ=0.44 |
1 | ||
| 90564-67092 |
XZC675,XZU675,685,695 厚さ=0.76 |
1 | ||
| 36231B - SHIM (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90564-53028 |
XZC675,XZU675,685,695 厚さ=0.92 |
1 | ||
| 90564-53027 |
XZC675,XZU675,685,695 厚さ=0.89 |
1 | ||
| 90564-53025 |
XZC675,XZU675,685,695 厚さ=0.83 |
1 | ||
| 90564-53031 |
XZC675,XZU675,685,695 厚さ=1.01 |
1 | ||
| 90564-53038 |
XZC675,XZU675,685,695 厚さ=1.22 |
1 | ||
| 90564-53026 |
XZC675,XZU675,685,695 厚さ=0.86 |
1 | ||
| 90564-53035 |
XZC675,XZU675,685,695 厚さ=1.13 |
1 | ||
| 90564-53032 |
XZC675,XZU675,685,695 厚さ=1.04 |
1 | ||
| 90564-53030 |
XZC675,XZU675,685,695 厚さ=0.98 |
1 | ||
| 90564-53029 |
XZC675,XZU675,685,695 厚さ=0.95 |
1 | ||
| 90564-53037 |
XZC675,XZU675,685,695 厚さ=1.19 |
1 | ||
| 90564-53042 |
XZC675,XZU675,685,695 厚さ=1.34 |
1 | ||
| 90564-53036 |
XZC675,XZU675,685,695 厚さ=1.16 |
1 | ||
| 90564-53033 |
XZC675,XZU675,685,695 厚さ=1.07 |
1 | ||
| 90564-53034 |
XZC675,XZU675,685,695 厚さ=1.10 |
1 | ||
| 90564-53043 |
XZC675,XZU675,685,695 厚さ=1.37 |
1 | ||
| 90564-53039 |
XZC675,XZU675,685,695 厚さ=1.25 |
1 | ||
| 90564-53040 |
XZC675,XZU675,685,695 厚さ=1.28 |
1 | ||
| 90564-53041 |
XZC675,XZU675,685,695 厚さ=1.31 |
1 | ||
| 90564-53046 |
XZC675,XZU675,685,695 厚さ=1.46 |
1 | ||
| 90564-53044 |
XZC675,XZU675,685,695 厚さ=1.40 |
1 | ||
| 90564-53045 |
XZC675,XZU675,685,695 厚さ=1.43 |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-42010 |
XZC675,XZU675,685,695 |
2 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-42010 |
XZC675,XZU675,685,695 |
2 | ||
| 36234 - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36234-37010 |
XZC675,XZU675,685,695 |
1 | ||
| 36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT) | ||||
| 90363-30089 |
XZC675,XZU675,685,695 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90363-35083 |
XZC675,XZU675,685,695 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT) | ||||
| 90363-30089 |
XZC675,XZU675,685,695 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90363-35083 |
XZC675,XZU675,685,695 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 36234C - SPACER (FOR TRANSFER OUTPUT FRONT SHAFT) | ||||
| 90560-42003 |
XZC675,XZU675,685,695 |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-37010 |
XZC675,XZU675,685,695 |
1 | ||
| 36292 - SPROCKET, TRANSFER DRIVEN | ||||
| 36292-37010 |
XZC675,XZU675,685,695 |
1 | ||
| 36293 - CHAIN, TRANSFER FRONT DRIVE | ||||
| 36293-37010 |
XZC675,XZU675,685,695 |
1 | ||
| 41330 - COUPLING ASSY, CENTER DIFFERENTIAL CONTROL | ||||
| 41330-37010 |
XZC675,XZU675,685,695 |
1 | ||

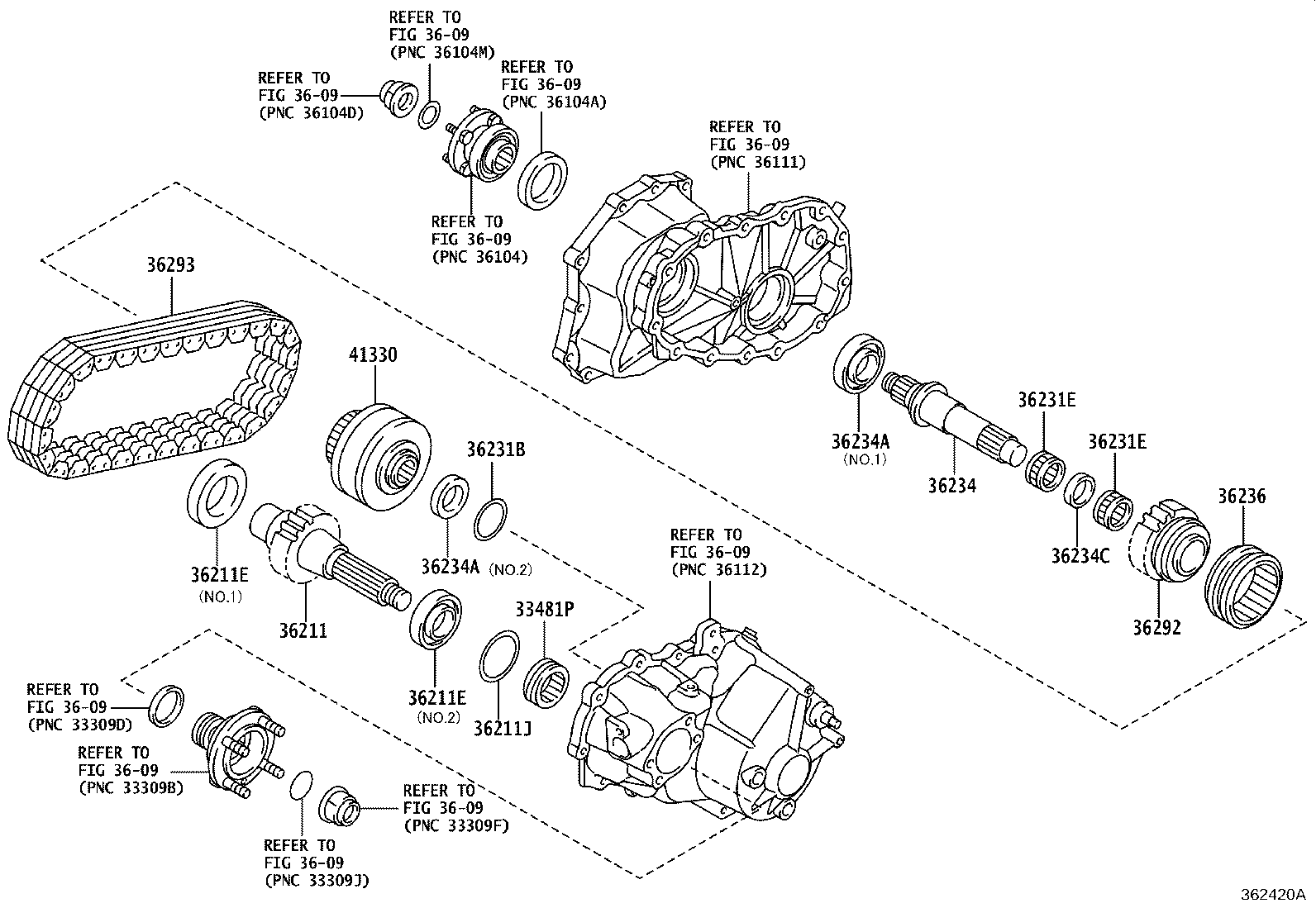

| Linked diagrams | ||||
| 3609 | ||||
