XZU675-TQMQY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

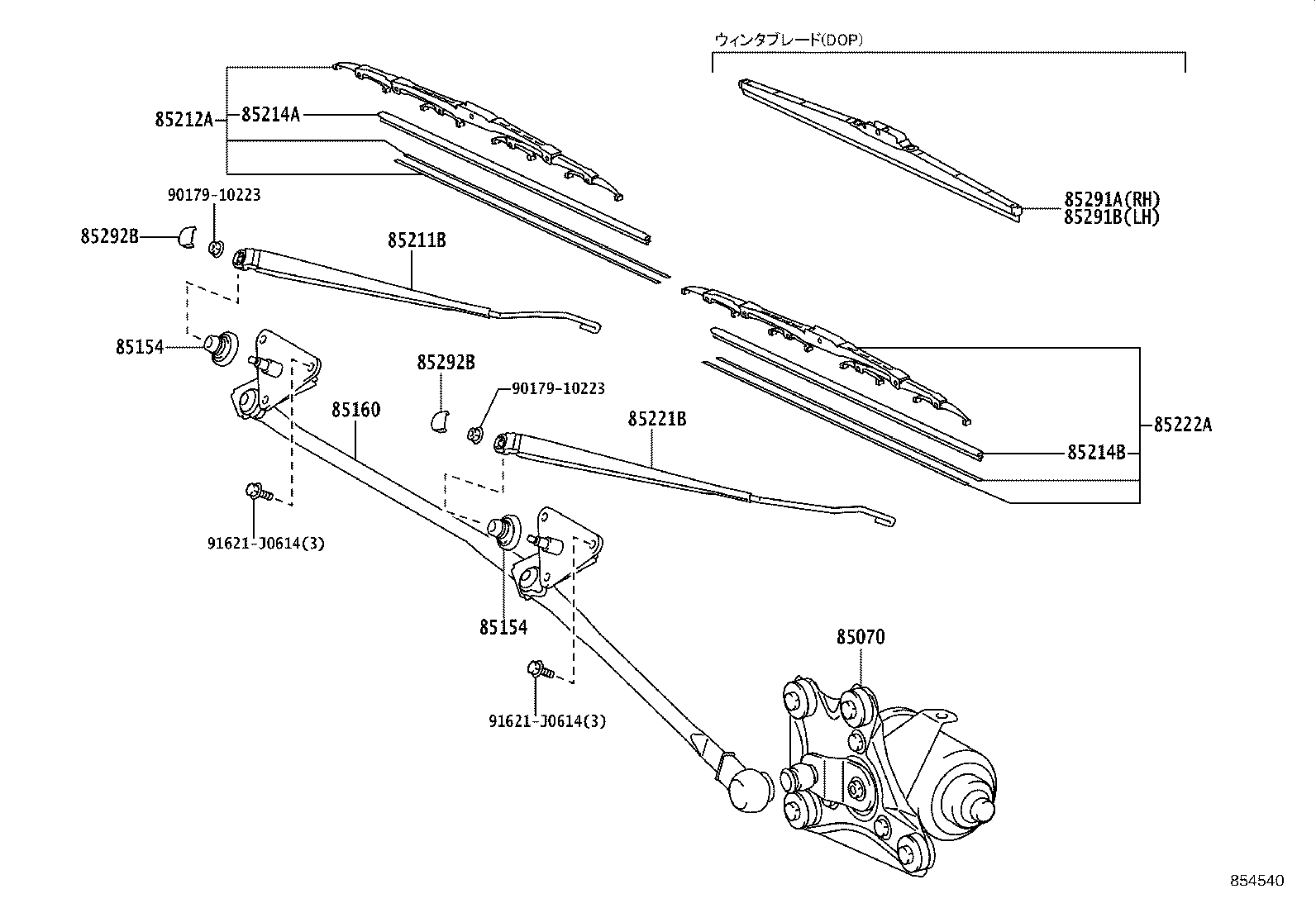

Click highlighted areas on diagram

diagram 85070 85154 85154 85160 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291B 85292B 85292B 9017910223 9017910223 91621J0614 91621J0614
Part # Description Qty Price
85070 - MOTOR & BRACKET ASSY, FRONT WIPER
85070-37430

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
85154 - PACKING, FRONT WIPER SHAFT
85154-37030

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 2
85154 - PACKING, FRONT WIPER SHAFT
85154-37030

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 2
85160 - LINK ASSY, WINDSHIELD WIPER
85150-37150

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
85211B - ARM, FRONT WIPER, RH
85211-37251

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
85212A - BLADE, FR WIPER, RH
85212-37081

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
85214A - RUBBER, WIPER, RH
85214-24051

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
85214B - RUBBER, WIPER, LH
85214-24051

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
85221B - ARM, FRONT WIPER, LH
85221-37251

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
85222A - BLADE, FR WIPER, LH
85222-37141

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-33060

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-33060

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 2
Common parts
90179-10223
91621-J0614
