XZU675-TQMQY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

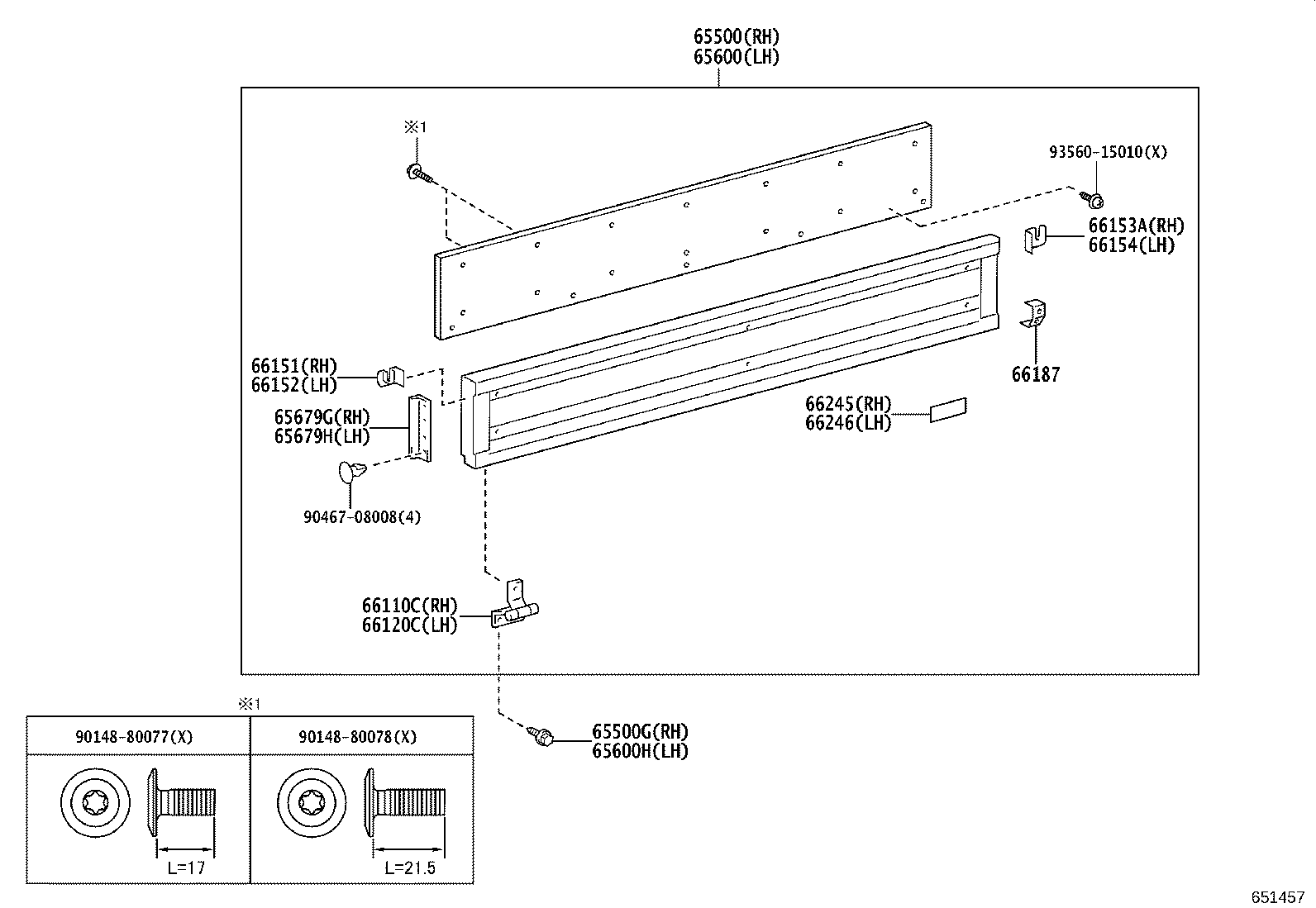

ILLUST NO. 1 OF 2(2103- )T2,T3,T4,T5..CBU

Click highlighted areas on diagram

diagram 65500 65500G 65600 65600H 65679G 65679H 66110C 66120C 66151 66152 66153A 66154 66187 66245 66246 9014880077 9014880078 9046708008 9356015010
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-37C80

XZC605,675,XZU605,675..SCB..(T4,T5)..CBU

 1
65500G - BOLT, W/WASHER(FOR SIDE GATE, RH)
91551-80820

XZC605,645,675,XZU605,640,645,675,685..SCB..(T2,T3,T4,T5)..CBU

 10
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-37C40

XZC605,675,XZU605,675..SCB..(T4,T5)..CBU

 1
65600H - BOLT, W/WASHER(FOR SIDE GATE, LH)
91551-80820

XZC605,645,675,XZU605,640,645,675,685..SCB..(T2,T3,T4,T5)..CBU

 10
65679G - SEAL, SIDE GATE
65679-37011

XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU

 1
65679H - SEAL, SIDE GATE
65679-37011

XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU

 1
66110C - HINGE ASSY, SIDE GATE, NO.1 RH
65010-37071

XZC605,645,675,XZU605,640,645,675,685..SCB..(T2,T3,T4,T5)..CBU

 5
66120C - HINGE ASSY, SIDE GATE, NO.1 LH
65010-37071

XZC605,645,675,XZU605,640,645,675,685..SCB..(T2,T3,T4,T5)..CBU

 5
66151 - LATCH, SIDE GATE FEMALE, RH
66151-37030

XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU

 1
66152 - LATCH, SIDE GATE FEMALE, LH
66152-37030

XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU

 1
66153A - LATCH, TAIL GATE FEMALE, RH
66153-37010

XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU

 1
66154 - LATCH, TAIL GATE FEMALE, LH
66154-37010

XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU

 1
66187 - HANDLE, SIDE GATE LATCH, CENTER NO.2
66187-37040

XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU

右側

 1
66187-37050

XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU

左側

 1
66245 - PROTECTOR, REAR BODY, NO.3 RH
66243-37060

XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU

 4
66246 - PROTECTOR, REAR BODY, NO.3 LH
66243-37060

XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU

 4
Common parts
90148-80077
90148-80078
90467-08008
93560-15010

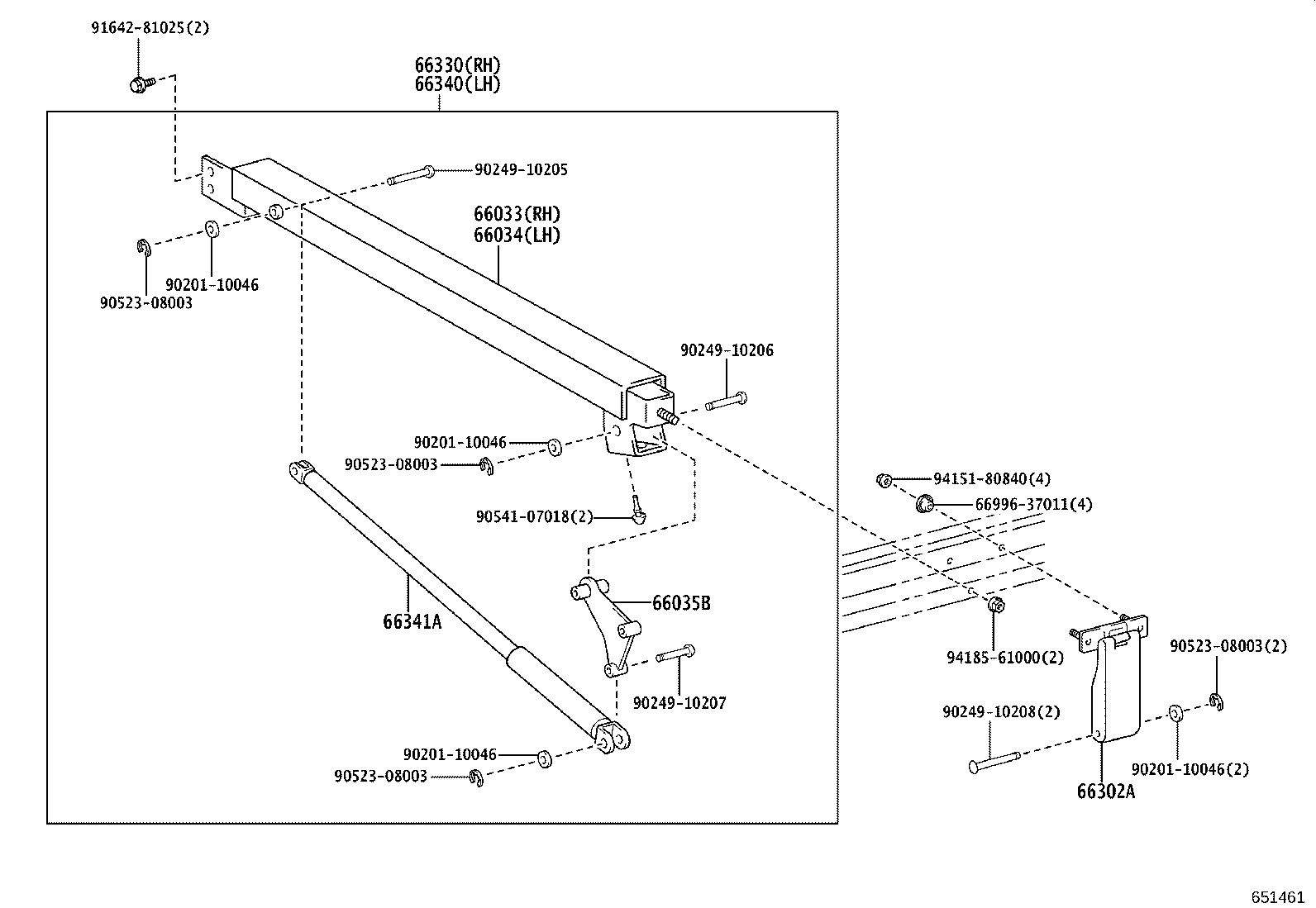

ILLUST NO. 2 OF 2(2103- )XZU645..20T..CBU ; (2103- )XZC605,645,675,XZU605,675..SCB..T2,T4,T5..

Click highlighted areas on diagram

ｻｲﾄﾞｹﾞｰﾄﾍﾙﾊﾟ

diagram 66033 66034 66035B 66302A 66330 66340 66341A 6699637011 9020110046 9020110046 9020110046 9020110046 9024910205 9024910206 9024910207 9024910208 9052308003 9052308003 9052308003 9052308003 9054107018 9164281025 9415180840 9418561000
Part # Description Qty Price
66033 - BRACKET SUB-ASSY, GATE HELPER, NO.3
66033-37120

XZU645..20T..CBU;XZC605,645,675,XZU605,675..SCB..(T2,T4,T5)..CBU

 1
66034 - BRACKET SUB-ASSY, GATE HELPER, NO.3 LH
66034-37040

XZU645..20T..CBU;XZC605,645,675,XZU605,675..SCB..(T2,T4,T5)..CBU

 1
66035B - BELLCRANK SUB-ASSY, GATE HELPER
66035-37030

XZU645..20T..CBU;XZC605,645,675,XZU605,675..SCB..(T2,T4,T5)..CBU

 2
66302A - LINK SUB-ASSY, GATE HELPER
66302-37052

XZU645..20T..CBU;XZC605,645,675,XZU605,675..SCB..(T2,T4,T5)..CBU

 2
66330 - HELPER ASSY, GATE, RH
66330-37070

XZU645..20T..CBU;XZC605,645,675,XZU605,675..SCB..(T2,T4,T5)..CBU

***

 1
66340 - HELPER ASSY, GATE, LH
66340-37070

XZU645..20T..CBU;XZC605,645,675,XZU605,675..SCB..(T2,T4,T5)..CBU

***

 1
66341A - STAY, GATE HELPER
66341-37070

XZU645..20T..CBU;XZC605,645,675,XZU605,675..SCB..(T2,T4,T5)..CBU

 2
Common parts
66996-37011
90201-10046
90249-10205
90249-10206
90249-10207
90249-10208
90523-08003
90541-07018
91642-81025
94151-80840
94185-61000
