XZU675-TQMQY (2021)
Toyota Dyna

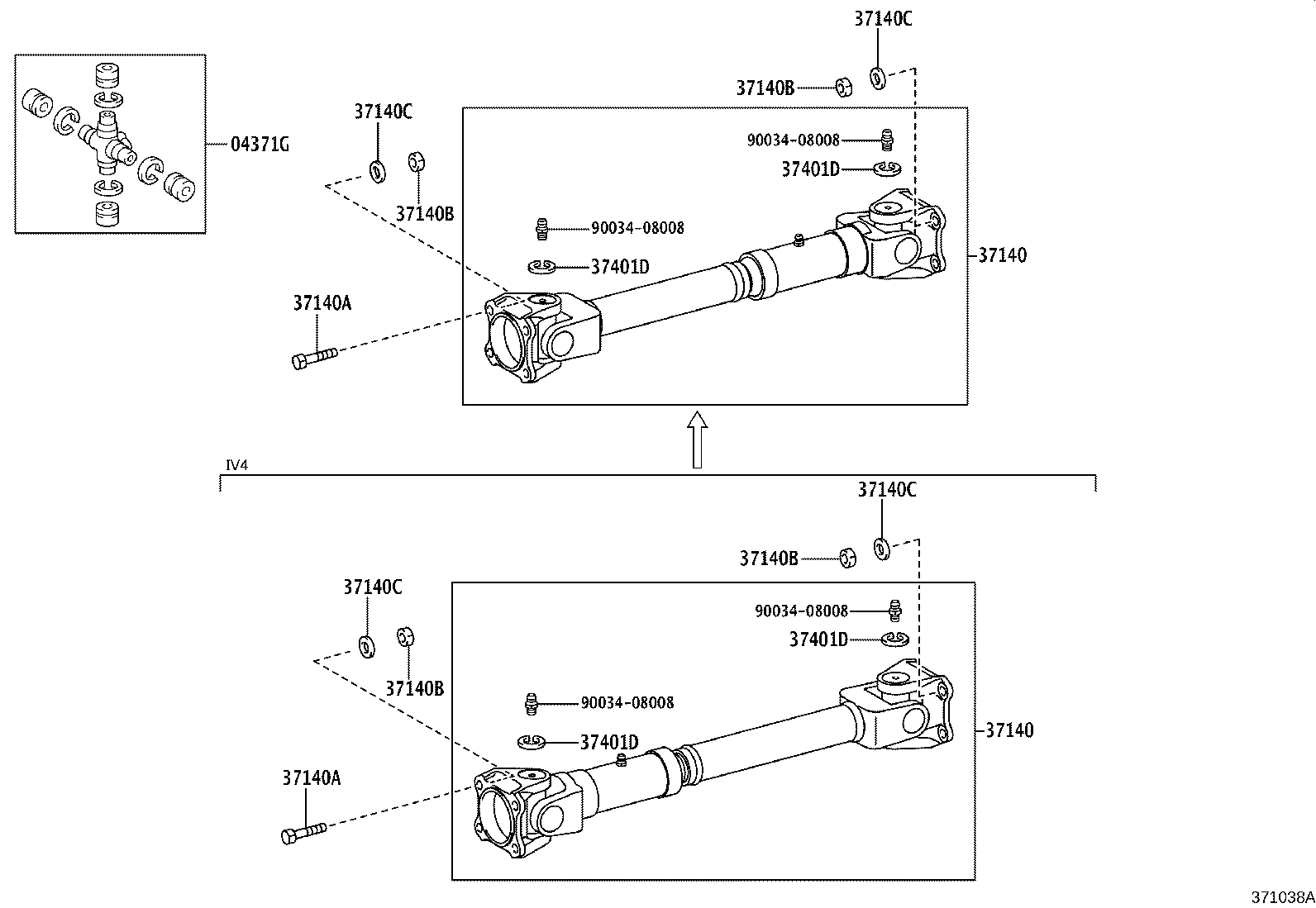

ILLUST NO. 1 OF 2(2103- )XZC675,XZU675,685,695
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371G - SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04375-37010 |
XZC675,XZU675,685,695 |
2 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37110-37J90 |
XZC675,XZU675,685,695..CBU,IV3,IV6 |
1 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37110-37J90 |
XZC675,XZU675,685,695..CBU,IV3,IV6 |
1 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90031-01196 |
XZC675,XZU675,685,695 |
4 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90031-01196 |
XZC675,XZU675,685,695 |
4 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90031-70112 |
XZC675,XZU675,685,695 |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90031-70112 |
XZC675,XZU675,685,695 |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90031-70112 |
XZC675,XZU675,685,695 |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90031-70112 |
XZC675,XZU675,685,695 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90032-04031 |
XZC675,XZU675,685,695 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90032-04031 |
XZC675,XZU675,685,695 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90032-04031 |
XZC675,XZU675,685,695 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90032-04031 |
XZC675,XZU675,685,695 |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90035-21034 |
XZC675,XZU675,685,695 厚さ=1.53 |
8 | ||
| 90035-21035 |
XZC675,XZU675,685,695 厚さ=1.59 |
8 | ||
| 90035-21033 |
XZC675,XZU675,685,695 厚さ=1.50 |
8 | ||
| 90035-21037 |
XZC675,XZU675,685,695 厚さ=1.68 |
8 | ||
| 90035-21036 |
XZC675,XZU675,685,695 厚さ=1.62 |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90035-21034 |
XZC675,XZU675,685,695 厚さ=1.53 |
8 | ||
| 90035-21035 |
XZC675,XZU675,685,695 厚さ=1.59 |
8 | ||
| 90035-21033 |
XZC675,XZU675,685,695 厚さ=1.50 |
8 | ||
| 90035-21037 |
XZC675,XZU675,685,695 厚さ=1.68 |
8 | ||
| 90035-21036 |
XZC675,XZU675,685,695 厚さ=1.62 |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90035-21034 |
XZC675,XZU675,685,695 厚さ=1.53 |
8 | ||
| 90035-21035 |
XZC675,XZU675,685,695 厚さ=1.59 |
8 | ||
| 90035-21033 |
XZC675,XZU675,685,695 厚さ=1.50 |
8 | ||
| 90035-21037 |
XZC675,XZU675,685,695 厚さ=1.68 |
8 | ||
| 90035-21036 |
XZC675,XZU675,685,695 厚さ=1.62 |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90035-21034 |
XZC675,XZU675,685,695 厚さ=1.53 |
8 | ||
| 90035-21035 |
XZC675,XZU675,685,695 厚さ=1.59 |
8 | ||
| 90035-21033 |
XZC675,XZU675,685,695 厚さ=1.50 |
8 | ||
| 90035-21037 |
XZC675,XZU675,685,695 厚さ=1.68 |
8 | ||
| 90035-21036 |
XZC675,XZU675,685,695 厚さ=1.62 |
8 | ||
| Common parts | ||||
| 90034-08008 | ||||

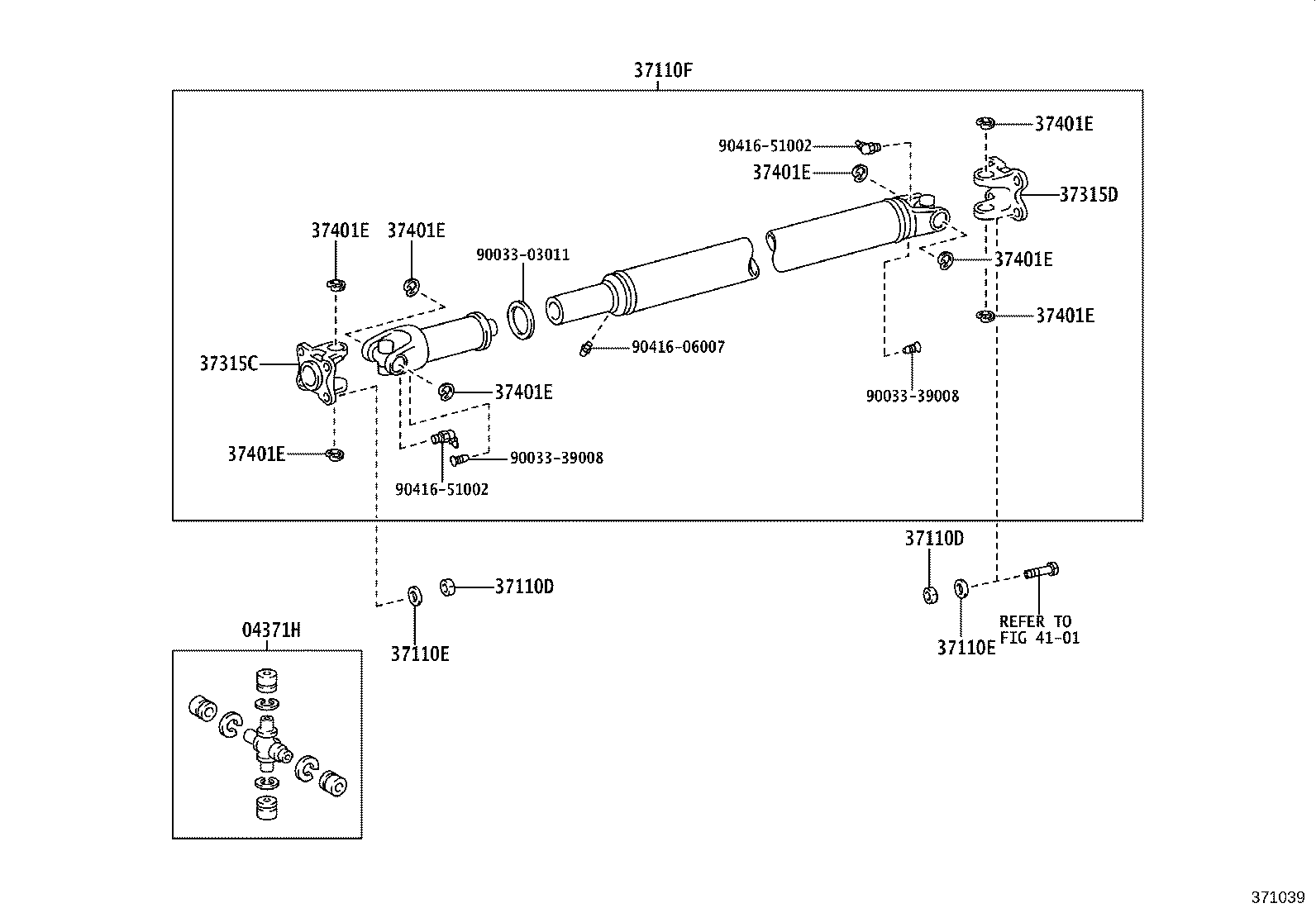

ILLUST NO. 2 OF 2(2103- )XZC675,XZU675,685
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37110 |
XZC60#,630,645,675,XZU60#,630,64#,675,685 |
2 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
8 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-37J70 |
XZC675,XZU675 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37050 |
XZC675,XZU675,685 |
1 | ||
| 37315D - YOKE, NO.2, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZC675,XZU675,685 厚さ=1.65 |
4 | ||
| 90035-21038 |
XZC675,XZU675,685 厚さ=1.68 |
4 | ||
| 90035-21041 |
XZC675,XZU675,685 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZC675,XZU675,685 厚さ=1.56 |
4 | ||
| 90035-21044 |
XZC675,XZU675,685 厚さ=1.50 |
4 | ||
| 90035-21040 |
XZC675,XZU675,685 厚さ=1.62 |
4 | ||
| 90035-21043 |
XZC675,XZU675,685 厚さ=1.53 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZC675,XZU675,685 厚さ=1.65 |
4 | ||
| 90035-21038 |
XZC675,XZU675,685 厚さ=1.68 |
4 | ||
| 90035-21041 |
XZC675,XZU675,685 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZC675,XZU675,685 厚さ=1.56 |
4 | ||
| 90035-21044 |
XZC675,XZU675,685 厚さ=1.50 |
4 | ||
| 90035-21040 |
XZC675,XZU675,685 厚さ=1.62 |
4 | ||
| 90035-21043 |
XZC675,XZU675,685 厚さ=1.53 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZC675,XZU675,685 厚さ=1.65 |
4 | ||
| 90035-21038 |
XZC675,XZU675,685 厚さ=1.68 |
4 | ||
| 90035-21041 |
XZC675,XZU675,685 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZC675,XZU675,685 厚さ=1.56 |
4 | ||
| 90035-21044 |
XZC675,XZU675,685 厚さ=1.50 |
4 | ||
| 90035-21040 |
XZC675,XZU675,685 厚さ=1.62 |
4 | ||
| 90035-21043 |
XZC675,XZU675,685 厚さ=1.53 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZC675,XZU675,685 厚さ=1.65 |
4 | ||
| 90035-21038 |
XZC675,XZU675,685 厚さ=1.68 |
4 | ||
| 90035-21041 |
XZC675,XZU675,685 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZC675,XZU675,685 厚さ=1.56 |
4 | ||
| 90035-21044 |
XZC675,XZU675,685 厚さ=1.50 |
4 | ||
| 90035-21040 |
XZC675,XZU675,685 厚さ=1.62 |
4 | ||
| 90035-21043 |
XZC675,XZU675,685 厚さ=1.53 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZC675,XZU675,685 厚さ=1.65 |
4 | ||
| 90035-21038 |
XZC675,XZU675,685 厚さ=1.68 |
4 | ||
| 90035-21041 |
XZC675,XZU675,685 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZC675,XZU675,685 厚さ=1.56 |
4 | ||
| 90035-21044 |
XZC675,XZU675,685 厚さ=1.50 |
4 | ||
| 90035-21040 |
XZC675,XZU675,685 厚さ=1.62 |
4 | ||
| 90035-21043 |
XZC675,XZU675,685 厚さ=1.53 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZC675,XZU675,685 厚さ=1.65 |
4 | ||
| 90035-21038 |
XZC675,XZU675,685 厚さ=1.68 |
4 | ||
| 90035-21041 |
XZC675,XZU675,685 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZC675,XZU675,685 厚さ=1.56 |
4 | ||
| 90035-21044 |
XZC675,XZU675,685 厚さ=1.50 |
4 | ||
| 90035-21040 |
XZC675,XZU675,685 厚さ=1.62 |
4 | ||
| 90035-21043 |
XZC675,XZU675,685 厚さ=1.53 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZC675,XZU675,685 厚さ=1.65 |
4 | ||
| 90035-21038 |
XZC675,XZU675,685 厚さ=1.68 |
4 | ||
| 90035-21041 |
XZC675,XZU675,685 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZC675,XZU675,685 厚さ=1.56 |
4 | ||
| 90035-21044 |
XZC675,XZU675,685 厚さ=1.50 |
4 | ||
| 90035-21040 |
XZC675,XZU675,685 厚さ=1.62 |
4 | ||
| 90035-21043 |
XZC675,XZU675,685 厚さ=1.53 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZC675,XZU675,685 厚さ=1.65 |
4 | ||
| 90035-21038 |
XZC675,XZU675,685 厚さ=1.68 |
4 | ||
| 90035-21041 |
XZC675,XZU675,685 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZC675,XZU675,685 厚さ=1.56 |
4 | ||
| 90035-21044 |
XZC675,XZU675,685 厚さ=1.50 |
4 | ||
| 90035-21040 |
XZC675,XZU675,685 厚さ=1.62 |
4 | ||
| 90035-21043 |
XZC675,XZU675,685 厚さ=1.53 |
4 | ||
| Common parts | ||||
| 90033-03011 | ||||
| 90033-39008 | ||||
| 90416-06007 | ||||
| 90416-51002 | ||||
| Linked diagrams | ||||
| 4101 | ||||
