XZU675-TQMMY3 (2021)
Toyota Dyna

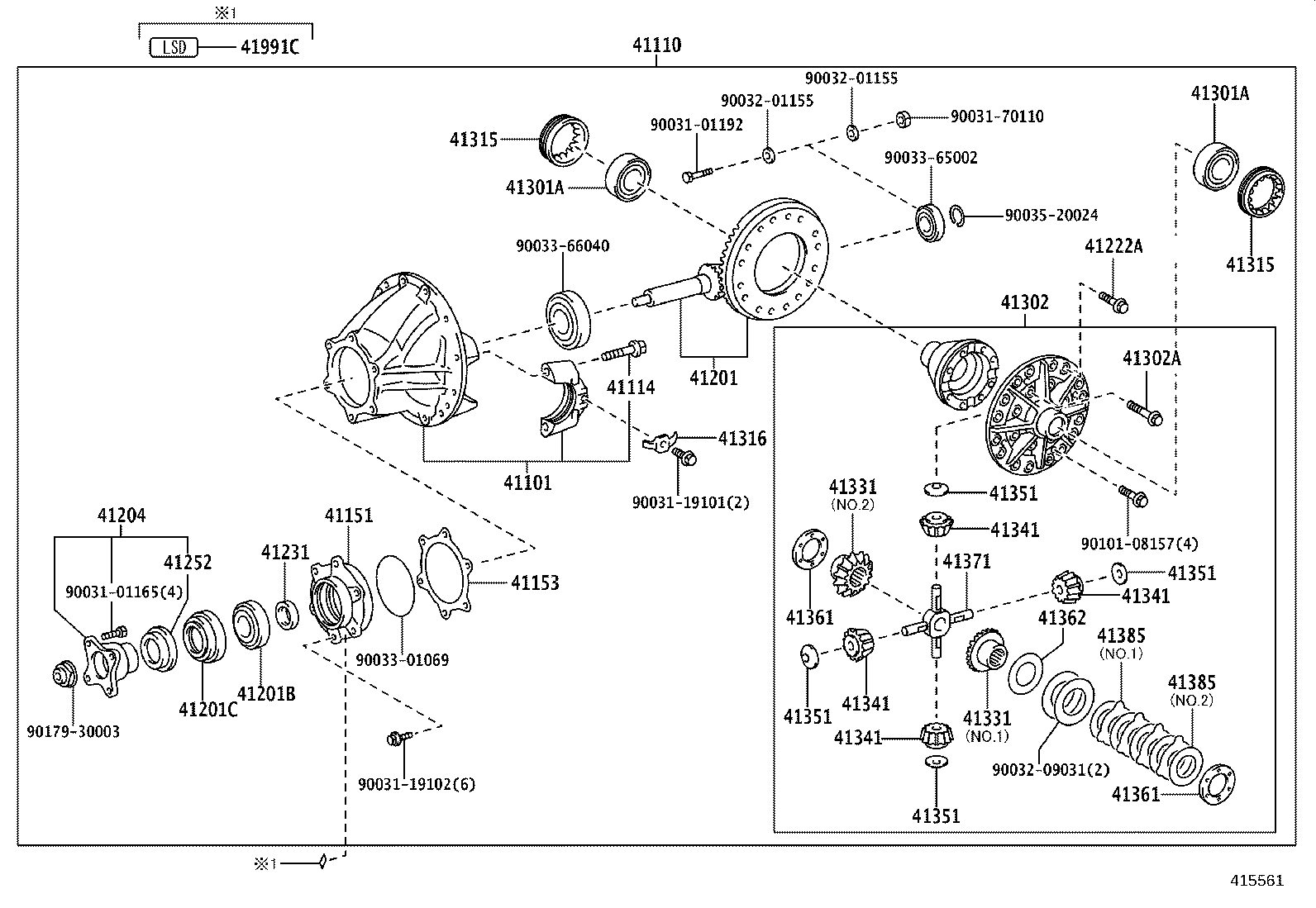

ILLUST NO. 1 OF 2(2103- )XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5
ｻｲｼｭｳｹﾞﾝｿｸﾋ=4.333ｶﾗ5.571ﾏﾃﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-37061 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-37420 |
XZU685;XZU642,675,695..CBU,IV3;XZU600,650..6F..(35T,40T)..IV6;XZC675,XZU602,640..MTM..(20T,40T);XZU600,605,652..6FC..(30T,35T)..(IV5,IV6) *FGR=41:8=5.125,ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD) |
1 | ||
| 41110-37360 |
XZU685;XZU642,675,695..CBU,IV3;XZU600,650..6F..(35T,40T);XZC675,XZU602,640..MTM..(20T,40T);XZU600,605,652..6FC..(30T,35T)..(IV5,IV6) *FGR=41:8=5.125 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| SZ105-16030 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
4 | ||
| 41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41151-37031 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
1 | ||
| 41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE | ||||
| 41153-37090 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=0.30 |
1 | ||
| 41153-37120 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=0.50 |
1 | ||
| 41153-37100 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=0.40 |
1 | ||
| 41153-37110 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=0.45 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-37231 |
XZU685;XZU642,675,695..CBU,IV3;XZU600,650..6F..(35T,40T);XZC675,XZU602,640..MTM..(20T,40T);XZU600,605,652..6FC..(30T,35T)..(IV5,IV6) *FGR=41:8=5.125 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| SZ366-45013 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90033-11039 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37080 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90031-01203 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
16 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-37450 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.475 |
1 | ||
| 41231-37420 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.400 |
1 | ||
| 41231-37430 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.425 |
1 | ||
| 41231-37440 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.450 |
1 | ||
| 41231-37480 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.550 |
1 | ||
| 41231-37470 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.525 |
1 | ||
| 41231-37460 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.500 |
1 | ||
| 41231-37490 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.575 |
1 | ||
| 41231-37520 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.650 |
1 | ||
| 41231-37500 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.600 |
1 | ||
| 41231-37530 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.675 |
1 | ||
| 41231-37540 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.700 |
1 | ||
| 41231-37560 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.750 |
1 | ||
| 41231-37510 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.625 |
1 | ||
| 41231-37570 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.775 |
1 | ||
| 41231-37580 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.800 |
1 | ||
| 41231-37590 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.825 |
1 | ||
| 41231-37550 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.725 |
1 | ||
| 41231-37600 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.850 |
1 | ||
| 41231-37610 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.875 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| S3734-11560 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-55089 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-55089 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-37050 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD) |
1 | ||
| 41301-37090 |
XZU675,685,695;XZU650..35T,40T;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,652..(30T,35T)..(IV5,IV6) |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90031-05098 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-37010 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37050 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 41331-37040 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41331-37060 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD),NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37050 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 41331-37040 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41331-37060 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD),NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 厚さ=2.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 厚さ=2.0 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| S7655-34080 |
XZU600..DM5..6F..30T;XZC675,XZU602,642,675,685,695;XZU600,605,640,650,652..(DM6,T3)..(IV4,IV5,IV6,IV7) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD) |
1 | ||
| S7655-34020 |
XZU685;XZU642,675,695..CBU,IV3;XZU600,650..6F..(35T,40T);XZC675,XZU602,640..MTM..(20T,40T);XZU600,605,652..6FC..(30T,35T)..(IV5,IV6) ﾏｰｸ 5.13 |
1 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01192 | ||||
| 90031-19101 | ||||
| 90031-19102 | ||||
| 90031-70110 | ||||
| 90032-01155 | ||||
| 90033-01069 | ||||
| 90033-65002 | ||||
| 90033-66040 | ||||
| 90035-20024 | ||||
| 90179-30003 | ||||
ILLUST NO. 1 OF 2(2103- )
ｱﾘ(LSD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-37061 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-37420 |
XZU685;XZU642,675,695..CBU,IV3;XZU600,650..6F..(35T,40T)..IV6;XZC675,XZU602,640..MTM..(20T,40T);XZU600,605,652..6FC..(30T,35T)..(IV5,IV6) *FGR=41:8=5.125,ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD) |
1 | ||
| 41110-37360 |
XZU685;XZU642,675,695..CBU,IV3;XZU600,650..6F..(35T,40T);XZC675,XZU602,640..MTM..(20T,40T);XZU600,605,652..6FC..(30T,35T)..(IV5,IV6) *FGR=41:8=5.125 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| SZ105-16030 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
4 | ||
| 41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41151-37031 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
1 | ||
| 41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE | ||||
| 41153-37090 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=0.30 |
1 | ||
| 41153-37120 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=0.50 |
1 | ||
| 41153-37100 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=0.40 |
1 | ||
| 41153-37110 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=0.45 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-37231 |
XZU685;XZU642,675,695..CBU,IV3;XZU600,650..6F..(35T,40T);XZC675,XZU602,640..MTM..(20T,40T);XZU600,605,652..6FC..(30T,35T)..(IV5,IV6) *FGR=41:8=5.125 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| SZ366-45013 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90033-11039 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37080 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90031-01203 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
16 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-37450 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.475 |
1 | ||
| 41231-37420 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.400 |
1 | ||
| 41231-37430 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.425 |
1 | ||
| 41231-37440 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.450 |
1 | ||
| 41231-37480 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.550 |
1 | ||
| 41231-37470 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.525 |
1 | ||
| 41231-37460 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.500 |
1 | ||
| 41231-37490 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.575 |
1 | ||
| 41231-37520 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.650 |
1 | ||
| 41231-37500 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.600 |
1 | ||
| 41231-37530 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.675 |
1 | ||
| 41231-37540 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.700 |
1 | ||
| 41231-37560 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.750 |
1 | ||
| 41231-37510 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.625 |
1 | ||
| 41231-37570 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.775 |
1 | ||
| 41231-37580 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.800 |
1 | ||
| 41231-37590 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.825 |
1 | ||
| 41231-37550 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.725 |
1 | ||
| 41231-37600 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.850 |
1 | ||
| 41231-37610 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.875 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| S3734-11560 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-55089 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-55089 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-37050 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD) |
1 | ||
| 41301-37090 |
XZU675,685,695;XZU650..35T,40T;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,652..(30T,35T)..(IV5,IV6) |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90031-05098 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-37010 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37050 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 41331-37040 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41331-37060 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD),NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37050 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 41331-37040 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41331-37060 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD),NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 厚さ=2.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 厚さ=2.0 |
2 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 90035-60090 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) 厚さ=2.85,ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD) |
1 | ||
| 90035-60091 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) 厚さ=3.0,ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD) |
1 | ||
| 90035-60092 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) 厚さ=3.15,ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD) |
1 | ||
| 90035-60093 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) 厚さ=3.3,ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD) |
1 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
1 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-37010 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 41385-37020 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD),NO.2:ｲﾗｽﾄ参照 |
5 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-37010 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 41385-37020 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD),NO.2:ｲﾗｽﾄ参照 |
5 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| S7655-34080 |
XZU600..DM5..6F..30T;XZC675,XZU602,642,675,685,695;XZU600,605,640,650,652..(DM6,T3)..(IV4,IV5,IV6,IV7) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD) |
1 | ||
| S7655-34020 |
XZU685;XZU642,675,695..CBU,IV3;XZU600,650..6F..(35T,40T);XZC675,XZU602,640..MTM..(20T,40T);XZU600,605,652..6FC..(30T,35T)..(IV5,IV6) ﾏｰｸ 5.13 |
1 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01192 | ||||
| 90031-19101 | ||||
| 90031-19102 | ||||
| 90031-70110 | ||||
| 90032-01155 | ||||
| 90032-09031 | ||||
| 90033-01069 | ||||
| 90033-65002 | ||||
| 90033-66040 | ||||
| 90035-20024 | ||||
| 90101-08157 | ||||
| 90179-30003 | ||||

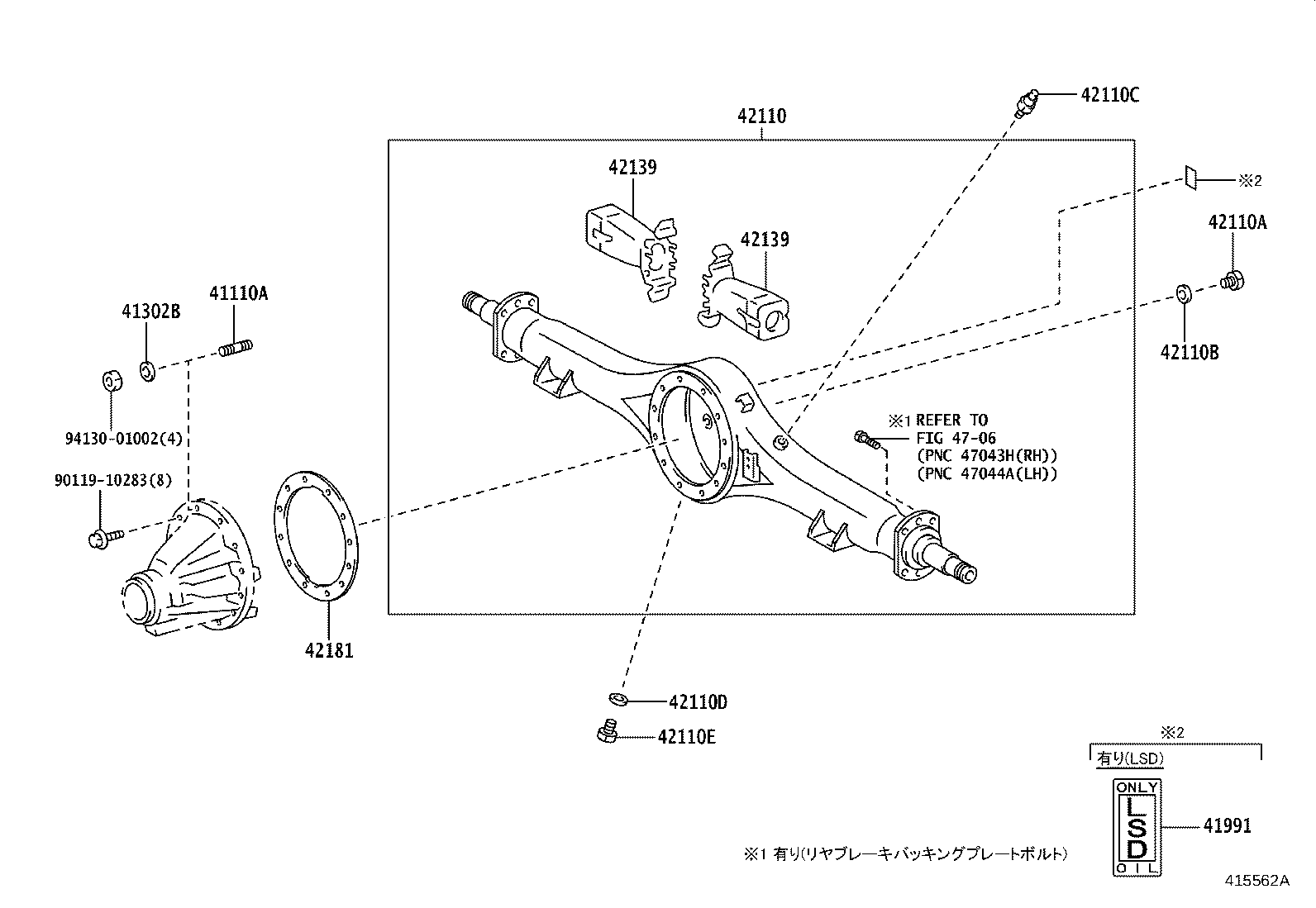

ILLUST NO. 2 OF 2(2103- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10060 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 ﾈｼﾞ部長さ=19&12,長さ=46 |
2 | ||
| 90116-10059 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 ﾈｼﾞ部長さ=19&12,長さ=57 |
2 | ||
| 41302B - WASHER, SPRING(FOR REAR DIFFERENTIAL CASE) | ||||
| 94511-01000 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
4 | ||
| 41991 - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-22010 |
XZU600..DM5..6F..30T;XZC675,XZU602,642,675,685,695;XZU600,605,640,650,652..(DM6,T3)..(IV4,IV5,IV6,IV7) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD) |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-37D20 |
XZU605..IV5;XZC675,XZU600,675..DM3,DM6,T4 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03138 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-37010 |
XZU645..20T;XZC675,XZU600,605,630,675..DM3,DM5,DM6,DM7,T4,T5 |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-37010 |
XZU645..20T;XZC675,XZU600,605,630,675..DM3,DM5,DM6,DM7,T4,T5 |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
1 | ||
| Common parts | ||||
| 90119-10283 | ||||
| 94130-01002 | ||||
| Linked diagrams | ||||
| 4706 | ||||
ILLUST NO. 1 OF 2(2103- )XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5
ｻｲｼｭｳｹﾞﾝｿｸﾋ=3.363ｶﾗ4.100ﾏﾃﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-37061 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-37420 |
XZU685;XZU642,675,695..CBU,IV3;XZU600,650..6F..(35T,40T)..IV6;XZC675,XZU602,640..MTM..(20T,40T);XZU600,605,652..6FC..(30T,35T)..(IV5,IV6) *FGR=41:8=5.125,ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD) |
1 | ||
| 41110-37360 |
XZU685;XZU642,675,695..CBU,IV3;XZU600,650..6F..(35T,40T);XZC675,XZU602,640..MTM..(20T,40T);XZU600,605,652..6FC..(30T,35T)..(IV5,IV6) *FGR=41:8=5.125 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-37231 |
XZU685;XZU642,675,695..CBU,IV3;XZU600,650..6F..(35T,40T);XZC675,XZU602,640..MTM..(20T,40T);XZU600,605,652..6FC..(30T,35T)..(IV5,IV6) *FGR=41:8=5.125 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| SZ366-45013 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90033-11039 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37080 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90031-01203 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
16 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-37450 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.475 |
1 | ||
| 41231-37420 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.400 |
1 | ||
| 41231-37430 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.425 |
1 | ||
| 41231-37440 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.450 |
1 | ||
| 41231-37480 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.550 |
1 | ||
| 41231-37470 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.525 |
1 | ||
| 41231-37460 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.500 |
1 | ||
| 41231-37490 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.575 |
1 | ||
| 41231-37520 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.650 |
1 | ||
| 41231-37500 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.600 |
1 | ||
| 41231-37530 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.675 |
1 | ||
| 41231-37540 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.700 |
1 | ||
| 41231-37560 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.750 |
1 | ||
| 41231-37510 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.625 |
1 | ||
| 41231-37570 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.775 |
1 | ||
| 41231-37580 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.800 |
1 | ||
| 41231-37590 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.825 |
1 | ||
| 41231-37550 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.725 |
1 | ||
| 41231-37600 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.850 |
1 | ||
| 41231-37610 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 厚さ=14.875 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| S3734-11560 |
XZU655..30T;XZU650..T3..6F;XZU650..6FC..30T;XZU655..T3..6F..20T;XZU600..DM5..6F..30T;XZU600,605,640,645..DM3,DM6,T3;XZC675,XZU602,630,642,652,675,685,695 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-55089 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-55089 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90031-05098 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-37010 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37050 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 41331-37040 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41331-37060 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD),NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37050 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 41331-37040 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
2 | ||
| 41331-37060 |
XZU675,685,695;XZU600,605..DM6..6FC..20T;XZU600..DM5..6F..30T..IV3;XZU600..(30T,40T)..(CBU,IV6);XZC675,XZU602,640,642..20T,40T;XZU605,650,652..(30T,35T)..(IV5,IV6) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD),NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 厚さ=2.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 厚さ=2.0 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..DM3,DM5,DM6,DM7,T3,T4,T5 |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| S7655-34080 |
XZU600..DM5..6F..30T;XZC675,XZU602,642,675,685,695;XZU600,605,640,650,652..(DM6,T3)..(IV4,IV5,IV6,IV7) ﾃﾞｨﾌｧﾚﾝｼｬﾙﾛｯｸ−有り(LSD) |
1 | ||
| S7655-34020 |
XZU685;XZU642,675,695..CBU,IV3;XZU600,650..6F..(35T,40T);XZC675,XZU602,640..MTM..(20T,40T);XZU600,605,652..6FC..(30T,35T)..(IV5,IV6) ﾏｰｸ 5.13 |
1 | ||
| Common parts | ||||
| 90031-19101 | ||||
| SZ105-16030 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
