XZU655-TQTQY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )CBU

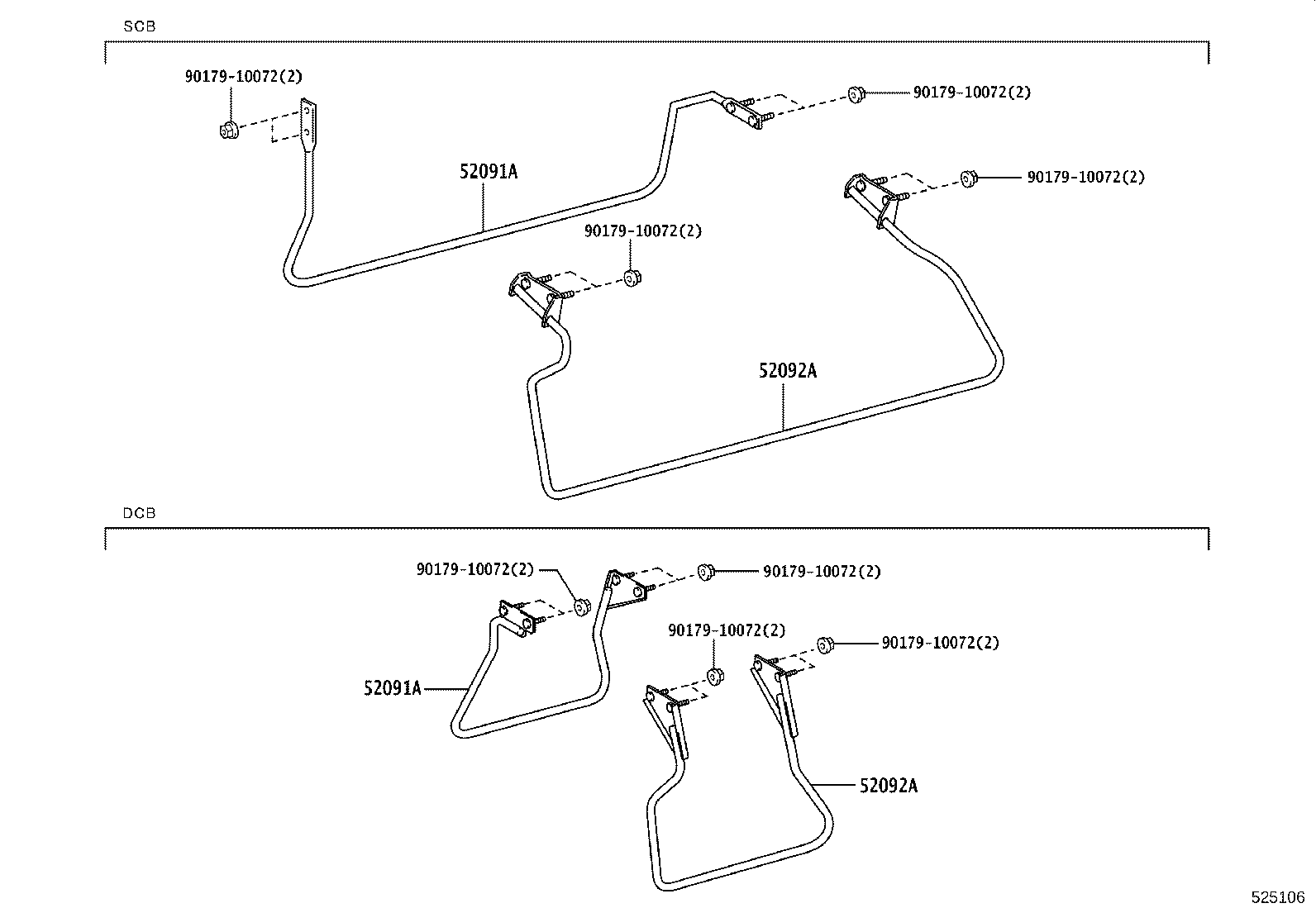

Click highlighted areas on diagram

ﾅｼ(ｻｲﾄﾞﾊﾞﾝﾊﾟﾊﾞｰ)

diagram 52091A 52091A 52092A 52092A 9017910072 9017910072 9017910072 9017910072 9017910072 9017910072 9017910072 9017910072
Part # Description Qty Price
52091A - STAY SUB-ASSY, SIDE BUMPER, FRONT RH
52091-37B40

XZU645..T4..30T..CBU;XZC655,XZU650,655,685,695..T4..CBU

 1
52091A - STAY SUB-ASSY, SIDE BUMPER, FRONT RH
52091-37B40

XZU645..T4..30T..CBU;XZC655,XZU650,655,685,695..T4..CBU

 1
52092A - STAY SUB-ASSY, SIDE BUMPER, FRONT LH
52092-37A50

XZU645..T4..30T..CBU;XZC655,XZU650,655,685,695..T4..CBU

 1
52092A - STAY SUB-ASSY, SIDE BUMPER, FRONT LH
52092-37A50

XZU645..T4..30T..CBU;XZC655,XZU650,655,685,695..T4..CBU

 1
Common parts
90179-10072

(2103- )CBU

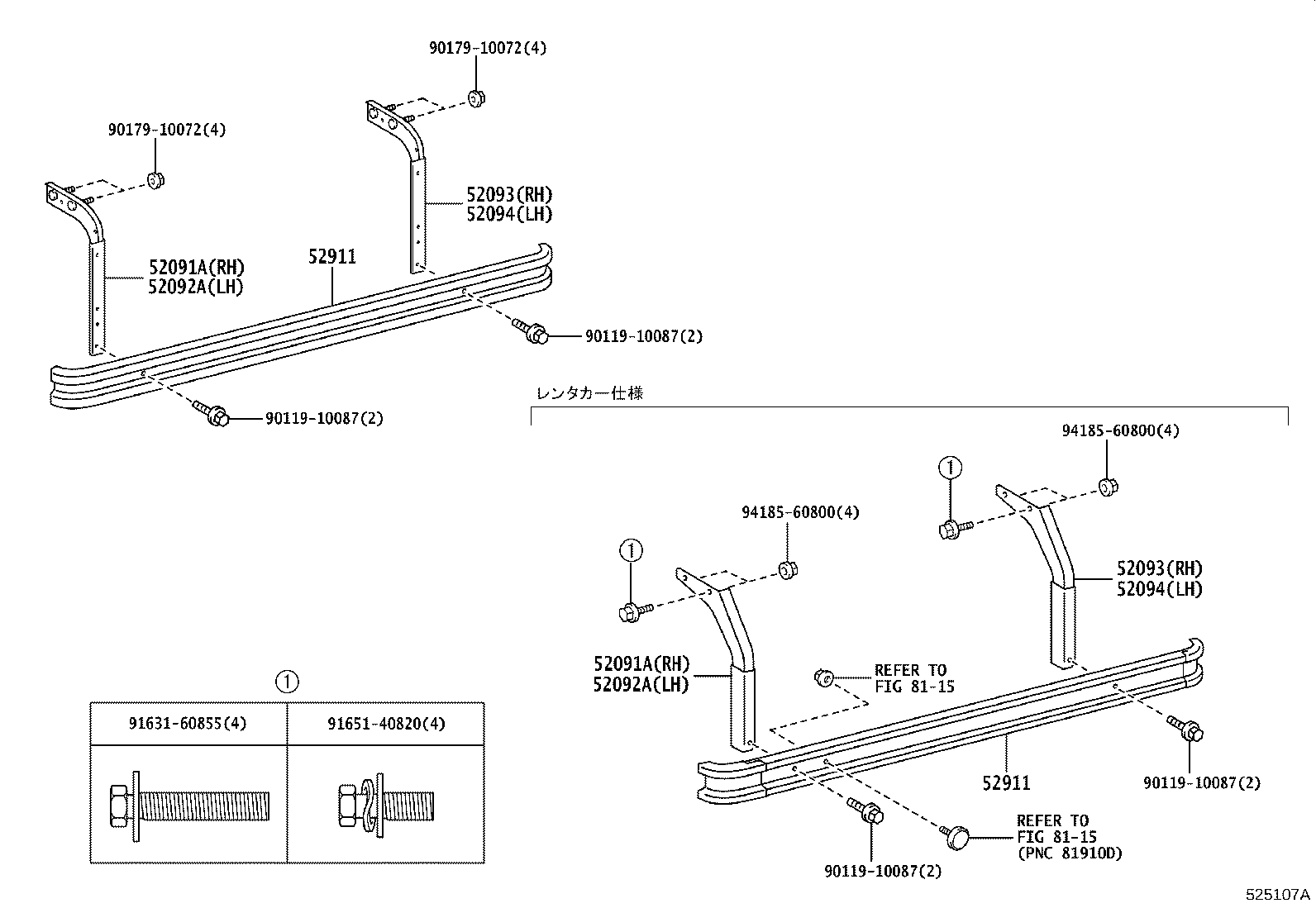

Click highlighted areas on diagram

ｱﾘ(ｻｲﾄﾞﾊﾞﾝﾊﾟﾊﾞｰ)

diagram 52091A 52091A 52092A 52092A 52093 52093 52094 52094 52911 52911 8115 8115 9011910087 9011910087 9011910087 9011910087 9017910072 9017910072 9163160855 9165140820 9418560800 9418560800
Part # Description Qty Price
52091A - STAY SUB-ASSY, SIDE BUMPER, FRONT RH
52091-37B40

XZU645..T4..30T..CBU;XZC655,XZU650,655,685,695..T4..CBU

 1
52091A - STAY SUB-ASSY, SIDE BUMPER, FRONT RH
52091-37B40

XZU645..T4..30T..CBU;XZC655,XZU650,655,685,695..T4..CBU

 1
52092A - STAY SUB-ASSY, SIDE BUMPER, FRONT LH
52092-37A50

XZU645..T4..30T..CBU;XZC655,XZU650,655,685,695..T4..CBU

 1
52092A - STAY SUB-ASSY, SIDE BUMPER, FRONT LH
52092-37A50

XZU645..T4..30T..CBU;XZC655,XZU650,655,685,695..T4..CBU

 1
52093 - STAY SUB-ASSY, SIDE BUMPER, REAR RH
52091-37B40

XZU645..T4..30T..CBU;XZC655,XZU650,655,685,695..T4..CBU

 1
52093 - STAY SUB-ASSY, SIDE BUMPER, REAR RH
52091-37B40

XZU645..T4..30T..CBU;XZC655,XZU650,655,685,695..T4..CBU

 1
52094 - STAY SUB-ASSY, SIDE BUMPER, REAR LH
52092-37A50

XZU645..T4..30T..CBU;XZC655,XZU650,655,685,695..T4..CBU

 1
52094 - STAY SUB-ASSY, SIDE BUMPER, REAR LH
52092-37A50

XZU645..T4..30T..CBU;XZC655,XZU650,655,685,695..T4..CBU

 1
52911 - BAR, SIDE BUMPER
52911-37D20

XZC655,XZU65#,695..SCB..(20T,30T,35T)..CBU

 2
52911 - BAR, SIDE BUMPER
52911-37D20

XZC655,XZU65#,695..SCB..(20T,30T,35T)..CBU

 2
Common parts
90119-10087
90179-10072
91631-60855
91651-40820
94185-60800
Linked diagrams
8115
