XZU655-TQTQY (2021)
Toyota Dyna
ILLUST NO. 1 OF 2(2103- )
ｱﾘ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33577E - GROMMET, SHIFT CABLE | ||||
| 33577-37050 |
XZC60#,645,655,XZU60#,64#,65#..6FC |
1 | ||
| 46300 - ACTUATOR ASSY, PARKING BRAKE W/BRACKET | ||||
| 46300-37054 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB |
1 | ||
| 46300-37054 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46300-37054 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37D31 |
XZC60#,645,655,XZU60#,64#,65#..SCB |
1 | ||
| 46420-37C91 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46420-37C91 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37D20 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46430-37F70 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| 46430-37J00 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46430-37J70 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6F..(CBU,IV3,IV5,IV6) |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-37080 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 46451-37080 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46451-37080 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37450 |
XZC60#,645,655,XZU60#,64#,65# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37450 |
XZC60#,645,655,XZU60#,64#,65# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37450 |
XZC60#,645,655,XZU60#,64#,65# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 84390C - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-37040C0 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 84390-37040C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB BLACK,TRIM1# |
1 | ||
| 84390-37040C0 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 33829-37210 | ||||
| 90467-08108 | ||||
| 91551-80816 | ||||
| 91551-80818 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 7554 | ||||
ILLUST NO. 1 OF 2(2103- )
ﾅｼ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33577E - GROMMET, SHIFT CABLE | ||||
| 33577-37050 |
XZC60#,645,655,XZU60#,64#,65#..6FC |
1 | ||
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37130C0 |
XZC60#,645,655,XZU600,605,640,645,650,655..6FC..(CBU,IV3,IV4) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37130C0 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..6F..(CBU,IV3,IV4,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37D31 |
XZC60#,645,655,XZU60#,64#,65#..SCB |
1 | ||
| 46420-37C91 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46420-37C91 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14003 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46420P - SPACER, PARKING BRAKE | ||||
| 90560-08002 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37D20 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46430-37F70 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| 46430-37J00 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46430-37J70 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6F..(CBU,IV3,IV5,IV6) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37450 |
XZC60#,645,655,XZU60#,64#,65# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37450 |
XZC60#,645,655,XZU60#,64#,65# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37450 |
XZC60#,645,655,XZU60#,64#,65# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 90461-08225 | ||||
| 91551-80816 | ||||
| 91551-80818 | ||||
| 91551-80825 | ||||
| 91651-40814 | ||||
| 94151-80800 | ||||
| S4736-11810 | ||||
| Linked diagrams | ||||
| 8401 | ||||

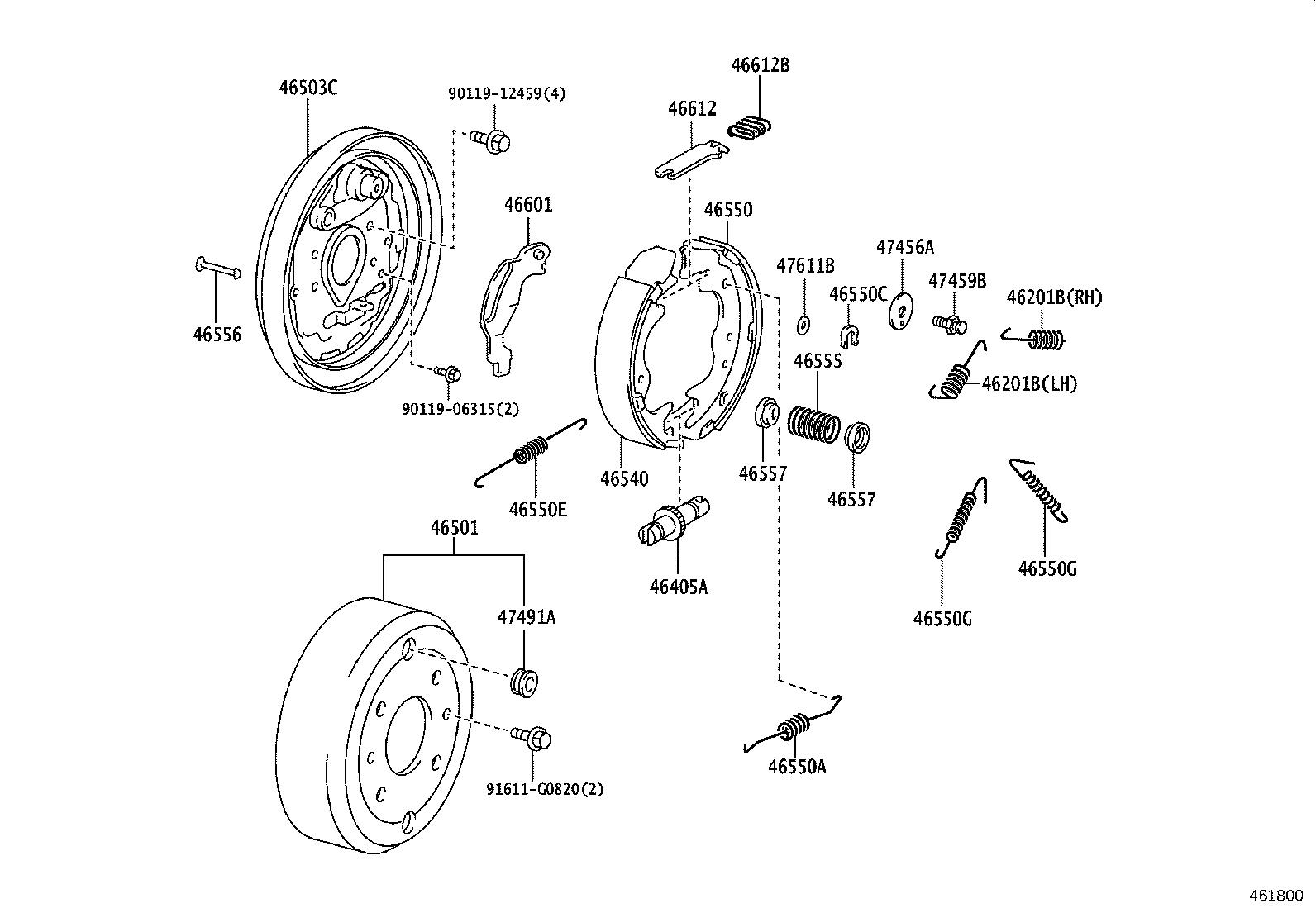

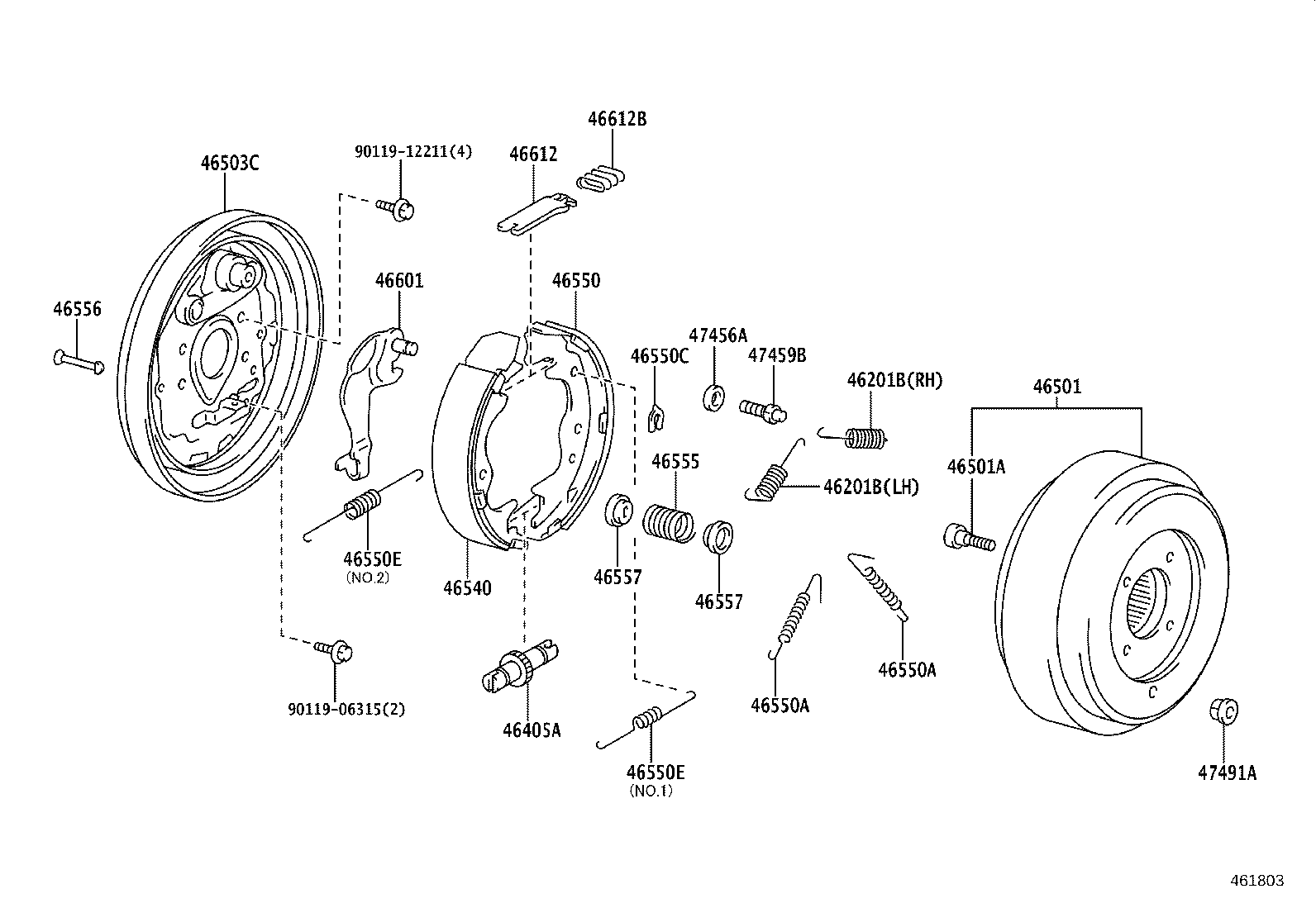

ILLUST NO. 2 OF 2(2103- )6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201B - SPRING, TENSION | ||||
| 90507-20020 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 右側 |
1 | ||
| 90507-20021 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 左側 |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90507-20020 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 右側 |
1 | ||
| 90507-20021 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 左側 |
1 | ||
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| 47405-36010 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37090 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 46501-37180 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| 46501-37170 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-37E90 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 46503-37681 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46503-37691 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-37030 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46540-37040 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| 46540-37060 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-37040 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| 46550-37050 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 46530-37030 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-23055 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 90905-06020 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
2 | ||
| 90506-18001 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07002 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 90213-06003 |
XZC60#,645,655,XZU60#,64#,65#..6FC |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 90506-14012 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 90506-14054 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC NO.2 |
1 | ||
| 90506-23049 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC NO.1 |
1 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
2 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16108 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 |
2 | ||
| 90501-16025 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-20030 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 |
2 | ||
| 47447-22010 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-37680 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46601-37E80 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 46601-36051 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36010 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46612-36050 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10001 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 90504-10010 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-35010 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 |
1 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 |
1 | ||
| 47491A - PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE) | ||||
| 46515-37040 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
2 | ||
| 47491-22020 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| 47611B - SHIM(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90564-09186 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F 厚さ=0.9 |
1 | ||
| 90564-09185 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F 厚さ=0.6 |
1 | ||
| 90564-09002 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F 厚さ=0.4 |
1 | ||
| 90564-09184 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F 厚さ=0.3 |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90119-12459 | ||||
| 91611-G0820 | ||||

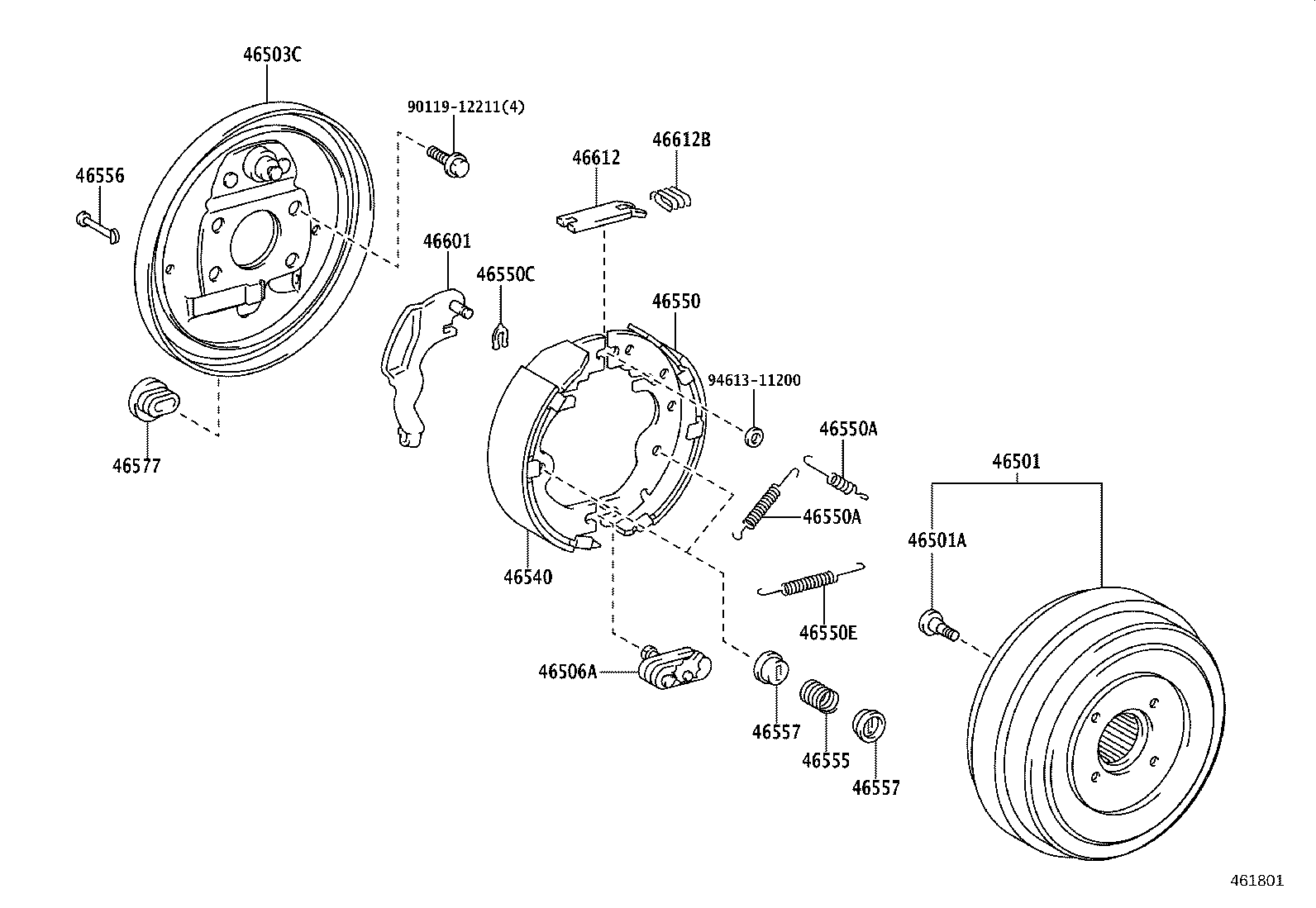

ILLUST NO. 2 OF 2(2103- )XZC60#,645,655,XZU600,605,640,645,650,655..6FC..CBU,IV3,IV4,IV5
ﾅｼ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37090 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 46501-37180 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| 46501-37170 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90031-01170 |
XZC60#,645,655,XZU60#,64#,65#..6FC |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-37E90 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 46503-37681 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46503-37691 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| 46506A - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46506-36010 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-37030 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46540-37040 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| 46540-37060 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-37040 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| 46550-37050 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 46530-37030 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-23055 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 90905-06020 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
2 | ||
| 90506-18001 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-23055 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 90905-06020 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
2 | ||
| 90506-18001 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07002 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 90213-06003 |
XZC60#,645,655,XZU60#,64#,65#..6FC |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 90506-14012 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 90506-14054 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC NO.2 |
1 | ||
| 90506-23049 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC NO.1 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16108 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 |
2 | ||
| 90501-16025 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-20030 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 |
2 | ||
| 47447-22010 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
4 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-36010 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-37680 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46601-37E80 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 46601-36051 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36010 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46612-36050 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10001 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 90504-10010 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 |
1 | ||
| Common parts | ||||
| 90119-12211 | ||||
| 94613-11200 | ||||
ILLUST NO. 2 OF 2(2103- )XZC60#,645,655,XZU600,605,640,645,650,655..6FC..CBU,IV3,IV4,IV5
ｱﾘ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201B - SPRING, TENSION | ||||
| 90507-20020 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 右側 |
1 | ||
| 90507-20021 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 左側 |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90507-20020 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 右側 |
1 | ||
| 90507-20021 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 左側 |
1 | ||
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| 47405-36010 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37090 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 46501-37180 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| 46501-37170 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90031-01170 |
XZC60#,645,655,XZU60#,64#,65#..6FC |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-37E90 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 46503-37681 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46503-37691 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-37030 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46540-37040 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| 46540-37060 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-37040 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| 46550-37050 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 46530-37030 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-23055 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 90905-06020 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
2 | ||
| 90506-18001 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-23055 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 90905-06020 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
2 | ||
| 90506-18001 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07002 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 90213-06003 |
XZC60#,645,655,XZU60#,64#,65#..6FC |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 90506-14012 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 90506-14054 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC NO.2 |
1 | ||
| 90506-23049 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC NO.1 |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 90506-14012 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 90506-14054 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC NO.2 |
1 | ||
| 90506-23049 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC NO.1 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16108 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 |
2 | ||
| 90501-16025 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-20030 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 |
2 | ||
| 47447-22010 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-37680 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46601-37E80 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 46601-36051 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36010 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46612-36050 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10001 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 90504-10010 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-35010 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 |
1 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
XZU600..6F;XZU605..SCB;XZU600..SCB..6FC;XZU605,640..DCB..6F;XZC60#,630,645,655,XZU602,630,64#,65#..CBU,IV3,IV6 |
1 | ||
| 47491A - PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE) | ||||
| 46515-37040 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
2 | ||
| 47491-22020 |
XZC60#,645,655,XZU60#,64#,65#..SCB..6FC |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90119-12211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
