XZU655-TQTQY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

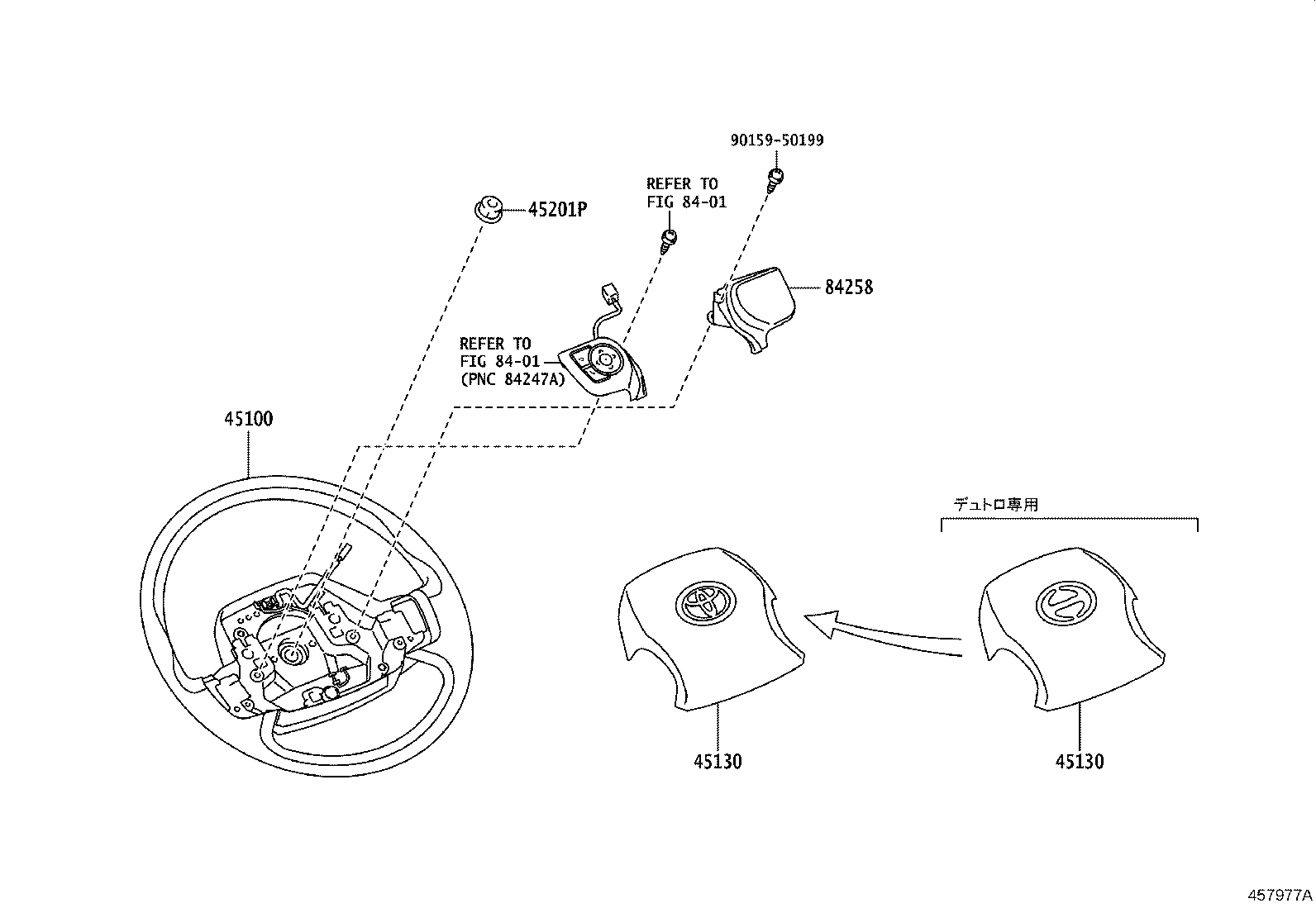

Click highlighted areas on diagram

diagram 45100 45130 45130 45201P 8401 8401 84258 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-37120C0

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-37220C0

XZU640..T4;XZU650..40T..CBU;XZU655..SCB..CBU;XZU655..30T..IV3;XZU675..20T..CBU;XZU675..T4..30T..CBU;XZU650,652..20T,30T,35T;XZU605..T5..6F..20T..IV3;XZU655..T3..6FC..20T..IV3;XZU640,675..(T3,T4)..(5F,6FC)..IV3;XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU60#,64#,685,695..SCB..(DM6,T3,T4,T5)..(CBU,IV5,IV6)

ﾃﾞｭﾄﾛ専用&SRSｴｱﾊﾞｯｸﾞ−無し,BLACK,TRIM1#

 1
45130-37210C0

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

ﾃﾞｭﾄﾛ専用,BLACK,TRIM1#

 1
45130-37240C0

XZU640..T4;XZU650..40T..CBU;XZU655..SCB..CBU;XZU655..30T..IV3;XZU675..20T..CBU;XZU675..T4..30T..CBU;XZU650,652..20T,30T,35T;XZU605..T5..6F..20T..IV3;XZU655..T3..6FC..20T..IV3;XZU640,675..(T3,T4)..(5F,6FC)..IV3;XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU60#,64#,685,695..SCB..(DM6,T3,T4,T5)..(CBU,IV5,IV6)

SRSｴｱﾊﾞｯｸﾞ−無し,BLACK,TRIM1#

 1
45130-37230C0

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-37220C0

XZU640..T4;XZU650..40T..CBU;XZU655..SCB..CBU;XZU655..30T..IV3;XZU675..20T..CBU;XZU675..T4..30T..CBU;XZU650,652..20T,30T,35T;XZU605..T5..6F..20T..IV3;XZU655..T3..6FC..20T..IV3;XZU640,675..(T3,T4)..(5F,6FC)..IV3;XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU60#,64#,685,695..SCB..(DM6,T3,T4,T5)..(CBU,IV5,IV6)

ﾃﾞｭﾄﾛ専用&SRSｴｱﾊﾞｯｸﾞ−無し,BLACK,TRIM1#

 1
45130-37210C0

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

ﾃﾞｭﾄﾛ専用,BLACK,TRIM1#

 1
45130-37240C0

XZU640..T4;XZU650..40T..CBU;XZU655..SCB..CBU;XZU655..30T..IV3;XZU675..20T..CBU;XZU675..T4..30T..CBU;XZU650,652..20T,30T,35T;XZU605..T5..6F..20T..IV3;XZU655..T3..6FC..20T..IV3;XZU640,675..(T3,T4)..(5F,6FC)..IV3;XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU60#,64#,685,695..SCB..(DM6,T3,T4,T5)..(CBU,IV5,IV6)

SRSｴｱﾊﾞｯｸﾞ−無し,BLACK,TRIM1#

 1
45130-37230C0

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

BLACK,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
84258 - COVER, STEERING PAD, RH
84258-37010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
Common parts
90159-50199
Linked diagrams
8401
