XZU655-TQTMY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )6FC

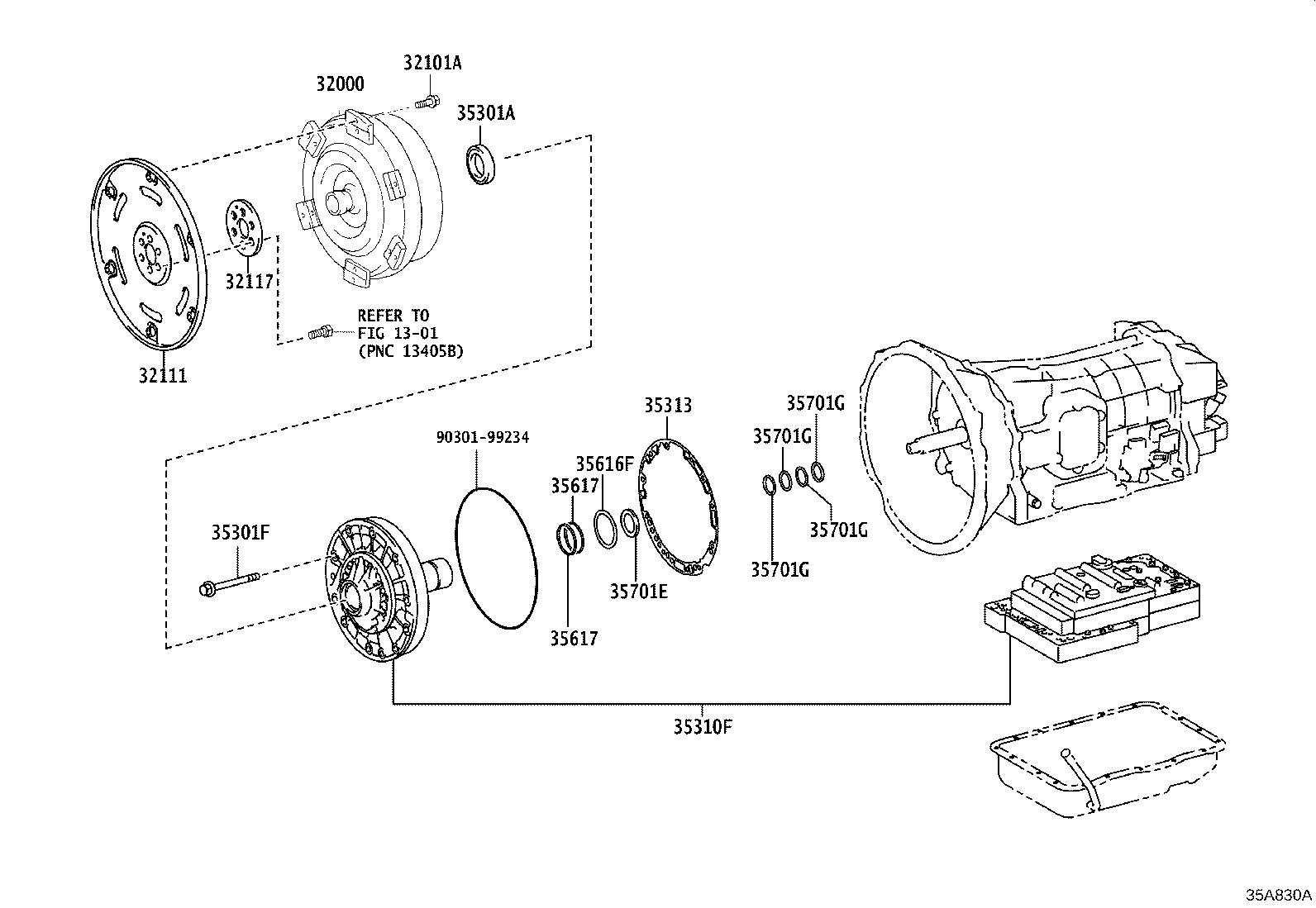

Click highlighted areas on diagram

A860E

diagram 1301 32000 32101A 32111 32117 35301A 35301F 35310F 35313 35616F 35617 35617 35701E 35701G 35701G 35701G 35701G 9030199234
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-37060

XZC60#,645,655,XZU60#,64#,65#..6FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-10894

XZC60#,645,655,XZU60#,64#,65#..6FC

*10−1.25PX28−23

 6
32111 - PLATE, PUMP IMPELLER DRIVE
32111-37050

XZC60#,645,655,XZU60#,64#,65#..6FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-37050

XZC60#,645,655,XZU60#,64#,65#..6FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-46009

XZC60#,645,655,XZU60#,64#,65#..6FC

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08476

XZC60#,645,655,XZU60#,64#,65#..6FC

*8−1.25PX71−30

 10
90105-08501

XZC60#,645,655,XZU60#,64#,65#..6FC

*8−1.25PX71−25

 1
35310F - PUMP ASSY, FRONT OIL
35310-37010

XZC60#,645,655,XZU60#,64#,65#..6FC

 1
35313 - GASKET, FRONT OIL PUMP COVER
35313-37010

XZC60#,645,655,XZU60#,64#,65#..6FC

 1
35616F - WASHER, CLUTCH DRUM THRUST
35616-37010

XZC60#,645,655,XZU60#,64#,65#..6FC

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-37010

XZC60#,645,655,XZU60#,64#,65#..6FC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-37010

XZC60#,645,655,XZU60#,64#,65#..6FC

 2
35701E - RACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
35789-37030

XZC60#,645,655,XZU60#,64#,65#..6FC

厚さ=1.6

 1
35789-37010

XZC60#,645,655,XZU60#,64#,65#..6FC

厚さ=0.81

 1
35789-37020

XZC60#,645,655,XZU60#,64#,65#..6FC

厚さ=1.1

 1
35701G - RING, INPUT SHAFT OIL SEAL
35712-37020

XZC60#,645,655,XZU60#,64#,65#..6FC

 4
35701G - RING, INPUT SHAFT OIL SEAL
35712-37020

XZC60#,645,655,XZU60#,64#,65#..6FC

 4
35701G - RING, INPUT SHAFT OIL SEAL
35712-37020

XZC60#,645,655,XZU60#,64#,65#..6FC

 4
35701G - RING, INPUT SHAFT OIL SEAL
35712-37020

XZC60#,645,655,XZU60#,64#,65#..6FC

 4
Common parts
90301-99234
Linked diagrams
1301
