XZU655-TKTMY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

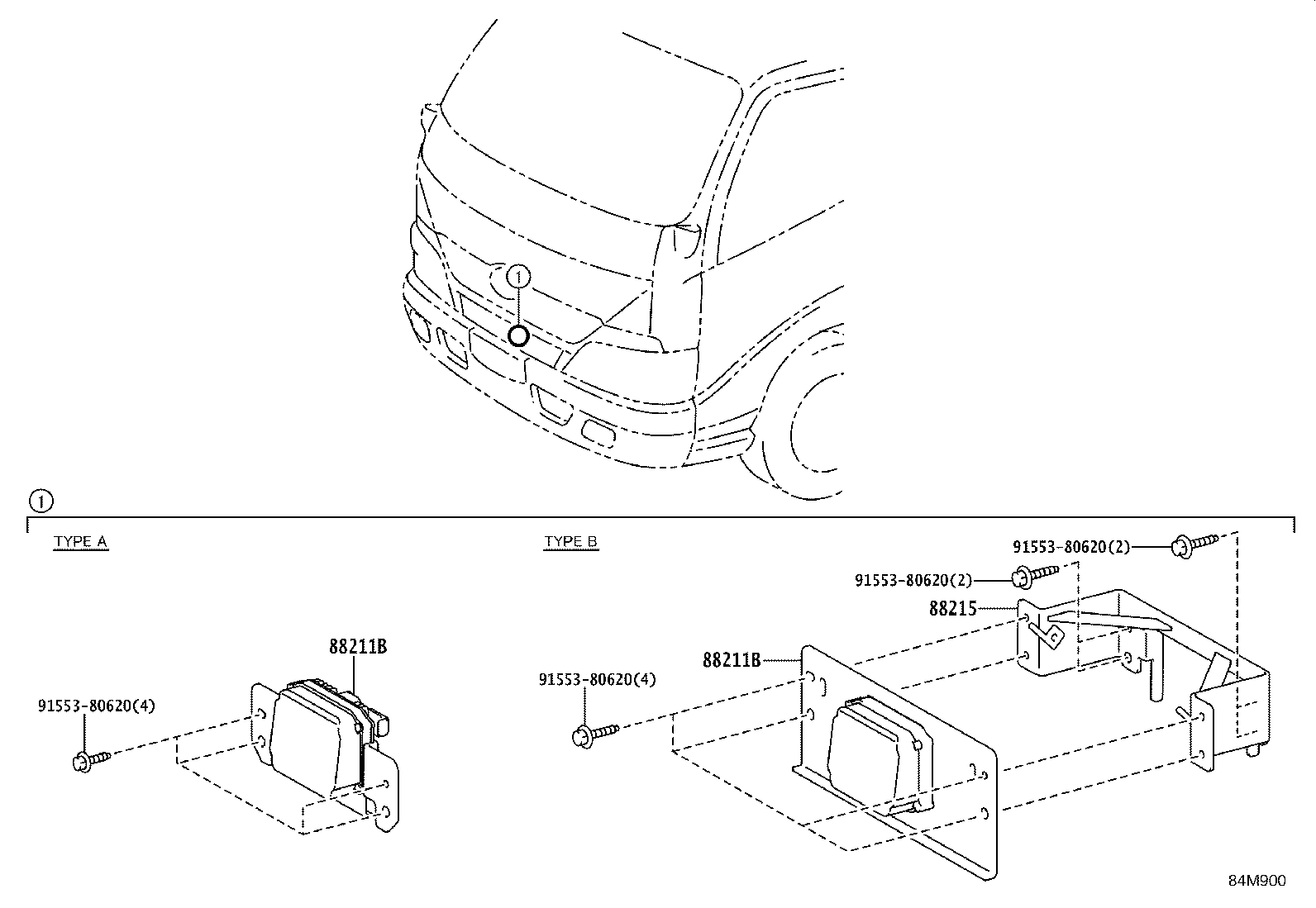

Click highlighted areas on diagram

diagram 88211B 88211B 88215 9155380620 9155380620 9155380620 9155380620
Part # Description Qty Price
88211B - SENSOR ASSY, MILLIMETER WAVE RADAR
88210-37012

XZU650,685,695..SCB..(20T,30T,35T);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675..CBU,IV3,IV5,IV6,IV7

TYPE A:ｲﾗｽﾄ参照

 1
88211B - SENSOR ASSY, MILLIMETER WAVE RADAR
88210-37012

XZU650,685,695..SCB..(20T,30T,35T);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675..CBU,IV3,IV5,IV6,IV7

TYPE A:ｲﾗｽﾄ参照

 1
Common parts
91553-80620
