XZU655-TKTMY (2021)
Toyota Dyna

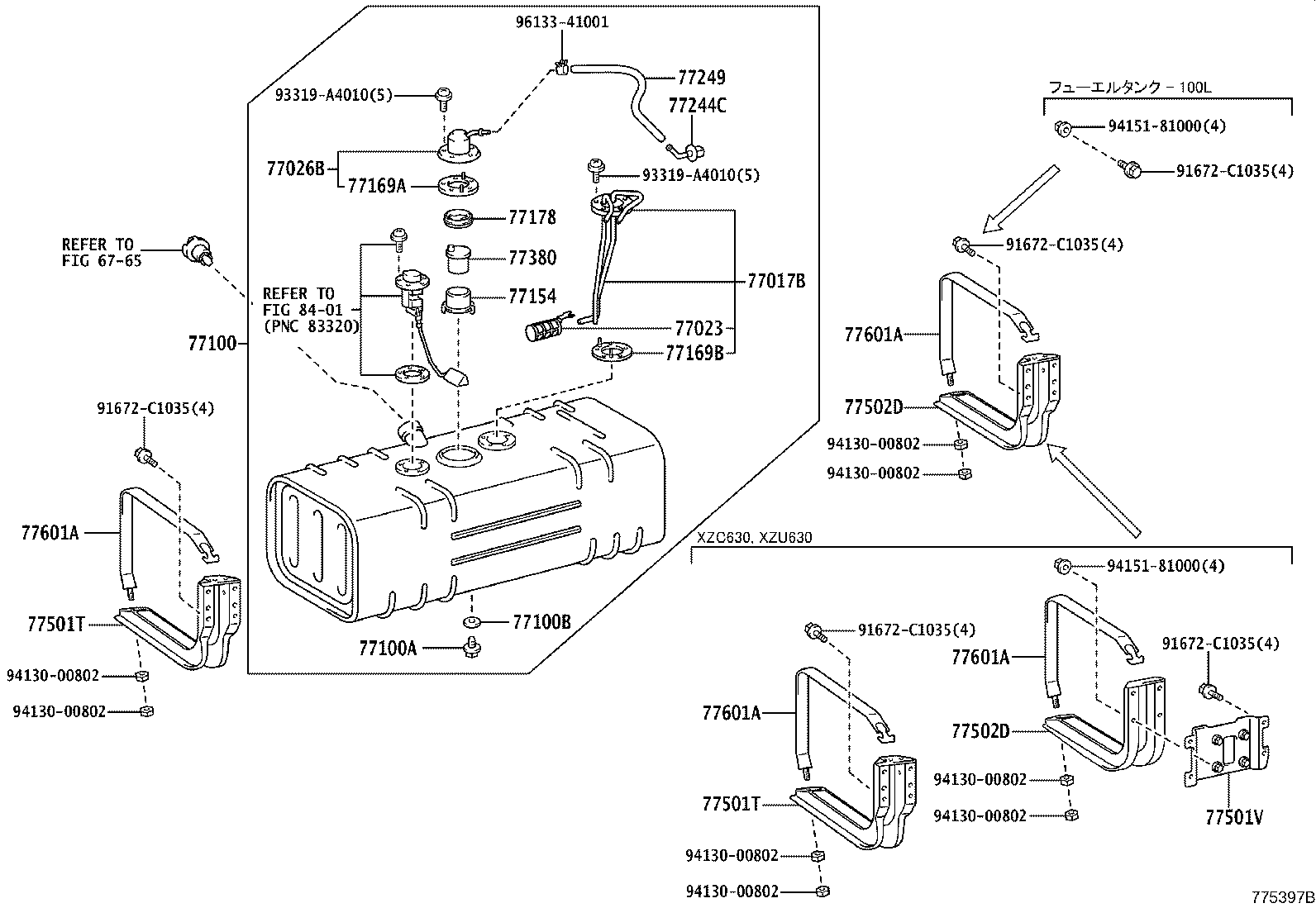

ILLUST NO. 1 OF 2(2103- )40T..CBU ; (2103- )XZU640..6FC..IV3 ; (2103- )XZU655..DCB..IV3 ; (
ﾌｭｰｴﾙﾀﾝｸ & ﾌｭｰｴﾙﾀﾝｸｽﾃｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37070 |
XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675,685..SCB..(DM7,T3,T4);XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV7 |
1 | ||
| 77017-37070 |
XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675,685..SCB..(DM7,T3,T4);XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV7 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77023-36010 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77026-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-37A50 |
XZU650..40T..IV3;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) |
1 | ||
| 77100-37A50 |
XZU650..40T..IV3;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) |
1 | ||
| 77100-37A40 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU64#,655..SCB..(T3,T4)..(CBU,IV6);XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77100-37A40 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU64#,655..SCB..(T3,T4)..(CBU,IV6);XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 90105-12116 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 90430-12245 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77154-25010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77169-14020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77169-14020 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77178-44010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37030 |
XZU685..IV4;XZU605,685..SCB;XZC60#,630,645,655,675,XZU600,602,630,64#,65#,675,695 |
1 | ||
| 77244-37030 |
XZU685..IV4;XZU605,685..SCB;XZC60#,630,645,655,675,XZU600,602,630,64#,65#,675,695 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37510 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77249-37510 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77249-37520 |
XZU650..40T..IV3;XZU600,605..IV5,IV6;XZU640,650..SCB..(20T,30T);XZC645,655,XZU602,645,655..SCB;XZC675,XZU652,675..(DM5,T3)..(CBU,IV3) |
1 | ||
| 77249-37520 |
XZU650..40T..IV3;XZU600,605..IV5,IV6;XZU640,650..SCB..(20T,30T);XZC645,655,XZU602,645,655..SCB;XZC675,XZU652,675..(DM5,T3)..(CBU,IV3) |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77380-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| Common parts | ||||
| 91672-C1035 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94151-81000 | ||||
| 96133-41001 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||

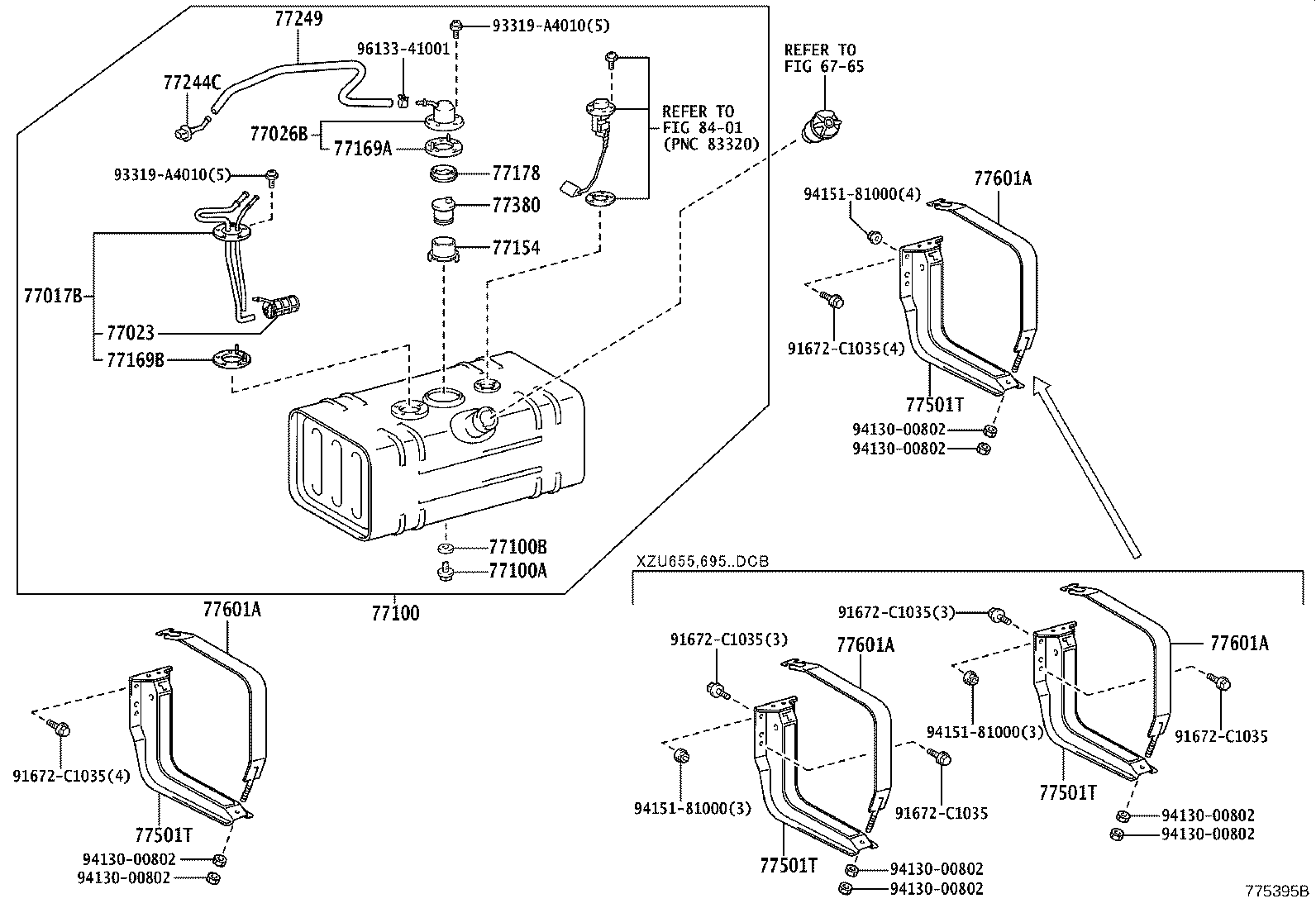

ILLUST NO. 1 OF 2(2103- )XZU605..T5..20T..IV3 ; (2103- )XZU652,695..T3..20T,35T ; (2103- )X
ﾌｭｰｴﾙﾀﾝｸ & ﾌｭｰｴﾙﾀﾝｸｽﾃｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37070 |
XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675,685..SCB..(DM7,T3,T4);XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV7 |
1 | ||
| 77017-37070 |
XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675,685..SCB..(DM7,T3,T4);XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV7 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77023-36010 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77026-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-37A50 |
XZU650..40T..IV3;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) |
1 | ||
| 77100-37A50 |
XZU650..40T..IV3;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) |
1 | ||
| 77100-37A40 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU64#,655..SCB..(T3,T4)..(CBU,IV6);XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77100-37A40 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU64#,655..SCB..(T3,T4)..(CBU,IV6);XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 90105-12116 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 90430-12245 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77154-25010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77169-14020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77169-14020 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77178-44010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37030 |
XZU685..IV4;XZU605,685..SCB;XZC60#,630,645,655,675,XZU600,602,630,64#,65#,675,695 |
1 | ||
| 77244-37030 |
XZU685..IV4;XZU605,685..SCB;XZC60#,630,645,655,675,XZU600,602,630,64#,65#,675,695 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37510 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77249-37510 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77249-37520 |
XZU650..40T..IV3;XZU600,605..IV5,IV6;XZU640,650..SCB..(20T,30T);XZC645,655,XZU602,645,655..SCB;XZC675,XZU652,675..(DM5,T3)..(CBU,IV3) |
1 | ||
| 77249-37520 |
XZU650..40T..IV3;XZU600,605..IV5,IV6;XZU640,650..SCB..(20T,30T);XZC645,655,XZU602,645,655..SCB;XZC675,XZU652,675..(DM5,T3)..(CBU,IV3) |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77380-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| Common parts | ||||
| 91672-C1035 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94151-81000 | ||||
| 96133-41001 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(2103- )XZC60#,630,645,655,XZU600,605,630,642,645,652,655..SCB..CBU,IV3,IV7
ﾌｭｰｴﾙﾀﾝｸ & ﾌｭｰｴﾙﾀﾝｸｽﾃｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37070 |
XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675,685..SCB..(DM7,T3,T4);XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV7 |
1 | ||
| 77017-37070 |
XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675,685..SCB..(DM7,T3,T4);XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV7 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77023-36010 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77026-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-37A50 |
XZU650..40T..IV3;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) |
1 | ||
| 77100-37A50 |
XZU650..40T..IV3;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) |
1 | ||
| 77100-37A40 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU64#,655..SCB..(T3,T4)..(CBU,IV6);XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77100-37A40 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU64#,655..SCB..(T3,T4)..(CBU,IV6);XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 90105-12116 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 90430-12245 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77154-25010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77169-14020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77169-14020 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77178-44010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37030 |
XZU685..IV4;XZU605,685..SCB;XZC60#,630,645,655,675,XZU600,602,630,64#,65#,675,695 |
1 | ||
| 77244-37030 |
XZU685..IV4;XZU605,685..SCB;XZC60#,630,645,655,675,XZU600,602,630,64#,65#,675,695 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37510 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77249-37510 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77249-37520 |
XZU650..40T..IV3;XZU600,605..IV5,IV6;XZU640,650..SCB..(20T,30T);XZC645,655,XZU602,645,655..SCB;XZC675,XZU652,675..(DM5,T3)..(CBU,IV3) |
1 | ||
| 77249-37520 |
XZU650..40T..IV3;XZU600,605..IV5,IV6;XZU640,650..SCB..(20T,30T);XZC645,655,XZU602,645,655..SCB;XZC675,XZU652,675..(DM5,T3)..(CBU,IV3) |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77380-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77502D - BRACKET SUB-ASSY, FUEL TANK, REAR | ||||
| 77501-37521 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37521 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77502D - BRACKET SUB-ASSY, FUEL TANK, REAR | ||||
| 77501-37521 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37521 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| Common parts | ||||
| 91672-C1035 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94151-81000 | ||||
| 96133-41001 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(2103- )XZU640..SCB ; (2103- )XZU642..6FC; (2103- )XZU650..20T,30T ; (210
ﾌｭｰｴﾙﾀﾝｸ & ﾌｭｰｴﾙﾀﾝｸｽﾃｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37070 |
XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675,685..SCB..(DM7,T3,T4);XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV7 |
1 | ||
| 77017-37070 |
XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675,685..SCB..(DM7,T3,T4);XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV7 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77023-36010 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77026-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-37A50 |
XZU650..40T..IV3;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) |
1 | ||
| 77100-37A50 |
XZU650..40T..IV3;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) |
1 | ||
| 77100-37A40 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU64#,655..SCB..(T3,T4)..(CBU,IV6);XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77100-37A40 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU64#,655..SCB..(T3,T4)..(CBU,IV6);XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 90105-12116 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 90430-12245 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77154-25010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77169-14020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77169-14020 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77178-44010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37030 |
XZU685..IV4;XZU605,685..SCB;XZC60#,630,645,655,675,XZU600,602,630,64#,65#,675,695 |
1 | ||
| 77244-37030 |
XZU685..IV4;XZU605,685..SCB;XZC60#,630,645,655,675,XZU600,602,630,64#,65#,675,695 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37510 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77249-37510 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77249-37520 |
XZU650..40T..IV3;XZU600,605..IV5,IV6;XZU640,650..SCB..(20T,30T);XZC645,655,XZU602,645,655..SCB;XZC675,XZU652,675..(DM5,T3)..(CBU,IV3) |
1 | ||
| 77249-37520 |
XZU650..40T..IV3;XZU600,605..IV5,IV6;XZU640,650..SCB..(20T,30T);XZC645,655,XZU602,645,655..SCB;XZC675,XZU652,675..(DM5,T3)..(CBU,IV3) |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77380-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37531 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77501-37521 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 77502D - BRACKET SUB-ASSY, FUEL TANK, REAR | ||||
| 77501-37521 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37521 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77502D - BRACKET SUB-ASSY, FUEL TANK, REAR | ||||
| 77501-37521 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77501-37521 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| 77601-37121 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
2 | ||
| Common parts | ||||
| 91672-C1035 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94151-81000 | ||||
| 96133-41001 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(2103- )XZC60#,645,655,XZU600,605,642,645,652,655..SCB..CBU,IV3
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37K50 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77205-37K50 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77205-37K50 |
XZU650..20T,30T;XZU650..40T..IV3;XZU640,642,652..CBU,IV3;XZC60#,645,655,XZU60#,645,655..SCB |
1 | ||
| 77205-37K50 |
XZU650..20T,30T;XZU650..40T..IV3;XZU640,642,652..CBU,IV3;XZC60#,645,655,XZU60#,645,655..SCB |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37L41 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77206-37L41 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77206-37N62 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3) |
1 | ||
| 77206-37N62 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3) |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 77259-37A70 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77259-37A70 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| SM331-10030 |
XZU650..40T..IV3;XZC675,XZU675..DM5;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=260 |
1 | ||
| SM331-10030 |
XZU650..40T..IV3;XZC675,XZU675..DM5;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=260 |
1 | ||
| SM331-10100 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=600,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| SM331-10100 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=600,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| SM331-10030 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,630,645,655,XZU600,605,630,64#,652,655..SCB..(CBU,IV3,IV7) 長さ=160 |
1 | ||
| SM331-10030 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,630,645,655,XZU600,605,630,64#,652,655..SCB..(CBU,IV3,IV7) 長さ=160 |
1 | ||
| 77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3) | ||||
| SM331-10030 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) 長さ=280 |
1 | ||
| SM331-10030 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) 長さ=280 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08020 |
XZU650..20T,30T;XZU650..40T..IV3;XZU640,642,652..CBU,IV3;XZC60#,630,645,655,XZU60#,630,645,655..SCB 長さ=160 |
1 | ||
| 95337-08020 |
XZU650..20T,30T;XZU650..40T..IV3;XZU640,642,652..CBU,IV3;XZC60#,630,645,655,XZU60#,630,645,655..SCB 長さ=160 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08034 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=300,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 95337-08034 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=300,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 95337-08028 |
XZU650..40T..IV3;XZC630,645,655,XZU630,640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=280 |
1 | ||
| 95337-08028 |
XZU650..40T..IV3;XZC630,645,655,XZU630,640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=280 |
1 | ||
| Common parts | ||||
| 90466-16004 | ||||
| 91552-81030 | ||||
| 94151-80800 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||

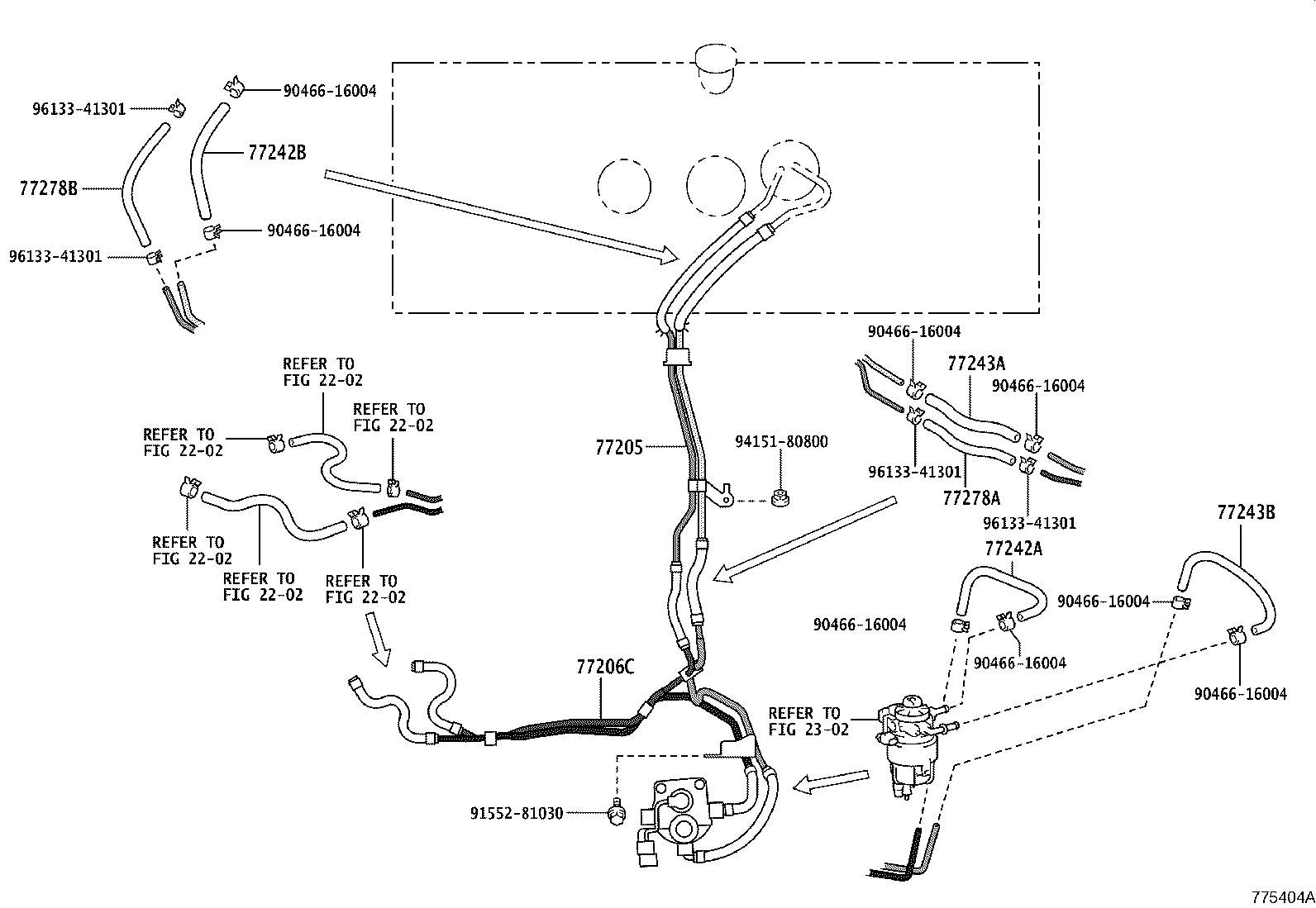

ILLUST NO. 2 OF 2(2103- )XZU640..SCB ; (2103- )XZU642..6FC; (2103- )XZU650..20T,30T ; (210
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37K50 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77205-37K50 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77205-37K50 |
XZU650..20T,30T;XZU650..40T..IV3;XZU640,642,652..CBU,IV3;XZC60#,645,655,XZU60#,645,655..SCB |
1 | ||
| 77205-37K50 |
XZU650..20T,30T;XZU650..40T..IV3;XZU640,642,652..CBU,IV3;XZC60#,645,655,XZU60#,645,655..SCB |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37L41 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77206-37L41 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77206-37N62 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3) |
1 | ||
| 77206-37N62 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3) |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 77259-37A70 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77259-37A70 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| SM331-10030 |
XZU650..40T..IV3;XZC675,XZU675..DM5;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=260 |
1 | ||
| SM331-10030 |
XZU650..40T..IV3;XZC675,XZU675..DM5;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=260 |
1 | ||
| SM331-10100 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=600,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| SM331-10100 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=600,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| SM331-10030 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,630,645,655,XZU600,605,630,64#,652,655..SCB..(CBU,IV3,IV7) 長さ=160 |
1 | ||
| SM331-10030 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,630,645,655,XZU600,605,630,64#,652,655..SCB..(CBU,IV3,IV7) 長さ=160 |
1 | ||
| 77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3) | ||||
| SM331-10030 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) 長さ=280 |
1 | ||
| SM331-10030 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3,IV7) 長さ=280 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08020 |
XZU650..20T,30T;XZU650..40T..IV3;XZU640,642,652..CBU,IV3;XZC60#,630,645,655,XZU60#,630,645,655..SCB 長さ=160 |
1 | ||
| 95337-08020 |
XZU650..20T,30T;XZU650..40T..IV3;XZU640,642,652..CBU,IV3;XZC60#,630,645,655,XZU60#,630,645,655..SCB 長さ=160 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08034 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=300,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 95337-08034 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=300,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 95337-08028 |
XZU650..40T..IV3;XZC630,645,655,XZU630,640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=280 |
1 | ||
| 95337-08028 |
XZU650..40T..IV3;XZC630,645,655,XZU630,640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=280 |
1 | ||
| Common parts | ||||
| 90466-16004 | ||||
| 91552-81030 | ||||
| 94151-80800 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||

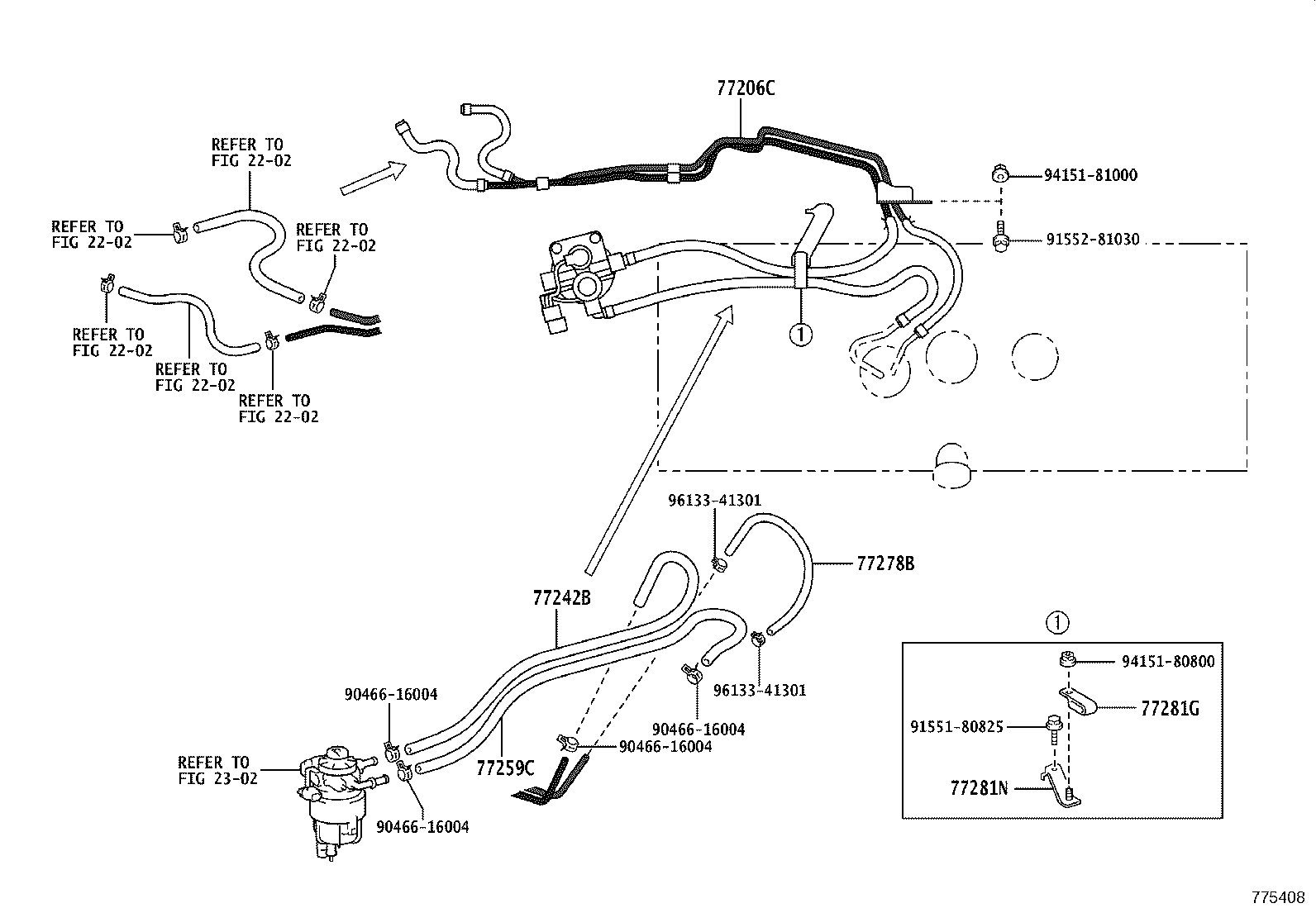

ILLUST NO. 2 OF 2(2103- )40T..CBU ; (2103- )XZU640..6FC..IV3 ; (2103- )XZU655..30T..IV3 ; (
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37L41 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77206-37L41 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77206-37L41 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77206-37N62 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3) |
1 | ||
| 77206-37N62 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3) |
1 | ||
| 77206-37N62 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3) |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| SM331-10030 |
XZU650..40T..IV3;XZC675,XZU675..DM5;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=260 |
1 | ||
| SM331-10030 |
XZU650..40T..IV3;XZC675,XZU675..DM5;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=260 |
1 | ||
| SM331-10030 |
XZU650..40T..IV3;XZC675,XZU675..DM5;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=260 |
1 | ||
| SM331-10100 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=600,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| SM331-10100 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=600,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| SM331-10100 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=600,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-37A80 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77259-37A80 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77259-37A80 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08034 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=300,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 95337-08034 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=300,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 95337-08034 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=300,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 95337-08028 |
XZU650..40T..IV3;XZC630,645,655,XZU630,640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=280 |
1 | ||
| 95337-08028 |
XZU650..40T..IV3;XZC630,645,655,XZU630,640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=280 |
1 | ||
| 95337-08028 |
XZU650..40T..IV3;XZC630,645,655,XZU630,640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=280 |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| SZ461-17002 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| SZ461-17002 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| SZ461-17002 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77281N - CLAMP, FUEL HOSE | ||||
| 77281-37670 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77281-37670 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77281-37670 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| Common parts | ||||
| 90466-16004 | ||||
| 91551-80825 | ||||
| 91552-81030 | ||||
| 94151-80800 | ||||
| 94151-81000 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 2 OF 2(2103- )XZU605..SCB..T4..20T..CBU ; (2103-)XZU605,640..T4,T5..30T..IV3 ; (21
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37L41 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77206-37L41 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77206-37L41 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77206-37N62 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3) |
1 | ||
| 77206-37N62 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3) |
1 | ||
| 77206-37N62 |
XZU650..20T,30T;XZU650..40T..IV3;XZC60#,645,655,XZU600,605,64#,652,655..SCB..(CBU,IV3) |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| SM331-10030 |
XZU650..40T..IV3;XZC675,XZU675..DM5;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=260 |
1 | ||
| SM331-10030 |
XZU650..40T..IV3;XZC675,XZU675..DM5;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=260 |
1 | ||
| SM331-10030 |
XZU650..40T..IV3;XZC675,XZU675..DM5;XZC645,655,XZU640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=260 |
1 | ||
| SM331-10100 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=600,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| SM331-10100 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=600,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| SM331-10100 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=600,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-37A80 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77259-37A80 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77259-37A80 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08034 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=300,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 95337-08034 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=300,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 95337-08034 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) 長さ=300,ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 95337-08028 |
XZU650..40T..IV3;XZC630,645,655,XZU630,640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=280 |
1 | ||
| 95337-08028 |
XZU650..40T..IV3;XZC630,645,655,XZU630,640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=280 |
1 | ||
| 95337-08028 |
XZU650..40T..IV3;XZC630,645,655,XZU630,640,645,65#..SCB..(20T,30T,35T)..(CBU,IV3) 長さ=280 |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| SZ461-17002 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| SZ461-17002 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| SZ461-17002 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77281N - CLAMP, FUEL HOSE | ||||
| 77281-37670 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77281-37670 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 77281-37670 |
XZU640..T4;XZU640..6FC..IV3;XZU655..30T..IV3;XZU640,645,655..SCB..(T3,T4)..CBU;XZU650,652..(20T,30T,35T)..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| Common parts | ||||
| 90466-16004 | ||||
| 91551-80825 | ||||
| 91552-81030 | ||||
| 94151-80800 | ||||
| 94151-81000 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
