XZU655-TKTMY (2021)
Toyota Dyna

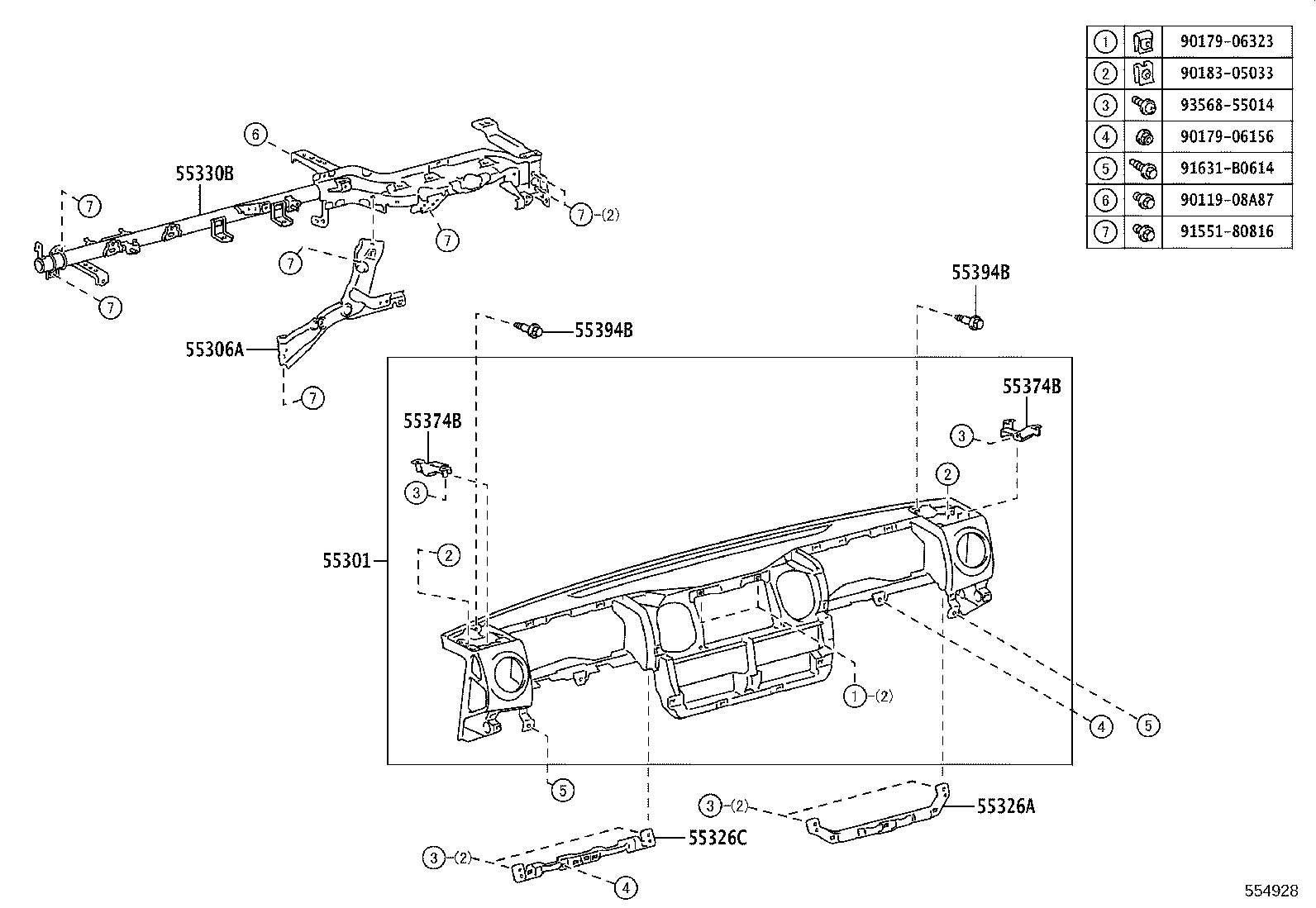

ILLUST NO. 1 OF 2(2103- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-37090C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-37073 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 55326A - STAY, INSTRUMENT PANEL, NO.1 | ||||
| 55429-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 55326C - STAY, INSTRUMENT PANEL, NO.2 | ||||
| 55429-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-37220 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 55330-37210 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 55374B - BRACKET, INSTRUMENT PANEL | ||||
| 55353-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 55374B - BRACKET, INSTRUMENT PANEL | ||||
| 55353-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| Common parts | ||||
| 90119-08A87 | ||||
| 90179-06156 | ||||
| 90179-06323 | ||||
| 90183-05033 | ||||
| 91551-80816 | ||||
| 91631-B0614 | ||||
| 93568-55014 | ||||

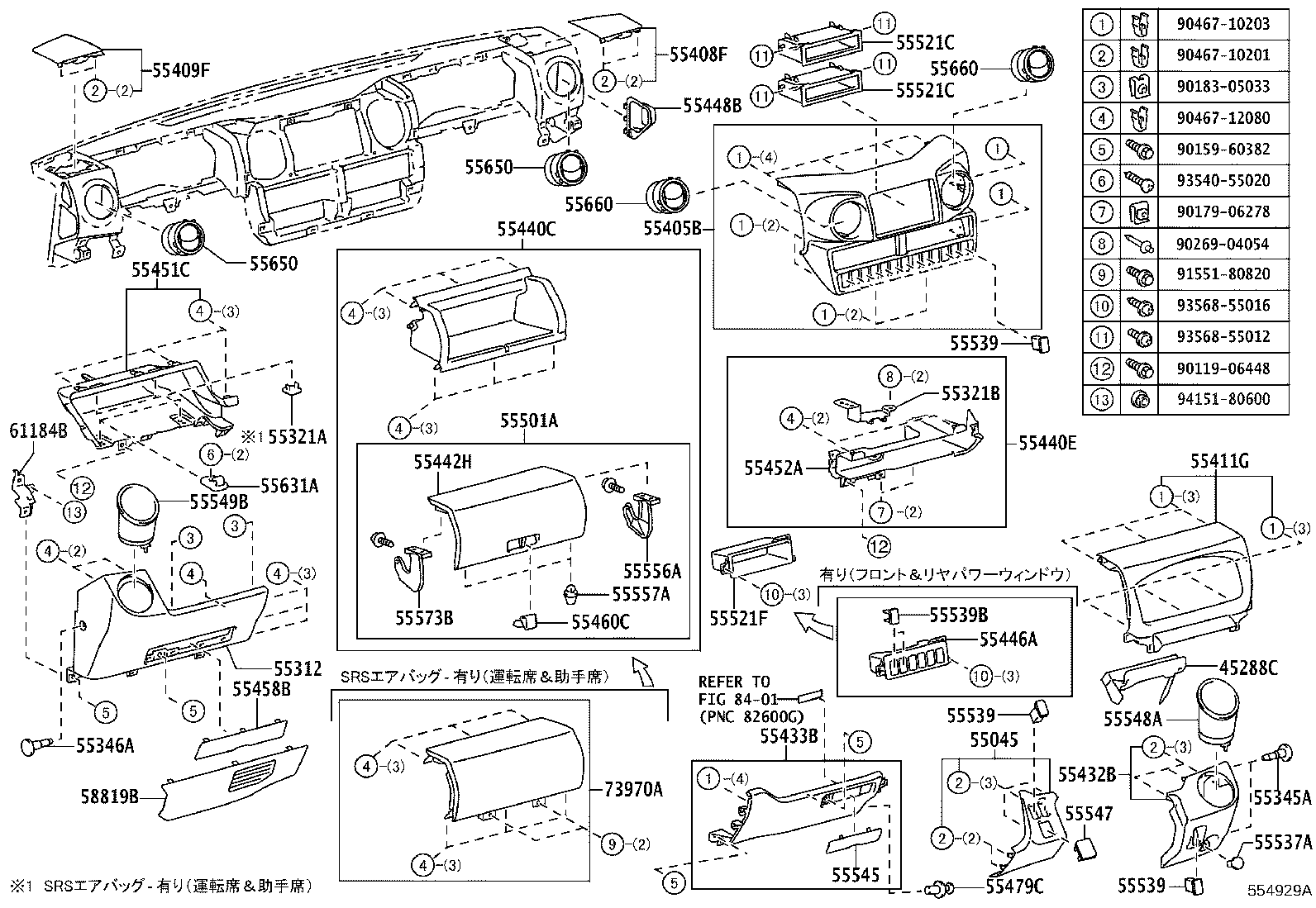

ILLUST NO. 2 OF 2(2103- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45288C - PLATE, STEERING COLUMN COVER | ||||
| 45288-37022 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-37010B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-37011B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 55321A - COVER,INSTRUMENT PANEL HOLE | ||||
| 58839-37030B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
2 | ||
| 55321B - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55321-37080 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-07041P5 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
2 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-07041P5 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-37200C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK,TRIM1# |
1 | ||
| 55405-37210C0 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..SCB..(CBU,IV3) ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,BLACK,TRIM1# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-37010C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK,TRIM1# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-37010C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-37070C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55046-37020B0 |
XZU652..6FC;XZU652..6F..(CBU,IV3);XZU600,602,642..6FC..IV6;XZC605,645,655,675,XZU600,605,640,645,650,655,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV4,IV5) GRAY,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55320-37060B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 55440C - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-37020C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 55440-37020C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK,TRIM1# |
1 | ||
| 55440E - BOX ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55440-37050B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-37020C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK,TRIM1# |
1 | ||
| 55442-37020C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 55448B - COVER, OIL RESERVOIR TANK, RH | ||||
| 55448-37040C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK,TRIM1# |
1 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-37011B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 55452A - BOX, INSTRUMENT PANEL, NO.2 | ||||
| 55452-37050B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-37030B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 55460C - LOCK ASSY, INSTRUMENT PANEL BOX | ||||
| 55460-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 55460-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07191C1 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK,TRIM1# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-37030C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK,TRIM1# |
1 | ||
| 55501-37030C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 55521-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 55521-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
2 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-37020C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 BLACK |
1 | ||
| 55537A - COVER, THROTTLE KNOB HOLE | ||||
| 55537-95010B2 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..CBU,IV5 GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK |
1 | ||
| 55539-48030C0 |
XZC605,645,655,XZU600,605,640,645,65#..(T2,T3,T4,T5)..6FC..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−ｵｲﾙﾎﾟﾝﾌﾟ分離式,BLACK |
1 | ||
| 55539-48030C0 |
XZU650..40T..CBU;XZU655..6F..30T..IV3;XZU652..6F..(CBU,IV3);XZU655..(T3,T4)..6F..CBU;XZU605..T5..6F..20T..IV3;XZU650..6F..(20T,30T,35T);XZU600,640..(DM5,T4)..6F..IV3;XZC605,645,655,675,XZU605,640,645,675,685,695..(T2,T3,T4,T5)..MTM..CBU ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG 直結ﾀｲﾌﾟ,BLACK |
1 | ||
| 55539-48030C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED),BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK |
1 | ||
| 55539-48030C0 |
XZC605,645,655,XZU600,605,640,645,65#..(T2,T3,T4,T5)..6FC..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−ｵｲﾙﾎﾟﾝﾌﾟ分離式,BLACK |
1 | ||
| 55539-48030C0 |
XZU650..40T..CBU;XZU655..6F..30T..IV3;XZU652..6F..(CBU,IV3);XZU655..(T3,T4)..6F..CBU;XZU605..T5..6F..20T..IV3;XZU650..6F..(20T,30T,35T);XZU600,640..(DM5,T4)..6F..IV3;XZC605,645,655,675,XZU605,640,645,675,685,695..(T2,T3,T4,T5)..MTM..CBU ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG 直結ﾀｲﾌﾟ,BLACK |
1 | ||
| 55539-48030C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED),BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK |
1 | ||
| 55539-48030C0 |
XZC605,645,655,XZU600,605,640,645,65#..(T2,T3,T4,T5)..6FC..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−ｵｲﾙﾎﾟﾝﾌﾟ分離式,BLACK |
1 | ||
| 55539-48030C0 |
XZU650..40T..CBU;XZU655..6F..30T..IV3;XZU652..6F..(CBU,IV3);XZU655..(T3,T4)..6F..CBU;XZU605..T5..6F..20T..IV3;XZU650..6F..(20T,30T,35T);XZU600,640..(DM5,T4)..6F..IV3;XZC605,645,655,675,XZU605,640,645,675,685,695..(T2,T3,T4,T5)..MTM..CBU ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG 直結ﾀｲﾌﾟ,BLACK |
1 | ||
| 55539-48030C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED),BLACK |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-37070B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-20020B2 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-37020B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-37010B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 55556A - ARM, GLOVE COMPARTMENT DOOR CHECK, RH | ||||
| 55556-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 55556-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
2 | ||
| 55557-53030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 55573B - ARM, GLOVE COMPARTMENT DOOR CHECK, LH | ||||
| 55573-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 55573-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 55631A - STOPPER, INSTRUMENT PANEL UNDER TRAY, NO.1 | ||||
| 74348-37010B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37060B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 DK.GRAY,TRIM1# |
2 | ||
| 55650-37070B0 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..SCB..(CBU,IV3) ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,DK.GRAY,TRIM1# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37060B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 DK.GRAY,TRIM1# |
2 | ||
| 55650-37070B0 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..SCB..(CBU,IV3) ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,DK.GRAY,TRIM1# |
2 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55650-37060B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 DK.GRAY,TRIM1# |
2 | ||
| 55650-37070B0 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..SCB..(CBU,IV3) ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,DK.GRAY,TRIM1# |
2 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55650-37060B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 DK.GRAY,TRIM1# |
2 | ||
| 55650-37070B0 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..SCB..(CBU,IV3) ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,DK.GRAY,TRIM1# |
2 | ||
| 58819B - COVER, FRONT HEATER | ||||
| 87114-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 61184B - BRACKET, INSTRUMENT PANEL SIDE, NO.2 LH | ||||
| 61184-37070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-37040C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06448 | ||||
| 90159-60382 | ||||
| 90179-06278 | ||||
| 90183-05033 | ||||
| 90269-04054 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91551-80820 | ||||
| 93540-55020 | ||||
| 93568-55012 | ||||
| 93568-55016 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
