XZU655-PQFMY3 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

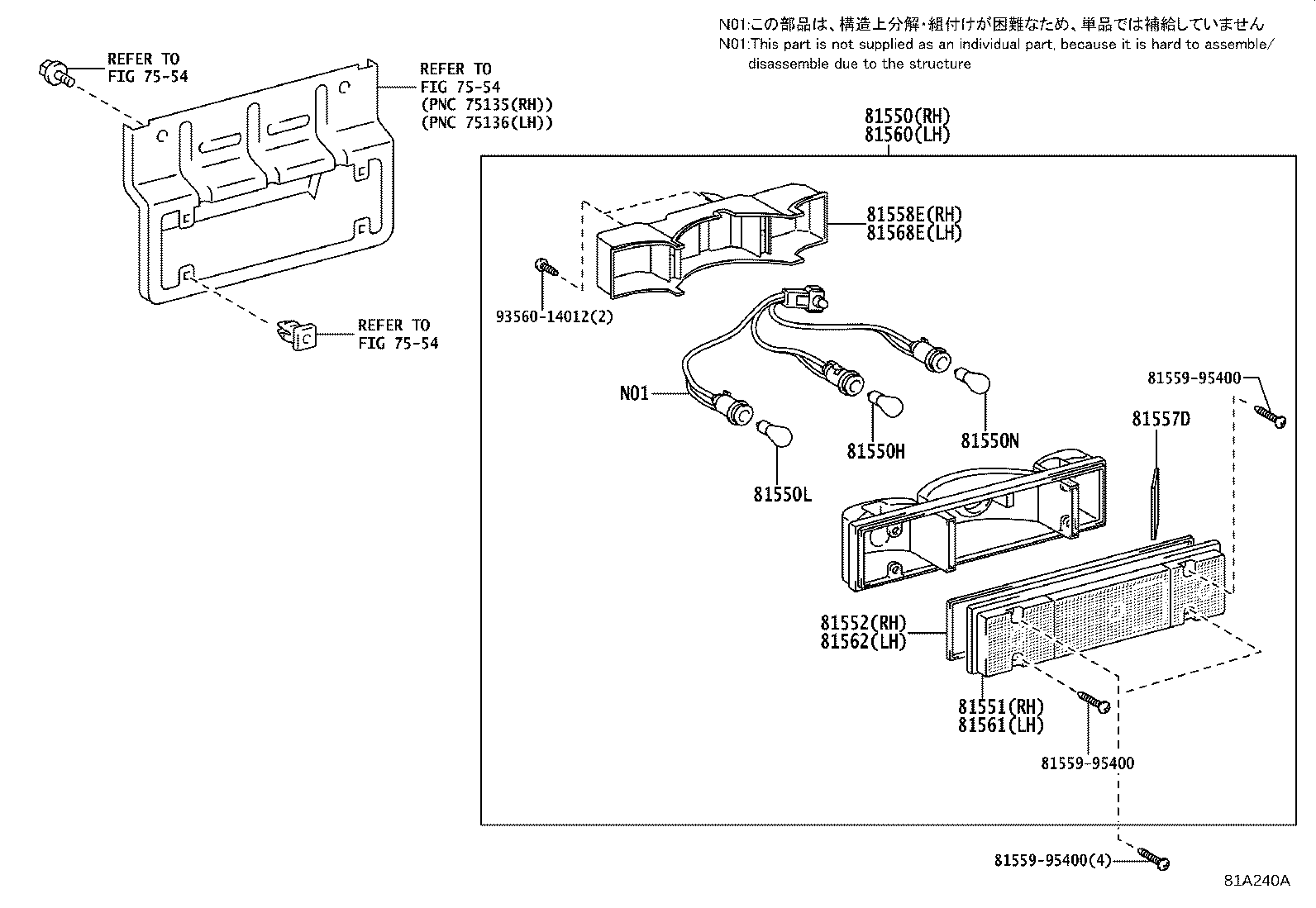

Click highlighted areas on diagram

diagram 7554 7554 7554 81550 81550H 81550L 81550N 81551 81552 81557D 81558E 8155995400 8155995400 8155995400 81560 81561 81562 81568E 9356014012
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-37260

XZU600..DM3,DM6,T3;XZC605,645,655,675,XZU602,605,64#,65#,675,685,695..(DM6,DM7,T2,T3,T4,T5)..(IV3,IV4,IV5,IV6)

 1
81550H - BULB, TAIL & STOP LAMP
90981-16015

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

24V 21/5W

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-16014

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

24V 21W

 2
81550N - BULB, BACK UP LAMP
90981-16014

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

24V 21W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-60442

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-95400

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
81557D - REFLECTOR, REAR COMBINATION LAMP
81557-95403

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 2
81558E - COVER, REAR COMBINATION LAMP, RH
81558-27070

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-37270

XZU600..DM3,DM6,T3;XZC605,645,655,675,XZU602,605,64#,65#,675,685,695..(DM6,DM7,T2,T3,T4,T5)..(IV3,IV4,IV5,IV6)

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-60372

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-95400

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
81568E - COVER, REAR COMBINATION LAMP, LH
81568-27040

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
Common parts
81559-95400
93560-14012
Linked diagrams
7554
