XZU652W-TKTRY6 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

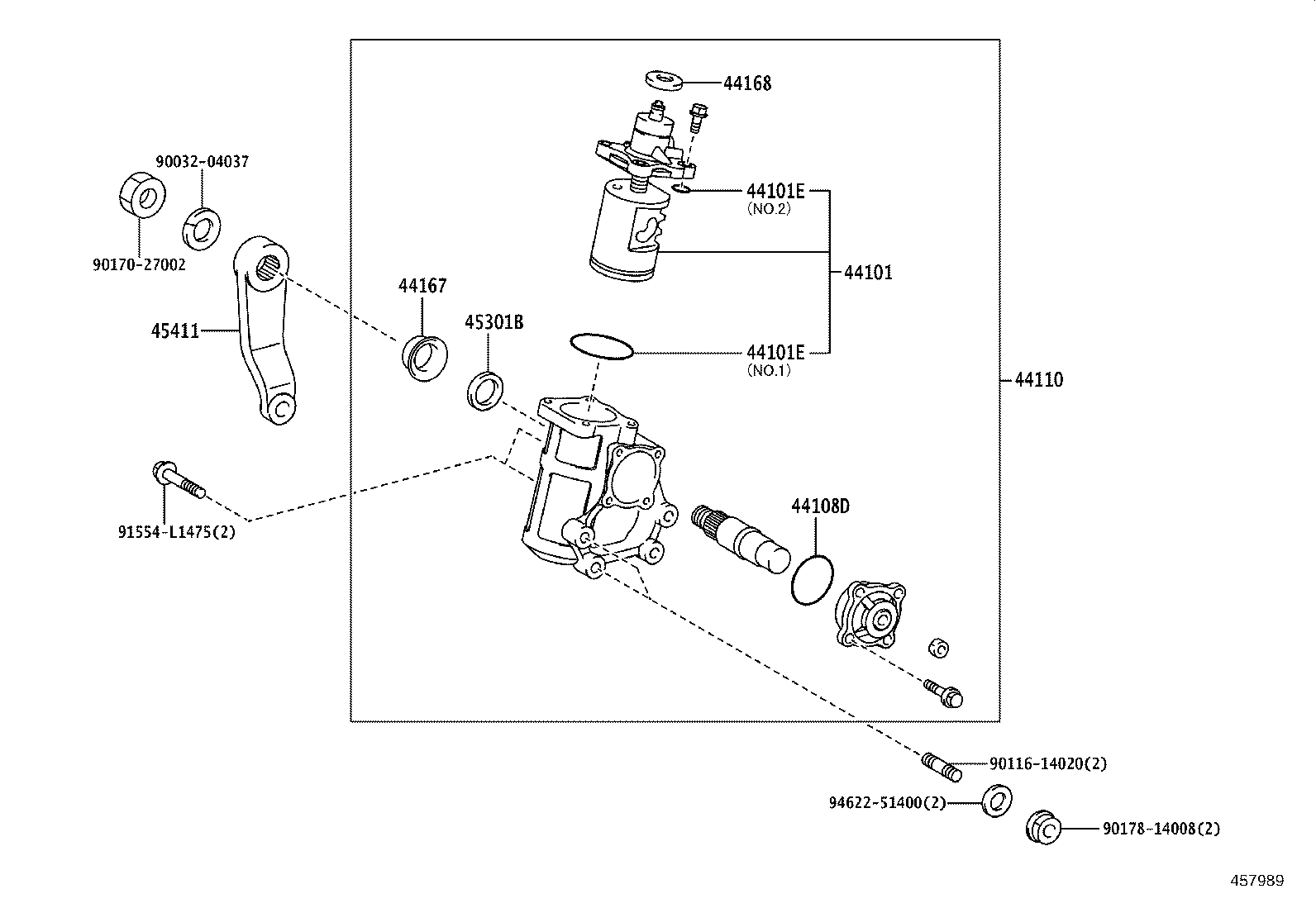

ILLUST NO. 1 OF 2(2103- )XZC600,630,XZU600,602,630,640,642,650,652

Click highlighted areas on diagram

diagram 44101 44101E 44101E 44108D 44110 44167 44168 45301B 45411 9003204037 9011614020 9017027002 9017814008 91554L1475 9462251400
Part # Description Qty Price
44101 - WORM SUB-ASSY, STEERING
44101-37031

XZC600,630,XZU600,602,630,640,642,650,652

 1
44101E - RING, O(FOR STEERING WORM)
44999-37020

XZC600,630,XZU600,602,630,640,642,650,652

NO.1:ｲﾗｽﾄ参照

 1
44999-37040

XZC600,630,XZU600,602,630,640,642,650,652

NO.2:ｲﾗｽﾄ参照

 1
44101E - RING, O(FOR STEERING WORM)
44999-37020

XZC600,630,XZU600,602,630,640,642,650,652

NO.1:ｲﾗｽﾄ参照

 1
44999-37040

XZC600,630,XZU600,602,630,640,642,650,652

NO.2:ｲﾗｽﾄ参照

 1
44108D - RING, O(FOR SECTOR COVER)
44999-37050

XZC600,630,XZU600,602,630,640,642,650,652

 1
44110 - GEAR ASSY, POWER STEERING
44110-37271

XZC600,630,XZU600,602,630,640,642,650,652

 1
44167 - COVER, SECTOR SHAFT DUST
45222-37050

XZC600,630,XZU600,602,630,640,642,650,652

 1
44168 - COVER, WORM SHAFT DUST
45222-37040

XZC600,630,XZU600,602,630,640,642,650,652

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
45333-37010

XZC600,630,XZU600,602,630,640,642,650,652

 1
45411 - ARM, PITMAN
45411-37271

XZU600,602,640,642,650,652..35T,40T

 1
Common parts
90032-04037
90116-14020
90170-27002
90178-14008
91554-L1475
94622-51400

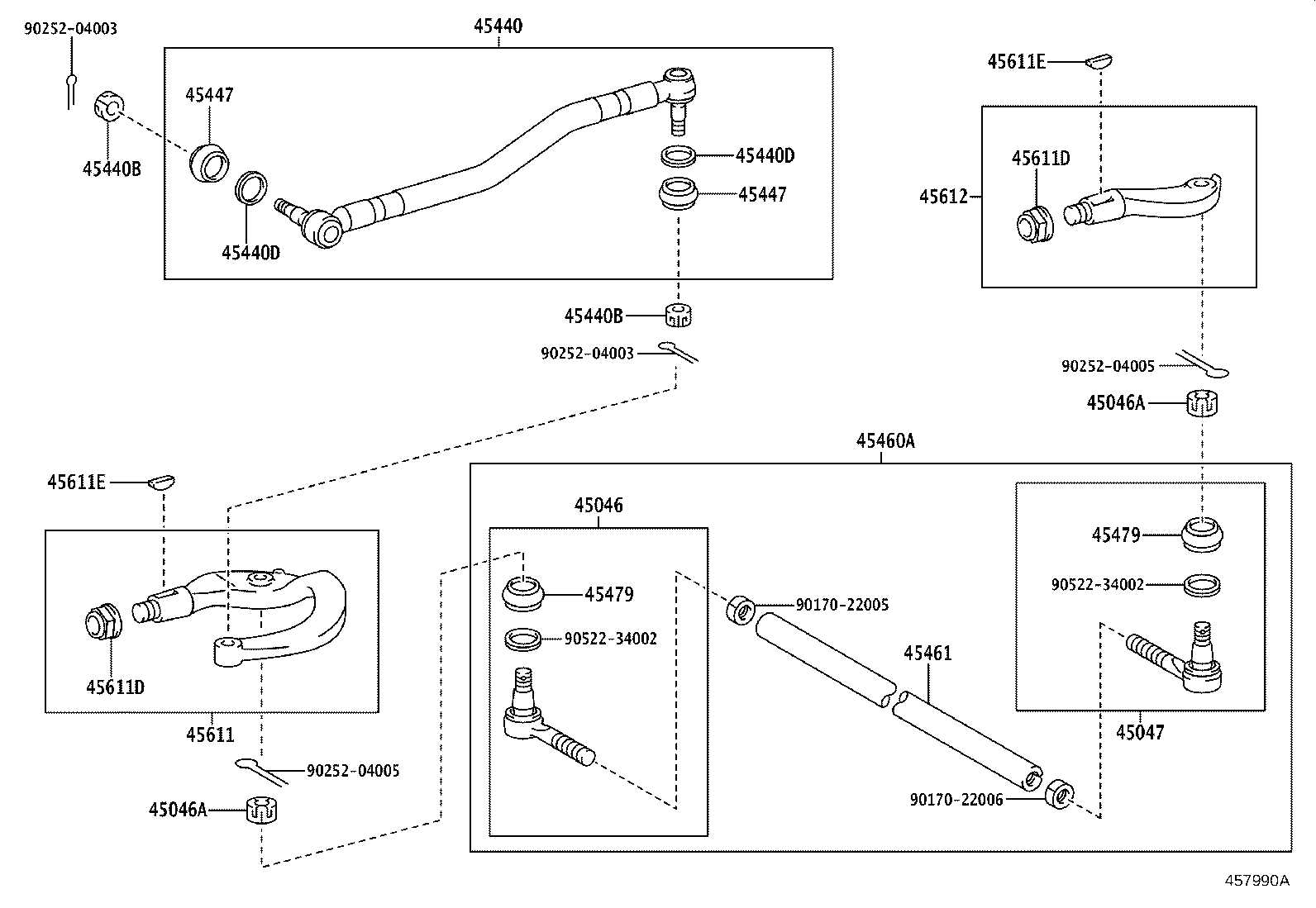

ILLUST NO. 2 OF 2(2103- )XZC600,630,XZU600,602,630,640,642,650,652

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45440 45440B 45440B 45440D 45440D 45447 45447 45460A 45461 45479 45479 45611 45611D 45611D 45611E 45611E 45612 9017022005 9017022006 9025204003 9025204003 9025204005 9025204005 9052234002 9052234002
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-37062

XZU600,602,640,642,650,652..35T,40T

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-18003

XZC600,630,XZU600,602,630,640,642,650,652

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-18003

XZC600,630,XZU600,602,630,640,642,650,652

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-37052

XZU600,602,640,642,650,652..35T,40T

 1
45440 - LINK ASSY, STEERING DRAG
45440-37134

XZU600,602,640,642,650,652..35T,40T

 1
45440B - NUT, CASTLE(FOR STEERING DRAG LINK)
90171-18003

XZC600,630,XZU600,602,630,640,642,650,652

 2
45440B - NUT, CASTLE(FOR STEERING DRAG LINK)
90171-18003

XZC600,630,XZU600,602,630,640,642,650,652

 2
45440D - RING, SET(FOR STEERING DRAG LINK)
90522-32011

XZC600,630,XZU600,602,630,640,642,650,652

 2
45440D - RING, SET(FOR STEERING DRAG LINK)
90522-32011

XZC600,630,XZU600,602,630,640,642,650,652

 2
45447 - SEAL, DRAG LINK DUST
45479-37040

XZC600,630,XZU600,602,630,640,642,650,652

 2
45447 - SEAL, DRAG LINK DUST
45479-37040

XZC600,630,XZU600,602,630,640,642,650,652

 2
45460A - ROD ASSY, TIE
45460-37072

XZU600,602,640,642,650,652..35T,40T

 1
45461 - ROD, STEERING TIE
45461-37060

XZU600,602,640,642,650,652..35T,40T

 1
45479 - SEAL, STEERING LINK JOINT DUST
45479-36030

XZC600,630,XZU600,602,630,640,642,650,652

 2
45479 - SEAL, STEERING LINK JOINT DUST
45479-36030

XZC600,630,XZU600,602,630,640,642,650,652

 2
45611D - NUT(FOR STEERING KNUCKLE ARM)
90178-26002

XZC600,630,XZU600,602,630,640,642,650,652

 2
45611D - NUT(FOR STEERING KNUCKLE ARM)
90178-26002

XZC600,630,XZU600,602,630,640,642,650,652

 2
45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM)
90280-07004

XZC600,630,XZU600,602,630,640,642,650,652

 4
45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM)
90280-07004

XZC600,630,XZU600,602,630,640,642,650,652

 4
Common parts
90170-22005
90170-22006
90252-04003
90252-04005
90522-34002
