XZU652W-TKTRY6 (2021)
Toyota Dyna

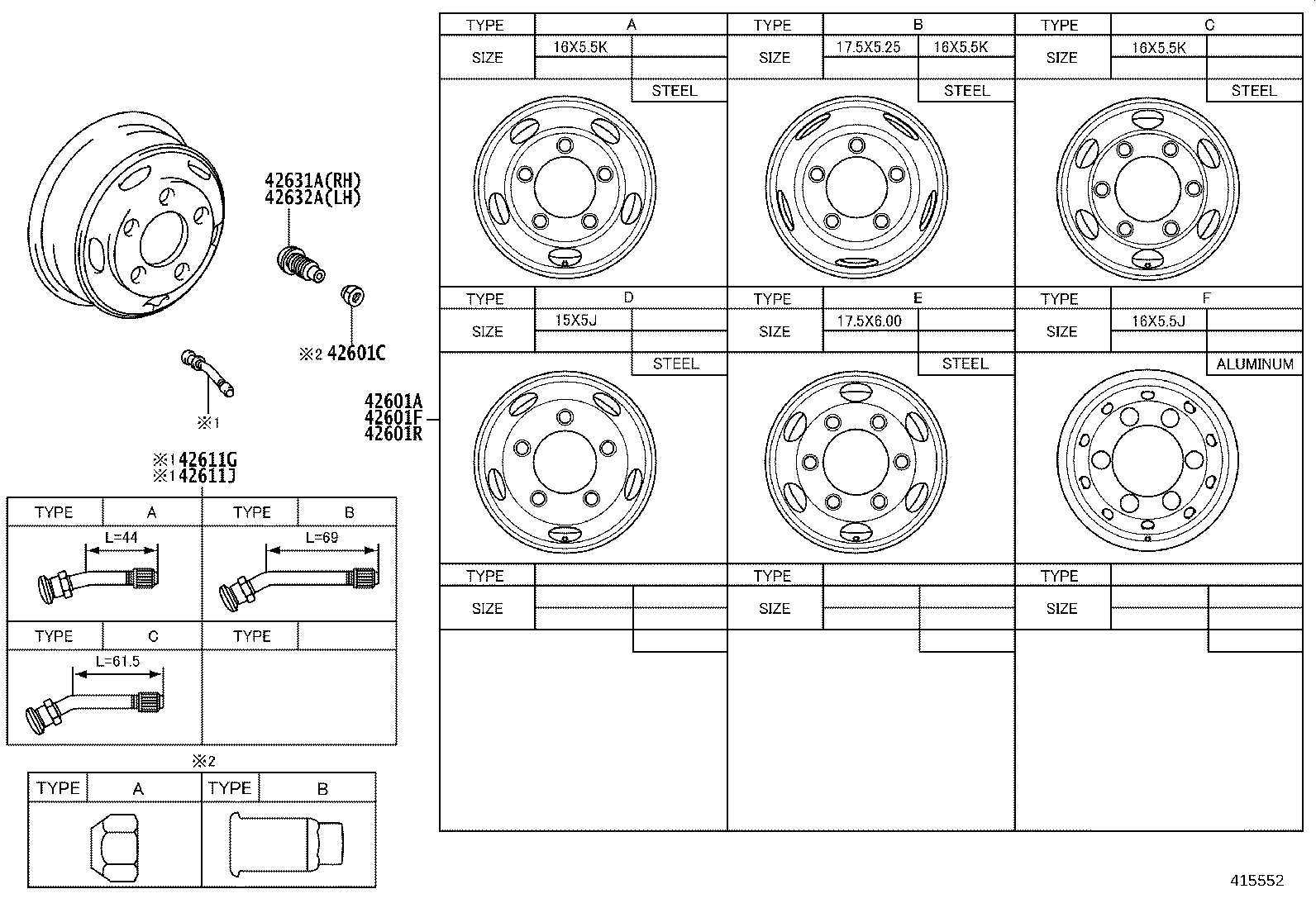

ILLUST NO. 1 OF 4(2103- )
ﾃﾞｨｽｸﾎｲｰﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42601-37270 |
XZU652;XZU642..6F..IV6 16X5.5K,#,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 42601-37750 |
XZU652..IV6;XZU642..6F..IV6 17.5X6.00,#,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,ﾘﾌﾞ,TYPE E:ｲﾗｽﾄ参照 |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 42633-37020 |
XZU600,602,640,642,650,652..35T,40T ﾘﾔ右側 |
6 | ||
| 43522-37010 |
XZU600,602,640,642,650,652..35T,40T ﾌﾛﾝﾄ右側 |
6 | ||
| 43522-37020 |
XZU600,602,640,642,650,652..35T,40T ﾌﾛﾝﾄ左側 |
6 | ||
| 42634-37020 |
XZU600,602,640,642,650,652..35T,40T ﾘﾔ左側 |
6 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-37270 |
XZU652;XZU642..6F..IV6 16X5.5K,#,TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 42601-37750 |
XZU652..IV6;XZU642..6F..IV6 17.5X6.00,#,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,ﾘﾌﾞ,TYPE E:ｲﾗｽﾄ参照 |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-37270 |
XZU652;XZU642..6F..IV6 16X5.5K,#,TYPE C:ｲﾗｽﾄ参照 |
4 | ||
| 42601-37750 |
XZU652..IV6;XZU642..6F..IV6 17.5X6.00,#,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,ﾘﾌﾞ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05030 |
XZU652..IV6;XZU642..6F..IV6 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,ﾘﾌﾞ,TYPE B:ｲﾗｽﾄQ照 |
6 | ||
| 90942-05026 |
XZU642,675,695..(DM5,T3)..MTM;XZU652,655,675..(T2,T3,T4)..(20T,35T);XZC60#,630,645,655,675,XZU600,605,630,640,645,650,685..20T,30T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05026 |
XZU655..(T3,T4)..20T;XZU675..T4..20T..IV3;XZU652,675,695..DM5,T3;XZC675,XZU642..(DM5,T3,T4)..MTM..(IV3,IV6);XZC60#,630,645,655,XZU600,605,630,640,645,650,685..(DM3,DM5,DM6,DM7,T3,T4,T5)..(20T,30T) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90942-05030 |
XZU652..IV6;XZU642..6F..IV6 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−215/70R17.5,ﾘﾌﾞ,TYPE B:ｲﾗｽﾄQ照 |
1 | ||
| 42631A - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-37020 |
XZU600,602,640,642,650,652..35T,40T |
6 | ||
| 42632A - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-37020 |
XZU600,602,640,642,650,652..35T,40T |
6 | ||

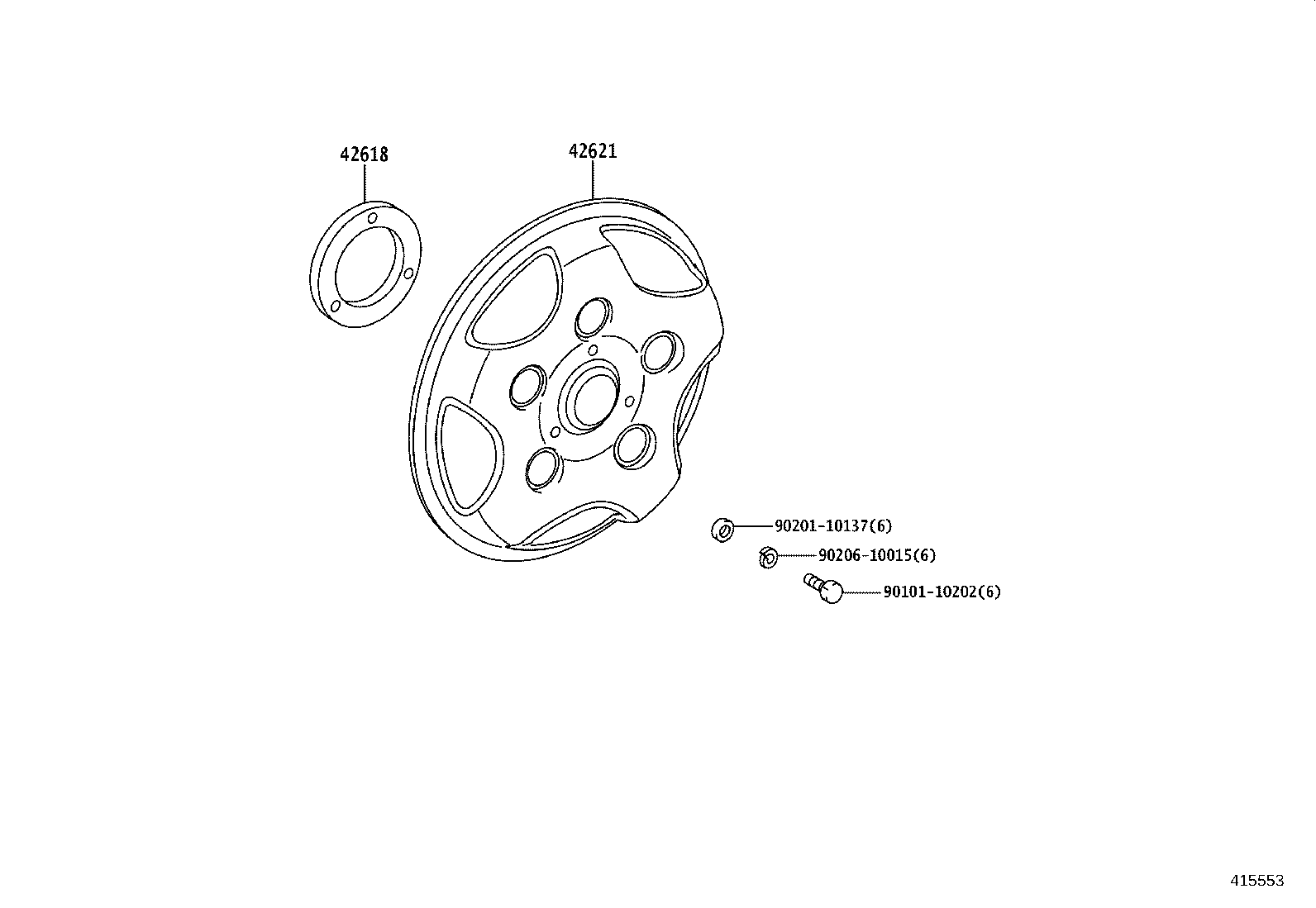

ILLUST NO. 2 OF 4(2103- )
ﾌﾛﾝﾄﾎｲｰﾙｷｬｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-10202 | ||||
| 90201-10137 | ||||
| 90206-10015 | ||||

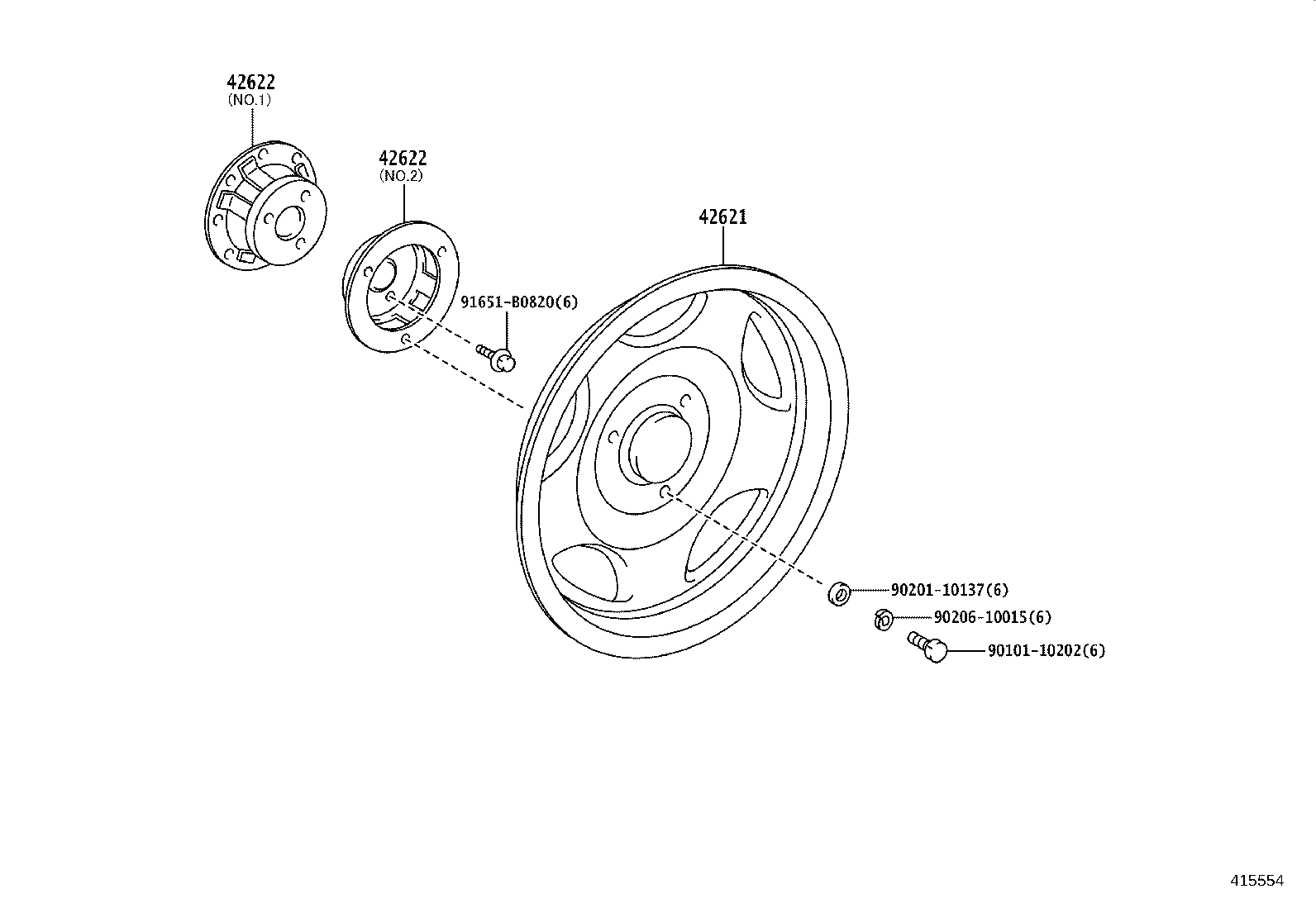

ILLUST NO. 3 OF 4(2103- )
ﾘﾔﾎｲｰﾙｷｬｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-10202 | ||||
| 90201-10137 | ||||
| 90206-10015 | ||||
| 91651-B0820 | ||||

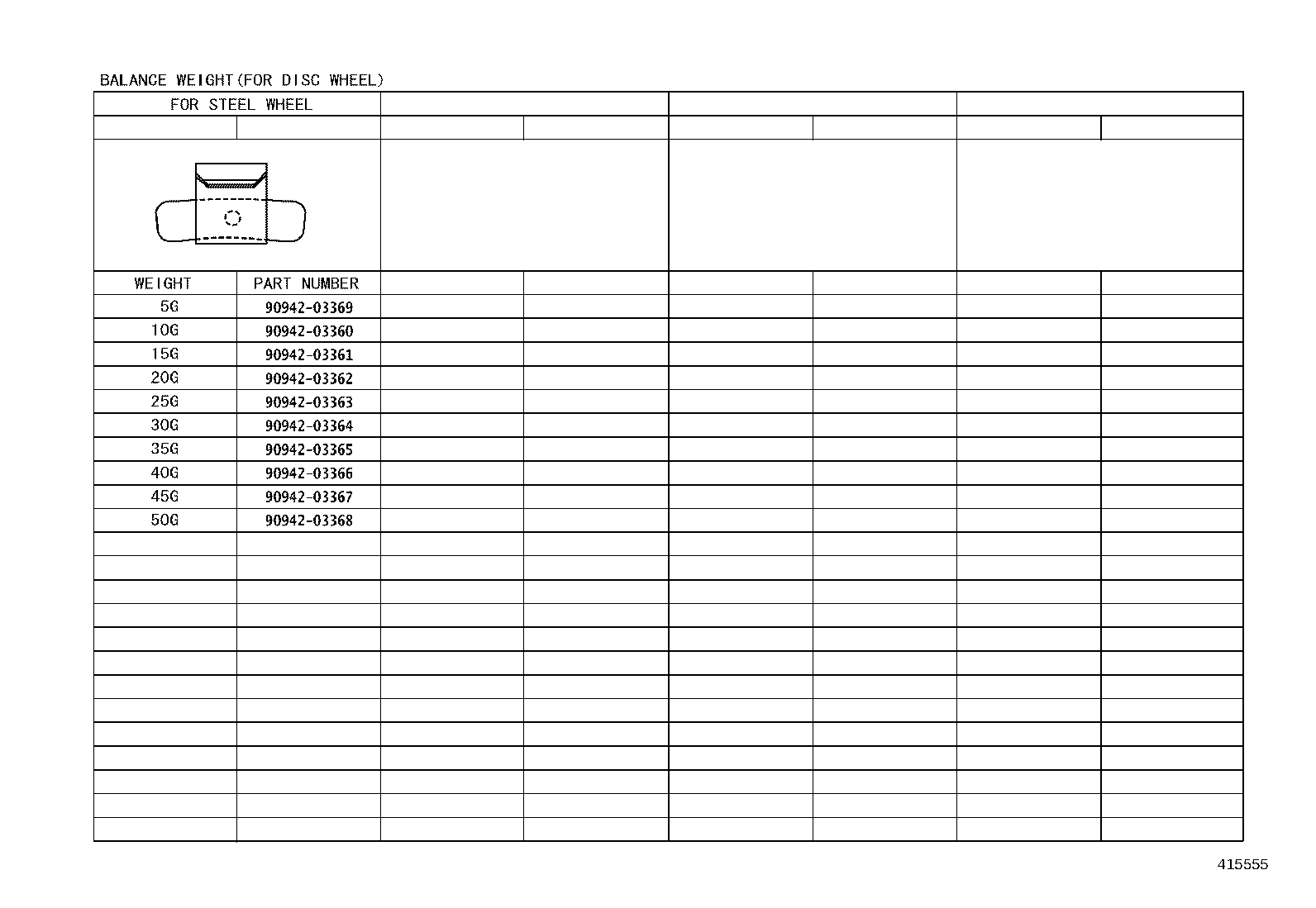

ILLUST NO. 4 OF 4(2103- )
ﾊﾞﾗﾝｽｳｪｲﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03360 | ||||
| 90942-03361 | ||||
| 90942-03362 | ||||
| 90942-03363 | ||||
| 90942-03364 | ||||
| 90942-03365 | ||||
| 90942-03366 | ||||
| 90942-03367 | ||||
| 90942-03368 | ||||
| 90942-03369 | ||||
