XZU652W-TKTRY6 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )6FC..CBU,IV3,IV5,IV6

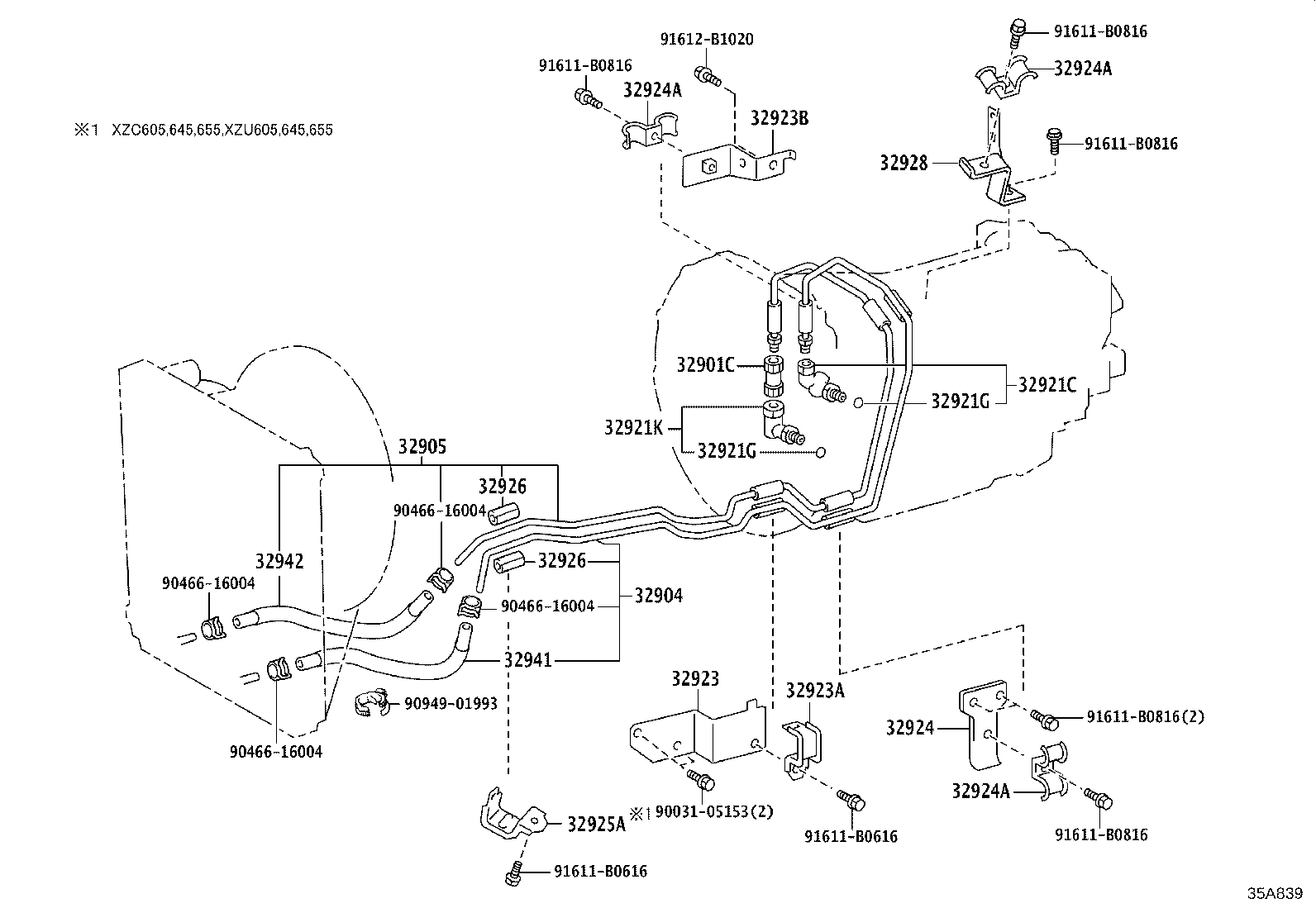

Click highlighted areas on diagram

A860E

diagram 32901C 32904 32905 32921C 32921G 32921G 32921K 32923 32923A 32923B 32924 32924A 32924A 32924A 32925A 32926 32926 32928 32941 32942 9003105153 9046616004 9046616004 9046616004 9046616004 9094901993 91611B0616 91611B0616 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91612B1020
Part # Description Qty Price
32901C - UNION SUB-ASSY, OIL COOLER
32901-37030

XZC60#,645,655,XZU60#,64#,65#..6FC

 1
32904 - TUBE SUB-ASSY, OIL COOLER INLET, NO.1
32904-37191

XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)

 1
32905 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1
32905-37191

XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20010

XZC60#,645,655,XZU60#,64#,65#..6FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

XZC60#,645,655,XZU60#,64#,65#..6FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

XZC60#,645,655,XZU60#,64#,65#..6FC

 2
32921K - UNION, NO.2(FOR OIL COOLER TUBE)
90407-20009

XZC60#,645,655,XZU60#,64#,65#..6FC

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32927-37021

XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32929-25020

XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-37011

XZC60#,645,655,XZU60#,64#,65#..6FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-37010

XZC60#,645,655,XZU60#,64#,65#..6FC

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)

 3
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)

 3
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076

XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)

 3
32925A - CLAMP, FLEXIBLE HOSE, NO.2
32929-25020

XZC60#,645,655,XZU60#,64#,65#..6FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

XZC60#,645,655,XZU60#,64#,65#..6FC

長さ=45,内径=12

 10
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

XZC60#,645,655,XZU60#,64#,65#..6FC

長さ=45,内径=12

 10
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-37041

XZC60#,645,655,XZU60#,64#,65#..6FC

 1
32941 - HOSE, OIL COOLER INLET, NO.1
32941-37150

XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-37120

XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)

 1
Common parts
90031-05153
90466-16004
90949-01993
91611-B0616
91611-B0816
91612-B1020
