XZU652W-TKFRY3 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )35T,40T

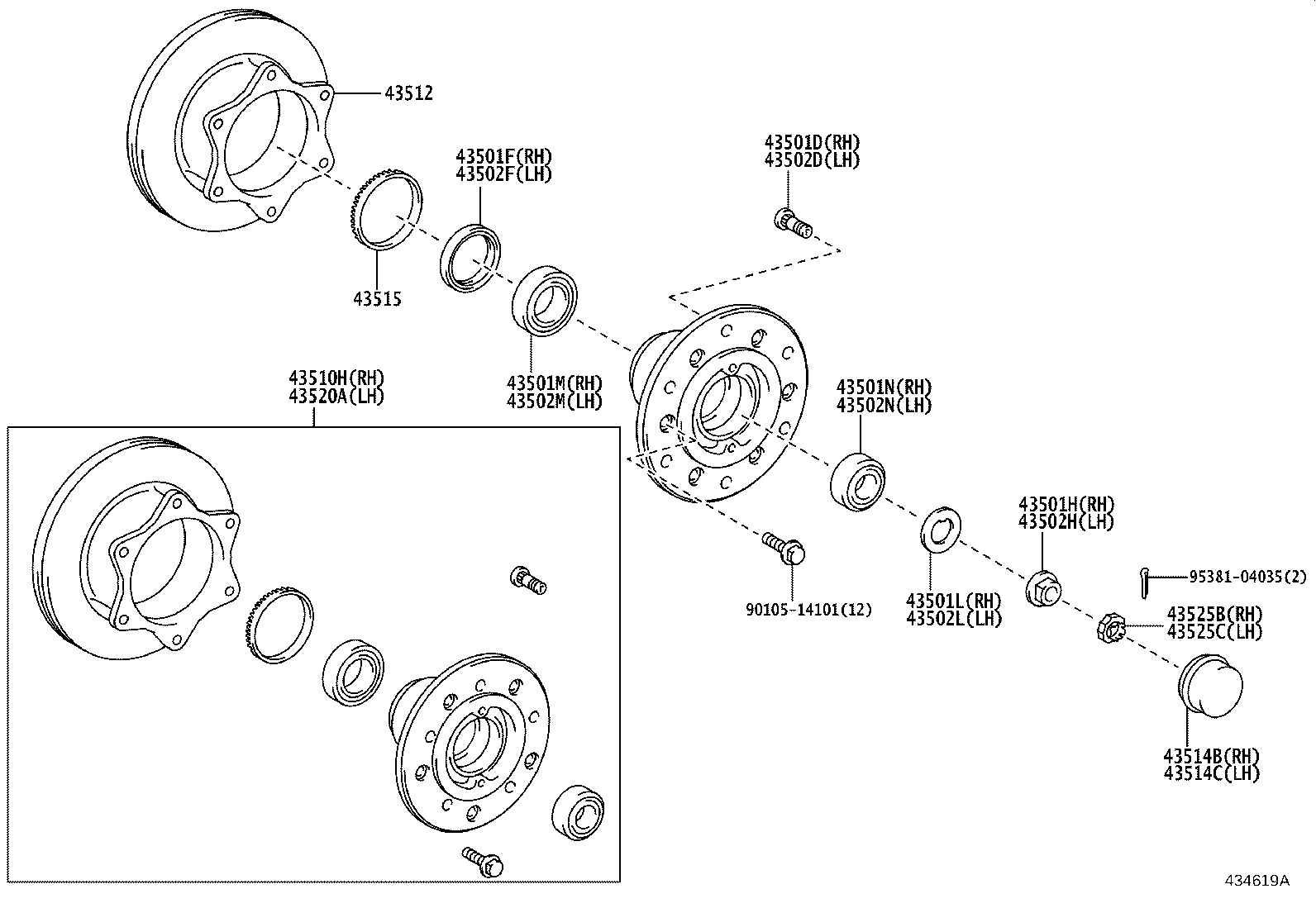

Click highlighted areas on diagram

diagram 43501D 43501F 43501H 43501L 43501M 43501N 43502D 43502F 43502H 43502L 43502M 43502N 43510H 43512 43514B 43514C 43515 43520A 43525B 43525C 9010514101 9538104035
Part # Description Qty Price
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02071

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
43501F - SEAL, OIL (FOR FRONT AXLE HUB RH)
90311-68003

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90178-28001

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH)
90214-29001

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
43501M - BEARING (FOR FRONT AXLE HUB INNER RH)
90366-50069

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
43501N - BEARING (FOR FRONT AXLE HUB OUTER RH)
90366-35105

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02072

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
43502F - SEAL, OIL (FOR FRONT AXLE HUB LH)
90311-68003

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90178-28001

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH)
90214-29001

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
43502M - BEARING (FOR FRONT AXLE HUB INNER LH)
90366-50069

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
43502N - BEARING (FOR FRONT AXLE HUB OUTER LH)
90366-35105

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
43510H - HUB & DISC(DRUM) ASSY, FRONT AXLE, RH
43510-39235

XZU600,602,640,642,650,652..35T,40T

 1
43512 - DISC, FRONT
43512-37140

XZU600,602,640,642,650,652..35T,40T

 2
43514B - CAP, FRONT AXLE HUB GREASE, RH
43514-37050

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
43514C - CAP, FRONT AXLE HUB GREASE, LH
43514-37050

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
43515 - ROTOR, SKID CONTROL, FRONT
43515-37010

XZC60#,630,645,655,XZU60#,630,64#,65#

 2
43520A - HUB & DISC(DRUM) ASSY, FRONT AXLE, LH
43520-39215

XZU600,602,640,642,650,652..35T,40T

 1
43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH
43525-37010

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH
43525-37010

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
Common parts
90105-14101
95381-04035
