XZU652W-TKFRY (2021)
Toyota Dyna

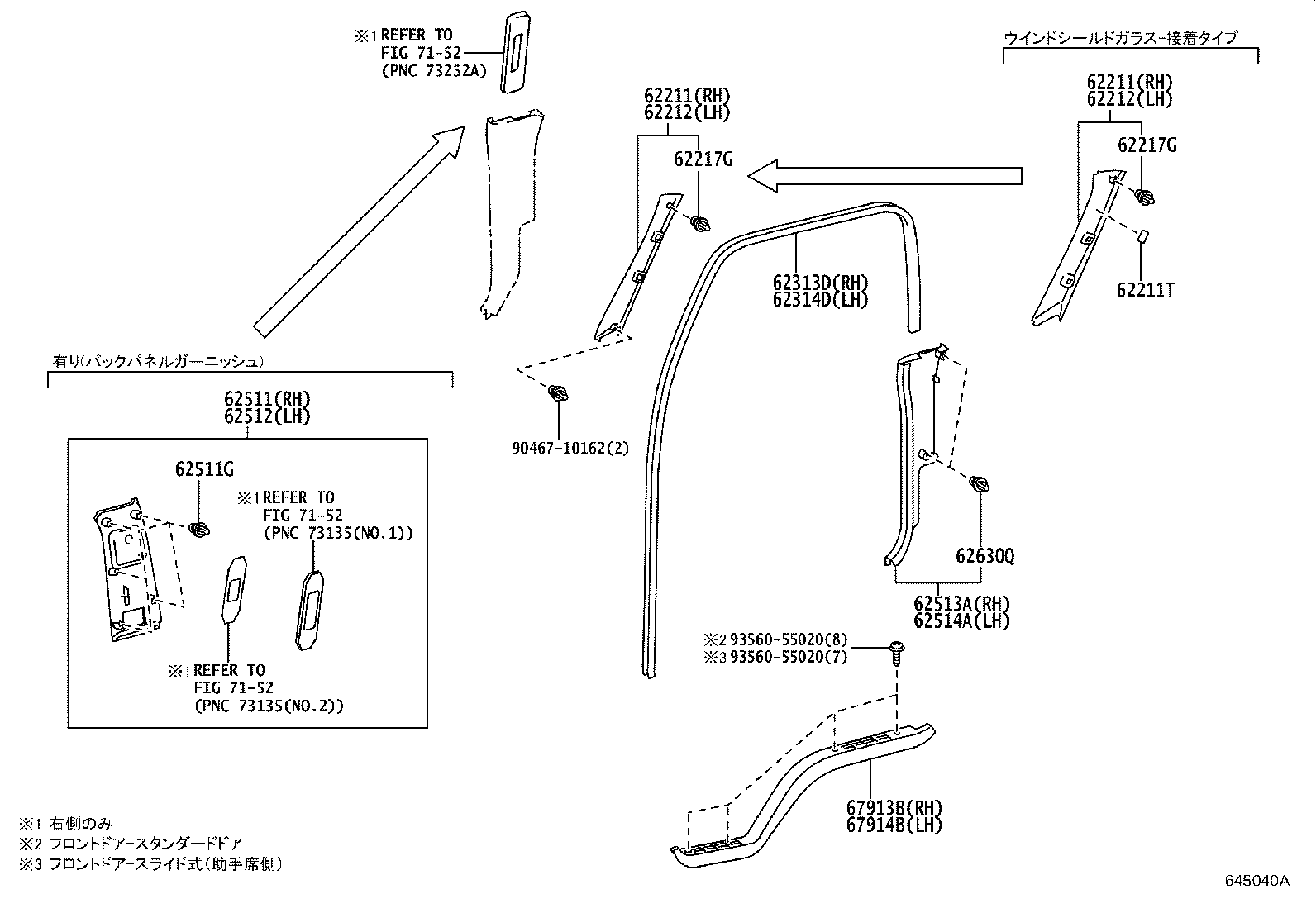

ILLUST NO. 1 OF 2(2103- )SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-37010B0 |
XZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T GRAY,TRIM1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-37010B0 |
XZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-37010B0 |
XZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-37010B0 |
XZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T GRAY,TRIM1# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 90467-10188 |
XZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T |
2 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 90467-10188 |
XZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T |
2 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-37080B0 |
XZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T GRAY,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62314-37040B0 |
XZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T GRAY,TRIM1# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-37060B0 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..SCB..(CBU,IV3) ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..SCB..(CBU,IV3) ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
10 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-37040B0 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..SCB..(CBU,IV3) ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 62513A - PANEL, QUARTER TRIM, LOWER RH | ||||
| 62530-37020B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 62514A - PANEL, QUARTER TRIM, LOWER LH | ||||
| 62540-37020B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 90467-10161 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
4 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-37010B1 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-37010B1 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-10162 | ||||
| 93560-55020 | ||||
| Linked diagrams | ||||
| 7152 | ||||

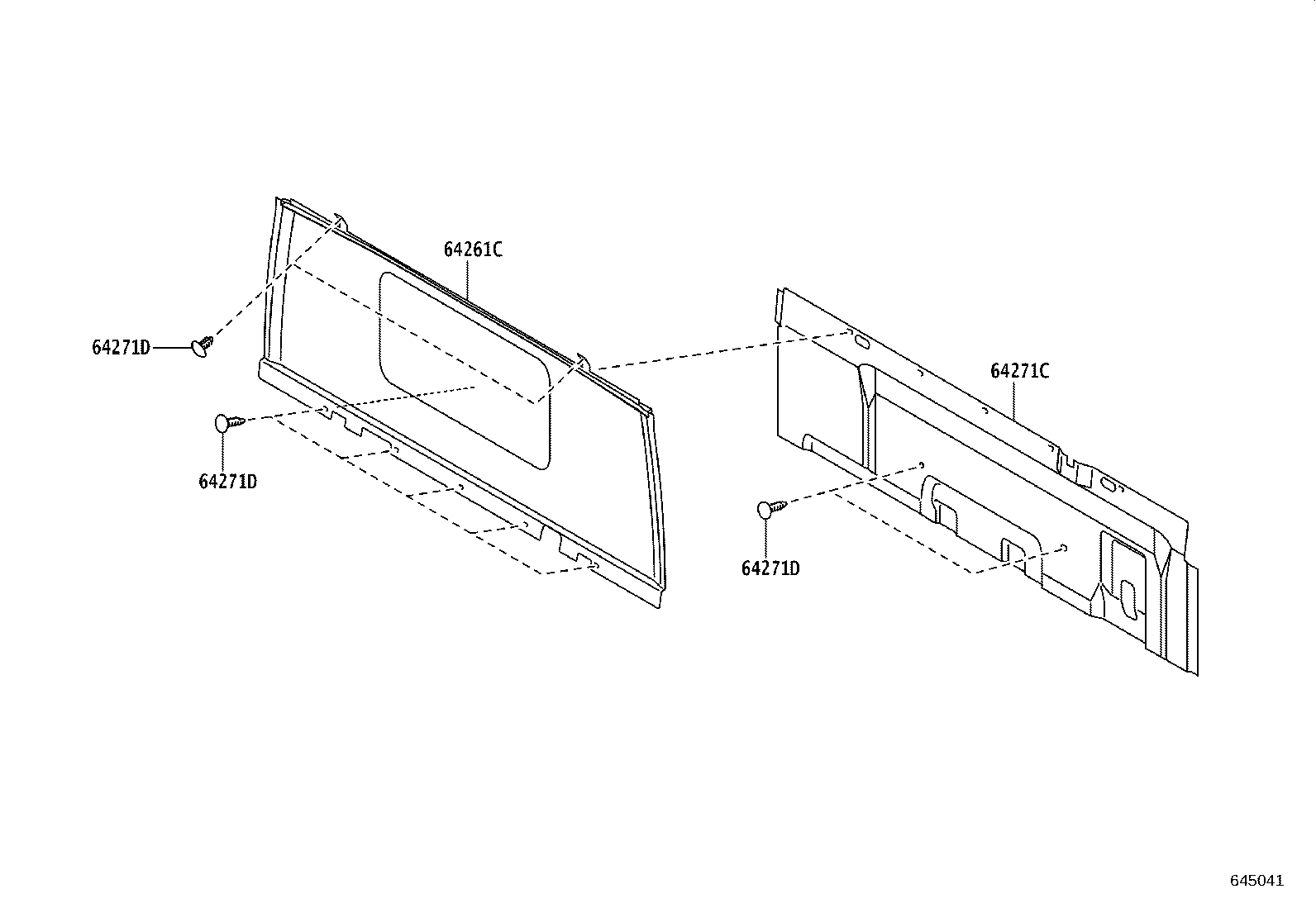

ILLUST NO. 2 OF 2(2103- )SCB
ｱﾘ(ﾊﾞｯｸﾊﾟﾈﾙｶﾞｰﾆｯｼｭ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64261C - GARNISH, BACK PANEL, UPPER | ||||
| 64261-37010B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 64271C - TRIM, BACK PANEL | ||||
| 64271-37731B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 64271D - CLIP(FOR BACK PANEL TRIM) | ||||
| 90467-06048P3 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
9 | ||
| 64271D - CLIP(FOR BACK PANEL TRIM) | ||||
| 90467-06048P3 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
9 | ||
| 64271D - CLIP(FOR BACK PANEL TRIM) | ||||
| 90467-06048P3 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
9 | ||
