XZU650W-TKFSY (2021)
Toyota Dyna
ILLUST NO. 1 OF 3(2103- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89183A - SENSOR, YAWRATE | ||||
| 89183-37011 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89421F - SENSOR, VACUUM (FOR SKID CONTROL) | ||||
| 89421-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 89421F - SENSOR, VACUUM (FOR SKID CONTROL) | ||||
| 89421-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 89437F - COVER, SENSOR | ||||
| 89437-37021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| Common parts | ||||
| 87615-37010 | ||||
| 91551-80616 | ||||
| 91621-40616 | ||||
ILLUST NO. 2 OF 3(2103- )35T,40T
ﾌﾛﾝﾄｽﾋﾟｰﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-37170 |
XZU600,602,640,642,650,652..35T,40T |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-37170 |
XZU600,602,640,642,650,652..35T,40T |
1 | ||
| Common parts | ||||
| 90129-08007 | ||||
| 91551-80620 | ||||
| 94151-80800 | ||||

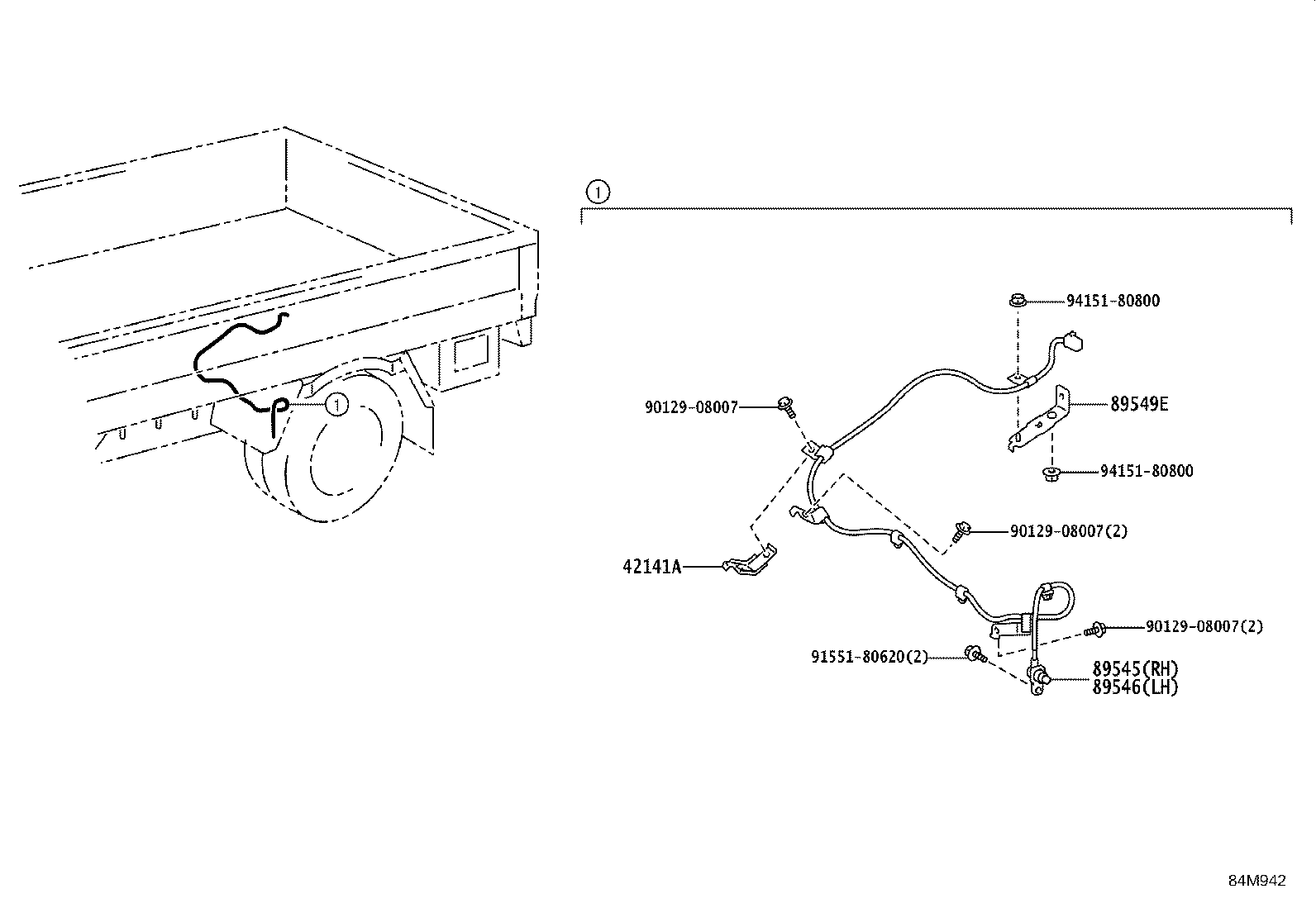

ILLUST NO. 3 OF 3(2103- )XZU650,652..35T,40T..CBU,IV3
ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37010 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-37080 |
XZU650,652..(35T,40T)..(CBU,IV3) |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-37080 |
XZU650,652..(35T,40T)..(CBU,IV3) |
1 | ||
| 89549E - BRACKET, SPEED SENSOR | ||||
| 82715-3V690 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| Common parts | ||||
| 90129-08007 | ||||
| 91551-80620 | ||||
| 94151-80800 | ||||
ILLUST NO. 3 OF 3(2103- )XZU600..T3..IV3,IV4,IV7 ; (2103- )XZC605,645,655,XZU605,640,645,650,6
ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37010 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-37080 |
XZU650,652..(35T,40T)..(CBU,IV3) |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-37080 |
XZU650,652..(35T,40T)..(CBU,IV3) |
1 | ||
| 89549E - BRACKET, SPEED SENSOR | ||||
| 82715-3V690 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| Common parts | ||||
| 42141-37330 | ||||
| 90129-08007 | ||||
| 91551-80635 | ||||
| 94151-80800 | ||||
ILLUST NO. 3 OF 3(2103- )DM3..IV3 ; (2103- )XZC675,XZU675,685,695..T3,T4 ; (2103- )XZU600,6
ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37010 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-37080 |
XZU650,652..(35T,40T)..(CBU,IV3) |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-37080 |
XZU650,652..(35T,40T)..(CBU,IV3) |
1 | ||
| 89549E - BRACKET, SPEED SENSOR | ||||
| 82715-3V690 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| Common parts | ||||
| 90129-08007 | ||||
| 91551-80620 | ||||
| 94151-80800 | ||||
