XZU650-TQFMY3 (2021)
Toyota Dyna
ILLUST NO. 4 OF 4(2103- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-37126 |
XZC60#,630,645,655,XZU60#,630,64#,65# ﾃﾞｭﾄﾛ専用 |
1 | ||
| 44050-37126 |
XZU650..T4..6F..IV3;XZU655..T4..6FC..20T..IV3 ﾃﾞｭﾄﾛ専用&ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−205/70R17.5,ﾔﾏﾄ運輸仕様 |
1 | ||
| 44050-37384 |
XZU650..T4 |
1 | ||
| 44050-37564 |
XZU650..T4..6F..IV3 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−205/70R17.5,ﾔﾏﾄ運輸仕様 |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-60100 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-60100 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-37051 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 91551-80820 | ||||

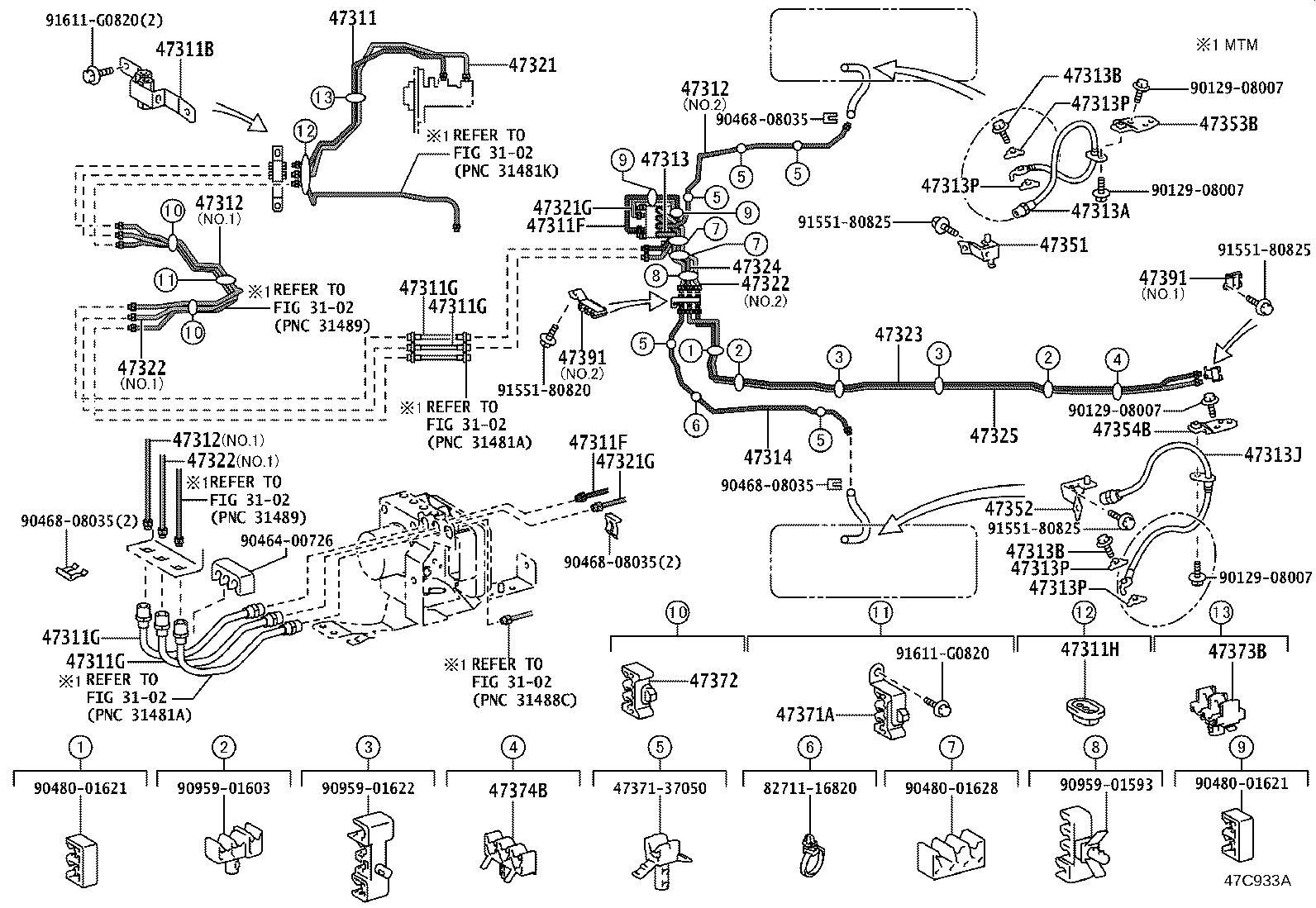

ILLUST NO. 1 OF 4(2103- )XZC600,XZU600,602,640,642,650,652..CBU,IV3,IV4,IV6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37760 |
XZC675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37460 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37611 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37611 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02J57 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02J57 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02J57 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02J57 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 47256-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 47312-37F80 |
XZC600,630,XZU600,630,640,650..20T,30T NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 47312-37F80 |
XZC600,630,XZU600,630,640,650..20T,30T NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 47312-37F80 |
XZC600,630,XZU600,630,640,650..20T,30T NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37560 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A72 |
XZC600,630,XZU600,630,640,650..20T,30T |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02B27 |
XZC600,630,XZU600,630,640,650..20T,30T |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37A60 |
XZC600,630,XZU600,630,640,650..20T,30T |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37750 |
XZC675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37580 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37580 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37A91 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 47322-37B00 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37A91 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 47322-37B00 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37A91 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 47322-37B00 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37B70 |
XZC60#,645,655,XZU60#,64#,65#..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37380 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37640 |
XZC60#,645,655,XZU60#,64#,65#..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37130 |
XZC600,630,XZU600,630,640,650..20T,30T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37050 |
XZC600,630,XZU600,630,640,650..20T,30T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37150 |
XZC600,630,XZU600,630,640,650..20T,30T |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37160 |
XZC600,630,XZU600,630,640,650..20T,30T |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37150 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-37160 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-37110 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-37240 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37300 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 47391-37670 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37300 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 47391-37670 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 82711-16820 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01621 | ||||
| 90480-01628 | ||||
| 90959-01593 | ||||
| 90959-01603 | ||||
| 90959-01622 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
| Linked diagrams | ||||
| 3102 | ||||

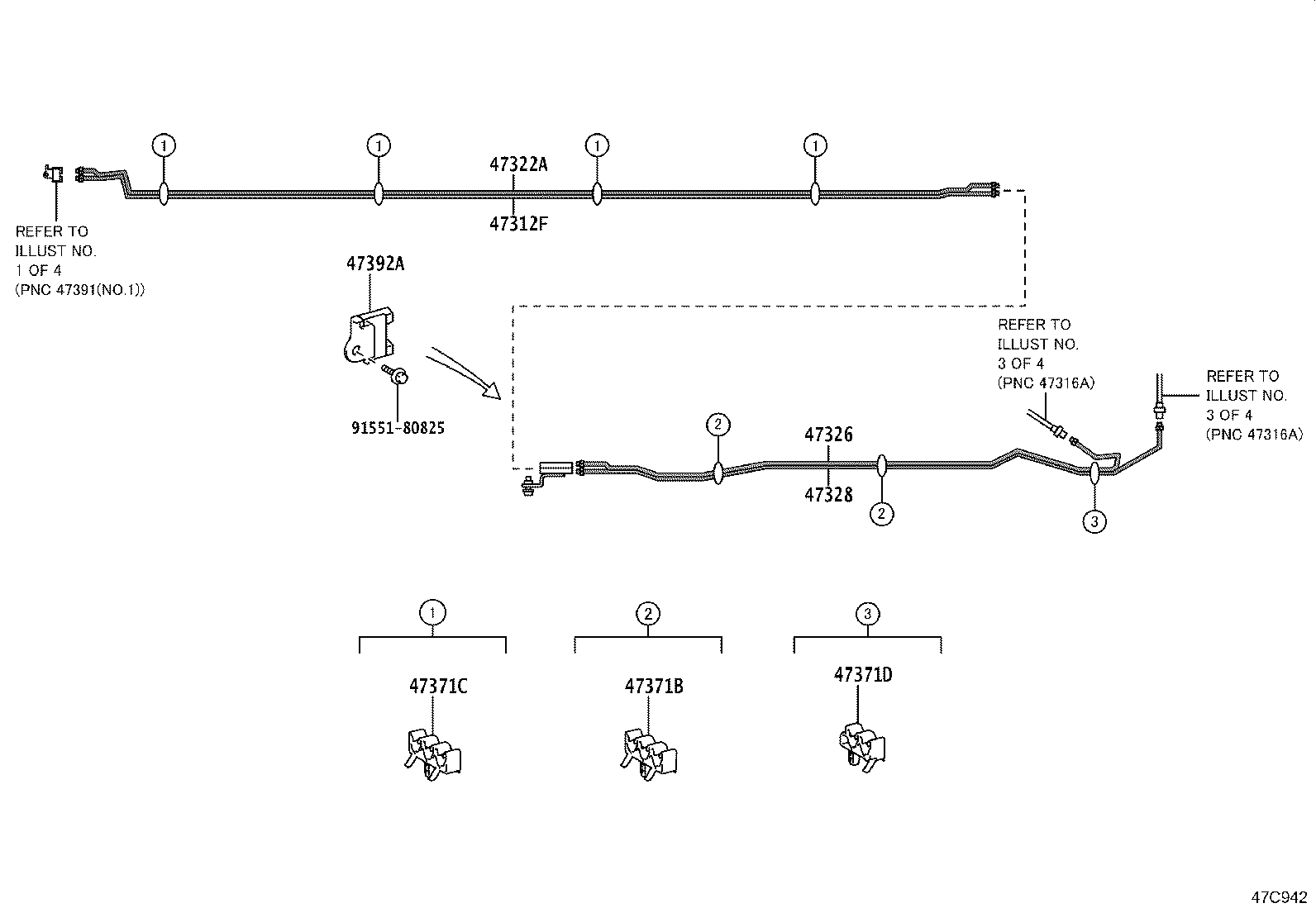

ILLUST NO. 2 OF 4(2103- )XZC655,XZU65#,695
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37G20 |
XZC655,XZU65#,695 |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37J00 |
XZC655,XZU65#,695 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37790 |
XZC655,XZU65# |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37650 |
XZC655,XZU65# |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-37240 |
XZC655,XZU65#,695 |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-37240 |
XZC655,XZU65#,695 |
4 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47371-37250 |
XZC60#,645,655,675,XZU60#,64#,65#,675,685,695 |
1 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47391-37660 |
XZC600,655,XZU65#,695;XZC675,XZU600,675..DM5 |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||

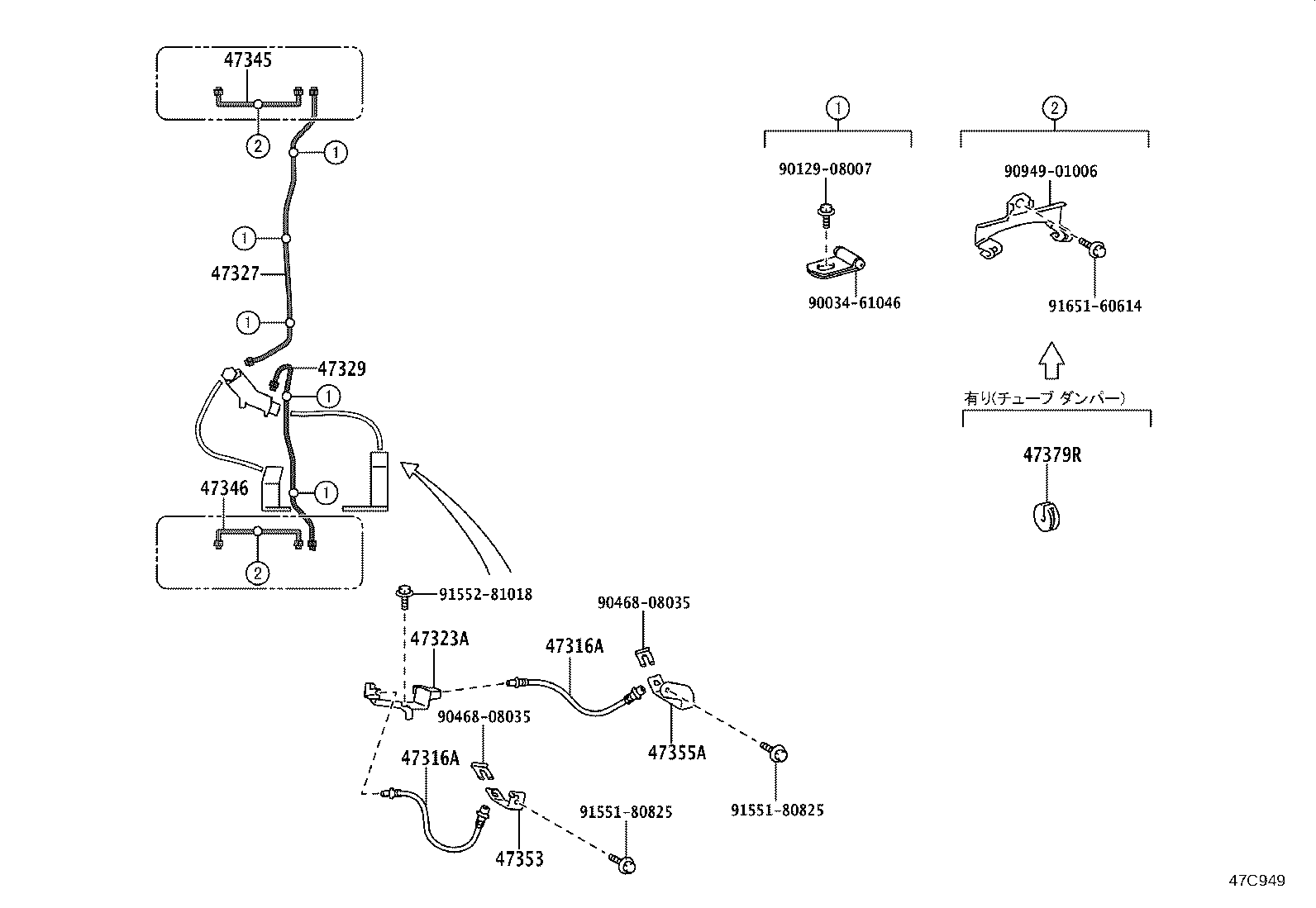

ILLUST NO. 3 OF 4(2103- )XZU645..30T ; (2103- )XZC655,XZU600,640,650,655..T2,T3,T4..20T,30T..C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU600,650,652..(T3,T4)..(CBU,IV3,IV4,IV7);XZC605,645,655,XZU605,640,645,655..(20T,30T)..(CBU,IV3,IV4,IV6) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU600,650,652..(T3,T4)..(CBU,IV3,IV4,IV7);XZC605,645,655,XZU605,640,645,655..(20T,30T)..(CBU,IV3,IV4,IV6) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU600,650,652..(T3,T4)..(CBU,IV3,IV4,IV7);XZC605,645,655,XZU605,640,645,655..(20T,30T)..(CBU,IV3,IV4,IV6) |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU600,650,652..(T3,T4)..(CBU,IV3,IV4,IV7);XZC605,645,655,XZU605,640,645,655..(20T,30T)..(CBU,IV3,IV4,IV6) |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU600,650,652..(T3,T4)..(CBU,IV3,IV4,IV7);XZC605,645,655,XZU605,640,645,655..(20T,30T)..(CBU,IV3,IV4,IV6) |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU600,650,652..(T3,T4)..(CBU,IV3,IV4,IV7);XZC605,645,655,XZU605,640,645,655..(20T,30T)..(CBU,IV3,IV4,IV6) |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02F02 |
XZU645..30T;XZC655,XZU600,640,650,655..(T2,T3,T4)..(20T,30T)..(CBU,IV3,IV4,IV7) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02F03 |
XZU645..30T;XZC655,XZU600,640,650,655..(T2,T3,T4)..(20T,30T)..(CBU,IV3,IV4,IV7) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37731 |
XZU650,655..(T3,T4)..(20T,30T);XZU600,640,645..(T3,T4)..30T..(CBU,IV3,IV4,IV7) |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37561 |
XZU650,655..(T3,T4)..(20T,30T);XZU600,640,645..(T3,T4)..30T..(CBU,IV3,IV4,IV7) |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37110 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37240 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 91551-80825 | ||||
| 91552-81018 | ||||
ILLUST NO. 3 OF 4(2103- )XZU685,695 ; (2103- )XZU602,640,642..40T ; (2103- )XZU600,650,652.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5 |
2 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37731 |
XZU650,655..(T3,T4)..(20T,30T);XZU600,640,645..(T3,T4)..30T..(CBU,IV3,IV4,IV7) |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37561 |
XZU650,655..(T3,T4)..(20T,30T);XZU600,640,645..(T3,T4)..30T..(CBU,IV3,IV4,IV7) |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37110 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37240 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90949-01006 | ||||
| 91551-80825 | ||||
| 91552-81018 | ||||
| 91651-60614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
