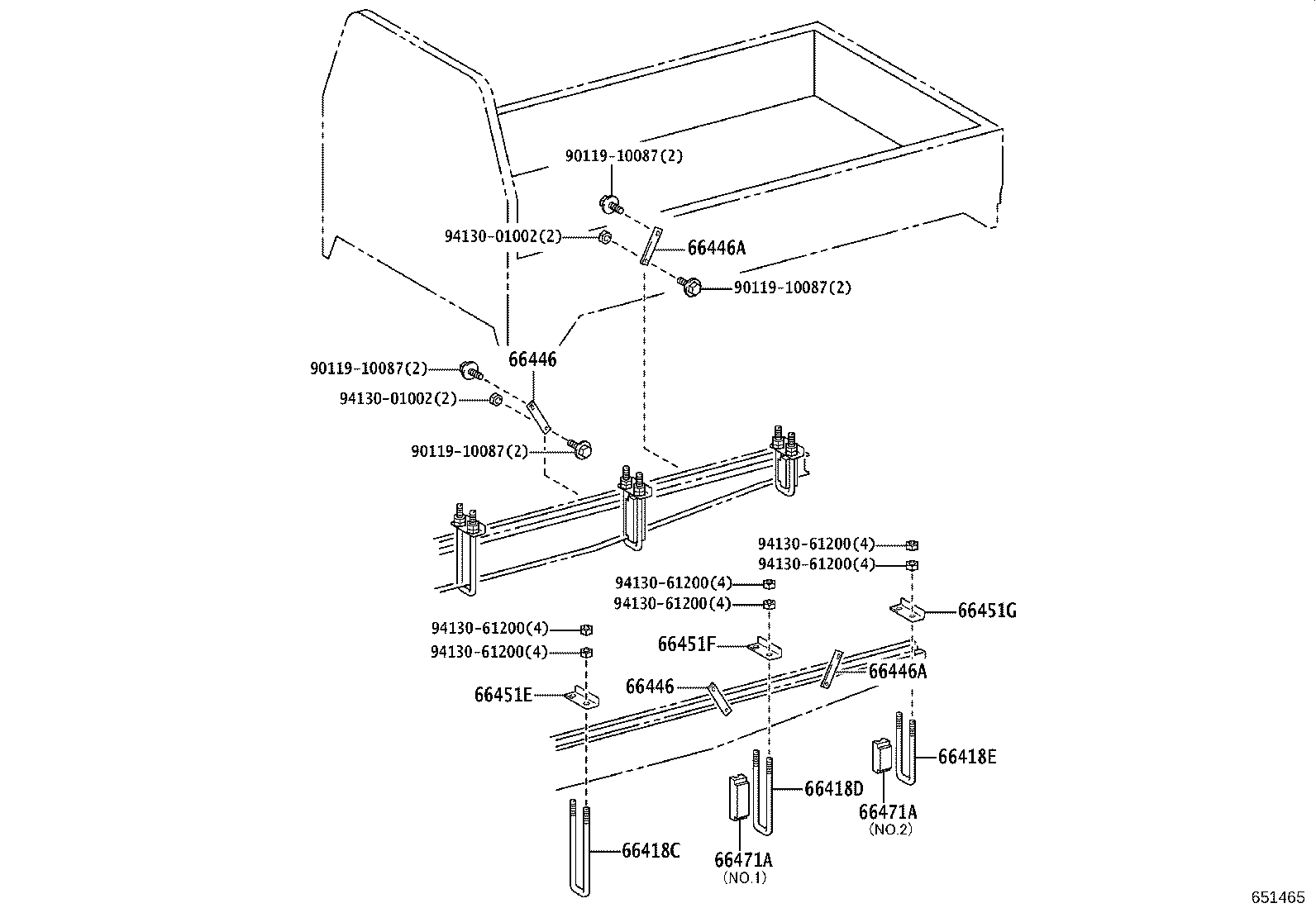

XZU650-TQFMY (2021)
Toyota Dyna
(2103- )T2,T3,T4,T5..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66418C - BOLT, U, FRONT | ||||
| 90117-12039 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),長さ=338 |
2 | ||
| 90117-12045 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),長さ=300 |
2 | ||
| 90117-12041 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)),長さ=370 |
2 | ||
| 66418D - BOLT, U, CENTER | ||||
| 90117-12039 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),長さ=338 |
2 | ||
| 90117-12041 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)),長さ=370 |
2 | ||
| 90117-12045 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),長さ=300 |
2 | ||
| 66418E - BOLT, U, REAR | ||||
| 90117-12039 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)),長さ=338 |
2 | ||
| 90117-12043 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),長さ=248 |
2 | ||
| 90117-12045 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),長さ=300 |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-37060 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)) |
2 | ||
| 66446-92700 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 66446-37060 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-37060 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)) |
2 | ||
| 66446-92700 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 66446-37060 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66446A - BRACE, FRAME TO REAR BODY FLOOR | ||||
| 66446-37060 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)) |
2 | ||
| 66446-37060 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66446-92700 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 66446A - BRACE, FRAME TO REAR BODY FLOOR | ||||
| 66446-37060 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)) |
2 | ||
| 66446-37060 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66446-92700 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 66451E - PLATE, U BOLT, FRONT | ||||
| 66451-37030 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66451-37030 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 66451-37030 |
XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)) |
2 | ||
| 66451F - PLATE, U BOLT, CENTER | ||||
| 66451-37030 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 66451-37030 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66451-37030 |
XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)) |
2 | ||
| 66451G - PLATE, U BOLT, REAR | ||||
| 66451-37030 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 66451-37030 |
XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)) |
2 | ||
| 66451-37030 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66405-37140 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.2 |
2 | ||
| 66405-37140 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)),NO.2 |
2 | ||
| 66471-37230 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),NO.1 |
2 | ||
| 66471-37250 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1 |
2 | ||
| 66471-37220 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),NO.2 |
2 | ||
| 66471-37250 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)),NO.1 |
2 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66405-37140 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.2 |
2 | ||
| 66405-37140 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)),NO.2 |
2 | ||
| 66471-37230 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),NO.1 |
2 | ||
| 66471-37250 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1 |
2 | ||
| 66471-37220 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),NO.2 |
2 | ||
| 66471-37250 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)),NO.1 |
2 | ||
| Common parts | ||||
| 90119-10087 | ||||
| 94130-01002 | ||||
| 94130-61200 | ||||

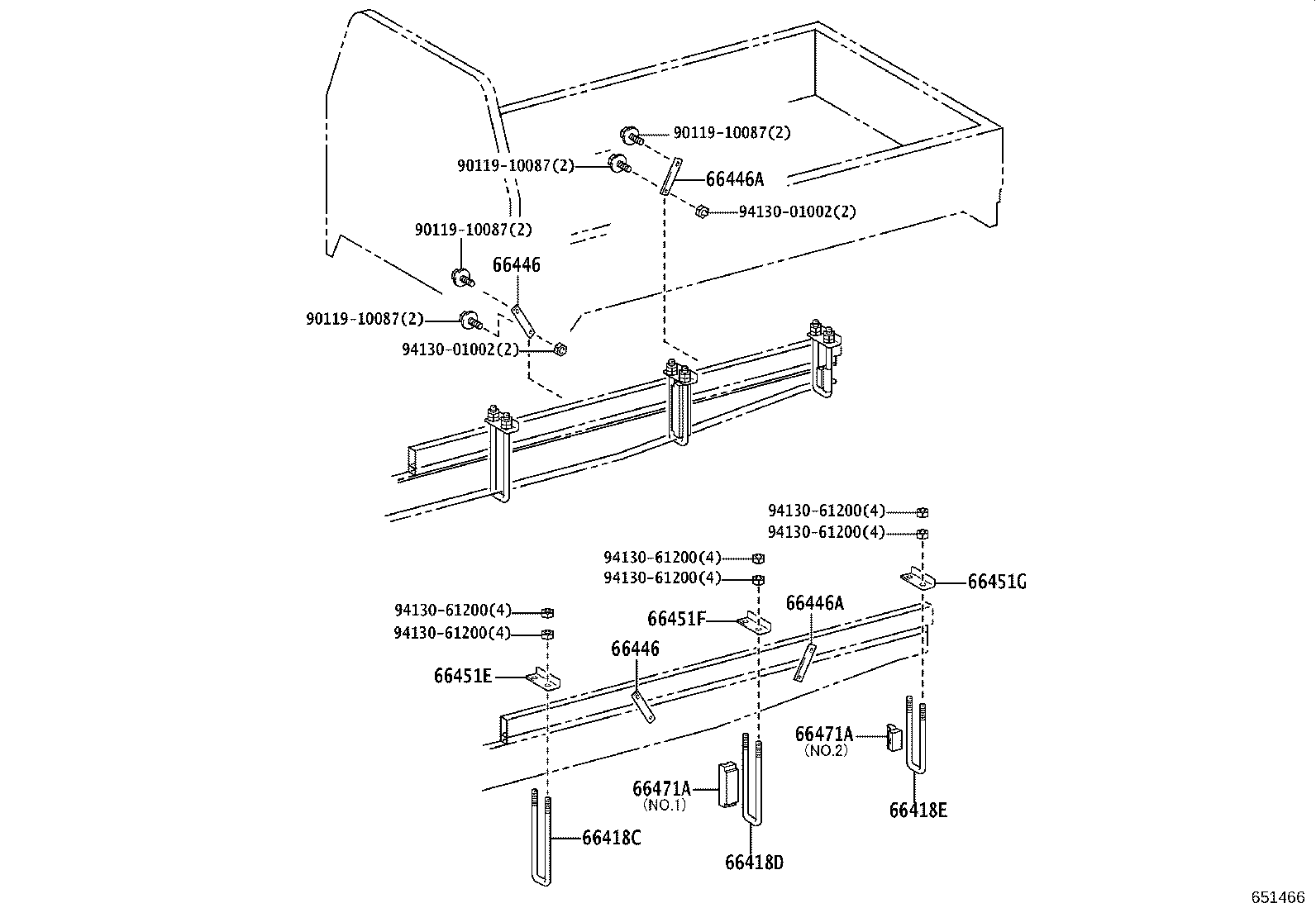

(2103- )XZC655..T4..CBU ; (2103- )XZU650..20T,30T..CBU ; (2103- )XZU655..T
ﾚﾝﾀｶｰｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66418C - BOLT, U, FRONT | ||||
| 90117-12039 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),長さ=338 |
2 | ||
| 90117-12045 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),長さ=300 |
2 | ||
| 90117-12041 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)),長さ=370 |
2 | ||
| 66418D - BOLT, U, CENTER | ||||
| 90117-12039 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),長さ=338 |
2 | ||
| 90117-12041 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)),長さ=370 |
2 | ||
| 90117-12045 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),長さ=300 |
2 | ||
| 66418E - BOLT, U, REAR | ||||
| 90117-12039 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)),長さ=338 |
2 | ||
| 90117-12043 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),長さ=248 |
2 | ||
| 90117-12045 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),長さ=300 |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-37060 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)) |
2 | ||
| 66446-92700 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 66446-37060 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-37060 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)) |
2 | ||
| 66446-92700 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 66446-37060 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66446A - BRACE, FRAME TO REAR BODY FLOOR | ||||
| 66446-37060 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)) |
2 | ||
| 66446-37060 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66446-92700 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 66446A - BRACE, FRAME TO REAR BODY FLOOR | ||||
| 66446-37060 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)) |
2 | ||
| 66446-37060 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66446-92700 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 66451E - PLATE, U BOLT, FRONT | ||||
| 66451-37030 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66451-37030 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 66451-37030 |
XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)) |
2 | ||
| 66451F - PLATE, U BOLT, CENTER | ||||
| 66451-37030 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 66451-37030 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66451-37030 |
XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)) |
2 | ||
| 66451G - PLATE, U BOLT, REAR | ||||
| 66451-37030 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 66451-37030 |
XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)) |
2 | ||
| 66451-37030 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66405-37140 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.2 |
2 | ||
| 66405-37140 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)),NO.2 |
2 | ||
| 66471-37230 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),NO.1 |
2 | ||
| 66471-37250 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1 |
2 | ||
| 66471-37220 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),NO.2 |
2 | ||
| 66471-37250 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)),NO.1 |
2 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66405-37140 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.2 |
2 | ||
| 66405-37140 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)),NO.2 |
2 | ||
| 66471-37230 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),NO.1 |
2 | ||
| 66471-37250 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1 |
2 | ||
| 66471-37220 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),NO.2 |
2 | ||
| 66471-37250 |
XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)),NO.1 |
2 | ||
| Common parts | ||||
| 90119-10087 | ||||
| 94130-01002 | ||||
| 94130-61200 | ||||

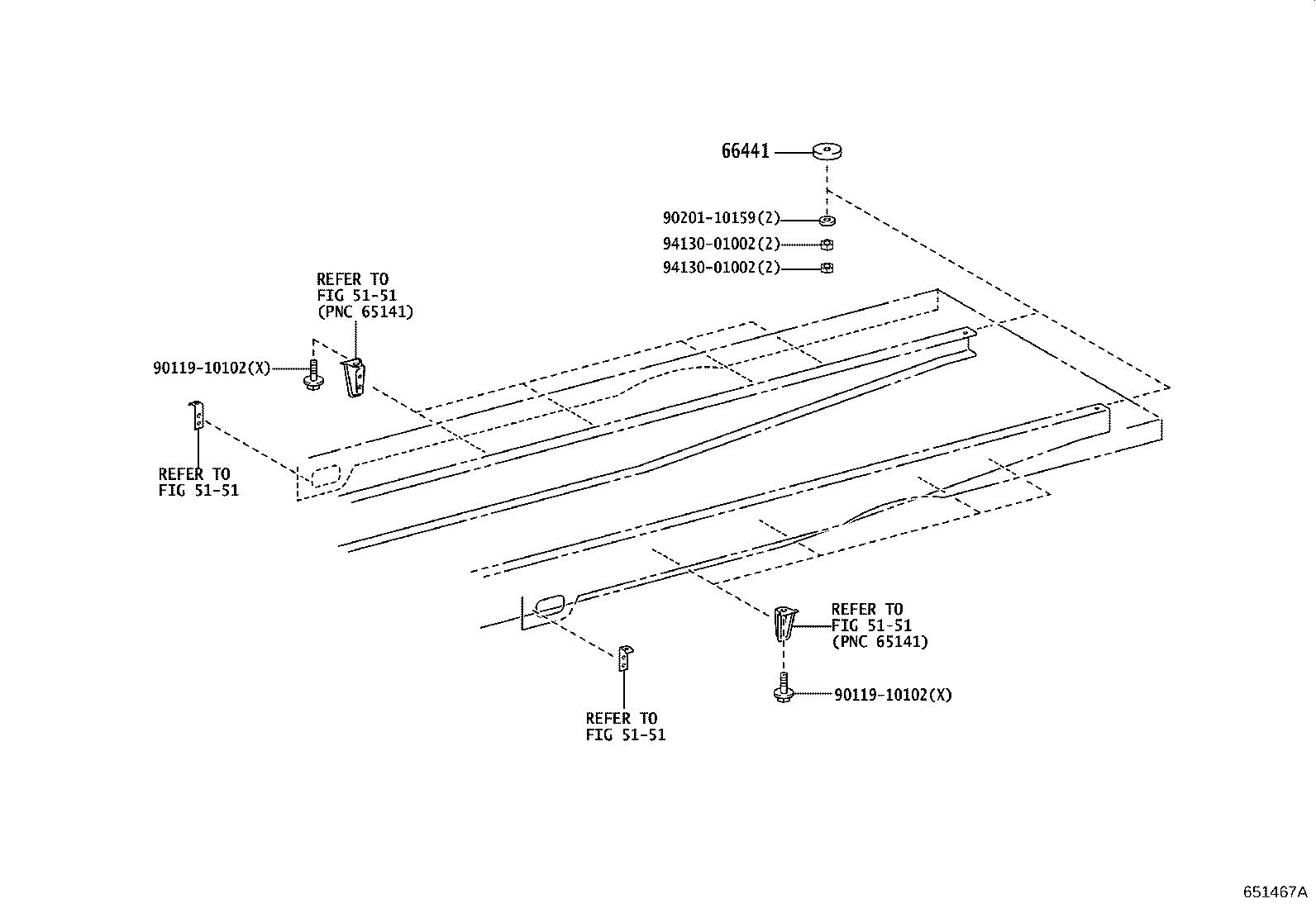

(2103- )XZC605,645,655,XZU605,650,655..SCB..T2,T4..20T..CBU
ｱﾘ(ﾒｲﾝｼﾙｻﾎﾟｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66441 - SHIM, MOUNTING, NO.1 | ||||
| 66441-37030 |
XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66441-37030 |
XZC605,645,655,XZU605,650,655..SCB..(T2,T4)..20T..CBU |
2 | ||
| 66441-37030 |
XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)) |
2 | ||
| 66441-37030 |
XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ)) |
2 | ||
| 66441-37030 |
XZU650,655..SCB..T4..20T..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
2 | ||
| 66441-37030 |
XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| Common parts | ||||
| 90119-10102 | ||||
| 90201-10159 | ||||
| 94130-01002 | ||||
| Linked diagrams | ||||
| 5151 | ||||
