Toyota Dyna XZU650 FRONT DOOR PANEL & GLASS

Manufacturers Home
Toyota
JP
DYNA
XZU650-TKTQY (2021)
6751 - FRONT DOOR PANEL & GLASS

XZU650-TKTQY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999

Engine N04C

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

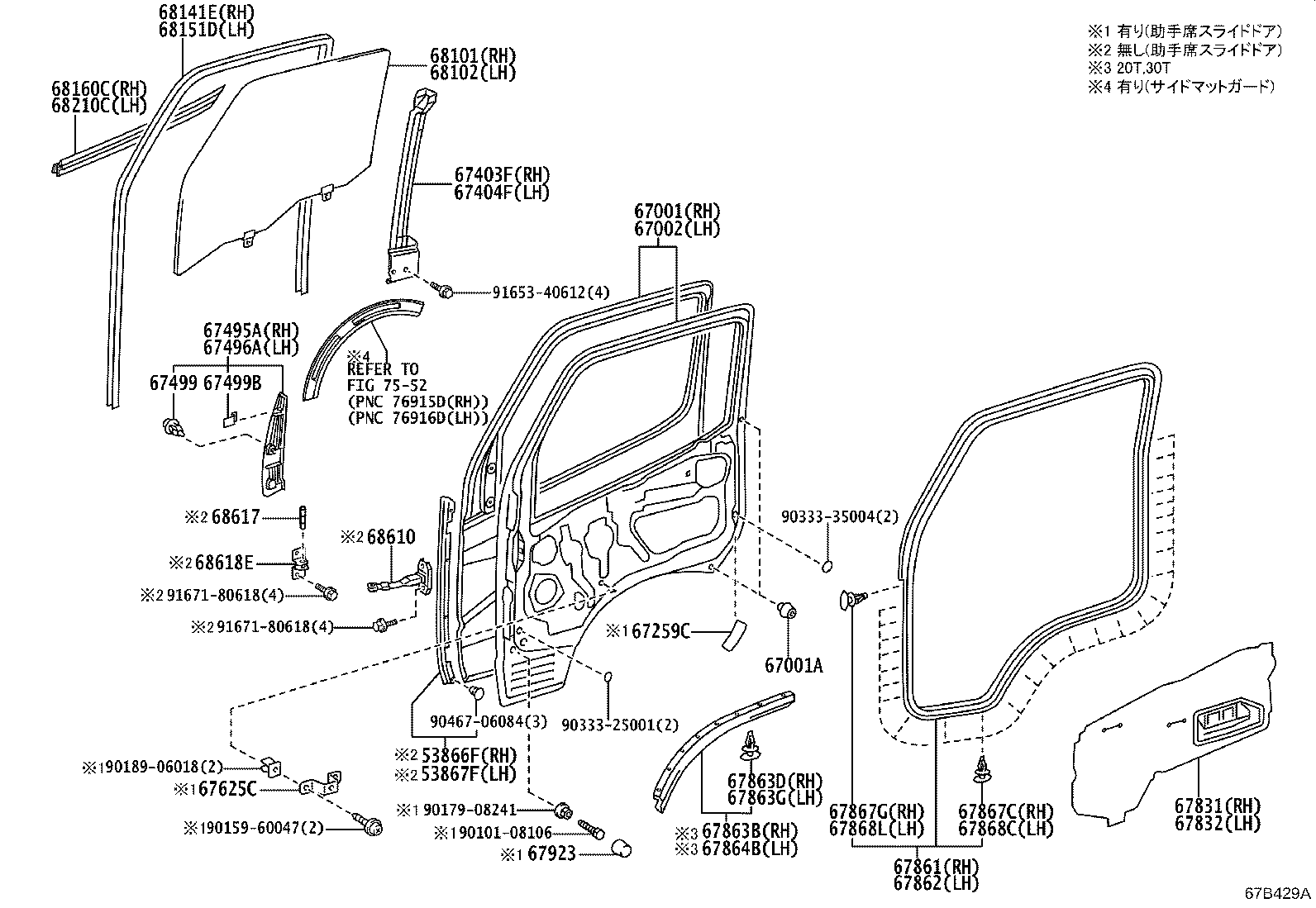

ILLUST NO. 1 OF 2(2103- )

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

Part #	Description	Period	Qty
53866F - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-37042	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
53867F - SEAL, FR FENDER TO COWL SIDE, LH
53867-37032	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-37610	XZC655,XZU650,655,695..(20T,30T)..CBU;XZC60#,630,645,675,XZU600,605,630,640,645,675,685..(20T,30T)..(CBU,IV3,IV4,IV6,IV7)	03/2021 - 12/2999	1
67001-37620	XZC655,XZU650,655,695..(20T,30T)..CBU ﾘﾌﾚｯｸｽﾘﾌﾚｸﾀ−ｻｲﾄﾞ(ﾌﾛﾝﾄ2個,ﾘﾔ4個),ﾘﾔ(小型)	03/2021 - 12/2999	1
67001-37640	XZC655,XZU650,655,695..SCB..(20T,30T)..CBU ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾘﾌﾚｯｸｽﾘﾌﾚｸﾀ−ｻｲﾄﾞ(ﾌﾛﾝﾄ2個,ﾘﾔ4個),ﾘﾔ(小型)	03/2021 - 12/2999	1
67001-37630	XZC655,XZU650,655,695..SCB..(20T,30T)..CBU;XZC60#,630,645,675,XZU600,605,630,640,645,675,685..SCB..(CBU,IV3,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	03/2021 - 12/2999	1
67001A - CUSHION, FRONT DOOR PANEL
90541-09031	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-37382	XZC655,XZU650,655,695..(20T,30T)..CBU ﾘﾌﾚｯｸｽﾘﾌﾚｸﾀ−ｻｲﾄﾞ(ﾌﾛﾝﾄ2個,ﾘﾔ4個),ﾘﾔ(小型)	03/2021 - 12/2999	1
67002-37372	XZC655,XZU650,655,695..(20T,30T)..CBU;XZC60#,630,645,675,XZU600,605,630,640,645,675,685..(20T,30T)..(CBU,IV3,IV4,IV6,IV7)	03/2021 - 12/2999	1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-37021	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-37021	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67495-37010	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67496-37010	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67771-12050	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	4
67499B - RETAINAR, FRONT DOOR LOWER FRAME BRACKET GARNISH, NO.2
67499-37010	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-37050	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-37060	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-89112	XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..(20T,30T)	03/2021 - 12/2999	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-89111	XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..(20T,30T)	03/2021 - 12/2999	1
67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH
67863-37011	XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..(20T,30T)..(CBU,IV3,IV4,IV6,IV7)	03/2021 - 12/2999	1
67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67867-12150	XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..(20T,30T)..(CBU,IV3,IV4,IV6,IV7)	03/2021 - 12/2999	8
67863G - RETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67867-12150	XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..(20T,30T)..(CBU,IV3,IV4,IV6,IV7)	03/2021 - 12/2999	8
67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH
67864-37011	XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..(20T,30T)..(CBU,IV3,IV4,IV6,IV7)	03/2021 - 12/2999	1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	27
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-89103	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	27
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-89103	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-37130	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-37140	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
68141E - RUN, FRONT DOOR GLASS, RH
68141-37030	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
68151D - RUN, FRONT DOOR GLASS, LH
68151-37030	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68161-37011	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68162-37011	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
68610 - CHECK ASSY, FRONT DOOR
68610-37030	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7	03/2021 - 12/2999	2
68617 - PIN, FRONT DOOR CHECK
68617-20011	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	2
68618E - BRACKET, FRONT DOOR CHECK ARM
68618-37020	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	2
Common parts
90101-08106
90159-60047
90179-08241
90189-06018
90333-25001
90333-35004
90467-06084
91653-40612
91671-80618
Linked diagrams
7552

ILLUST NO. 2 OF 2(2103- )

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

Part #	Description	Period	Qty
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-37130B2	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1#	03/2021 - 12/2999	1
67610-37090B6	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 灰皿−有り,GRAY,TRIM1#	03/2021 - 12/2999	1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07071P4	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1#	03/2021 - 12/2999	2
67601M - RETAINER, DOOR TRIM, NO.2
90467-09206	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	16
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-37140B6	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 灰皿−有り,GRAY,TRIM1#	03/2021 - 12/2999	1
67620-37180B5	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1#	03/2021 - 12/2999	1
67625A - BRACKET, FRONT DOOR TRIM, NO.1
67625-26010	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	2
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-37011	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-37011	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
74141A - GARNISH, FRONT ASH RECEPTACLE, NO.1
74141-25010B1	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1#	03/2021 - 12/2999	2
Common parts
90159-60047
90189-06018
Linked diagrams
7451
7456
