XZU650-TKTMY3 (2021)
Toyota Dyna
(2103- )

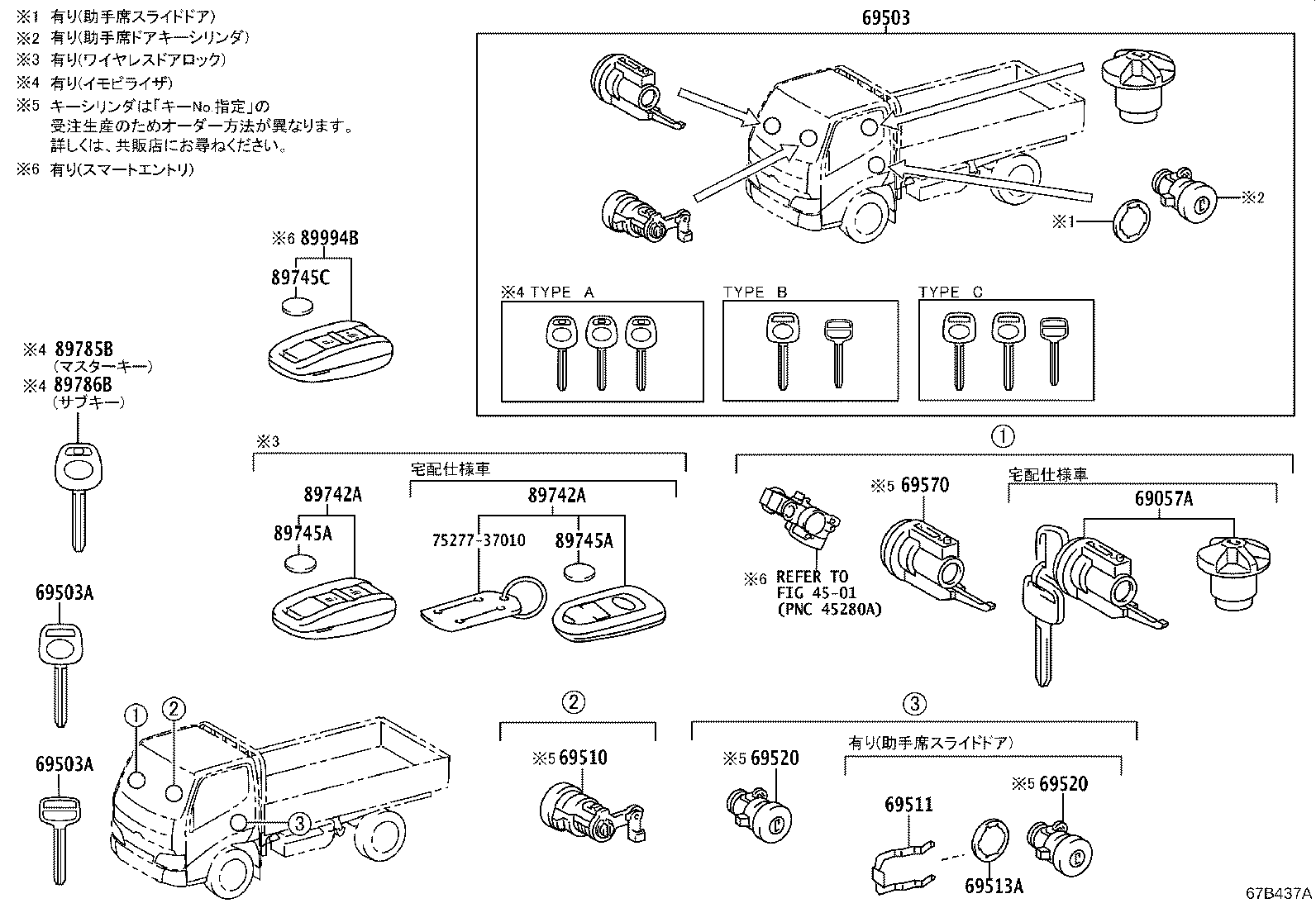

DYNA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-37320 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-37D11 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7 ﾃﾞｭﾄﾛ専用,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37L20 |
XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3 ﾃﾞｭﾄﾛ専用&太陽建機仕様&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),TYPEb:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37K80 |
XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..DCB..IV3;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3 ﾃﾞｭﾄﾛ専用&太陽建機仕様,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37K90 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37L10 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),TYPE B:ｲﾗｽﾄ参ﾆ |
1 | ||
| 69005-37L30 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様),TYPE A:ｲﾗｽg参照 |
1 | ||
| 69005-37L70 |
XZU650..6FC..30T;XZU650..6F..20T..IV3;XZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZU655..T4..6FC..20T..IV3;XZC655,XZU605..SCB..(T4,T5)..20T..IV3 ﾃﾞｭﾄﾛ専用&太陽建機仕様&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様),TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37L50 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様),TYPd A:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37L80 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&太陽建機仕様&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘj |
1 | ||
| 90999-00224 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00185 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾏｽﾀｰｷｰ,*68付き,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00224 |
XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&太陽建機仕様&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏ[ﾄｴﾝﾄﾘ) |
2 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&太陽建機仕様&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘj |
1 | ||
| 90999-00224 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00185 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾏｽﾀｰｷｰ,*68付き,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00224 |
XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&太陽建機仕様&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏ[ﾄｴﾝﾄﾘ) |
2 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-37040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-37040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-37070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7 |
1 | ||
| 69570-37070 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV7) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69570-37070 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89742A - TRANSMITTER, DOOR CONTROL | ||||
| 89742-37120 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 89742-37110 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 89742A - TRANSMITTER, DOOR CONTROL | ||||
| 89742-37120 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 89742-37110 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-50020 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 CR2032,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-50020 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 CR2032,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-50020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) CR2032,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89785-60160 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89785-60160 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89785-60160 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-37040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ﾌﾞﾗﾝｸｷｰ |
1 | ||
| 89786-37040 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾌﾞﾗﾝｸｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89786-37021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ﾌﾞﾗﾝｸｷｰ,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89786-37040 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾌﾞﾗﾝｸｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89994B - TRANSMITTER, ELECTRICAL KEY | ||||
| 89994-37020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
2 | ||
| 89994-37010 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
2 | ||
| 89994-37010 |
XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3 ﾃﾞｭﾄﾛ専用&太陽建機仕様&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
3 | ||
| Common parts | ||||
| 75277-37010 | ||||
| Linked diagrams | ||||
| 4501 | ||||
(2103- )

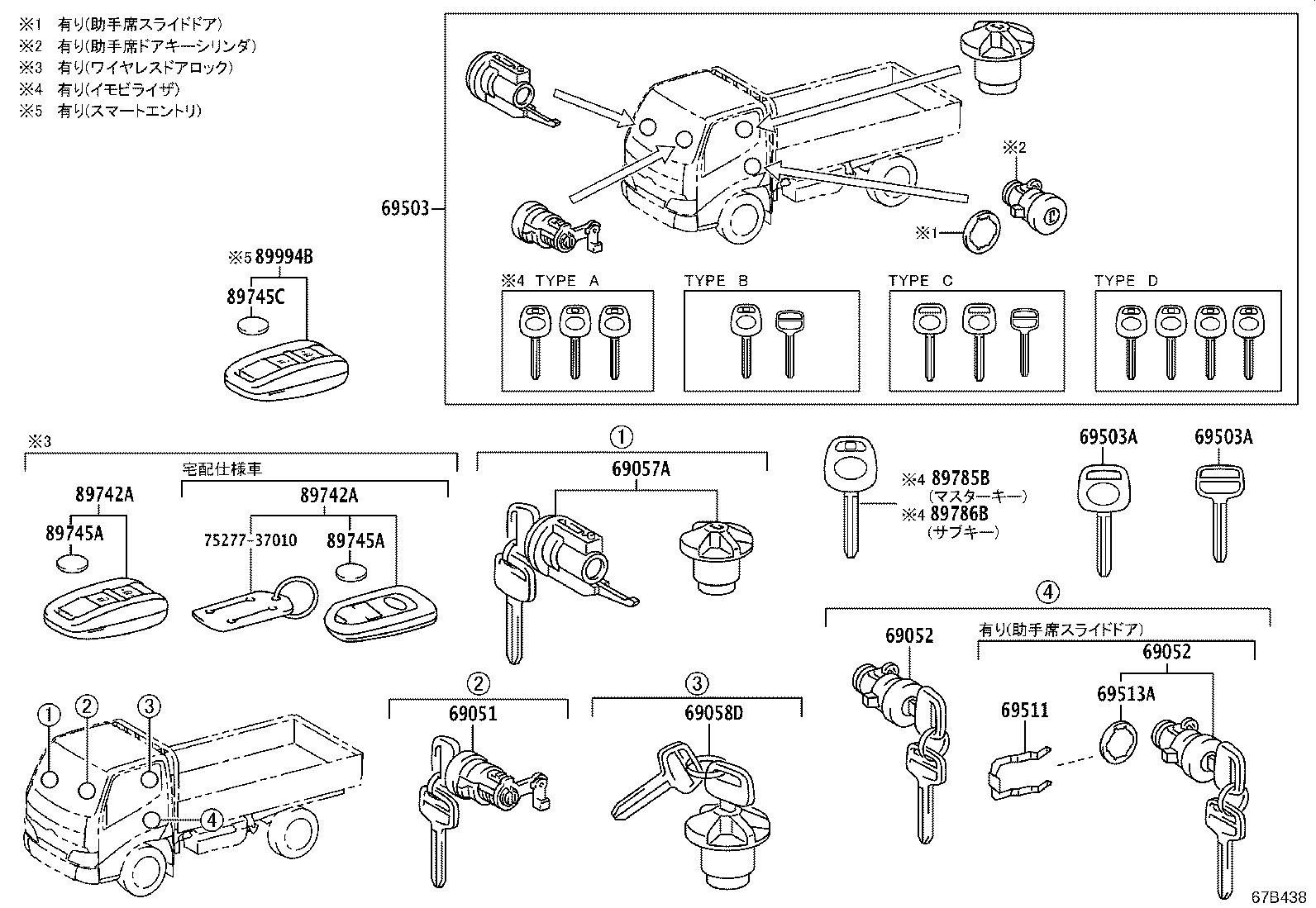

DUTRO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-37080 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69051-37080 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-37120 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-37120 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-37320 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69058D - CYLINDER & KEY SET, FUEL TANK FILLER | ||||
| 69058-37160 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-37D11 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7 ﾃﾞｭﾄﾛ専用,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37L20 |
XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3 ﾃﾞｭﾄﾛ専用&太陽建機仕様&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),TYPEb:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37K80 |
XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..DCB..IV3;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3 ﾃﾞｭﾄﾛ専用&太陽建機仕様,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37K90 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37L10 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),TYPE B:ｲﾗｽﾄ参ﾆ |
1 | ||
| 69005-37L30 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様),TYPE A:ｲﾗｽg参照 |
1 | ||
| 69005-37L70 |
XZU650..6FC..30T;XZU650..6F..20T..IV3;XZU655..T3..30T..IV3;XZU655..T4..6F..30T..IV3;XZU655..T4..6FC..20T..IV3;XZC655,XZU605..SCB..(T4,T5)..20T..IV3 ﾃﾞｭﾄﾛ専用&太陽建機仕様&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様),TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37L50 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様),TYPd A:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37L80 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&太陽建機仕様&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘj |
1 | ||
| 90999-00224 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00185 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾏｽﾀｰｷｰ,*68付き,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00224 |
XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&太陽建機仕様&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏ[ﾄｴﾝﾄﾘ) |
2 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&太陽建機仕様&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘj |
1 | ||
| 90999-00224 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00185 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾏｽﾀｰｷｰ,*68付き,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00224 |
XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&太陽建機仕様&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏ[ﾄｴﾝﾄﾘ) |
2 | ||
| 89742A - TRANSMITTER, DOOR CONTROL | ||||
| 89742-37120 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 89742-37110 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 89742A - TRANSMITTER, DOOR CONTROL | ||||
| 89742-37120 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 89742-37110 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-50020 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 CR2032,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-50020 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 CR2032,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-50020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) CR2032,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89785-60160 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89785-60160 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89785-60160 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-37040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ﾌﾞﾗﾝｸｷｰ |
1 | ||
| 89786-37040 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾌﾞﾗﾝｸｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89786-37021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ﾌﾞﾗﾝｸｷｰ,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89786-37040 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾌﾞﾗﾝｸｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89994B - TRANSMITTER, ELECTRICAL KEY | ||||
| 89994-37020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
2 | ||
| 89994-37010 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
2 | ||
| 89994-37010 |
XZC655..T4;XZU650..6F..20T;XZU650..T3..6FC;XZU655..T4..6FC..20T;XZU655..T4..6F..30T..IV3;XZU655..T3..6FC..20T..CBU;XZU605,655..(DM6,T3)..30T..(IV3,IV5);XZU605..SCB..(DM6,T4,T5)..20T..(IV3,IV5);XZC600,630,XZU600,630,675..(DM3,DM5,DM7)..IV3 ﾃﾞｭﾄﾛ専用&太陽建機仕様&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
3 | ||
| Common parts | ||||
| 75277-37010 | ||||
