XZU650-TKFQY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

Click highlighted areas on diagram

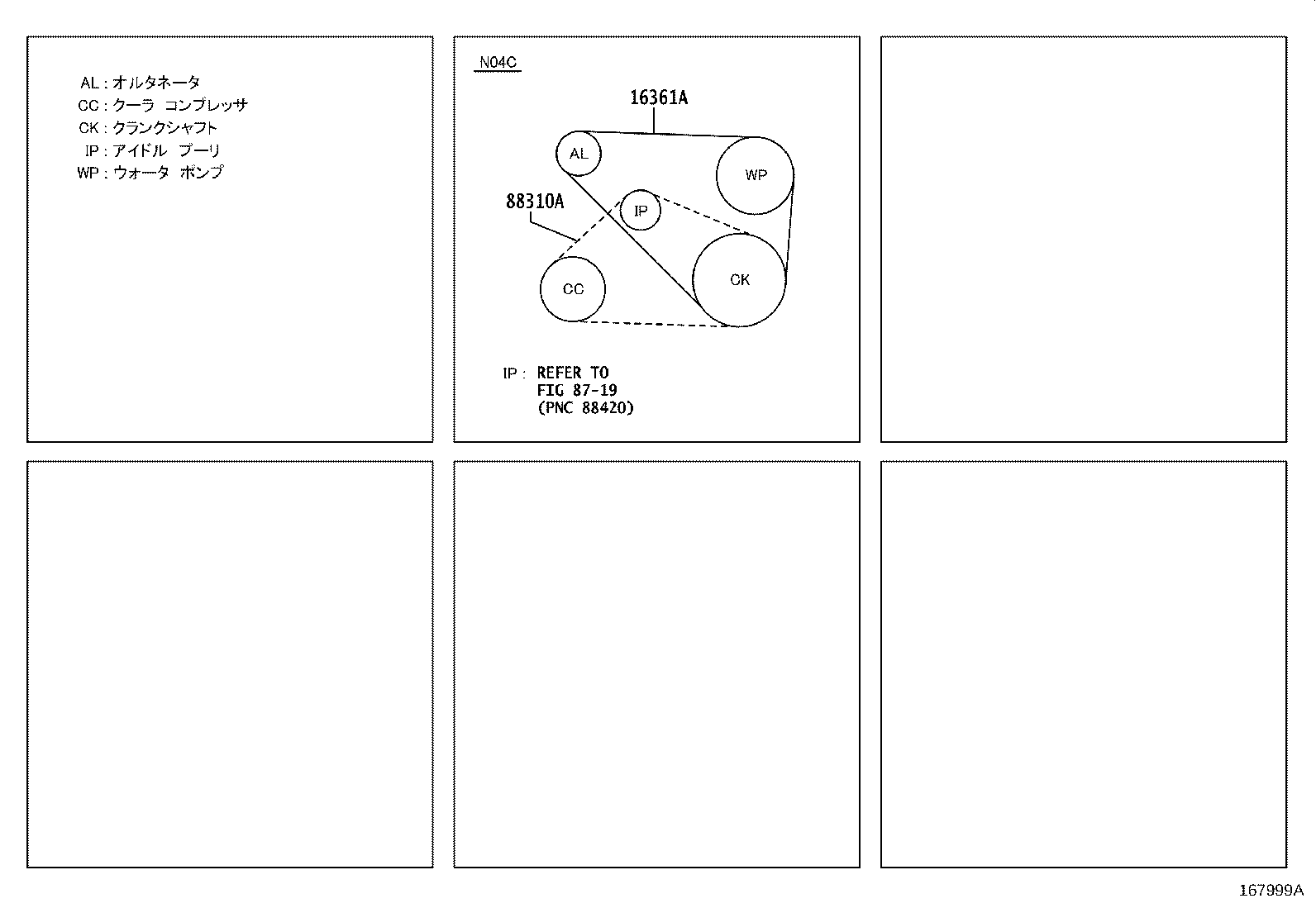

diagram 16361A 8719 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02773

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
S8838-11440

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

長さ=1010

 1
Linked diagrams
8719
