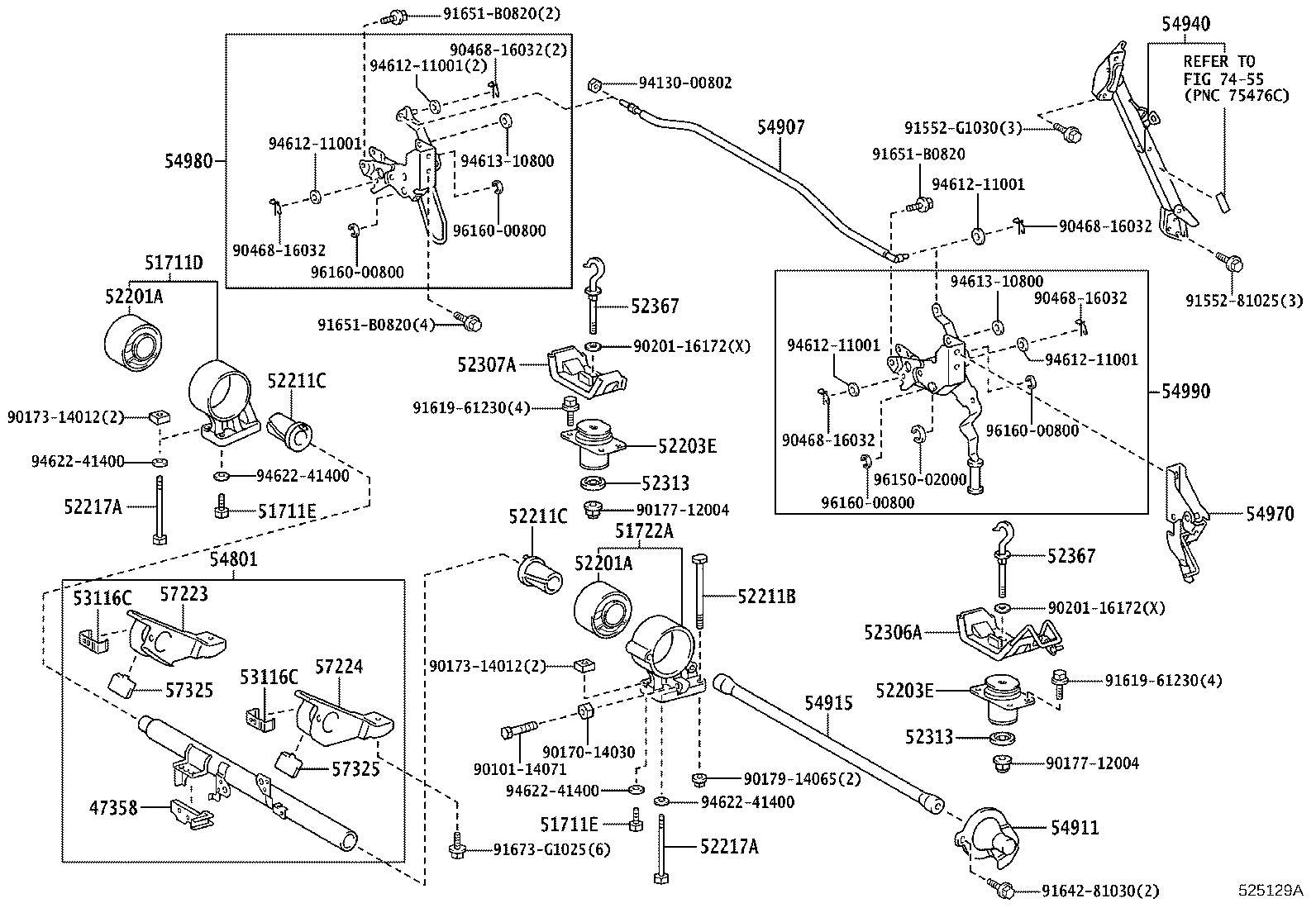

XZU645-TQTQY3 (2021)
Toyota Dyna
(2103- )SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47358 - TUBE, BOOSTER TO RESERVOIR, NO.2 | ||||
| 47358-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 51711D - BRACKET, CAB FRONT MOUNTING | ||||
| 51701-37360 |
XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET) | ||||
| 90101-14075 |
XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7 |
2 | ||
| 51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET) | ||||
| 90101-14075 |
XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7 |
2 | ||
| 51722A - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH | ||||
| 51702-37100 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 52201A - CUSHION SUB-ASSY, CAB FRONT MOUNTING | ||||
| 52201-37050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 52201A - CUSHION SUB-ASSY, CAB FRONT MOUNTING | ||||
| 52201-37050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-37090 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
2 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-37090 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
2 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90109-14013 |
XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7 |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 52217A - BOLT, BODY MOUNTING | ||||
| 90101-14072 |
XZU650,685,695..SCB..(20T,30T,35T);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675..CBU,IV3,IV5,IV6,IV7 |
2 | ||
| 52217A - BOLT, BODY MOUNTING | ||||
| 90101-14072 |
XZU650,685,695..SCB..(20T,30T,35T);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675..CBU,IV3,IV5,IV6,IV7 |
2 | ||
| 52306A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1 | ||||
| 52306-37023 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 52307A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2 | ||||
| 52307-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 52313 - STOPPER, CAB REAR MOUNTING REBOUND | ||||
| 52313-37040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
2 | ||
| 52313 - STOPPER, CAB REAR MOUNTING REBOUND | ||||
| 52313-37040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
2 | ||
| 52367 - HOOK, CAB REAR MOUNTING | ||||
| 52367-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
2 | ||
| 52367 - HOOK, CAB REAR MOUNTING | ||||
| 52367-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
2 | ||
| 53116C - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
2 | ||
| 53116C - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
2 | ||
| 54801 - TUBE SUB-ASSY, TILT CAB, NO.1 | ||||
| 54801-37240 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 54907 - PIPE SUB-ASSY, TILT CAB LOCK CONNECTING | ||||
| 54907-37050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 54911 - ARM, TILT CAB SPRING SUPPORT, NO.1 | ||||
| 54911-37160 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 54915 - SPRING, TILT CAB, NO.1 | ||||
| 54915-37230 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 54940 - STAY ASSY, TILT CAB | ||||
| 54940-37321 |
XZC605,645,655,XZU605,645,655..SCB |
1 | ||
| 54970 - LATCH ASSY, TILT CAB STOPPER | ||||
| 54970-37014 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 54980 - LOCK ASSY, TILT CAB MOUNTING, RH | ||||
| 54980-37012 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 54990 - LOCK ASSY, TILT CAB MOUNTING, LH | ||||
| 54990-37024 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 57223 - BRACKET, FRONT MOUNTING, RH | ||||
| 57223-37011 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 57224 - BRACKET, FRONT MOUNTING, LH | ||||
| 57224-37011 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| Common parts | ||||
| 90101-14071 | ||||
| 90170-14030 | ||||
| 90173-14012 | ||||
| 90177-12004 | ||||
| 90179-14065 | ||||
| 90201-16172 | ||||
| 90468-16032 | ||||
| 91552-81025 | ||||
| 91552-G1030 | ||||
| 91619-61230 | ||||
| 91642-81030 | ||||
| 91651-B0820 | ||||
| 91673-G1025 | ||||
| 94130-00802 | ||||
| 94612-11001 | ||||
| 94613-10800 | ||||
| 94622-41400 | ||||
| 96150-02000 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7455 | ||||
