XZU645-TQTQY (2021)
Toyota Dyna
(2103- )XZC60#,630,645,655,XZU600,605,630,640,645,650,655..20T,30T

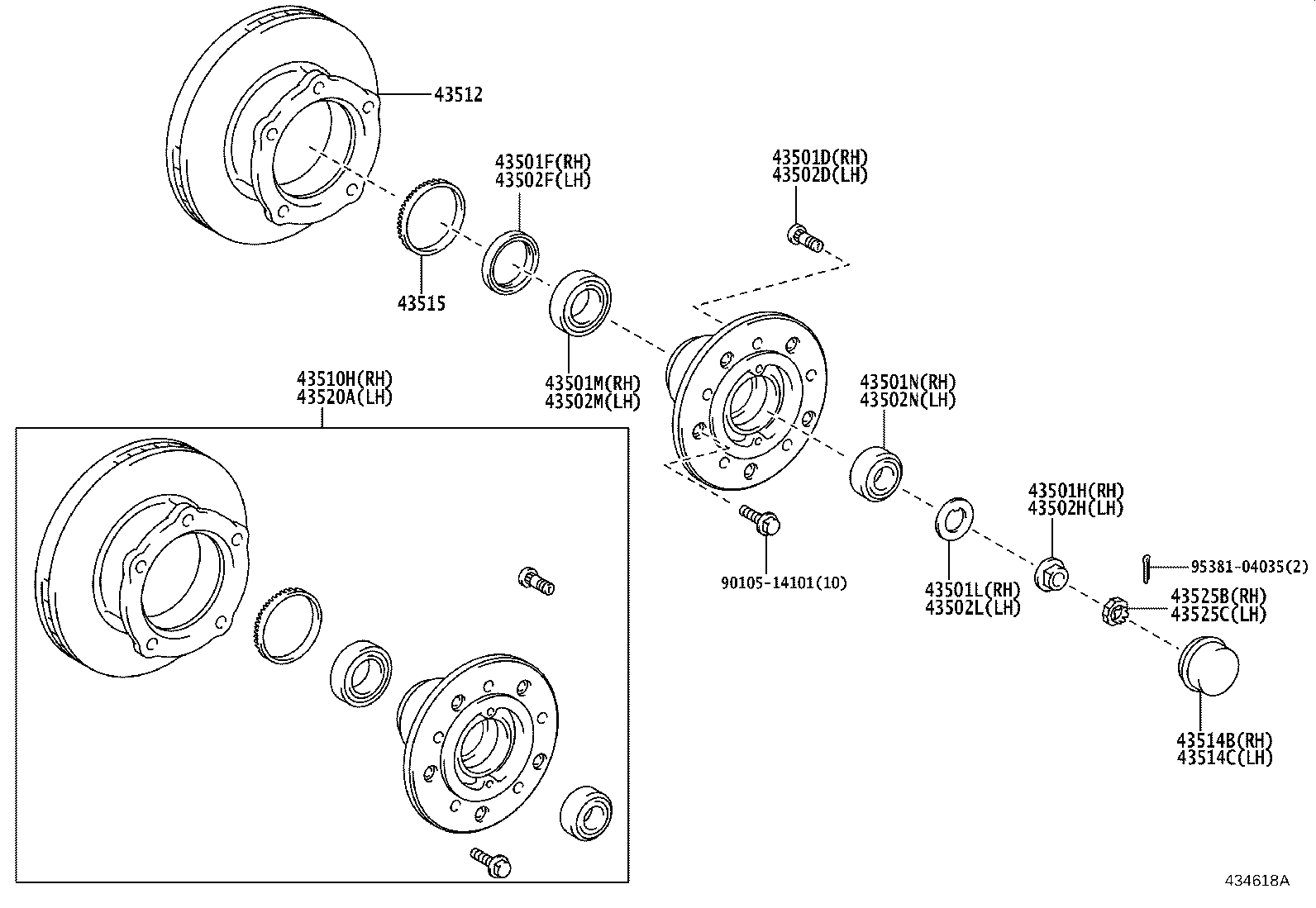

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02071 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-68003 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90178-28001 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-29001 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90366-50069 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90366-35105 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02072 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-68003 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90178-28001 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-29001 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90366-50069 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90366-35105 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 43510H - HUB & DISC(DRUM) ASSY, FRONT AXLE, RH | ||||
| 43510-39205 |
XZU630,640..20T,30T;XZU650..T3..(20T,30T);XZU600,605,645,655..30T;XZU600,605,655..(DM3,DM6,T2,T3,T5)..20T |
1 | ||
| 43510-39225 |
XZC60#,630,645,655 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-37150 |
XZC60#,630,645,655 |
2 | ||
| 43512-37091 |
XZU650..T3..(20T,30T);XZU600,605,645,655..30T;XZC675,XZU630,640,675,685,695..20T,30T;XZU600,605,655..(DM3,DM6,T2,T3,T5)..20T |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-37050 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-37050 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-37010 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
2 | ||
| 43520A - HUB & DISC(DRUM) ASSY, FRONT AXLE, LH | ||||
| 43520-39205 |
XZC60#,630,645,655 |
1 | ||
| 43520-39185 |
XZU630,640..20T,30T;XZU650..T3..(20T,30T);XZU600,605,645,655..30T;XZU600,605,655..(DM3,DM6,T2,T3,T5)..20T |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-37010 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-37010 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| Common parts | ||||
| 90105-14101 | ||||
| 95381-04035 | ||||
