XZU645-TQTMY3 (2021)
Toyota Dyna

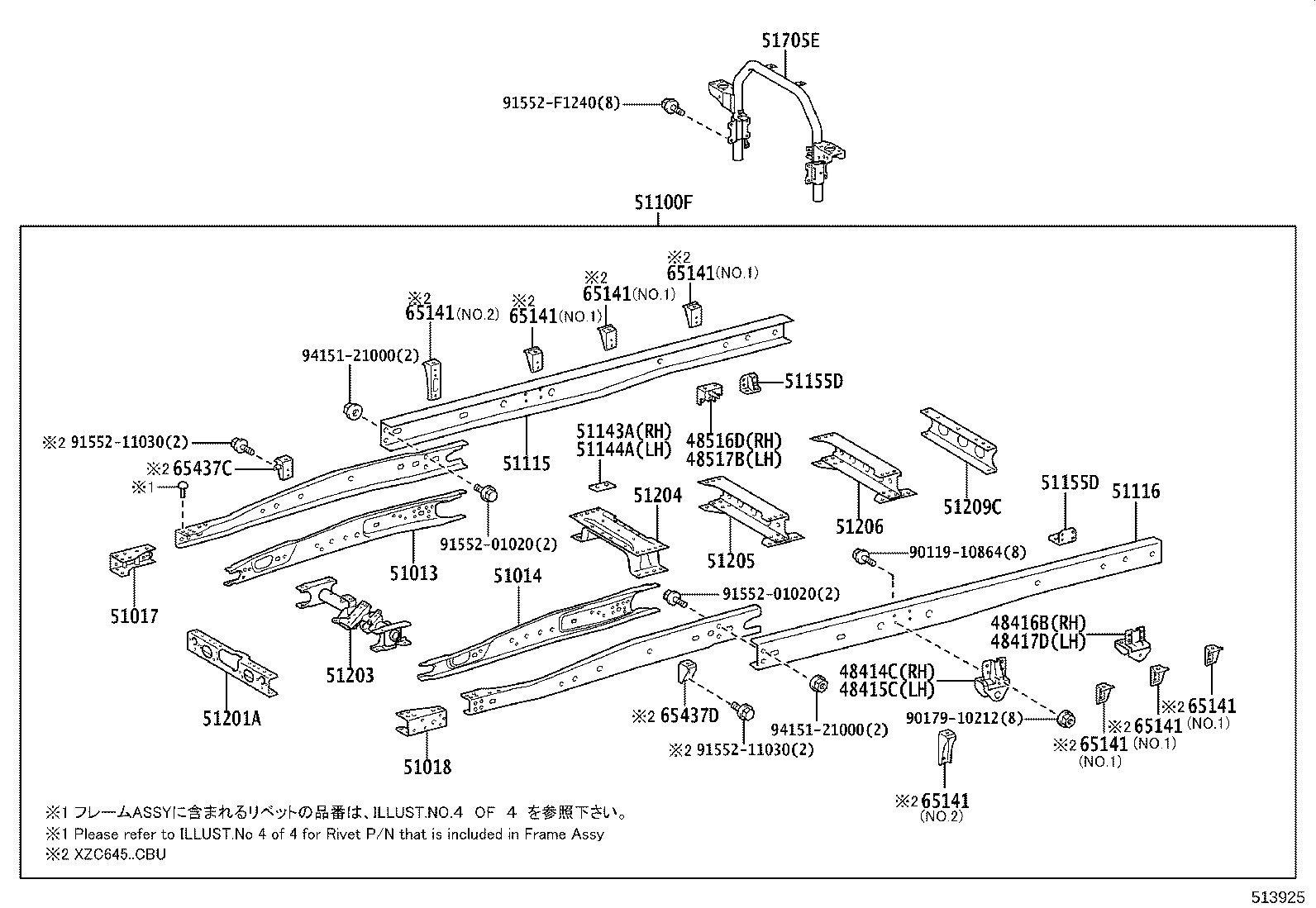

ILLUST NO. 1 OF 4(2103- )XZC645,XZU645..20T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37240 |
XZU645..20T;XZC60#,645,675,XZU600,605,675..DM3,DM5,DM6,T2,T4,T5 |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48414-37240 |
XZU645..20T;XZC60#,645,675,XZU600,605,675..DM3,DM5,DM6,T2,T4,T5 |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37200 |
XZU645..20T;XZC60#,645,675,XZU600,605,675..DM3,DM5,DM6,T2,T4,T5 |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37200 |
XZU645..20T;XZC60#,645,675,XZU600,605,675..DM3,DM5,DM6,T2,T4,T5 |
1 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37130 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37130 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37560 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37530 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37170 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37230 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51002-3VF60 |
XZC645..IV3;XZU645..20T |
1 | ||
| 51115 - RAIL, FRAME SIDE, REAR RH | ||||
| 51115-37640 |
XZC645,XZU645..20T |
1 | ||
| 51116 - RAIL, FRAME SIDE, REAR LH | ||||
| 51116-37480 |
XZC645,XZU645..20T |
1 | ||
| 51143A - REINFORCEMENT, SIDE RAIL, FRONT RH | ||||
| 51141-37350 |
XZC60#,645,655,XZU60#,64#,65#..CBU,IV3,IV5,IV6,IV7 |
2 | ||
| 51144A - REINFORCEMENT, SIDE RAIL, FRONT LH | ||||
| 51141-37350 |
XZC60#,645,655,XZU60#,64#,65#..CBU,IV3,IV5,IV6,IV7 |
2 | ||
| 51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1 | ||||
| 51155-37060 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,T2,T3,T4,T5 |
2 | ||
| 51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1 | ||||
| 51155-37060 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,T2,T3,T4,T5 |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37280 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37280 |
XZU640..IV4;XZU600..DM5..IV3;XZU600..(DM5,T3)..(CBU,IV4);XZC60#,630,645,655,675,XZU605,630,645,655,675,685,695 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37390 |
XZU685;XZC60#,645,655,675,XZU60#,64#,65#,675,695..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37200 |
XZU645..20T;XZC605,645,675,XZU600,605,675..DM3,DM6,T2,T4,T5 |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-37090 |
XZU645..20T;XZC605,645,675,XZU600,605,675..DM3,DM6,T2,T4,T5 |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37040 |
XZC675,XZU600,675..DM5;XZC600,645,655,XZU64#,65#,685,695 |
1 | ||
| 51705E - BRACKET SUB-ASSY, CAB REAR MOUNTING | ||||
| 51705-37B40 |
XZC605,645,655,XZU605,645,655..SCB |
1 | ||
| Common parts | ||||
| 90119-10864 | ||||
| 90179-10212 | ||||
| 91552-01020 | ||||
| 91552-11030 | ||||
| 91552-F1240 | ||||
| 94151-21000 | ||||
ILLUST NO. 2 OF 4(2103- )XZC605,645,655,XZU605,645,655
ｻｽﾍﾟﾝｼｮﾝﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51065 - SUPPORT SUB-ASSY, STEERING GEAR BOX | ||||
| 51065-37030 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 51101A - RAIL SUB-ASSY, FRONT FRAME SIDE, RH | ||||
| 51101-37100 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 51102A - RAIL SUB-ASSY, FRONT FRAME SIDE, LH | ||||
| 51102-37100 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH | ||||
| 51107-37160 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH | ||||
| 51108-37210 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 51210A - MEMBER ASSY, FRONT SUSPENSION | ||||
| 51210-37050 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-37040 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-37050 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-37080 |
XZC605,645,655,XZU605,645,655 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 51508-37100 |
XZC605,645,655,XZU605,645,655 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-37080 |
XZC605,645,655,XZU605,645,655 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 51508-37100 |
XZC605,645,655,XZU605,645,655 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 51508D - SUPPORT SUB-ASSY, STABILIZER, RH | ||||
| 51508-37090 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 51509 - SUPPORT SUB-ASSY, STABILIZER | ||||
| 51509-37090 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-37080 |
XZC605,645,655,XZU605,645,655 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 51509-37100 |
XZC605,645,655,XZU605,645,655 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-37080 |
XZC605,645,655,XZU605,645,655 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 51509-37100 |
XZC605,645,655,XZU605,645,655 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 51677 - BRACKET, STEERING GEAR BOX | ||||
| 51607-37010 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| Common parts | ||||
| 51751-37150 | ||||
| 90119-14133 | ||||
| 91672-L1470 | ||||
| 91672-L1495 | ||||
ILLUST NO. 3 OF 4(2103- )
ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37430 |
XZU640..SCB..30T;XZC605,645,675,XZU60#,645,675,685..(DM3,DM6,T2,T3,T4,T5)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
ILLUST NO. 4 OF 4(2103- )
ﾘﾍﾞｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95121-01026 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01038 | ||||
