XZU645-TQTMY (2021)
Toyota Dyna
(2103- )XZC60#,630,645,XZU60#,630,64#

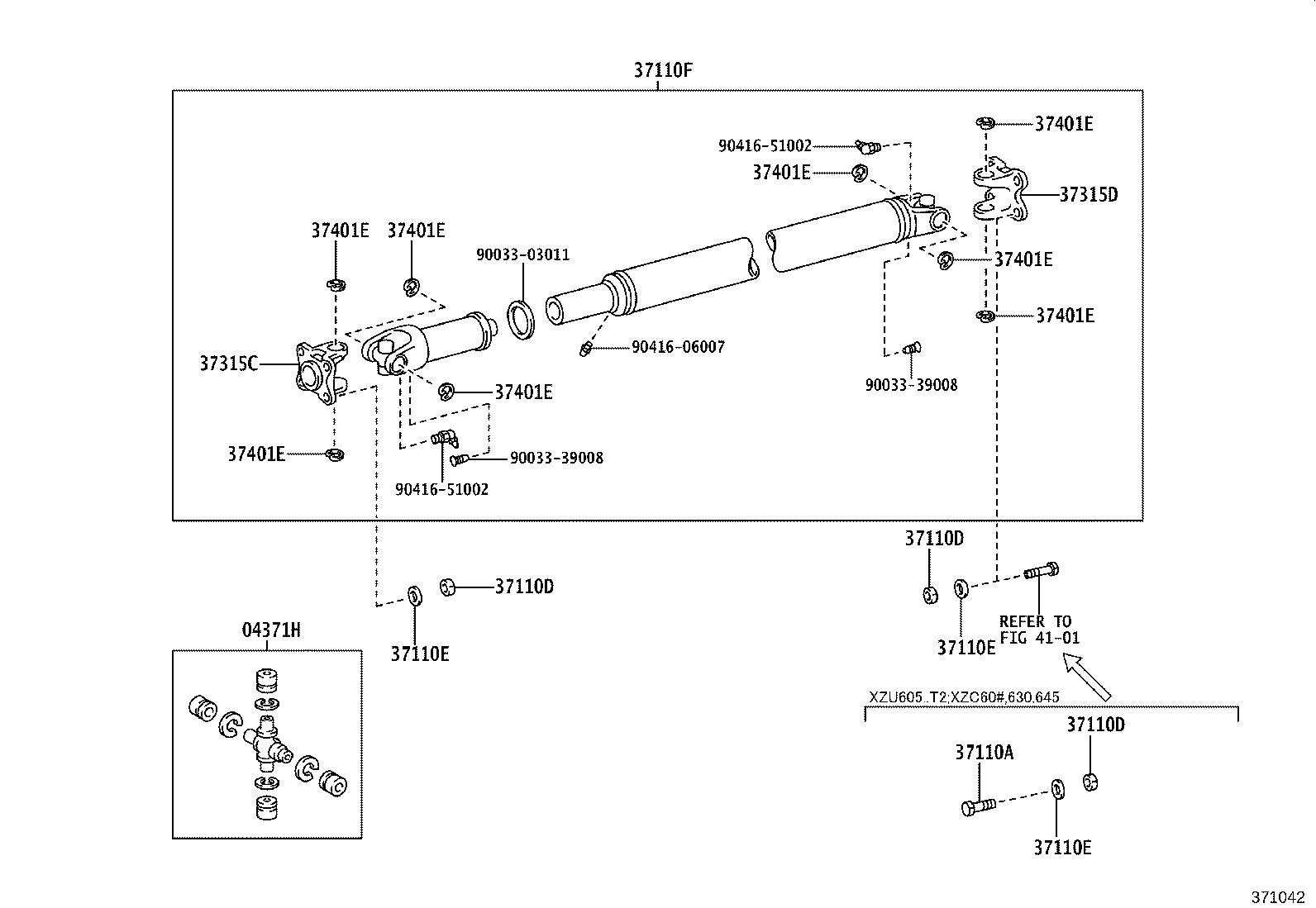

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37110 |
XZC60#,630,645,675,XZU60#,630,64#,675,685 |
2 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90031-01165 |
XZU605,655..T2;XZC60#,630,645,655 *12−1.25PX35−17 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
8 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-37C61 |
XZU640,645..T4..6F ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 37110-37E61 |
XZU640..6F..IV4;XZC645,XZU645..T4..6FC |
1 | ||
| 37110-37E71 |
XZC645,XZU640,645..T4..6F |
1 | ||
| 37110-37C61 |
XZU640,645..T4..6F ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.625 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 |
1 | ||
| 37315D - YOKE, NO.2, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.65 |
8 | ||
| 90035-21041 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.59 |
8 | ||
| 90035-21040 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.62 |
8 | ||
| 90035-21042 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.56 |
8 | ||
| 90035-21043 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.53 |
8 | ||
| 90035-21044 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.50 |
8 | ||
| 90035-21038 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.68 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.65 |
8 | ||
| 90035-21041 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.59 |
8 | ||
| 90035-21040 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.62 |
8 | ||
| 90035-21042 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.56 |
8 | ||
| 90035-21043 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.53 |
8 | ||
| 90035-21044 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.50 |
8 | ||
| 90035-21038 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.68 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.65 |
8 | ||
| 90035-21041 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.59 |
8 | ||
| 90035-21040 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.62 |
8 | ||
| 90035-21042 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.56 |
8 | ||
| 90035-21043 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.53 |
8 | ||
| 90035-21044 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.50 |
8 | ||
| 90035-21038 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.68 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.65 |
8 | ||
| 90035-21041 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.59 |
8 | ||
| 90035-21040 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.62 |
8 | ||
| 90035-21042 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.56 |
8 | ||
| 90035-21043 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.53 |
8 | ||
| 90035-21044 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.50 |
8 | ||
| 90035-21038 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.68 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.65 |
8 | ||
| 90035-21041 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.59 |
8 | ||
| 90035-21040 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.62 |
8 | ||
| 90035-21042 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.56 |
8 | ||
| 90035-21043 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.53 |
8 | ||
| 90035-21044 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.50 |
8 | ||
| 90035-21038 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.68 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.65 |
8 | ||
| 90035-21041 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.59 |
8 | ||
| 90035-21040 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.62 |
8 | ||
| 90035-21042 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.56 |
8 | ||
| 90035-21043 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.53 |
8 | ||
| 90035-21044 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.50 |
8 | ||
| 90035-21038 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.68 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.65 |
8 | ||
| 90035-21041 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.59 |
8 | ||
| 90035-21040 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.62 |
8 | ||
| 90035-21042 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.56 |
8 | ||
| 90035-21043 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.53 |
8 | ||
| 90035-21044 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.50 |
8 | ||
| 90035-21038 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.68 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.65 |
8 | ||
| 90035-21041 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.59 |
8 | ||
| 90035-21040 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.62 |
8 | ||
| 90035-21042 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.56 |
8 | ||
| 90035-21043 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.53 |
8 | ||
| 90035-21044 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.50 |
8 | ||
| 90035-21038 |
XZC60#,630,645,655,XZU60#,630,64#,65#,695 厚さ=1.68 |
8 | ||
| Common parts | ||||
| 90033-03011 | ||||
| 90033-39008 | ||||
| 90416-06007 | ||||
| 90416-51002 | ||||
| Linked diagrams | ||||
| 4101 | ||||
