Toyota Dyna XZU645 POWER TAKE-OFF CONTROL - JDM Part Detective

Home Blog About Contact Search

Manufacturers Home
Toyota
JP
DYNA
XZU645-TQFQY (2021)
8413 - POWER TAKE-OFF CONTROL

XZU645-TQFQY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999

Engine N04C

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

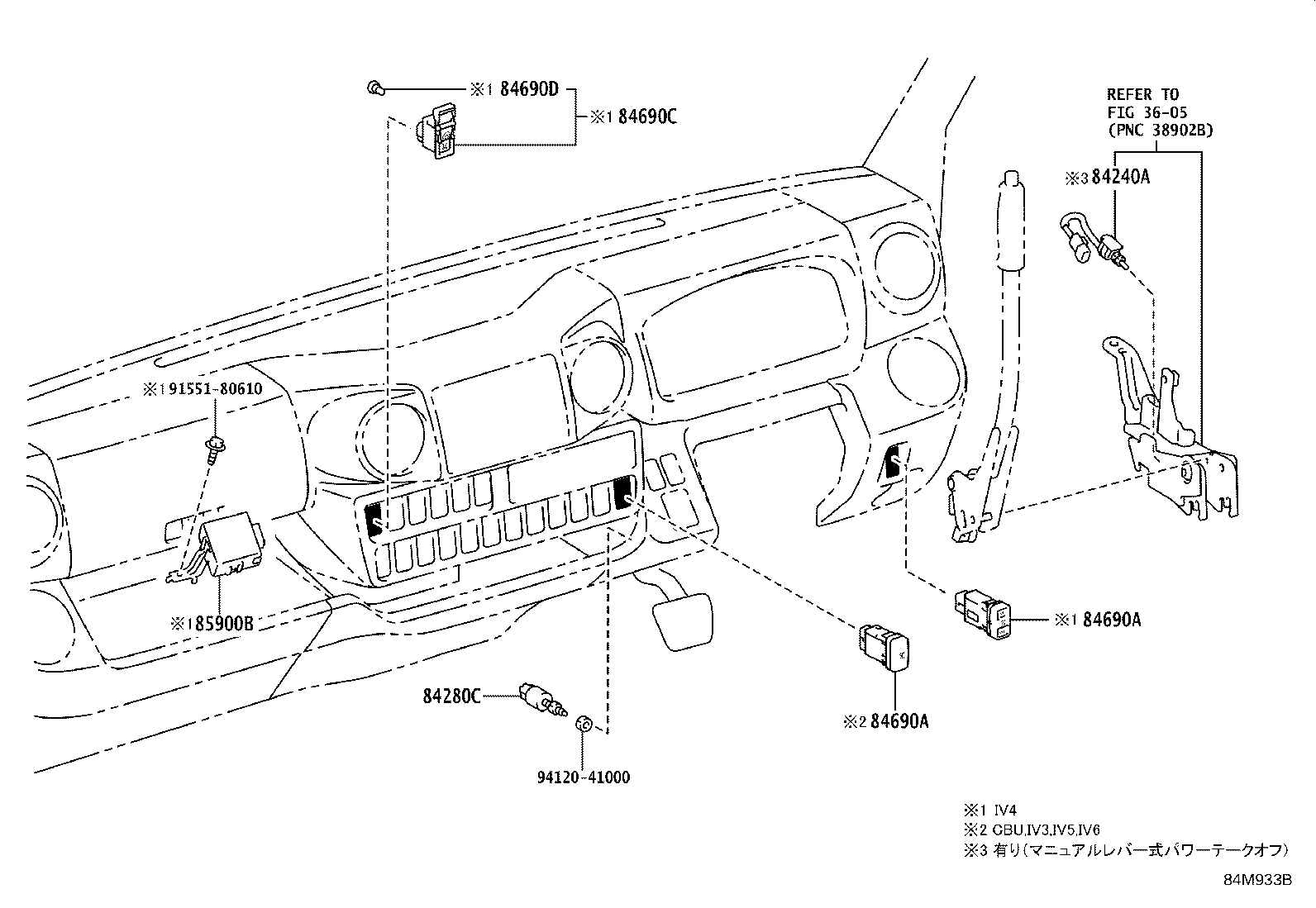

ILLUST NO. 1 OF 2(2103- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
84280C - SWITCH ASSY, POWER TAKE-OFF CLUTCH
84640-37080	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM	03/2021 - 12/2999	1
84690A - SWITCH ASSY, POWER TAKE-OFF INDICATOR
84690-37070	XZU600..6F..40T;XZU600,605,652,685..(T2,T3,T4,T5)..MTM..(CBU,IV3);XZC605,645,655,675,XZU64#,650,655,675,695..(T2,T3,T4,T5)..MTM..(CBU,IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	03/2021 - 12/2999	1
84690-37070	XZU650..40T..CBU;XZU655..6F..30T..IV3;XZU652..6F..(CBU,IV3);XZU655..(T3,T4)..6F..CBU;XZU605..T5..6F..20T..IV3;XZU650..6F..(20T,30T,35T);XZU600,640..(DM5,T4)..6F..IV3;XZC605,645,655,675,XZU605,640,645,675,685,695..(T2,T3,T4,T5)..MTM..CBU ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG 直結ﾀｲﾌﾟ	03/2021 - 12/2999	1
84690A - SWITCH ASSY, POWER TAKE-OFF INDICATOR
84690-37070	XZU600..6F..40T;XZU600,605,652,685..(T2,T3,T4,T5)..MTM..(CBU,IV3);XZC605,645,655,675,XZU64#,650,655,675,695..(T2,T3,T4,T5)..MTM..(CBU,IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	03/2021 - 12/2999	1
84690-37070	XZU650..40T..CBU;XZU655..6F..30T..IV3;XZU652..6F..(CBU,IV3);XZU655..(T3,T4)..6F..CBU;XZU605..T5..6F..20T..IV3;XZU650..6F..(20T,30T,35T);XZU600,640..(DM5,T4)..6F..IV3;XZC605,645,655,675,XZU605,640,645,675,685,695..(T2,T3,T4,T5)..MTM..CBU ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG 直結ﾀｲﾌﾟ	03/2021 - 12/2999	1
85900B - RELAY ASSY, CONTROL UNIT
85900-37250	XZU650..40T..CBU;XZU655..6F..30T..IV3;XZU652..6F..(CBU,IV3);XZU655..(T3,T4)..6F..CBU;XZU605..T5..6F..20T..IV3;XZU650..6F..(20T,30T,35T);XZU600,640..(DM5,T4)..6F..IV3;XZC605,645,655,675,XZU605,640,645,675,685,695..(T2,T3,T4,T5)..MTM..CBU ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG 直結ﾀｲﾌﾟ	03/2021 - 12/2999	1
85900-37250	XZU600..6F..40T;XZU600,605,652,685..(T2,T3,T4,T5)..MTM..(CBU,IV3);XZC605,645,655,675,XZU64#,650,655,675,695..(T2,T3,T4,T5)..MTM..(CBU,IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	03/2021 - 12/2999	1
Common parts
91551-80610
94120-41000
Linked diagrams
3605

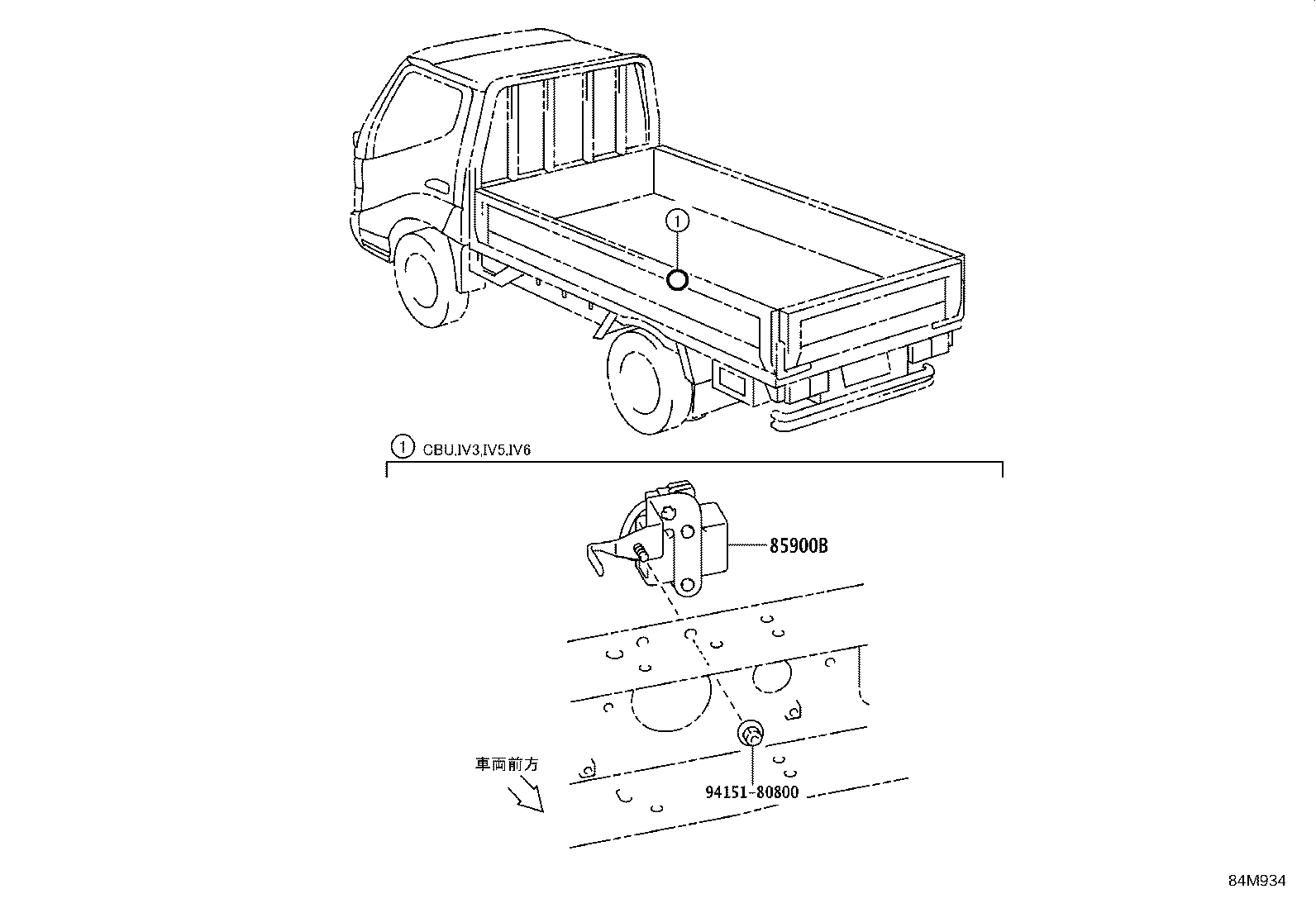

ILLUST NO. 2 OF 2(2103- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
85900B - RELAY ASSY, CONTROL UNIT
85900-37250	XZU650..40T..CBU;XZU655..6F..30T..IV3;XZU652..6F..(CBU,IV3);XZU655..(T3,T4)..6F..CBU;XZU605..T5..6F..20T..IV3;XZU650..6F..(20T,30T,35T);XZU600,640..(DM5,T4)..6F..IV3;XZC605,645,655,675,XZU605,640,645,675,685,695..(T2,T3,T4,T5)..MTM..CBU ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG 直結ﾀｲﾌﾟ	03/2021 - 12/2999	1
85900-37250	XZU600..6F..40T;XZU600,605,652,685..(T2,T3,T4,T5)..MTM..(CBU,IV3);XZC605,645,655,675,XZU64#,650,655,675,695..(T2,T3,T4,T5)..MTM..(CBU,IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	03/2021 - 12/2999	1
Common parts
94151-80800
