XZU645-TQFQY (2021)
Toyota Dyna

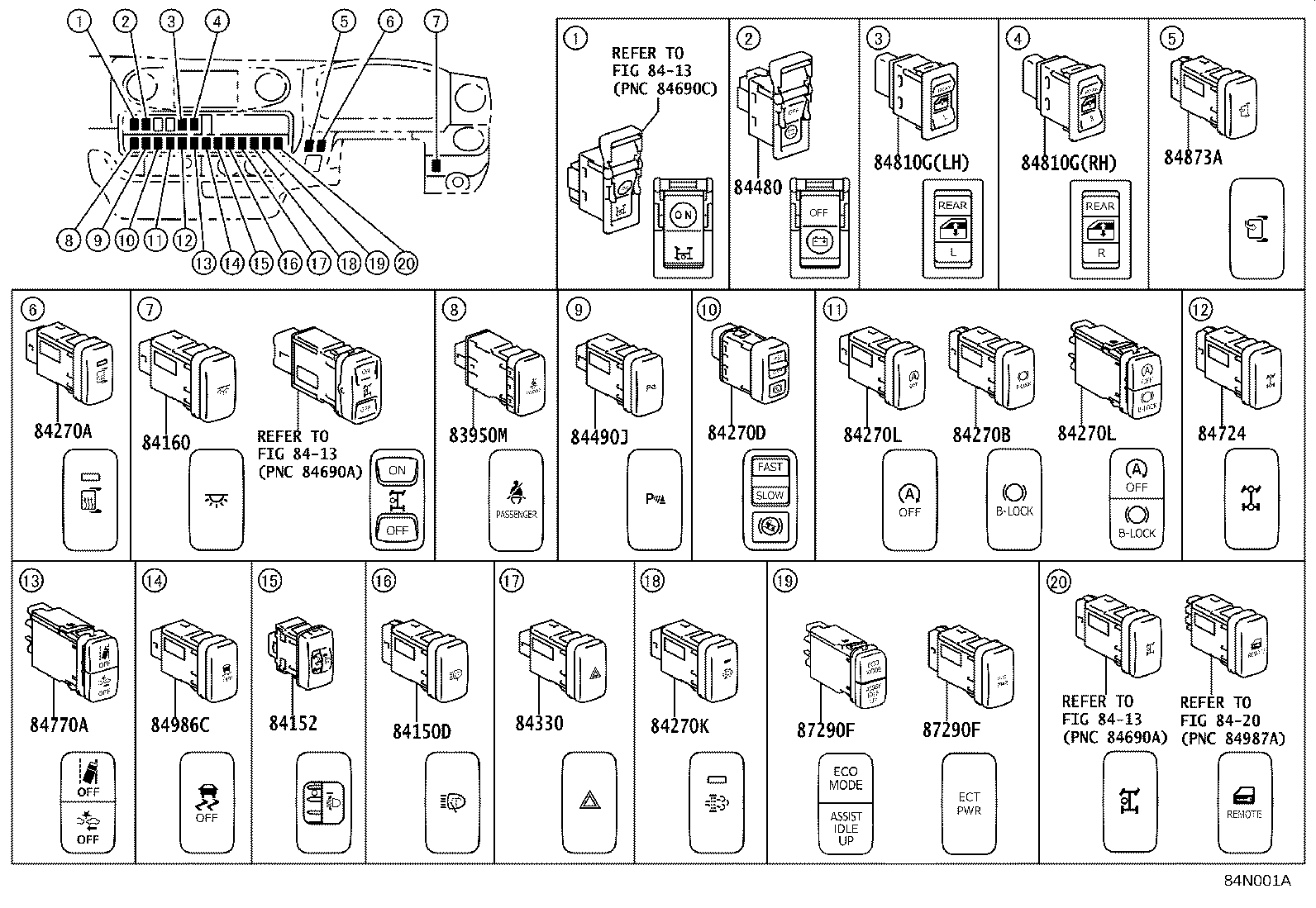

ILLUST NO. 6 OF11(2103- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-37011 |
XZC60#,630,645,655,XZU60#,630,64#,65# ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-37081 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84270-37260 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED) |
1 | ||
| 84270A - SWITCH ASSY, MIRROR HEATER | ||||
| 84270-37240 |
XZC645,655,XZU640,645,65#,685,695;XZC60#,630,675,XZU60#,630,642,675..IV3,IV4,IV5,IV6,IV7 ｱｳﾀﾐﾗｰ−*DRP & *57 & *LOS & *HEA |
1 | ||
| 84270D - SWITCH ASSY, ES START TIMING | ||||
| 84270-37320 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..MTM..(CBU,IV3,IV4,IV5,IV7) 坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-37460 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 84270L - SWITCH ASSY, IDLE STOP | ||||
| 84270-37270 |
XZC605,XZU605,655..T2..6FC;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(CBU,IV3,IV4,IV5,IV6) |
1 | ||
| 84270L - SWITCH ASSY, IDLE STOP | ||||
| 84270-37270 |
XZC605,XZU605,655..T2..6FC;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(CBU,IV3,IV4,IV5,IV6) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37110 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 84490J - SWITCH ASSY, CLEARANCE SONAR | ||||
| 84270-37490 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84270-37510 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37030 |
XZC645,655,XZU640,645,65#,685,695;XZC60#,630,675,XZU60#,630,642,675..IV3,IV4,IV5,IV6,IV7 ｱｳﾀﾐﾗｰ−*PAS & *57 & *LOS |
1 | ||
| 84873-37030 |
XZC645,655,XZU640,645,65#,685,695;XZC60#,630,675,XZU60#,630,642,675..IV3,IV4,IV5,IV6,IV7 ｱｳﾀﾐﾗｰ−*PAS(*TM) & *57 & *LOS |
1 | ||
| 84873-37030 |
XZC645,655,XZU640,645,65#,685,695;XZC60#,630,675,XZU60#,630,642,675..IV3,IV4,IV5,IV6,IV7 ｱｳﾀﾐﾗｰ−*DRP & *57 & *LOS & *HEA |
1 | ||
| 84986C - SWITCH, VSC OFF | ||||
| 84270-37300 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 87290F - SWITCH ASSY, ECO | ||||
| 84270-37410 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM |
1 | ||
| 87290F - SWITCH ASSY, ECO | ||||
| 84270-37410 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM |
1 | ||
| Linked diagrams | ||||
| 8413 | ||||
| 8420 | ||||

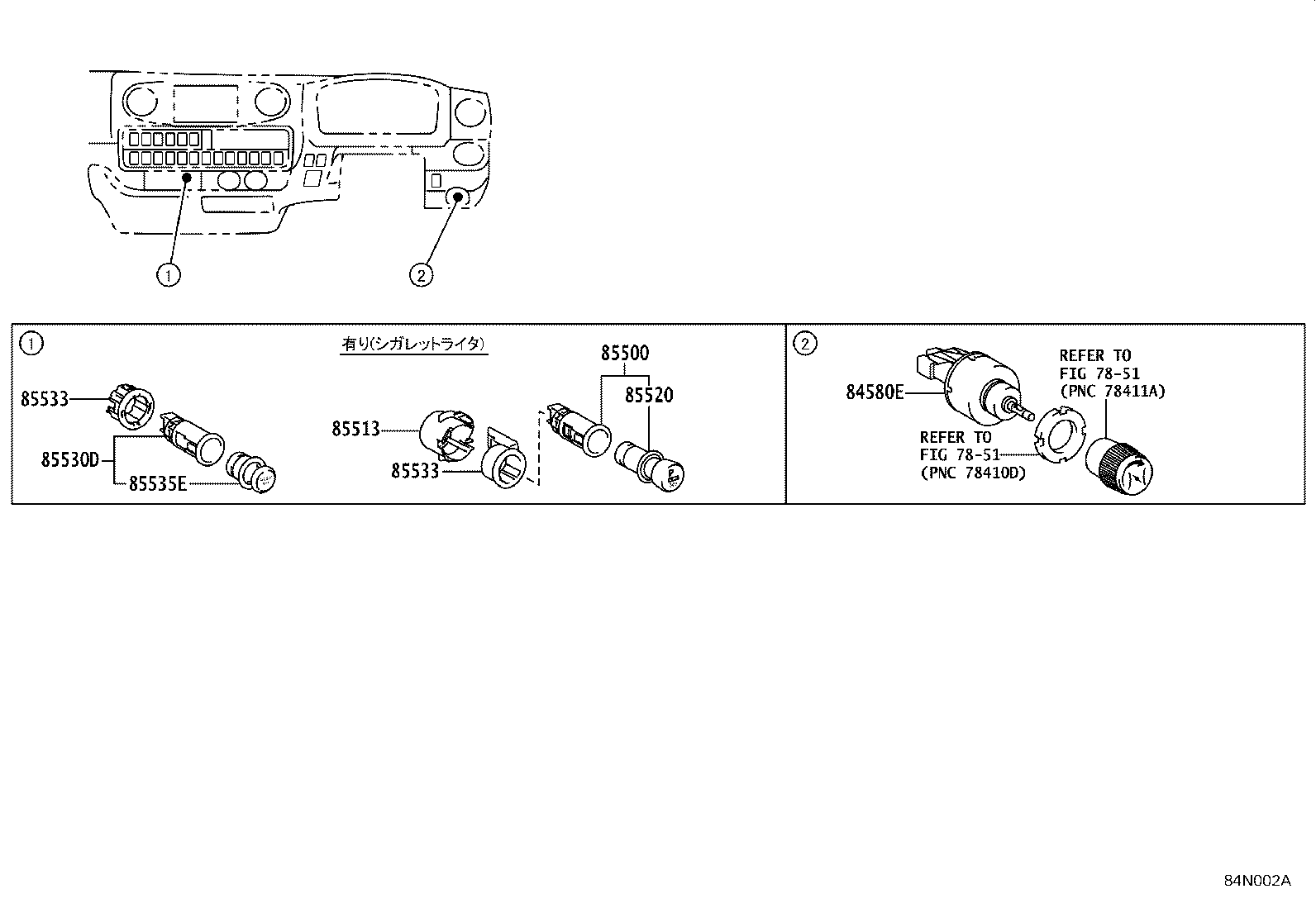

ILLUST NO. 7 OF11(2103- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84580E - SWITCH ASSY, THROTTLE POSITION | ||||
| 84581-37030 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV5) ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ付き) |
1 | ||
| 84581-37030 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..CBU,IV5 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 灰皿−有り |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 灰皿−有り |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 灰皿−有り |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 85533-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 灰皿−有り |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 85533-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 灰皿−有り |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| Linked diagrams | ||||
| 7851 | ||||

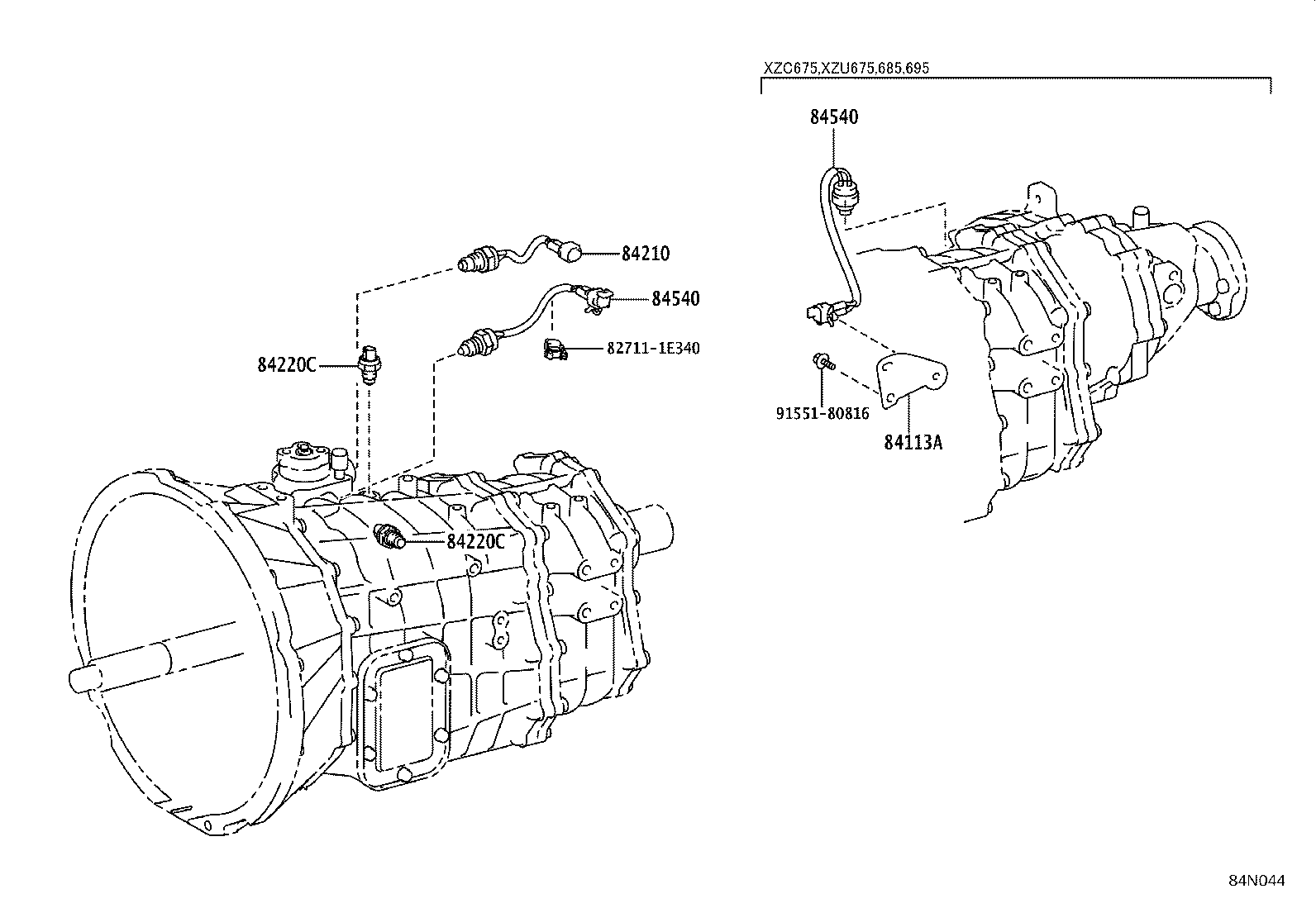

ILLUST NO. 2 OF11(2103- )MTM
ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-37050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM |
1 | ||
| 84220C - SWITCH ASSY, TRANSMISSION POSITION INDICATOR | ||||
| 84220-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM |
2 | ||
| 84220C - SWITCH ASSY, TRANSMISSION POSITION INDICATOR | ||||
| 84220-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM |
2 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-37090 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-37090 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM |
1 | ||
| Common parts | ||||
| 82711-1E340 | ||||
| 91551-80816 | ||||

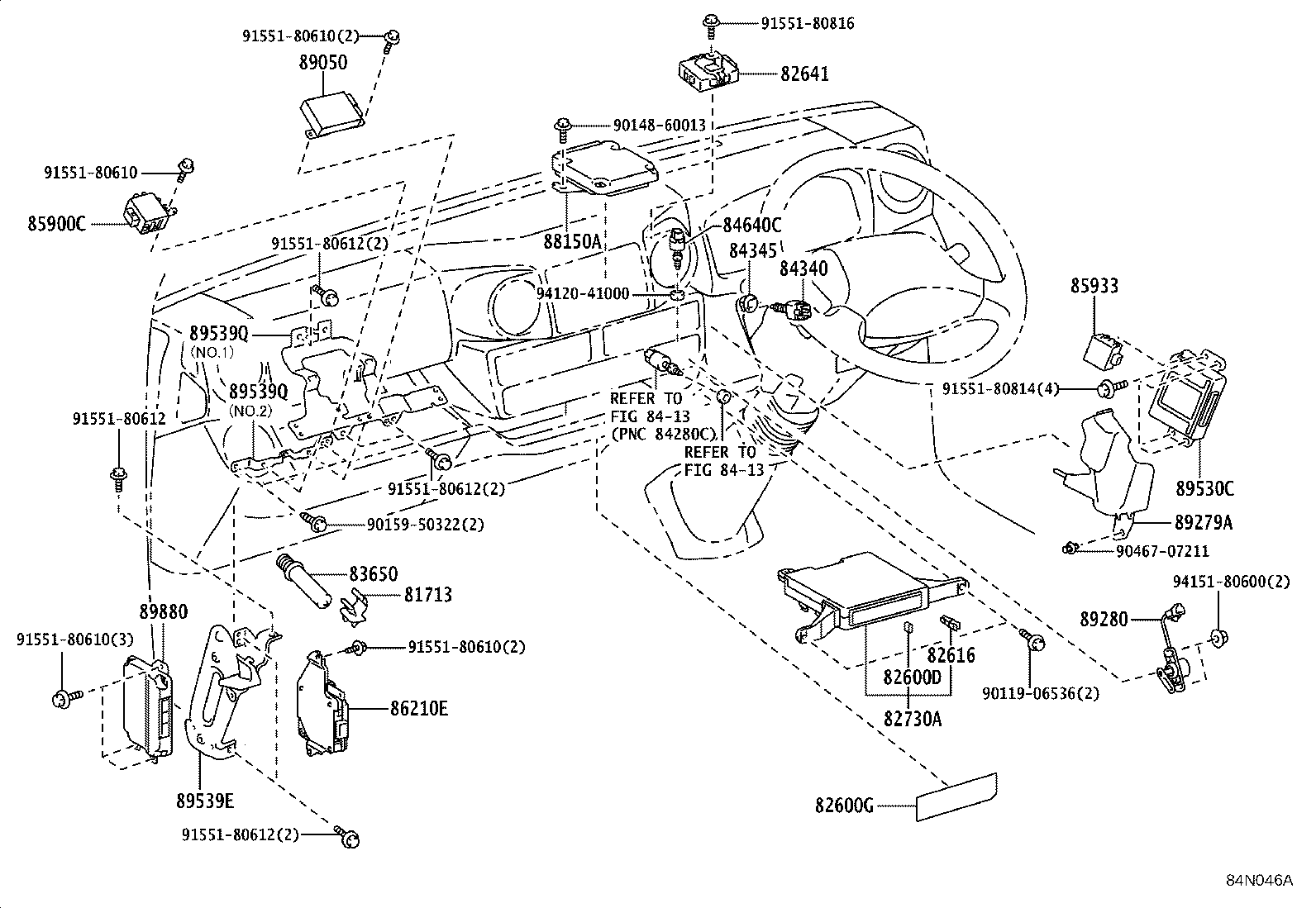

ILLUST NO. 4 OF11(2103- )
ｶｳﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81713 - HOLDER, FUSEE | ||||
| SZ950-79033 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37480 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-37110 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-37291 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-37080 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM |
1 | ||
| 86210E - CONVERTER ASSY, VOLTAGE | ||||
| 86210-37080 |
XZC605,XZU605,655..T2..6FC;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(CBU,IV3,IV4,IV5,IV6) |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-37061 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89050 - COMPUTER ASSY, PARKING BRAKE | ||||
| 89050-37030 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89050-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 89280 - SENSOR ASSY, CLUTCH PEDAL STROKE | ||||
| 89280-37020 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..MTM..(CBU,IV3,IV4,IV5,IV7) 坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89539E - BRACKET, COMPUTER | ||||
| 89539-37131 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89539Q - BRACKET, COMPUTER | ||||
| 89539-37070 |
XZU685..IV4;XZU605,655,685,695..SCB;XZC60#,630,645,655,675,XZU600,602,630,64#,650,652,675 NO.2 |
1 | ||
| 89539-37062 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ),NO.1 |
1 | ||
| 89539-37062 |
XZU685..IV4;XZU605,655,685,695..SCB;XZC60#,630,645,655,675,XZU600,602,630,64#,650,652,675 NO.1 |
1 | ||
| 89539Q - BRACKET, COMPUTER | ||||
| 89539-37070 |
XZU685..IV4;XZU605,655,685,695..SCB;XZC60#,630,645,655,675,XZU600,602,630,64#,650,652,675 NO.2 |
1 | ||
| 89539-37062 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ),NO.1 |
1 | ||
| 89539-37062 |
XZU685..IV4;XZU605,655,685,695..SCB;XZC60#,630,645,655,675,XZU600,602,630,64#,650,652,675 NO.1 |
1 | ||
| 89880 - COMPUTER ASSY, ELECTRIC VEHICLE CONTROL | ||||
| 89880-37G95 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37G95 |
XZC60#,630,645,655,XZU600,605,630,64#,65#..SCB..6F..(CBU,IV3,IV7) ﾃﾞｭﾄﾛ専用&寒冷地仕様−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G95 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾃﾞｭﾄﾛ専用&寒冷地仕様−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37G95 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用&寒冷地仕様−有り |
1 | ||
| 89880-37G95 |
XZC60#,630,645,655,XZU600,605,630,64#,65#..SCB..6F..(CBU,IV3,IV7) ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G95 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37G95 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..MTM..(CBU,IV3,IV4,IV5,IV7) ﾃﾞｭﾄﾛ専用&寒冷地仕様−有り&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G95 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..MTM..(CBU,IV3,IV4,IV5,IV7) ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37R22 |
XZC60#,630,645,655..(DM5,DM7,T3,T4,T5)..6F ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37R62 |
XZU600,605,630,64#,65#..SCB..(DM3,DM5,DM7,T3,T4,T5)..6F..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37S72 |
XZC60#,630,645,655..(DM5,DM7,T3,T4,T5)..6F 寒冷地仕様−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37U12 |
XZC60#,630,645,655..(DM5,DM7,T3,T4,T5)..6F |
1 | ||
| 89880-37T02 |
XZU600,605,630,64#,65#..SCB..(DM3,DM5,DM7,T3,T4,T5)..6F..(CBU,IV3) 寒冷地仕様−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37U52 |
XZU600,605,630,64#,65#..SCB..(DM3,DM5,DM6,DM7,T3,T4,T5)..6F..(CBU,IV3,IV5) |
1 | ||
| 89880-37V32 |
XZC60#,630,645,655..(DM5,DM7,T3,T4,T5)..6F 寒冷地仕様−有り |
1 | ||
| 89880-37V62 |
XZU600,605,630,64#,65#..SCB..(DM3,DM5,DM6,DM7,T3,T4,T5)..6F..(CBU,IV3,IV5) 寒冷地仕様−有り |
1 | ||
| 89880-37W42 |
XZC60#,630,645,655..(DM5,DM7,T3,T4,T5)..6F ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37W82 |
XZU600,605,630,64#,65#..SCB..(DM3,DM5,DM7,T3,T4,T5)..6F..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37X92 |
XZC60#,630,645,655..(DM5,DM7,T3,T4,T5)..6F 寒冷地仕様−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37Z82 |
XZU600,605,630,64#,65#..SCB..(DM3,DM5,DM6,DM7,T3,T4,T5)..6F..(CBU,IV3,IV5) 坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37Z42 |
XZC60#,630,645,655..(DM5,DM7,T3,T4,T5)..6F 坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37Y32 |
XZU600,605,630,64#,65#..SCB..(DM3,DM5,DM7,T3,T4,T5)..6F..(CBU,IV3) 寒冷地仕様−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-3V112 |
XZU600,605,630,64#,65#..SCB..(DM3,DM5,DM6,DM7,T3,T4,T5)..6F..(CBU,IV3,IV5) 寒冷地仕様−有り&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-3V072 |
XZC60#,630,645,655..(DM5,DM7,T3,T4,T5)..6F 寒冷地仕様−有り&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| Common parts | ||||
| 90119-06536 | ||||
| 90148-60013 | ||||
| 90159-50322 | ||||
| 90467-07211 | ||||
| 91551-80610 | ||||
| 91551-80612 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8413 | ||||

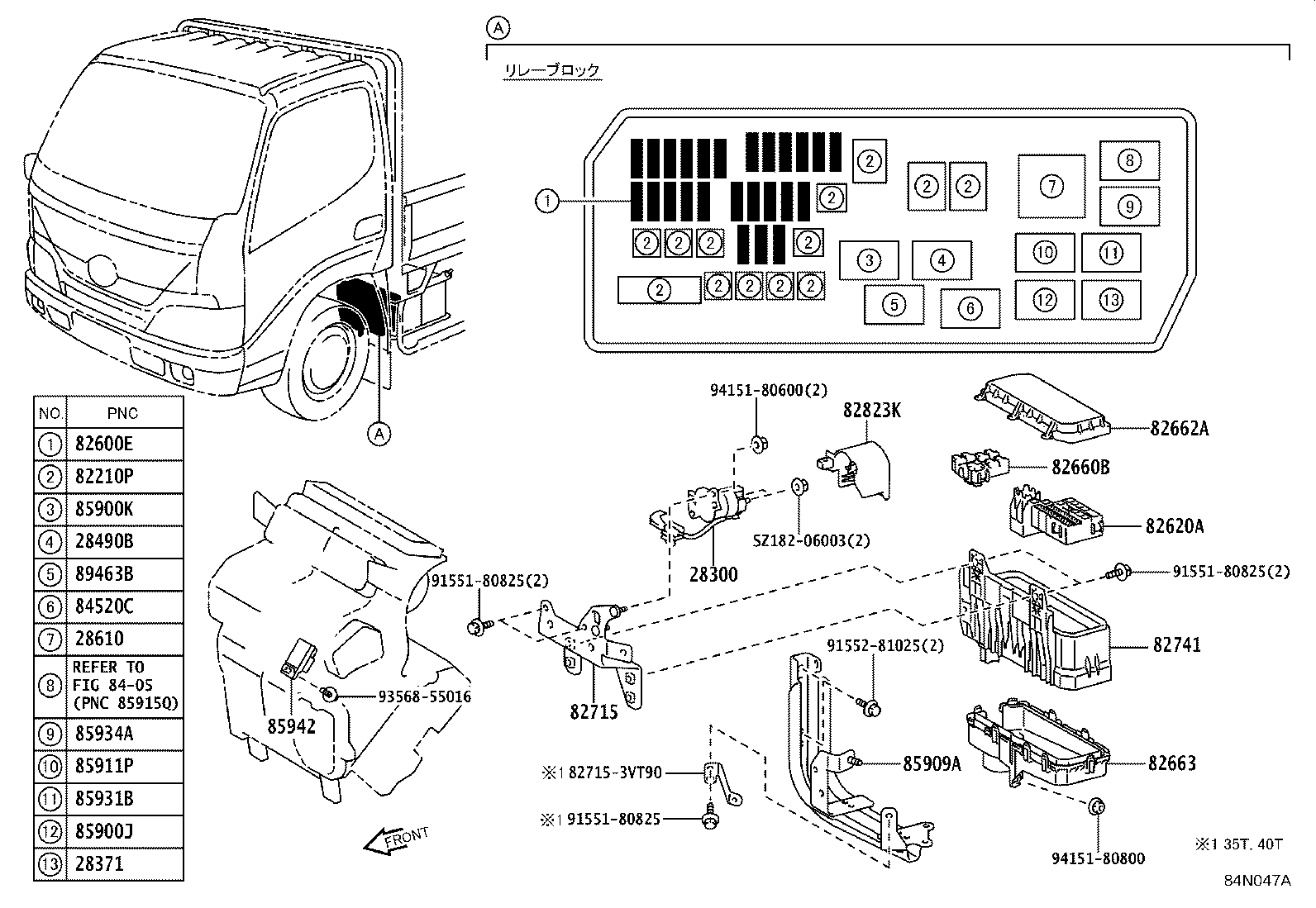

ILLUST NO. 3 OF11(2103- )SCB
ﾘﾚｰﾌﾞﾛｯｸ(24V)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78130 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 85900-37150 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-E0010 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 寒冷地仕様−有り |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08274 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 120A,ｵｽ端子,白 |
1 | ||
| 90982-08203 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08294 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 40A,ﾒｽ端子,緑 |
1 | ||
| 82627-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 20A,ﾒｽ端子 |
1 | ||
| 82627-37040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 60A,ﾒｽ端子 |
1 | ||
| 90982-08296 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08295 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08300 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09025 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-37200 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-37220 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37690 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37180 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-3VU90 |
XZC675,XZU675..T4;XZC60#,630,645,655,XZU60#,630,64#,65#,685,695..SCB |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-37040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82823K - CAP, TERMINAL | ||||
| 82823-37080 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 85900J - RELAY, BRAKE LOCK | ||||
| 85900-37150 |
XZC605,XZU605,655..T2..6FC;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(CBU,IV3,IV4,IV5,IV6) |
1 | ||
| 85900K - RELAY ASSY, CONTROL UNIT (FOR ELECTRIC PARKING BRAKE) | ||||
| 85900-37150 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 85900-37150 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 85909A - BRACKET SUB-ASSY, RELAY BLOCK | ||||
| 82760-37361 |
XZC675,XZU675..T4;XZC60#,630,645,655,XZU60#,630,64#,65#,685,695..SCB |
1 | ||
| 85911P - RELAY, ACTUATOR POWER | ||||
| 85900-37150 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 85900-37150 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 85934A - RELAY CONDENSER FAN | ||||
| 90987-02017 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85270-37020 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655 ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 89463B - RELAY, NITROGEN OXIDES | ||||
| 85900-37150 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| Common parts | ||||
| 82715-3VT90 | ||||
| 91551-80825 | ||||
| 91552-81025 | ||||
| 93568-55016 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| SZ182-06003 | ||||
| Linked diagrams | ||||
| 8405 | ||||

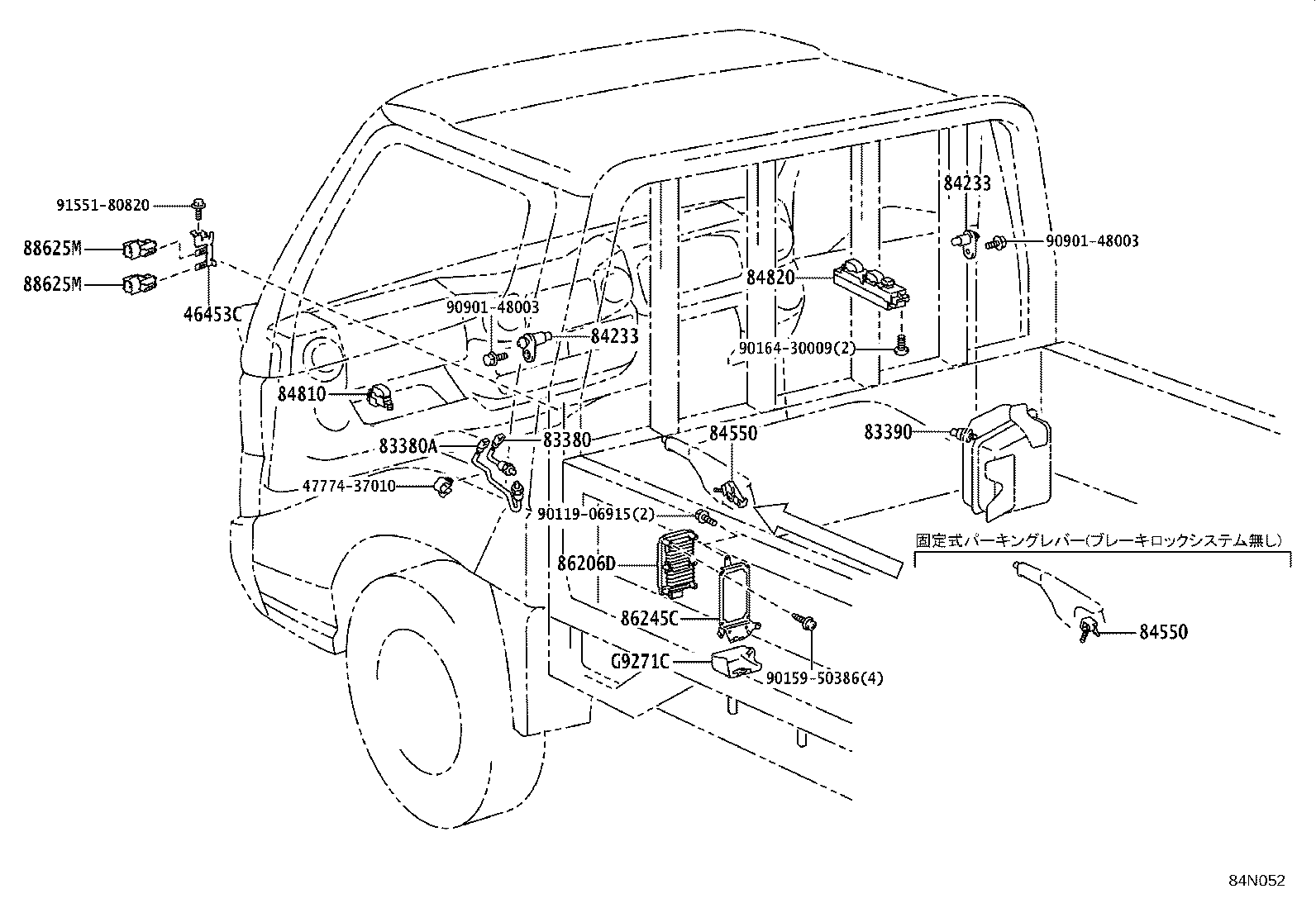

ILLUST NO. 9 OF11(2103- )SCB
ﾄﾞｱ,ﾙｰﾌ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46453C - BRACKET, HOLDER | ||||
| 46453-37351 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46453-37351 |
XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..SCB |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37070 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..6F..(CBU,IV3,IV4,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37070 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..6F..(CBU,IV3,IV4,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-37050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-37034 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 86206D - CONVERTER SUB-ASSY, VOLTAGE | ||||
| 86206-37140 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 86245C - BRACKET, VOLTAGE CONVERTER | ||||
| 86245-37221 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 88625M - THERMISTOR, COOLER | ||||
| 88625-32171 |
XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..SCB |
2 | ||
| 88625-32171 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| 88625M - THERMISTOR, COOLER | ||||
| 88625-32171 |
XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..SCB |
2 | ||
| 88625-32171 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| G9271C - COVER, CONVERTER | ||||
| G9271-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| Common parts | ||||
| 47774-37010 | ||||
| 90119-06915 | ||||
| 90159-50386 | ||||
| 90164-30009 | ||||
| 90901-48003 | ||||
| 91551-80820 | ||||

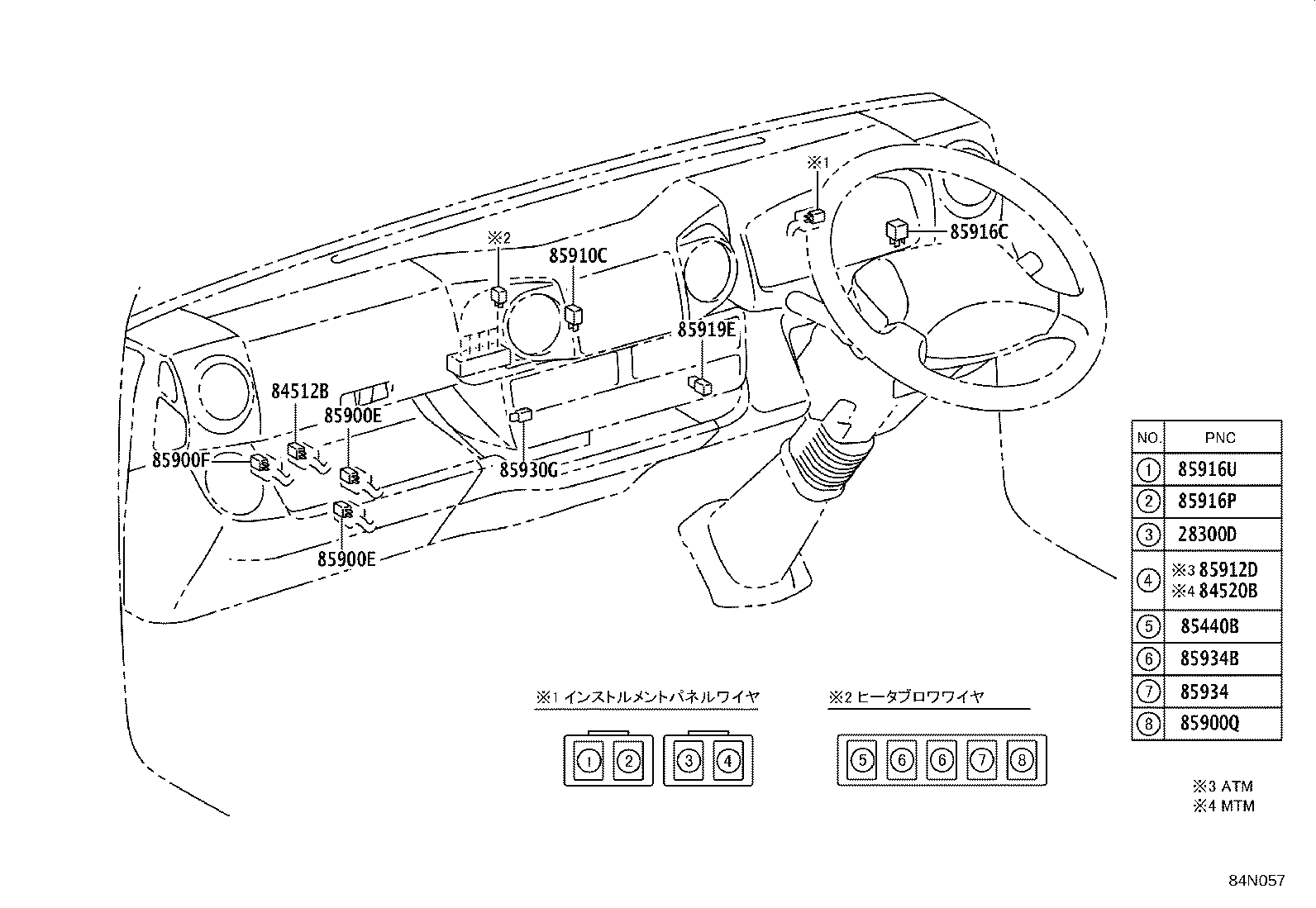

ILLUST NO. 5 OF11(2103- )
ｶｳﾙ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300D - RELAY, STARTER CUT | ||||
| 90987-04008 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 84520B - RELAY, CLUTCH START | ||||
| 85900-37150 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..MTM..(CBU,IV3,IV5,IV7) |
1 | ||
| 85900-37150 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..MTM..(CBU,IV3,IV5,IV7) ｸﾗｯﾁｽﾀｰﾄｼｽﾃﾑ−無し |
1 | ||
| 85900E - RELAY, IDLE STOP | ||||
| 85900-37150 |
XZC605,XZU605,655..T2..6FC;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(CBU,IV3,IV4,IV5,IV6) |
2 | ||
| 85900E - RELAY, IDLE STOP | ||||
| 85900-37150 |
XZC605,XZU605,655..T2..6FC;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(CBU,IV3,IV4,IV5,IV6) |
2 | ||
| 85900Q - RELAY, TAIL | ||||
| 85900-37150 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04007 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 85900-37150 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 85916U - RELAY, HEADLAMP, NO.2 | ||||
| 85900-37150 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 85919E - RELAY, STOP LAMP | ||||
| S8592-02570 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 85900-37150 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02017 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 85934B - RELAY, IDLE STOP | ||||
| 90987-04008 |
XZC605,XZU605,655..T2..6FC;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(CBU,IV3,IV4,IV5,IV6) |
2 | ||

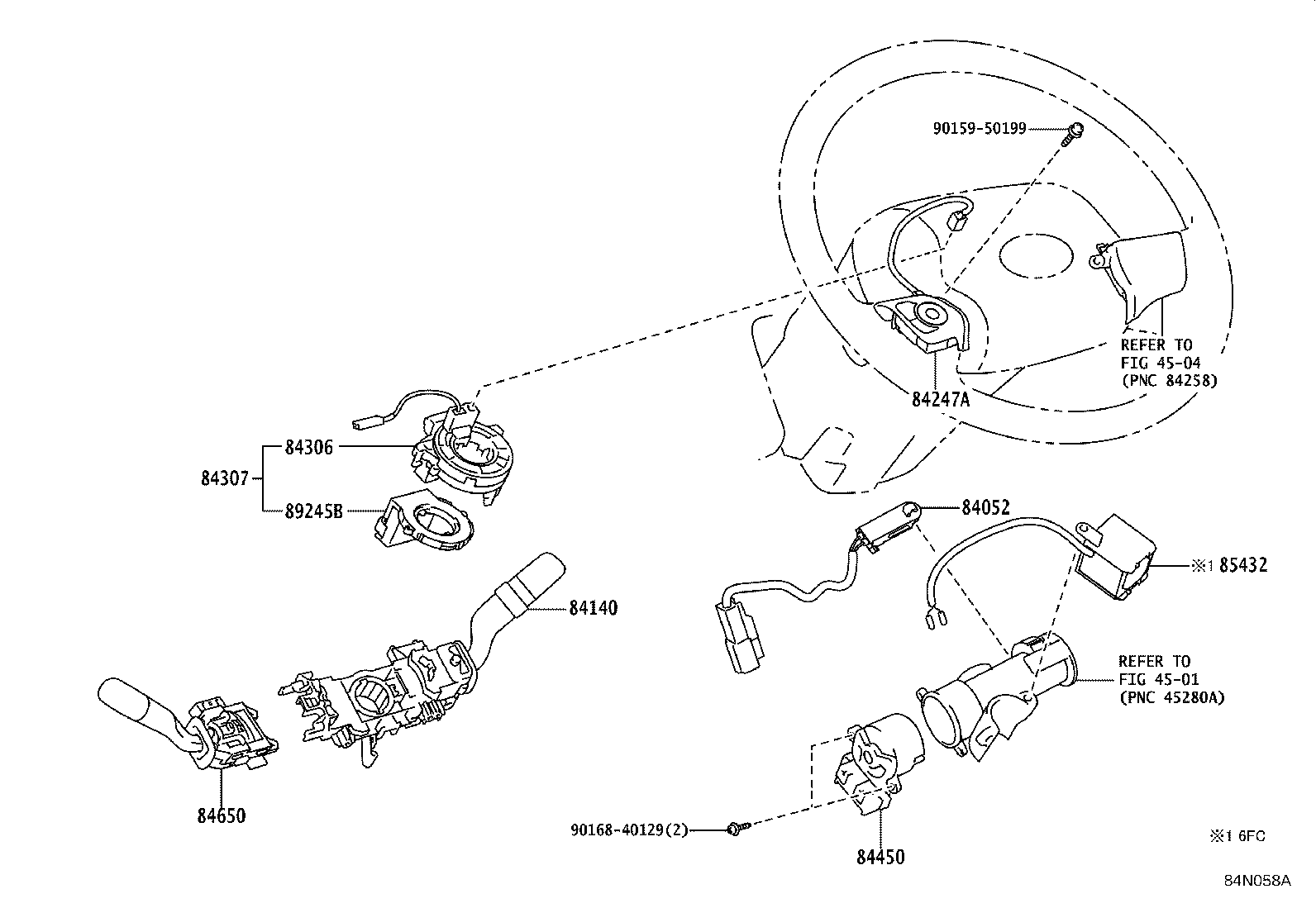

ILLUST NO. 8 OF11(2103- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37121 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 84140-37131 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
1 | ||
| 84247-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-37060 |
XZU640..T4;XZU650..40T..CBU;XZU655..SCB..CBU;XZU655..30T..IV3;XZU675..20T..CBU;XZU675..T4..30T..CBU;XZU650,652..20T,30T,35T;XZU605..T5..6F..20T..IV3;XZU655..T3..6FC..20T..IV3;XZU640,675..(T3,T4)..(5F,6FC)..IV3;XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU60#,64#,685,695..SCB..(DM6,T3,T4,T5)..(CBU,IV5,IV6) SRSｴｱﾊﾞｯｸﾞ−無し |
1 | ||
| 84306-37050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-37030 |
XZU640..T4;XZU650..40T..CBU;XZU655..SCB..CBU;XZU655..30T..IV3;XZU675..20T..CBU;XZU675..T4..30T..CBU;XZU650,652..20T,30T,35T;XZU605..T5..6F..20T..IV3;XZU655..T3..6FC..20T..IV3;XZU640,675..(T3,T4)..(5F,6FC)..IV3;XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU60#,64#,685,695..SCB..(DM6,T3,T4,T5)..(CBU,IV5,IV6) SRSｴｱﾊﾞｯｸﾞ−無し |
1 | ||
| 84307-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-E0020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37350 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-12020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 4504 | ||||

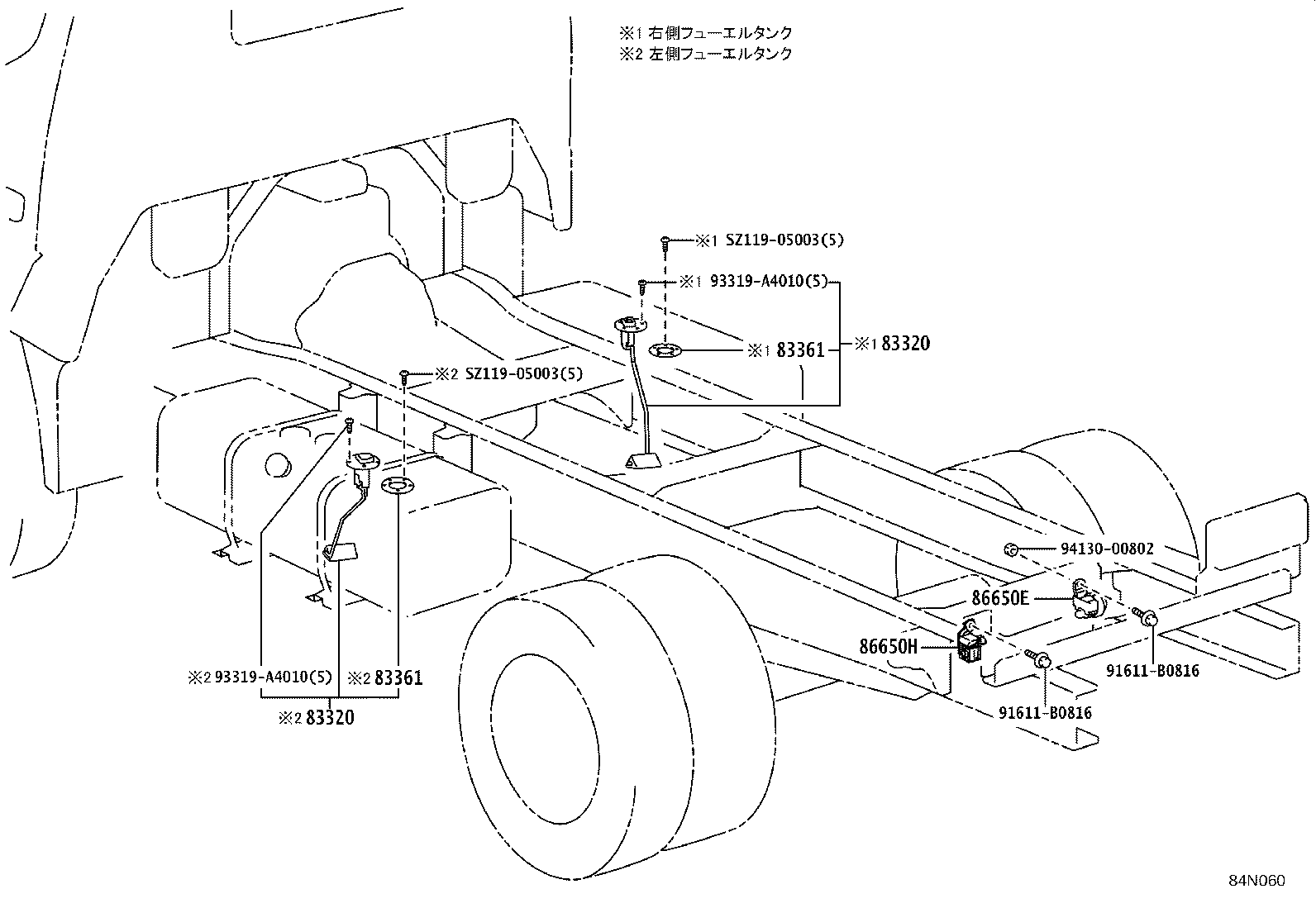

ILLUST NO.11 OF11(2103- )
ﾘﾔﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80374 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80374 |
XZU685..SCB;XZU685..IV4;XZU605..SCB..(CBU,IV3);XZC675,XZU640,642,650,652,675..DM7,T3,T4;XZC60#,630,645,655,XZU600,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XZC675,XZU640,642,650,652,675,685..DM7,T3,T4;XZC60#,630,645,655,XZU600,605,630,645,655,695..CBU,IV3,IV4,IV7 |
1 | ||
| 86650H - BUZZER ASSY, BACK | ||||
| 86650-37181 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| Common parts | ||||
| 91611-B0816 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| SZ119-05003 | ||||

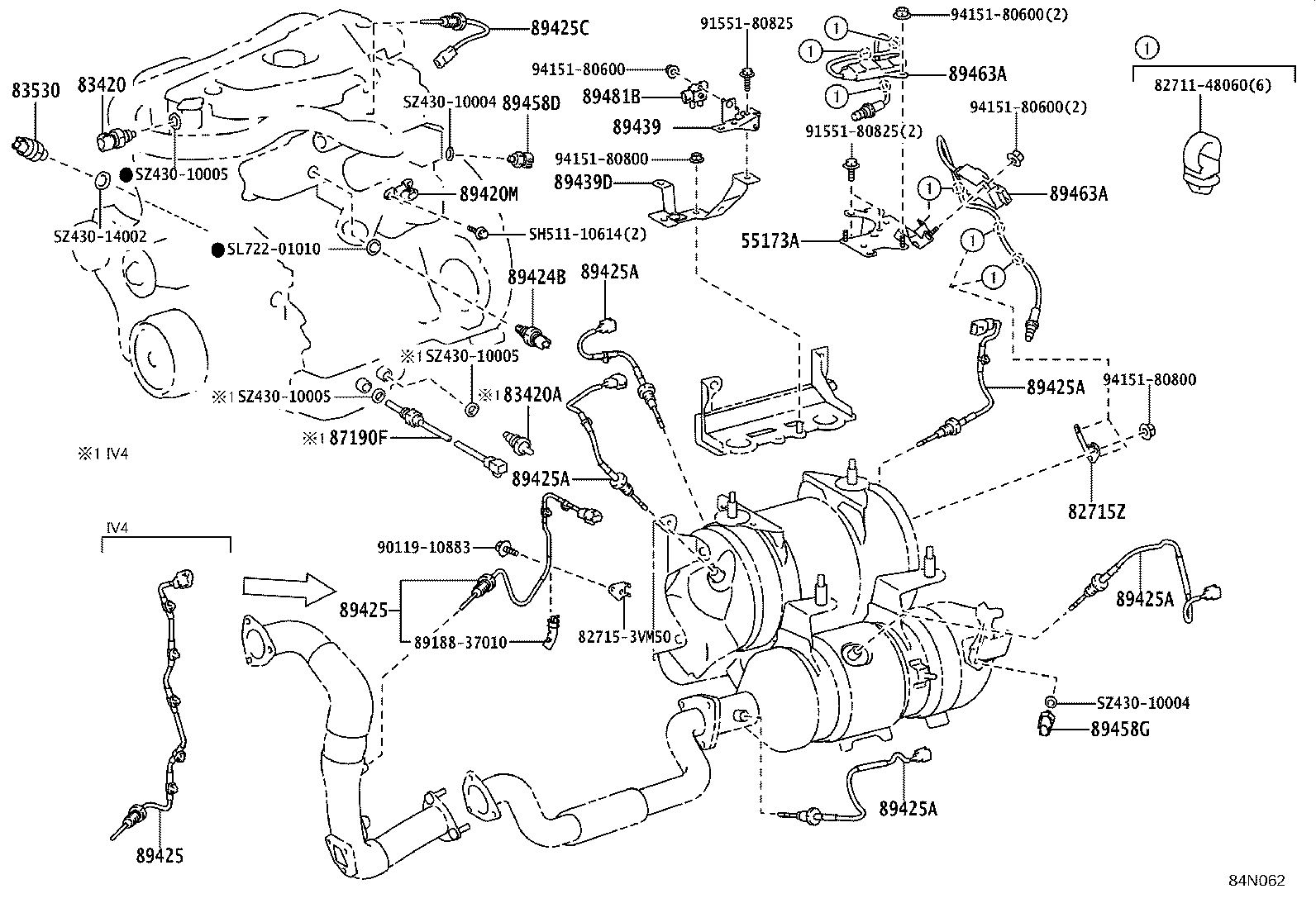

ILLUST NO. 1 OF11(2103- )
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55173A - BRACKET | ||||
| 55173-37831 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| S8342-01250 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-E0250 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89420M - SENSOR ASSY, AIR PRESSURE | ||||
| 89421-E0050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89424B - SWITCH, INLET AIR TEMPERATURE | ||||
| 89424-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37400 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37400 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6 |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
5 | ||
| 89425C - SENSOR, EXHAUST GAS TEMPERATURE, NO.4 | ||||
| 89425-37360 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-37330 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89439D - BRACKET, SENSOR, NO.1 | ||||
| 89439-37440 |
XZC60#,645,655,XZU60#,64#,65# |
1 | ||
| 89458D - SENSOR, FUEL PRESSURE | ||||
| 89458-E0050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89458G - SENSOR, FUEL PRESSURE, NO.2 | ||||
| 89458-E0050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-E0611 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-E0611 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-E0021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| Common parts | ||||
| 82711-48060 | ||||
| 82715-3VM50 | ||||
| 89188-37010 | ||||
| 90119-10883 | ||||
| 91551-80825 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| SH511-10614 | ||||
| SL722-01010 | ||||
| SZ430-10004 | ||||
| SZ430-10005 | ||||
| SZ430-14002 | ||||

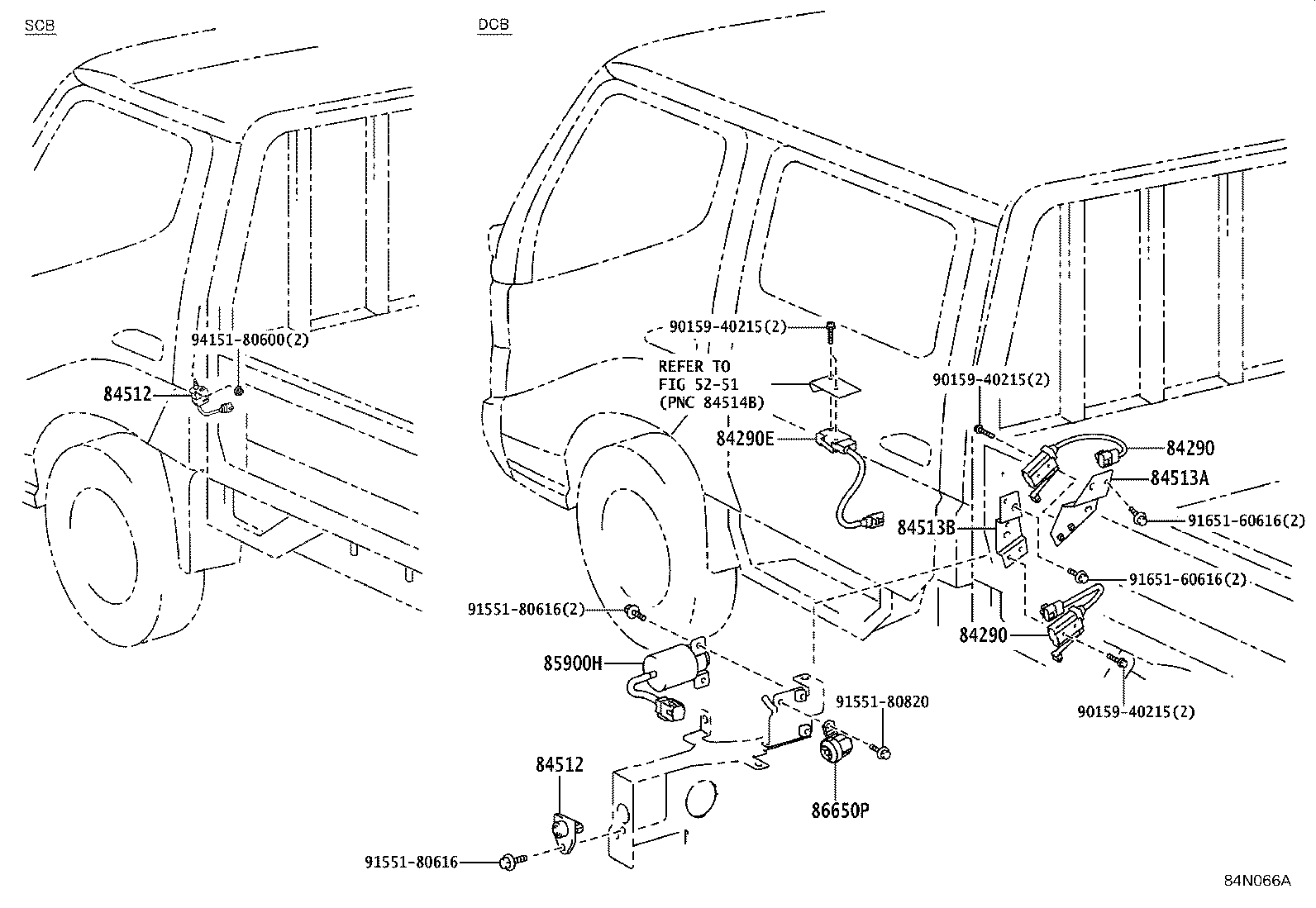

ILLUST NO.10 OF11(2103- )
ﾁﾙﾄｽｲｯﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84512 - SWITCH, TILT CAB CONTROL | ||||
| 84512-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 84512 - SWITCH, TILT CAB CONTROL | ||||
| 84512-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| Common parts | ||||
| 90159-40215 | ||||
| 91551-80616 | ||||
| 91551-80820 | ||||
| 91651-60616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 5251 | ||||

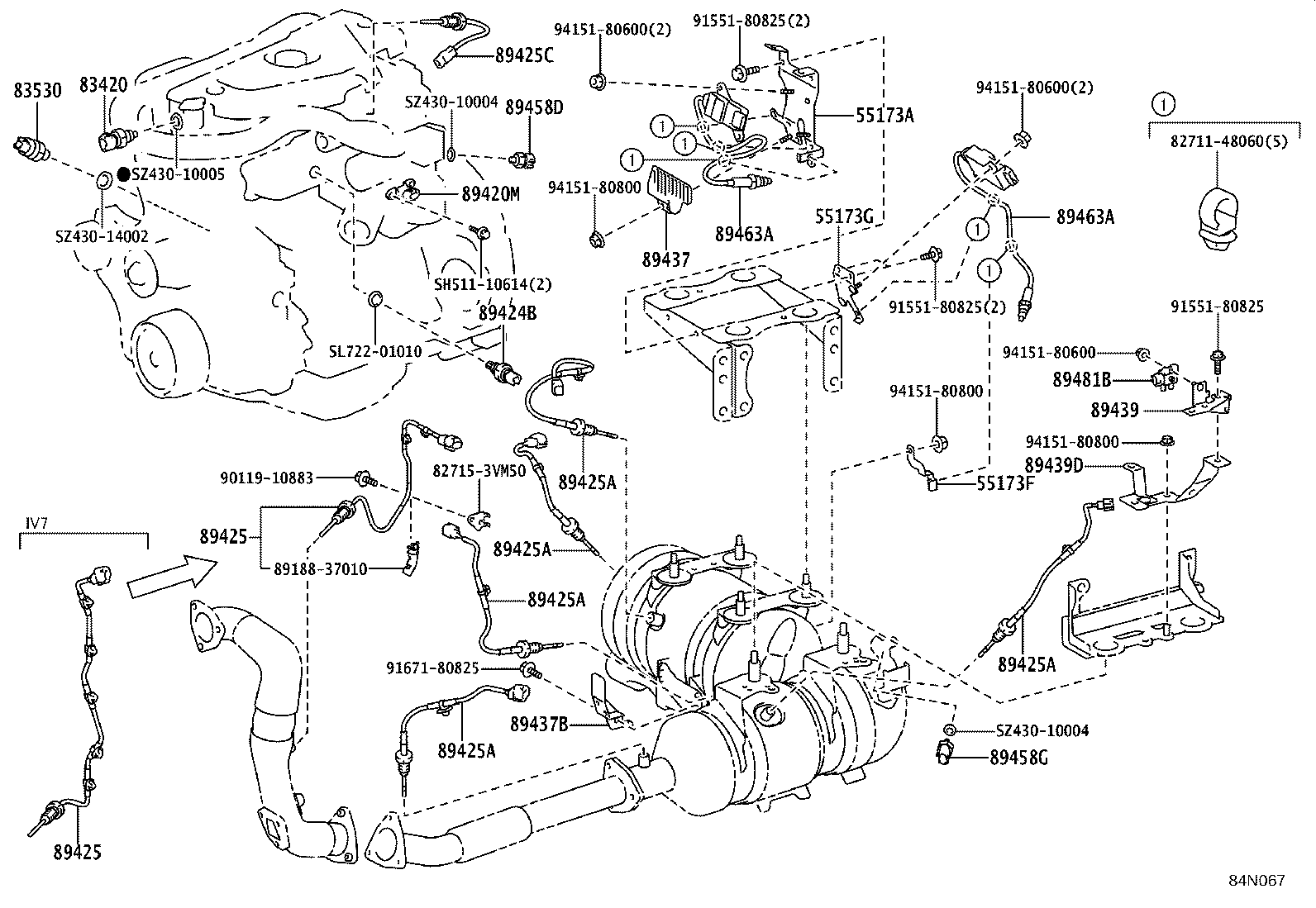

ILLUST NO. 1 OF11(2103- )
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55173A - BRACKET | ||||
| 55173-37831 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB |
1 | ||
| 55173F - BRACKET, ELECTRICAL PART | ||||
| 55173-37760 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB |
1 | ||
| 55173G - BRACKET, ELECTRICAL PART, NO.2 | ||||
| 55173-37701 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| S8342-01250 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-E0250 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89420M - SENSOR ASSY, AIR PRESSURE | ||||
| 89421-E0050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89424B - SWITCH, INLET AIR TEMPERATURE | ||||
| 89424-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37400 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37400 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6 |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
5 | ||
| 89425C - SENSOR, EXHAUST GAS TEMPERATURE, NO.4 | ||||
| 89425-37360 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-37051 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB |
1 | ||
| 89437B - COVER, SENSOR | ||||
| 89437-37071 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-37330 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89439D - BRACKET, SENSOR, NO.1 | ||||
| 89439-37440 |
XZC60#,645,655,XZU60#,64#,65# |
1 | ||
| 89458D - SENSOR, FUEL PRESSURE | ||||
| 89458-E0050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89458G - SENSOR, FUEL PRESSURE, NO.2 | ||||
| 89458-E0050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-E0611 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-E0611 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-E0021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| Common parts | ||||
| 82711-48060 | ||||
| 82715-3VM50 | ||||
| 89188-37010 | ||||
| 90119-10883 | ||||
| 91551-80825 | ||||
| 91671-80825 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| SH511-10614 | ||||
| SL722-01010 | ||||
| SZ430-10004 | ||||
| SZ430-10005 | ||||
| SZ430-14002 | ||||

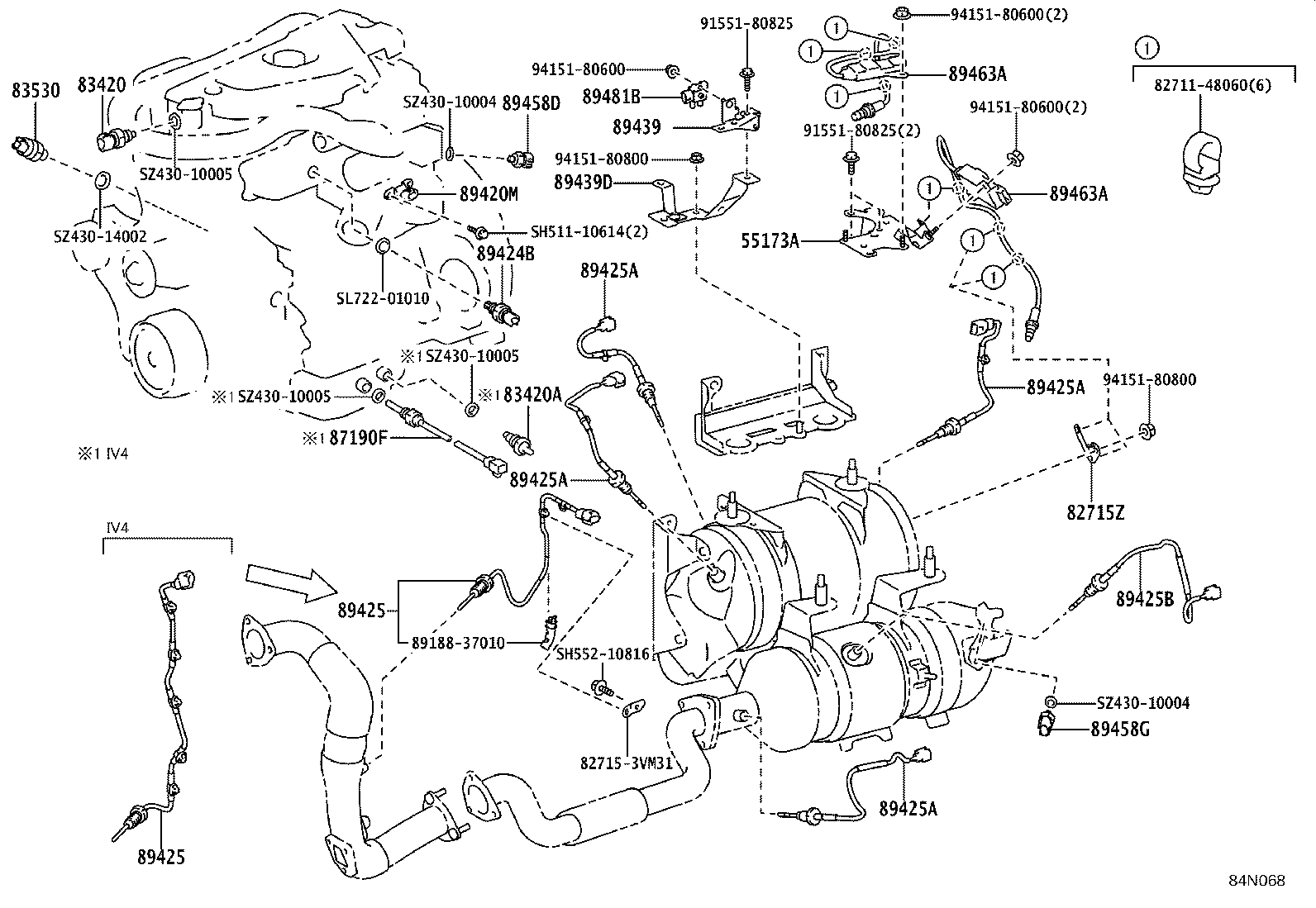

ILLUST NO. 1 OF11(2103- )
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55173A - BRACKET | ||||
| 55173-37831 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| S8342-01250 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-E0250 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89420M - SENSOR ASSY, AIR PRESSURE | ||||
| 89421-E0050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89424B - SWITCH, INLET AIR TEMPERATURE | ||||
| 89424-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37400 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37400 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6 |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
5 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-37330 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89439D - BRACKET, SENSOR, NO.1 | ||||
| 89439-37440 |
XZC60#,645,655,XZU60#,64#,65# |
1 | ||
| 89458D - SENSOR, FUEL PRESSURE | ||||
| 89458-E0050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89458G - SENSOR, FUEL PRESSURE, NO.2 | ||||
| 89458-E0050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-E0611 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-E0611 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-E0021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| Common parts | ||||
| 82711-48060 | ||||
| 82715-3VM31 | ||||
| 89188-37010 | ||||
| 91551-80825 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| SH511-10614 | ||||
| SH552-10816 | ||||
| SL722-01010 | ||||
| SZ430-10004 | ||||
| SZ430-10005 | ||||
| SZ430-14002 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
