XZU645-TQFQY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

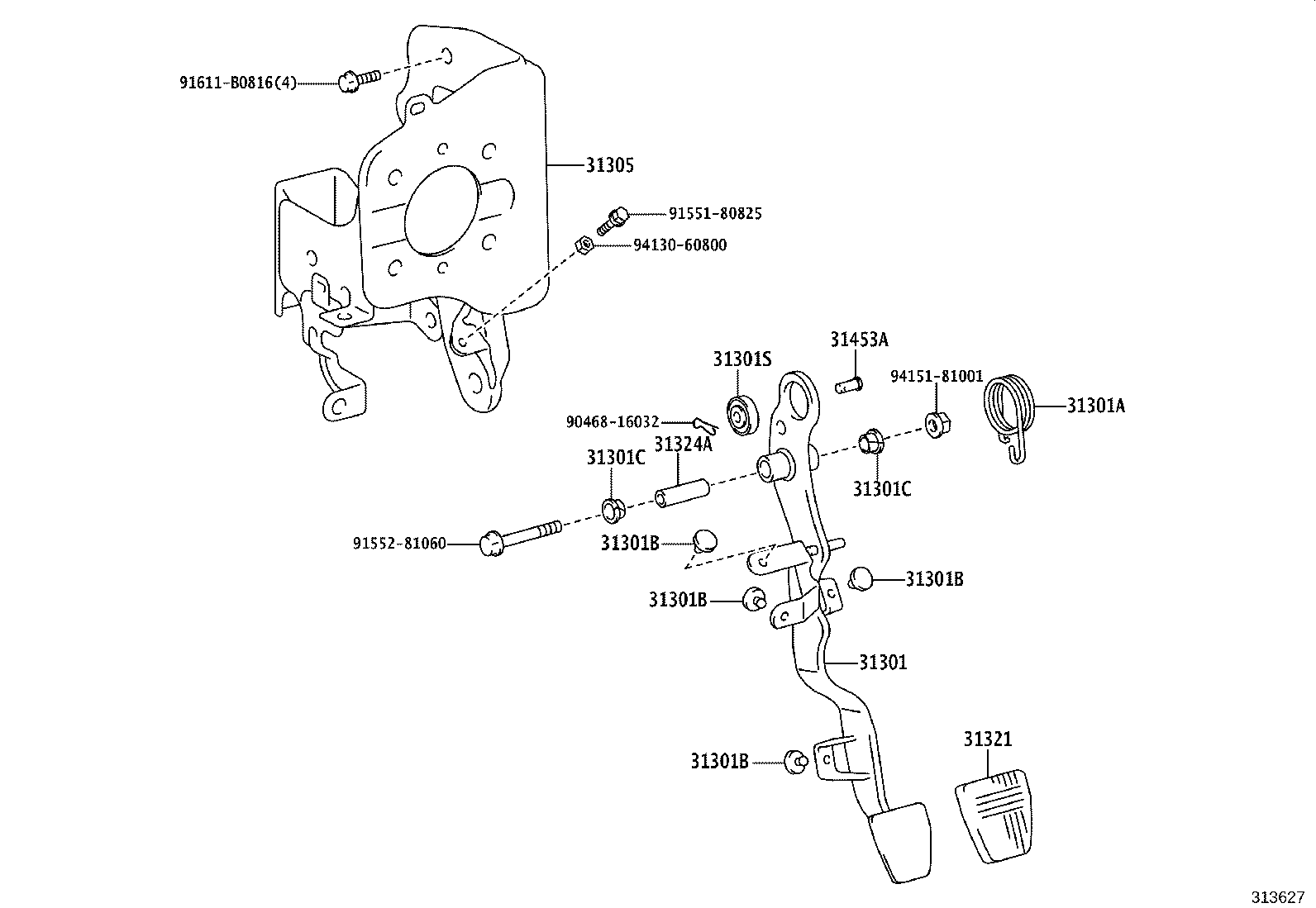

ILLUST NO. 1 OF 2(2103- )MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301B 31301B 31301C 31301C 31301S 31305 31321 31324A 31453A 9046816032 9155180825 9155281060 91611B0816 9413060800 9415181001
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-37320

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
31394-37021

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM

 4
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM

 4
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM

 4
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM

 4
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM

 2
31301S - CUSHION, NO.2(FOR CLUTCH PEDAL)
31496-37010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM

 1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
31305-37010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-52020

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM

長さ=23.5

 1
Common parts
90468-16032
91551-80825
91552-81060
91611-B0816
94130-60800
94151-81001

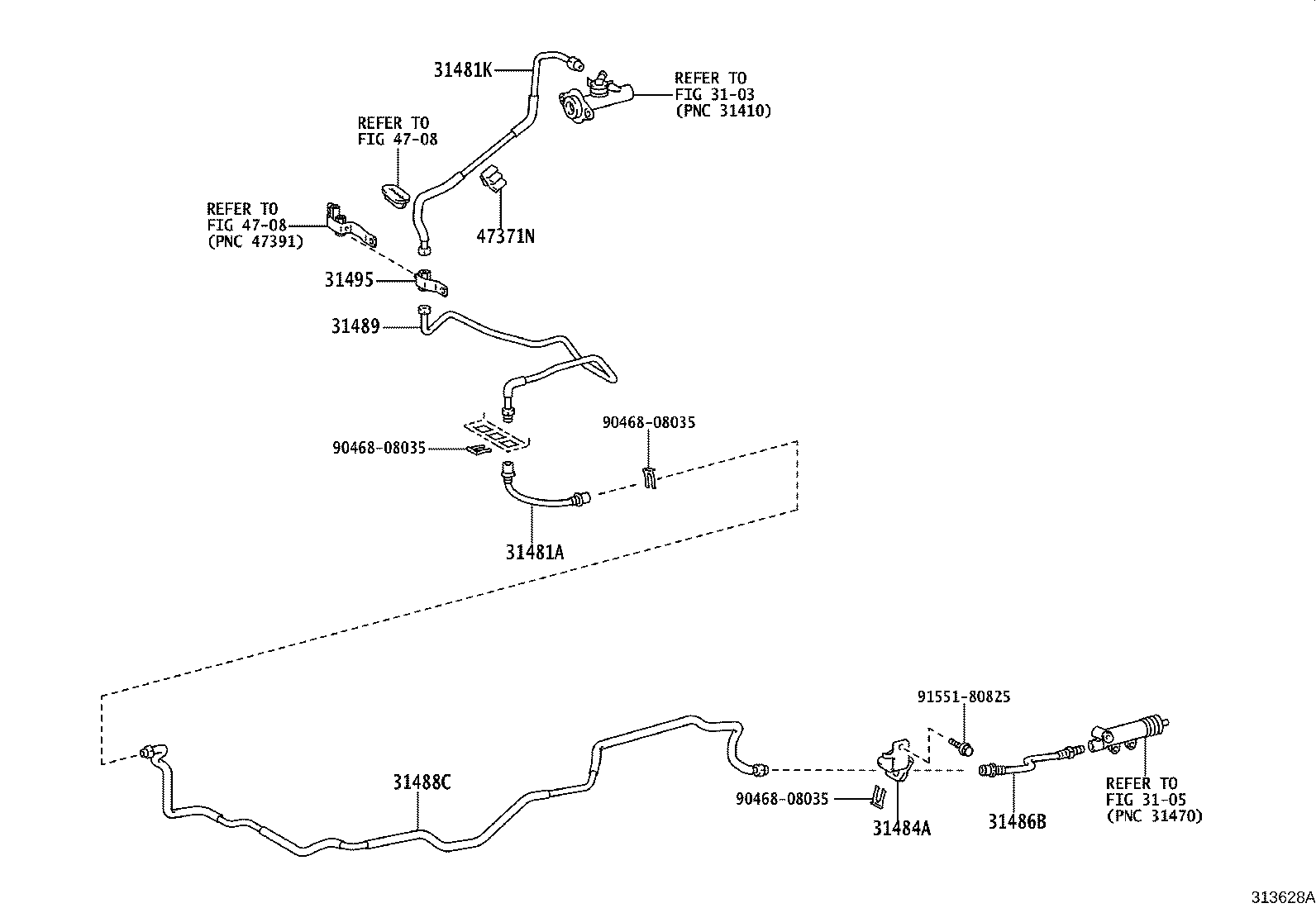

ILLUST NO. 2 OF 2(2103- )6F

Click highlighted areas on diagram

diagram 3103 3105 31481A 31481K 31484A 31486B 31488C 31489 31495 4708 4708 47371N 9046808035 9046808035 9046808035 9155180825
Part # Description Qty Price
31481A - HOSE, CLUTCH, NO.1
31486-37151

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM

 1
31481K - TUBE, MASTER CYLINDER TO TUBE CONNECTOR
31481-37410

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-37260

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
31486B - HOSE, MASTER CYLINDER TO RELEASE CYLINDER
31486-37050

XZU600,640..6F..(CBU,IV3,IV6);XZC60#,630,645,655,675,XZU602,605,630,642,645,65#,675,685,695..MTM

 1
31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE
31482-37470

XZC60#,645,655,XZU60#,64#,65#..6F..(CBU,IV3,IV5,IV6,IV7)

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31481-37421

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(CBU,IV3,IV4,IV5,IV6)

 1
31495 - WAY, CLUTCH TUBE
31495-37010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM

 1
47371N - CLAMP, BRAKE TUBE
47371-37140

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM

 1
Common parts
90468-08035
91551-80825
Linked diagrams
3103
3105
4708
