XZU645-TKTQY (2021)
Toyota Dyna
ILLUST NO. 1 OF 2(2103- )
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-37220 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-37110 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 87121K - BRACKET, HEATER | ||||
| 87121-37310 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-37230 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87441-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 87210F - CASE ASSY, AIR DAMPER | ||||
| 87210-37090 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-37110 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-37080 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 88650K - BRACKET, RELAY | ||||
| 85909-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 88688Z - BRACKET | ||||
| 88688-37N90 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-37760 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88840-37250 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-37081 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| Common parts | ||||
| 85272-37070 | ||||
| 88899-44050 | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06448 | ||||
| 90119-06536 | ||||
| 90119-08C27 | ||||
| 90178-06018 | ||||
| 91551-80628 | ||||

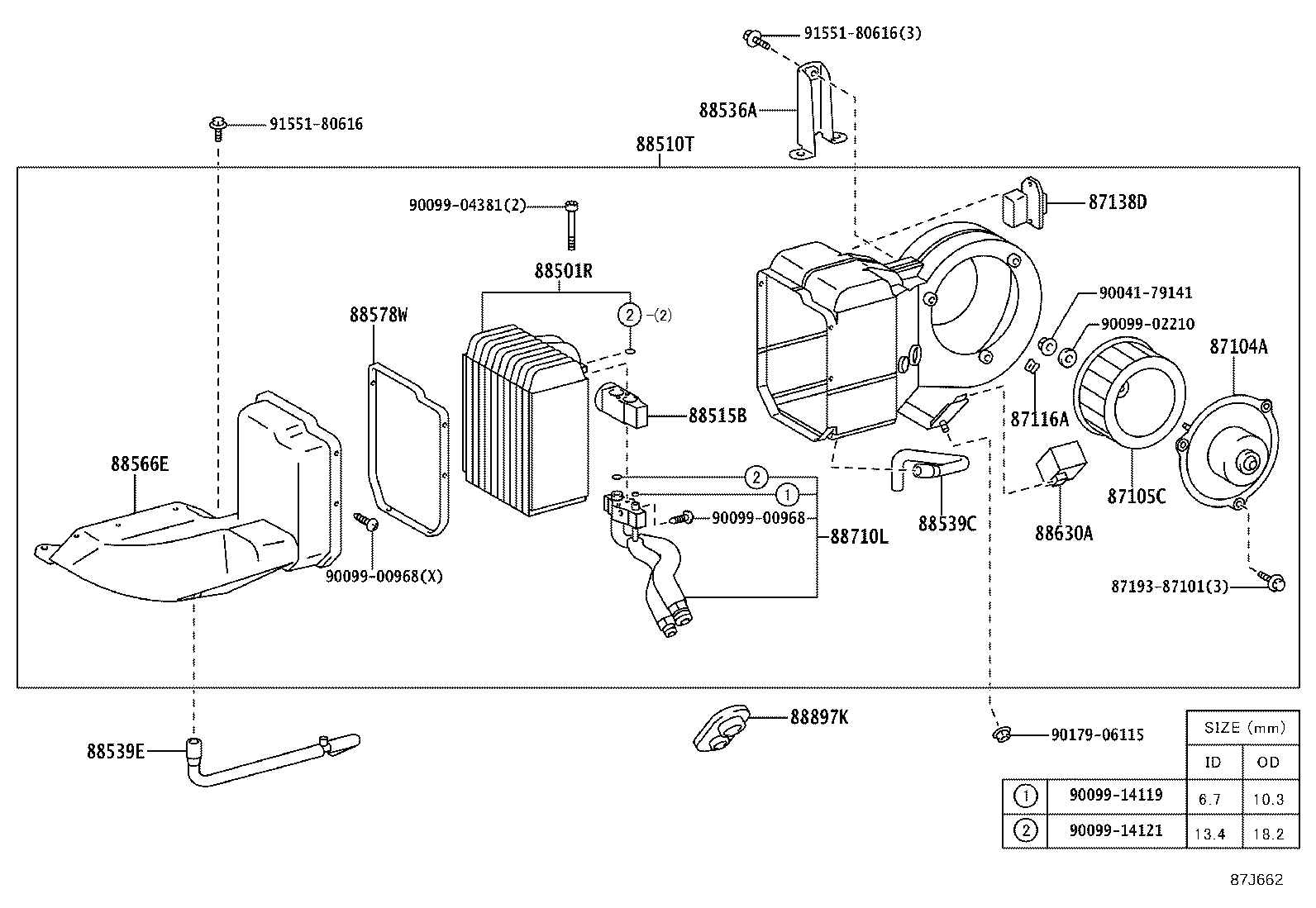

ILLUST NO. 2 OF 2(2103- )
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87193-87101 | ||||
| 90041-79141 | ||||
| 90099-00968 | ||||
| 90099-02210 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90179-06115 | ||||
| 91551-80616 | ||||
