XZU645-TKTQY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

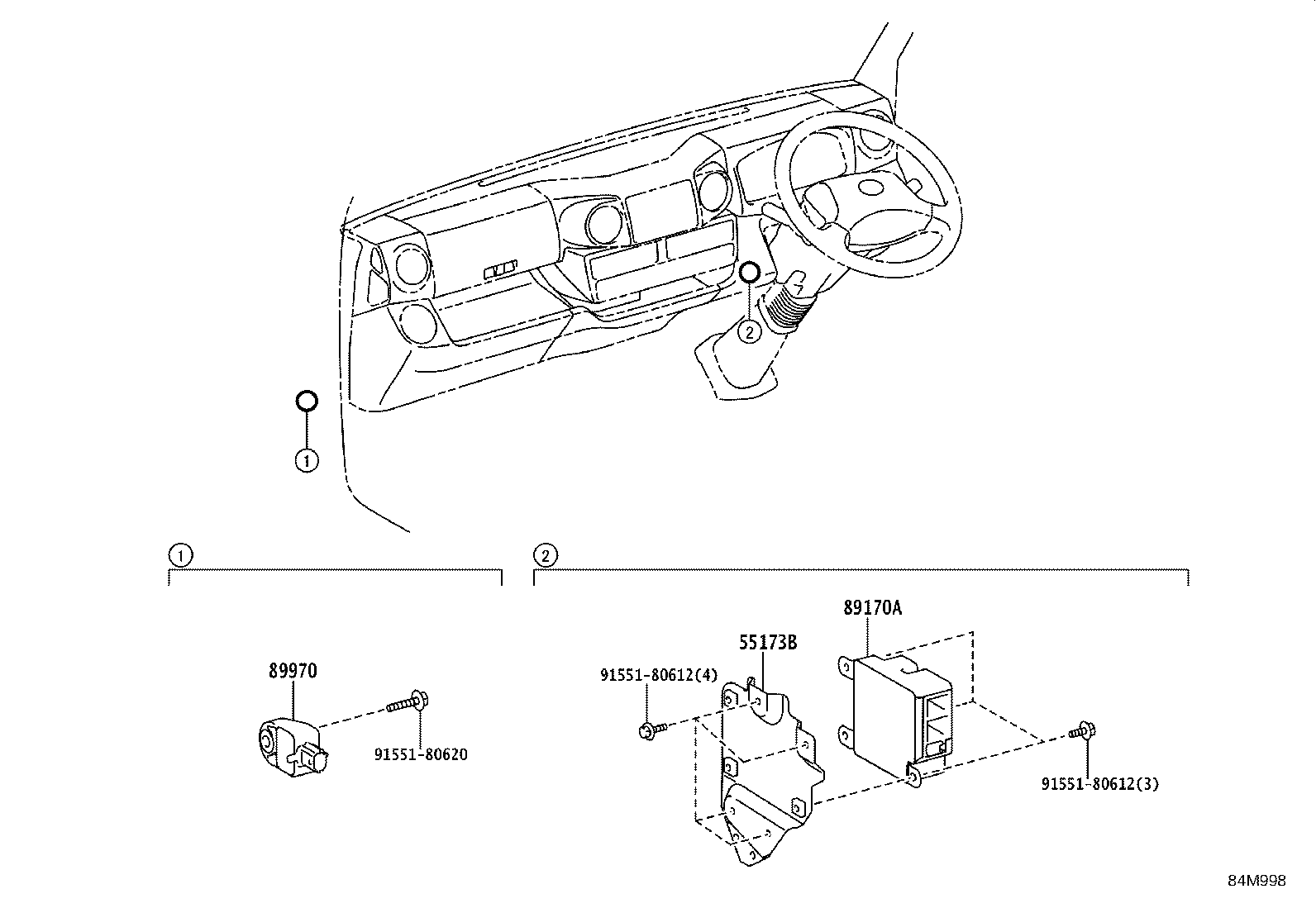

Click highlighted areas on diagram

diagram 55173B 89170A 89970 9155180612 9155180612 9155180620
Part # Description Qty Price
55173B - BRACKET
55173-37251

XZU640..T4;XZU650..40T..CBU;XZU655..SCB..CBU;XZU655..30T..IV3;XZU675..20T..CBU;XZU675..T4..30T..CBU;XZU650,652..20T,30T,35T;XZU605..T5..6F..20T..IV3;XZU655..T3..6FC..20T..IV3;XZU640,675..(T3,T4)..(5F,6FC)..IV3;XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU60#,64#,685,695..SCB..(DM6,T3,T4,T5)..(CBU,IV5,IV6)

SRSｴｱﾊﾞｯｸﾞ−無し

 1
55173-37251

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
89170A - COMPUTER ASSY, AIR BAG
89170-37113

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
89170-37123

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席)

 1
89170-37113

XZU640..T4;XZU650..40T..CBU;XZU655..SCB..CBU;XZU655..30T..IV3;XZU675..20T..CBU;XZU675..T4..30T..CBU;XZU650,652..20T,30T,35T;XZU605..T5..6F..20T..IV3;XZU655..T3..6FC..20T..IV3;XZU640,675..(T3,T4)..(5F,6FC)..IV3;XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU60#,64#,685,695..SCB..(DM6,T3,T4,T5)..(CBU,IV5,IV6)

SRSｴｱﾊﾞｯｸﾞ−無し

 1
89970 - SENSOR ASSY, AIR BAG, NO.2
89970-37020

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
89970-37020

XZU640..T4;XZU650..40T..CBU;XZU655..SCB..CBU;XZU655..30T..IV3;XZU675..20T..CBU;XZU675..T4..30T..CBU;XZU650,652..20T,30T,35T;XZU605..T5..6F..20T..IV3;XZU655..T3..6FC..20T..IV3;XZU640,675..(T3,T4)..(5F,6FC)..IV3;XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU60#,64#,685,695..SCB..(DM6,T3,T4,T5)..(CBU,IV5,IV6)

SRSｴｱﾊﾞｯｸﾞ−無し

 1
Common parts
91551-80612
91551-80620
