XZU645-TKTQY (2021)
Toyota Dyna
(2103- )SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-35010B2 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 73135-35020B2 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-35010B2 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 73135-35020B2 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-35010B2 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 73135-35020B2 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-35010B2 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 73135-35020B2 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER | ||||
| 73150-37150B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB GRAY,TRIM1# |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020P2 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-34030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-37540B0 |
XZU640..T4;XZU640..6FC..IV3;XZU650..40T..CBU;XZU655..SCB..CBU;XZU655..30T..IV3;XZU605..T5..6F..20T..IV3;XZU655..T3..6FC..20T..IV3;XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU650,652,675..(T3,T4)..(20T,30T,35T);XZU60#,64#,685,695..SCB..(DM6,T3,T4,T5)..(CBU,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−無し,GRAY,TRIM1# |
1 | ||
| 73210-37520B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 73210-37540B0 |
XZU640..T4;XZU650..40T..CBU;XZU655..SCB..CBU;XZU655..30T..IV3;XZU675..20T..CBU;XZU675..T4..30T..CBU;XZU650,652..20T,30T,35T;XZU605..T5..6F..20T..IV3;XZU655..T3..6FC..20T..IV3;XZU640,675..(T3,T4)..(5F,6FC)..IV3;XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU60#,64#,685,695..SCB..(DM6,T3,T4,T5)..(CBU,IV5,IV6) SRSｴｱﾊﾞｯｸﾞ−無し,GRAY,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73210-37530B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 73210-37550B0 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37550B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73210-37530B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 73210-37550B0 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37550B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73210-37530B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 73210-37550B0 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73210-37550B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-37470B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-37310B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB GRAY,TRIM1# |
1 | ||
| 73240-37350B0 |
XZU640..T4;XZU640..6FC..IV3;XZU650..40T..CBU;XZU655..SCB..CBU;XZU655..30T..IV3;XZU605..T5..6F..20T..IV3;XZU655..T3..6FC..20T..IV3;XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU650,652,675..(T3,T4)..(20T,30T,35T);XZU60#,64#,685,695..SCB..(DM6,T3,T4,T5)..(CBU,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−無し,GRAY,TRIM1# |
1 | ||
| 73240-37320B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73240-37350B0 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,GRAY,TRIM1# |
1 | ||
| 73240-37360B0 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-37310B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB GRAY,TRIM1# |
1 | ||
| 73240-37350B0 |
XZU640..T4;XZU640..6FC..IV3;XZU650..40T..CBU;XZU655..SCB..CBU;XZU655..30T..IV3;XZU605..T5..6F..20T..IV3;XZU655..T3..6FC..20T..IV3;XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU650,652,675..(T3,T4)..(20T,30T,35T);XZU60#,64#,685,695..SCB..(DM6,T3,T4,T5)..(CBU,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−無し,GRAY,TRIM1# |
1 | ||
| 73240-37320B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73240-37350B0 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,GRAY,TRIM1# |
1 | ||
| 73240-37360B0 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 73252A - COVER, SHOULDER BELT ANCHOR ADJUST | ||||
| 73252-37011B1 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11041 | ||||
| 90109-11027 | ||||
| 90109-11048 | ||||
| 90179-11010 | ||||
| 90468-05017 | ||||
| 91512-B1020 | ||||
| 91551-80614 | ||||

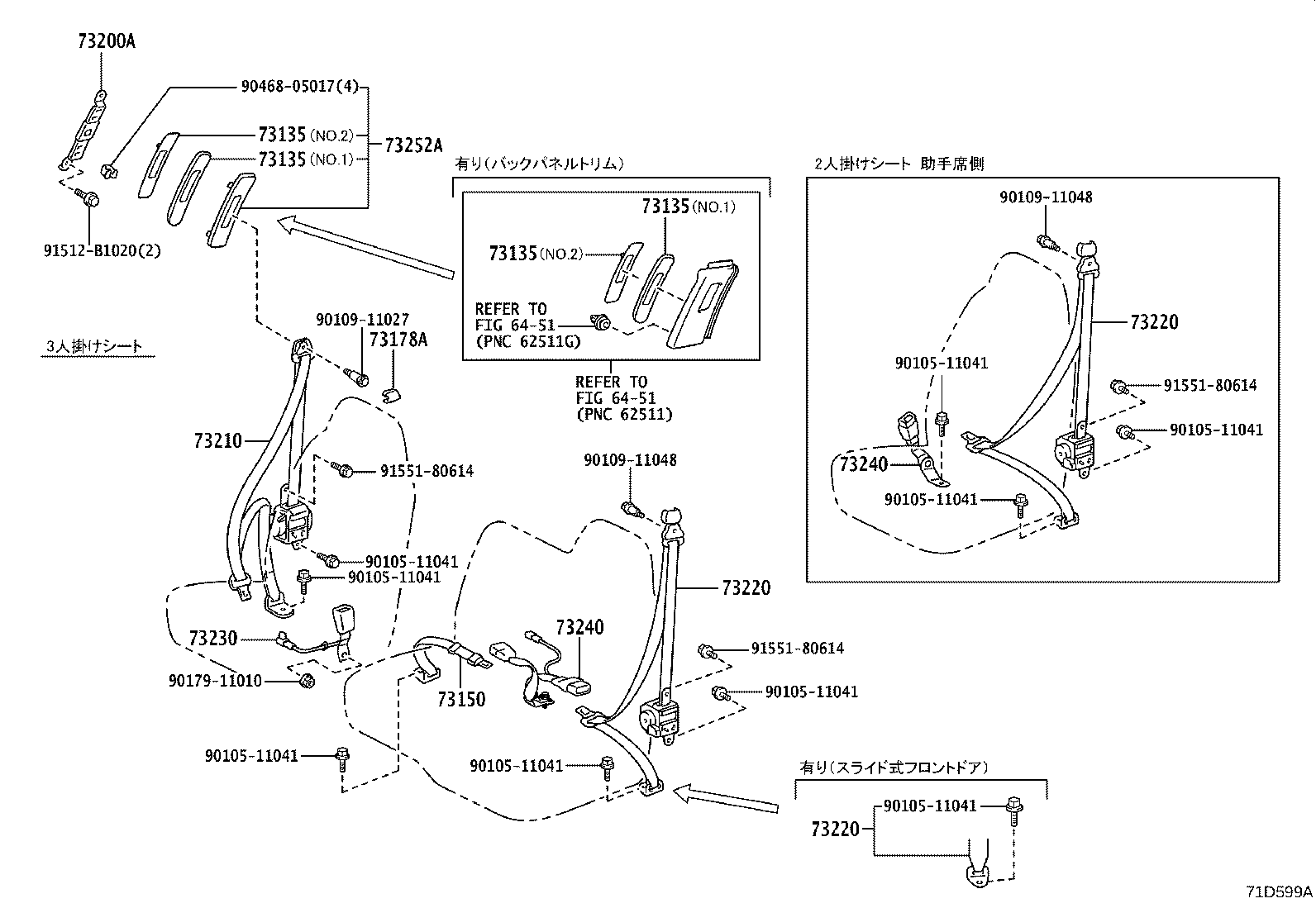

| Linked diagrams | ||||
| 6451 | ||||
