XZU642W-TKTSY6 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

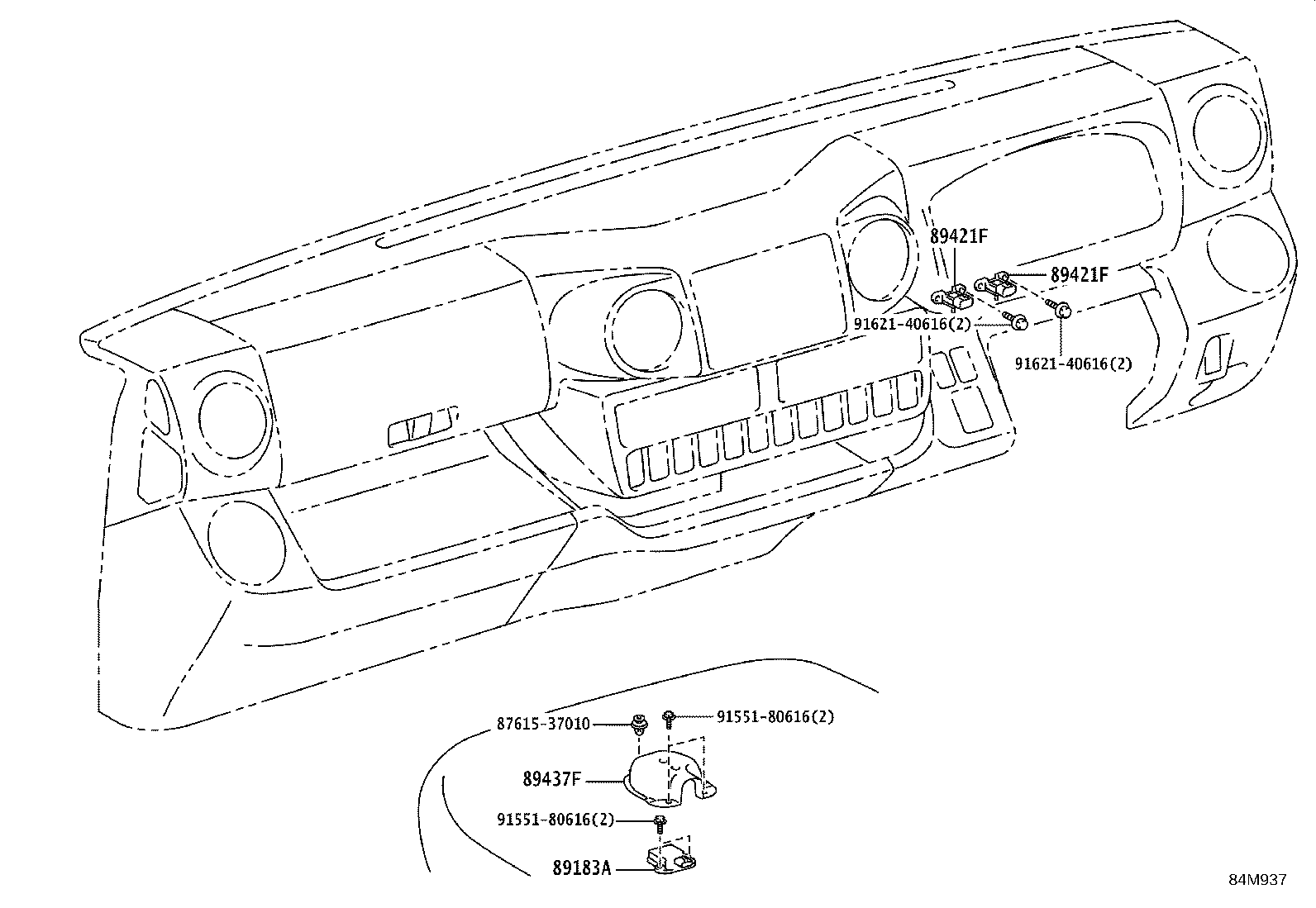

ILLUST NO. 1 OF 3(2103- )

Click highlighted areas on diagram

ｶｳﾙ

diagram 8761537010 89183A 89421F 89421F 89437F 9155180616 9155180616 9162140616 9162140616
Part # Description Qty Price
89183A - SENSOR, YAWRATE
89183-37011

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37030

XZC675,XZU60#,630,64#,65#,675,685,695

 2
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37030

XZC675,XZU60#,630,64#,65#,675,685,695

 2
89437F - COVER, SENSOR
89437-37021

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
Common parts
87615-37010
91551-80616
91621-40616

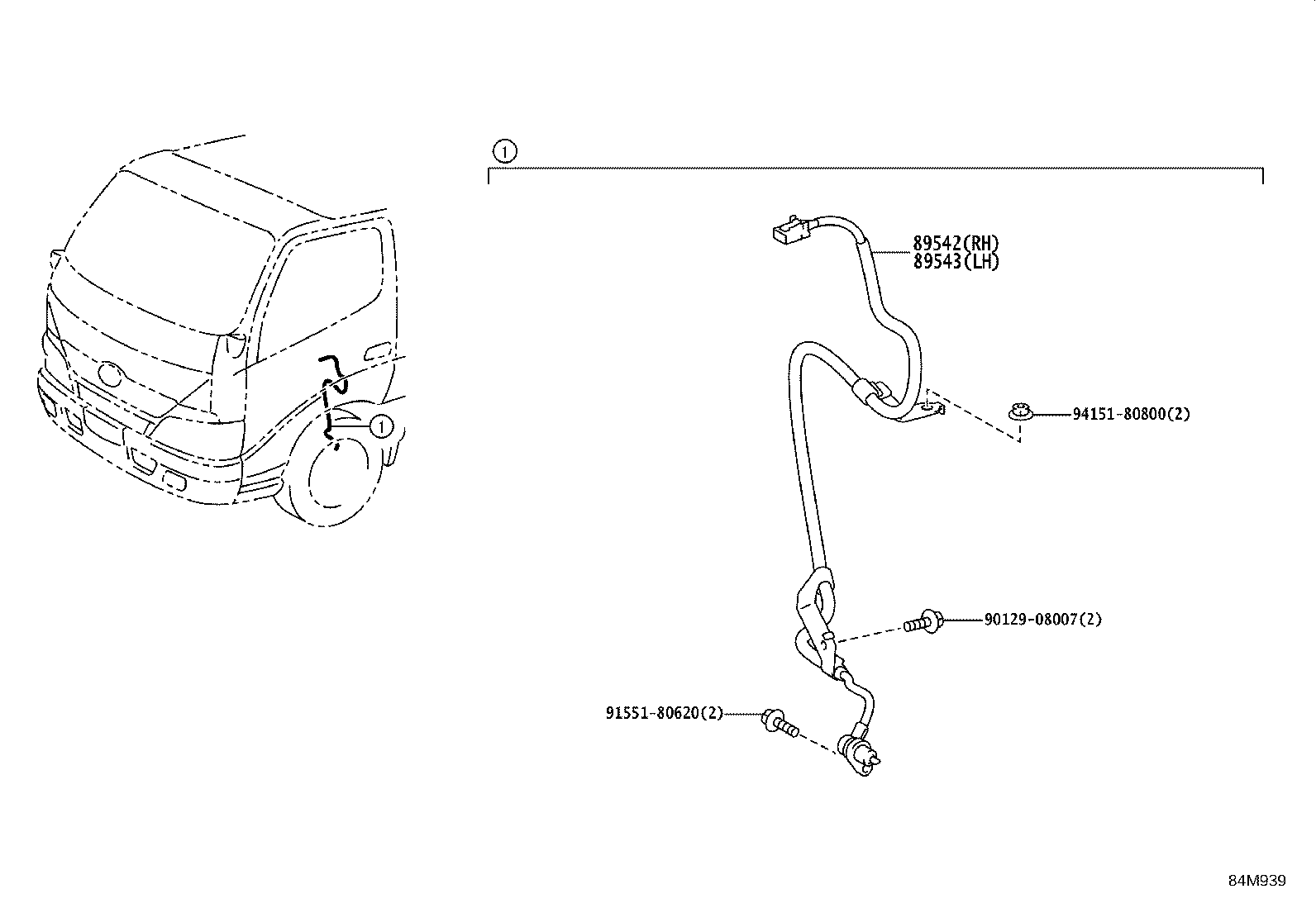

ILLUST NO. 2 OF 3(2103- )35T,40T

Click highlighted areas on diagram

ﾌﾛﾝﾄｽﾋﾟｰﾄﾞｾﾝｻ

diagram 89542 89543 9012908007 9155180620 9415180800
Part # Description Qty Price
89542 - SENSOR, SPEED, FRONT RH
89542-37170

XZU600,602,640,642,650,652..35T,40T

 1
89543 - SENSOR, SPEED, FRONT LH
89543-37170

XZU600,602,640,642,650,652..35T,40T

 1
Common parts
90129-08007
91551-80620
94151-80800

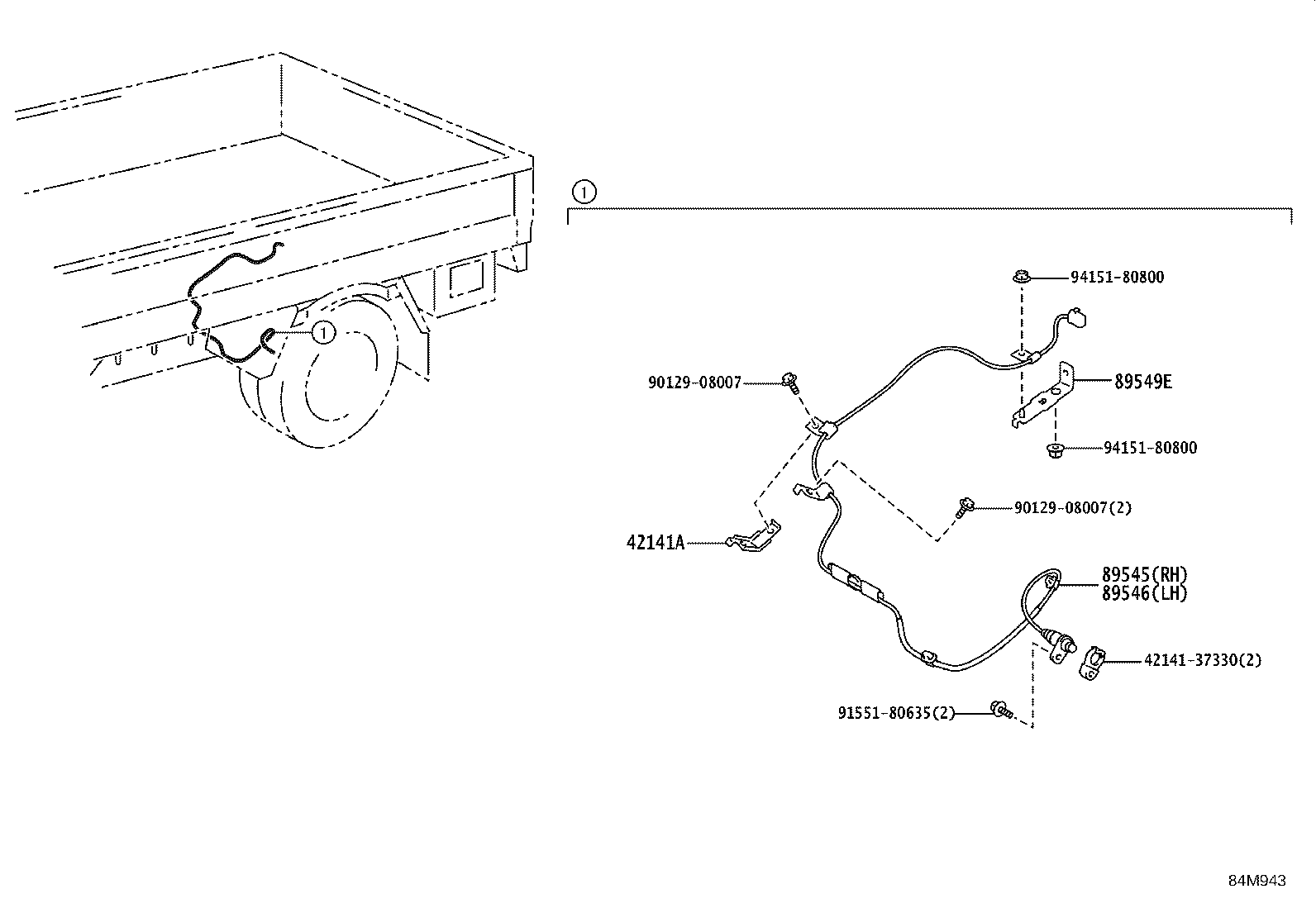

ILLUST NO. 3 OF 3(2103- )XZU600..T3..IV3,IV4,IV7 ; (2103- )XZC605,645,655,XZU605,640,645,650,6

Click highlighted areas on diagram

ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ

diagram 4214137330 42141A 89545 89546 89549E 9012908007 9012908007 9155180635 9415180800 9415180800
Part # Description Qty Price
42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1
42141-37010

XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5

 1
89545 - SENSOR, SPEED, REAR RH
89545-37230

XZU650,652..IV6;XZU600,602,640,642..40T

 1
89546 - SENSOR, SPEED, REAR LH
89546-37230

XZU650,652..IV6;XZU600,602,640,642..40T

 1
89549E - BRACKET, SPEED SENSOR
82715-3V690

XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5

 1
Common parts
42141-37330
90129-08007
91551-80635
94151-80800

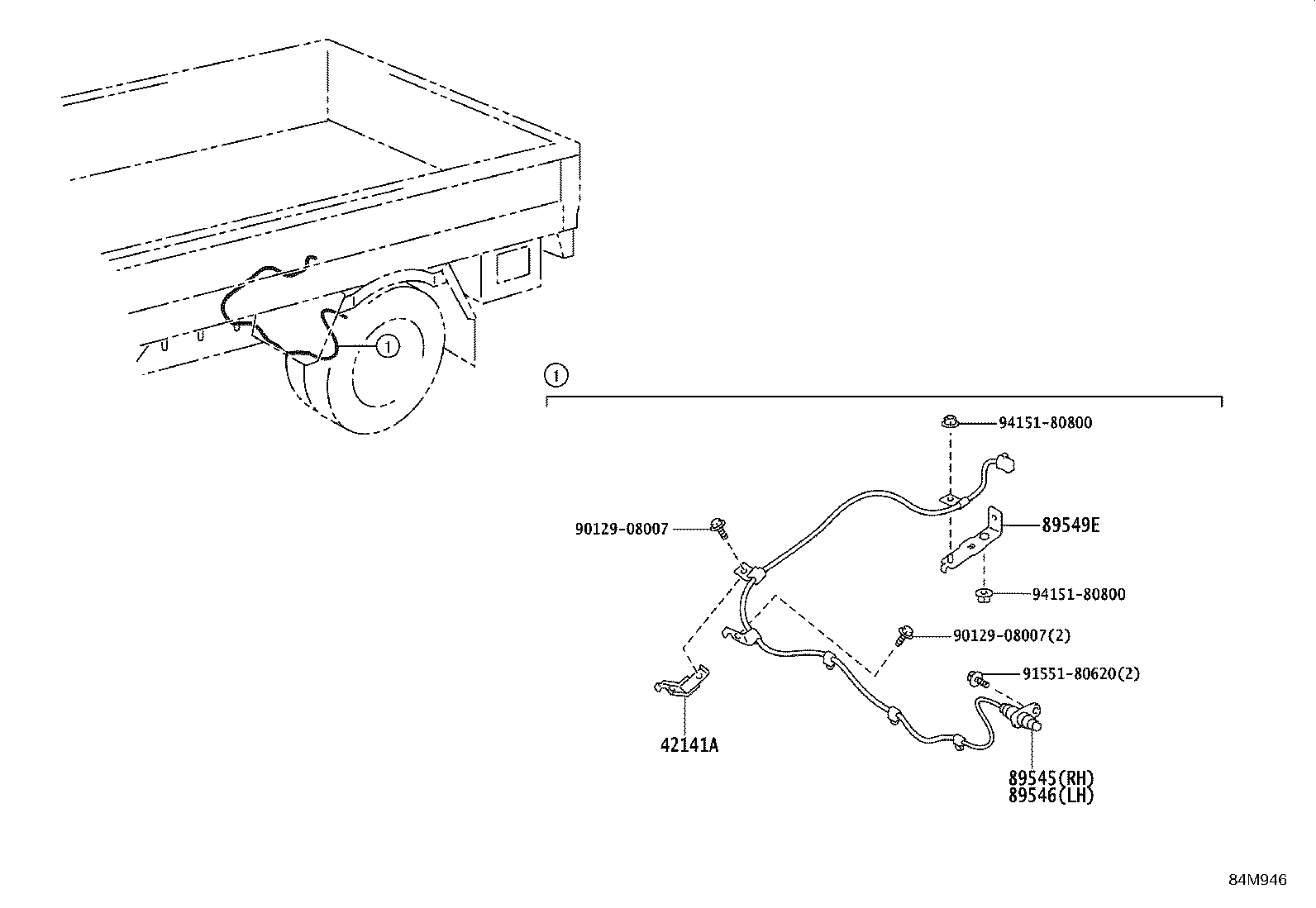

ILLUST NO. 3 OF 3(2103- )DM3..IV3 ; (2103- )XZC675,XZU675,685,695..T3,T4 ; (2103- )XZU600,6

Click highlighted areas on diagram

ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ

diagram 42141A 89545 89546 89549E 9012908007 9012908007 9155180620 9415180800 9415180800
Part # Description Qty Price
42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1
42141-37010

XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5

 1
89545 - SENSOR, SPEED, REAR RH
89545-37230

XZU650,652..IV6;XZU600,602,640,642..40T

 1
89546 - SENSOR, SPEED, REAR LH
89546-37230

XZU650,652..IV6;XZU600,602,640,642..40T

 1
89549E - BRACKET, SPEED SENSOR
82715-3V690

XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5

 1
Common parts
90129-08007
91551-80620
94151-80800

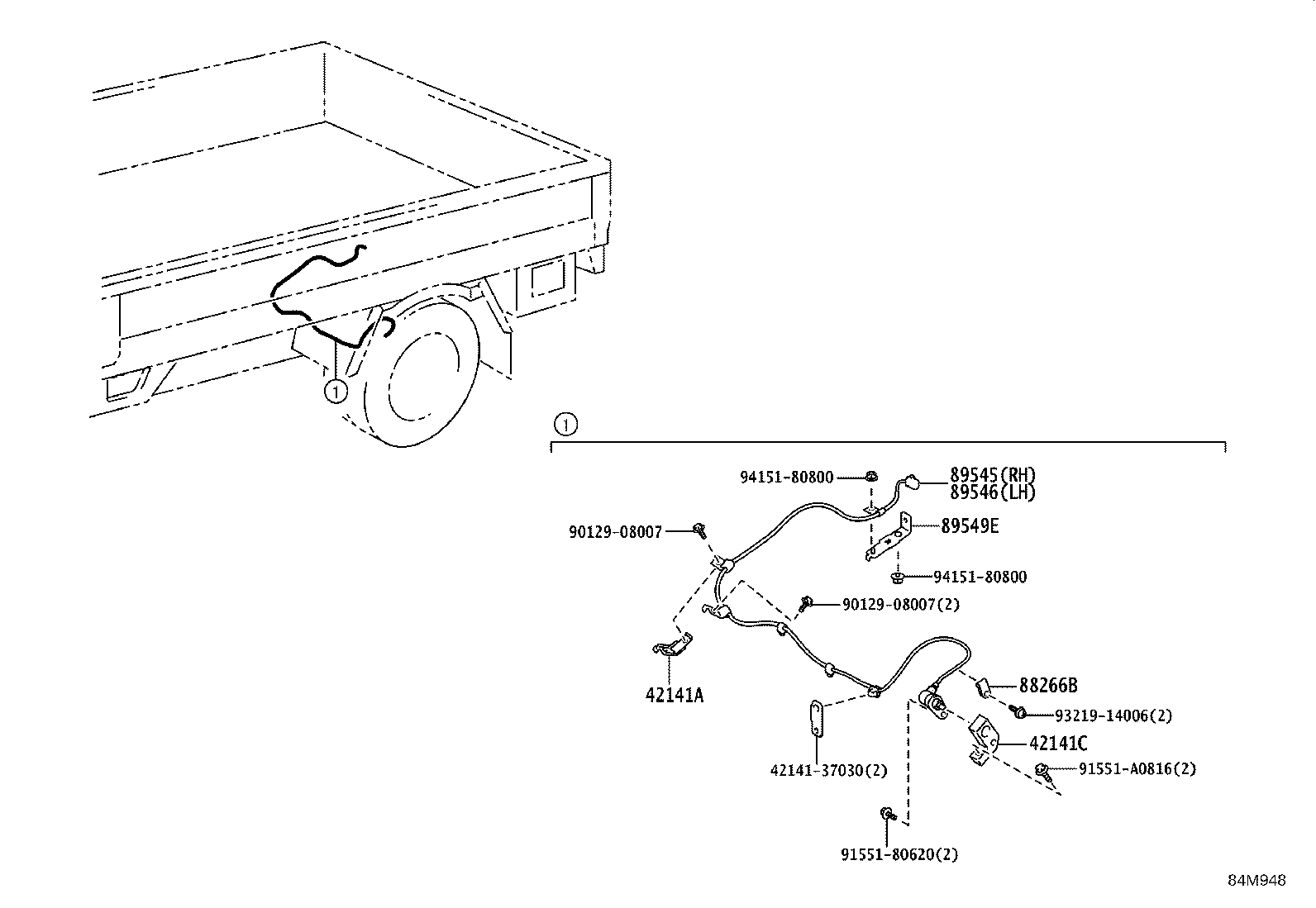

ILLUST NO. 3 OF 3(2103- )XZU650,652..IV6 ; (2103- )XZU600,602,640,642..40T

Click highlighted areas on diagram

ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ

diagram 4214137030 42141A 42141C 88266B 89545 89546 89549E 9012908007 9012908007 9155180620 91551A0816 9321914006 9415180800 9415180800
Part # Description Qty Price
42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1
42141-37010

XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5

 1
42141C - ATTACHMENT, SKID CONTROL WIRE, NO.1
42141-37050

XZU650,652..IV6;XZU600,602,640,642..40T

 2
88266B - CLAMP, SKID CONTROL SENSOR, NO.1
88266-37330

XZU650,652..IV6;XZU600,602,640,642..40T

 2
89545 - SENSOR, SPEED, REAR RH
89545-37230

XZU650,652..IV6;XZU600,602,640,642..40T

 1
89546 - SENSOR, SPEED, REAR LH
89546-37230

XZU650,652..IV6;XZU600,602,640,642..40T

 1
89549E - BRACKET, SPEED SENSOR
82715-3V690

XZC605,645,655,675,XZU60#,64#,65#,675,685,695..DM3,DM6,DM7,T2,T3,T4,T5

 1
Common parts
42141-37030
90129-08007
91551-80620
91551-A0816
93219-14006
94151-80800
