XZU642W-TKTSY6 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

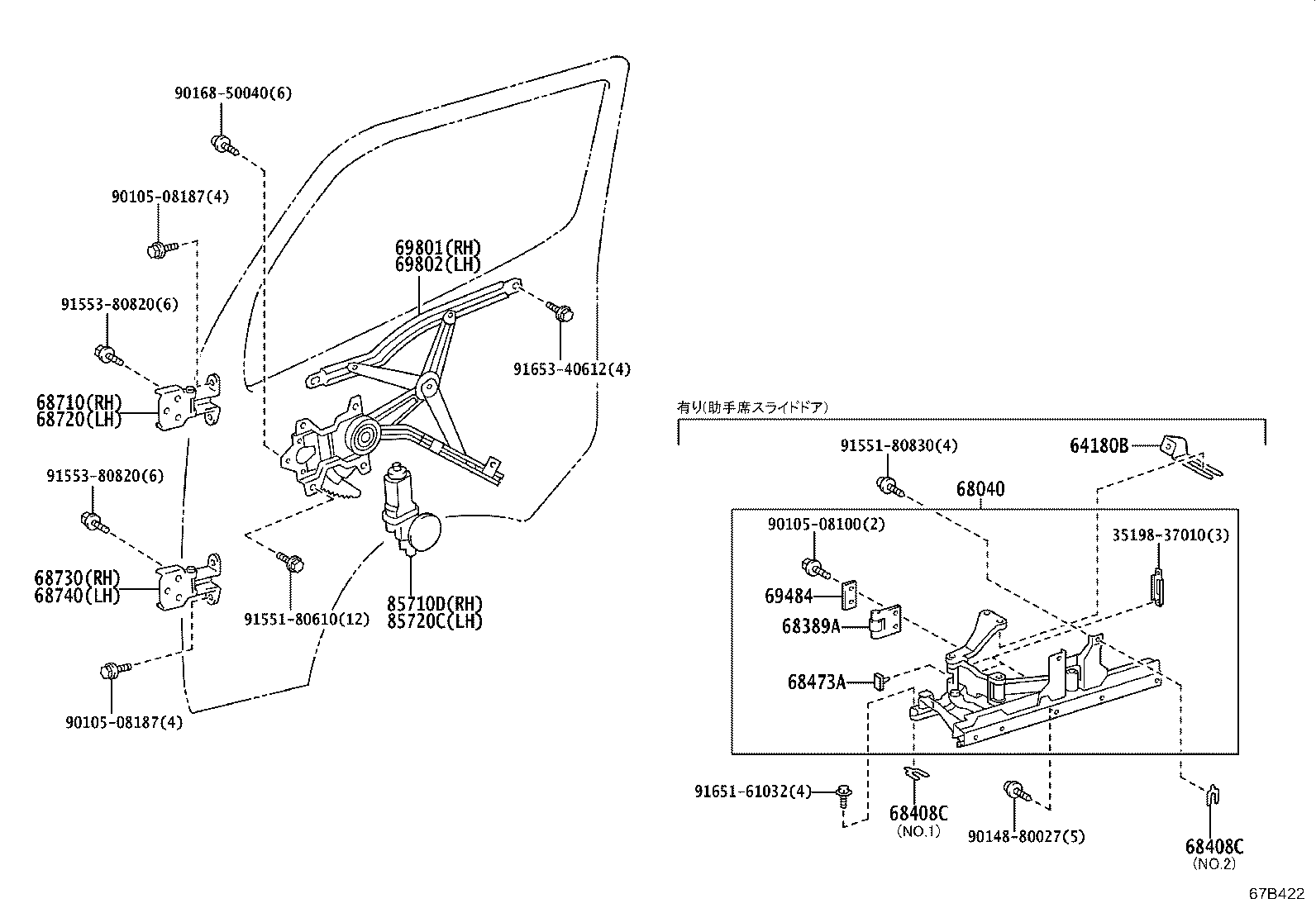

Click highlighted areas on diagram

diagram 3519837010 64180B 68040 68389A 68408C 68408C 68473A 68710 68720 68730 68740 69484 69801 69802 85710D 85720C 9010508100 9010508187 9010508187 9014880027 9016850040 9155180610 9155180830 9155380820 9155380820 9165161032 9165340612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-37020

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7

 1
68710-37031

XZU600,602,640,685..IV6;XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU650,655..T3..6F..(30T,35T,40T)..(IV3,IV6);XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..(IV3,IV6);XZC675,XZU642,645,652,685,695..SCB..(DM7,T3,T4)..(20T,35T,40T)..(IV3,IV6)

ﾌﾛﾝﾄﾄﾞｱ−STDﾄﾞｱ(*DRP) & ﾄﾞｱﾁｪｯｸ強化ﾀｲﾌﾟ

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68730-37010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7

 1
68730-37031

XZU600,602,640,685..IV6;XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU650,655..T3..6F..(30T,35T,40T)..(IV3,IV6);XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..(IV3,IV6);XZC675,XZU642,645,652,685,695..SCB..(DM7,T3,T4)..(20T,35T,40T)..(IV3,IV6)

ﾌﾛﾝﾄﾄﾞｱ−STDﾄﾞｱ(*DRP) & ﾄﾞｱﾁｪｯｸ強化ﾀｲﾌﾟ

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-37010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7

 1
68730-37031

XZU600,602,640,685..IV6;XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU650,655..T3..6F..(30T,35T,40T)..(IV3,IV6);XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..(IV3,IV6);XZC675,XZU642,645,652,685,695..SCB..(DM7,T3,T4)..(20T,35T,40T)..(IV3,IV6)

ﾌﾛﾝﾄﾄﾞｱ−STDﾄﾞｱ(*DRP) & ﾄﾞｱﾁｪｯｸ強化ﾀｲﾌﾟ

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-37020

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV4,IV6,IV7

 1
68710-37031

XZU600,602,640,685..IV6;XZU605..T5..6F..20T..IV3;XZU650,655..SCB..T4..IV3;XZC655,XZU655..T3..6FC..IV3;XZC605,XZU605..SCB..(T4,T5)..6FC..20T..IV3;XZU650,655..T3..6F..(30T,35T,40T)..(IV3,IV6);XZC605,645,655,XZU605,675..SCB..(T3,T4)..MTM..(IV3,IV6);XZC675,XZU642,645,652,685,695..SCB..(DM7,T3,T4)..(20T,35T,40T)..(IV3,IV6)

ﾌﾛﾝﾄﾄﾞｱ−STDﾄﾞｱ(*DRP) & ﾄﾞｱﾁｪｯｸ強化ﾀｲﾌﾟ

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-37063

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-37063

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-37080

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-37110

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
Common parts
35198-37010
90105-08100
90105-08187
90148-80027
90168-50040
91551-80610
91551-80830
91553-80820
91651-61032
91653-40612
