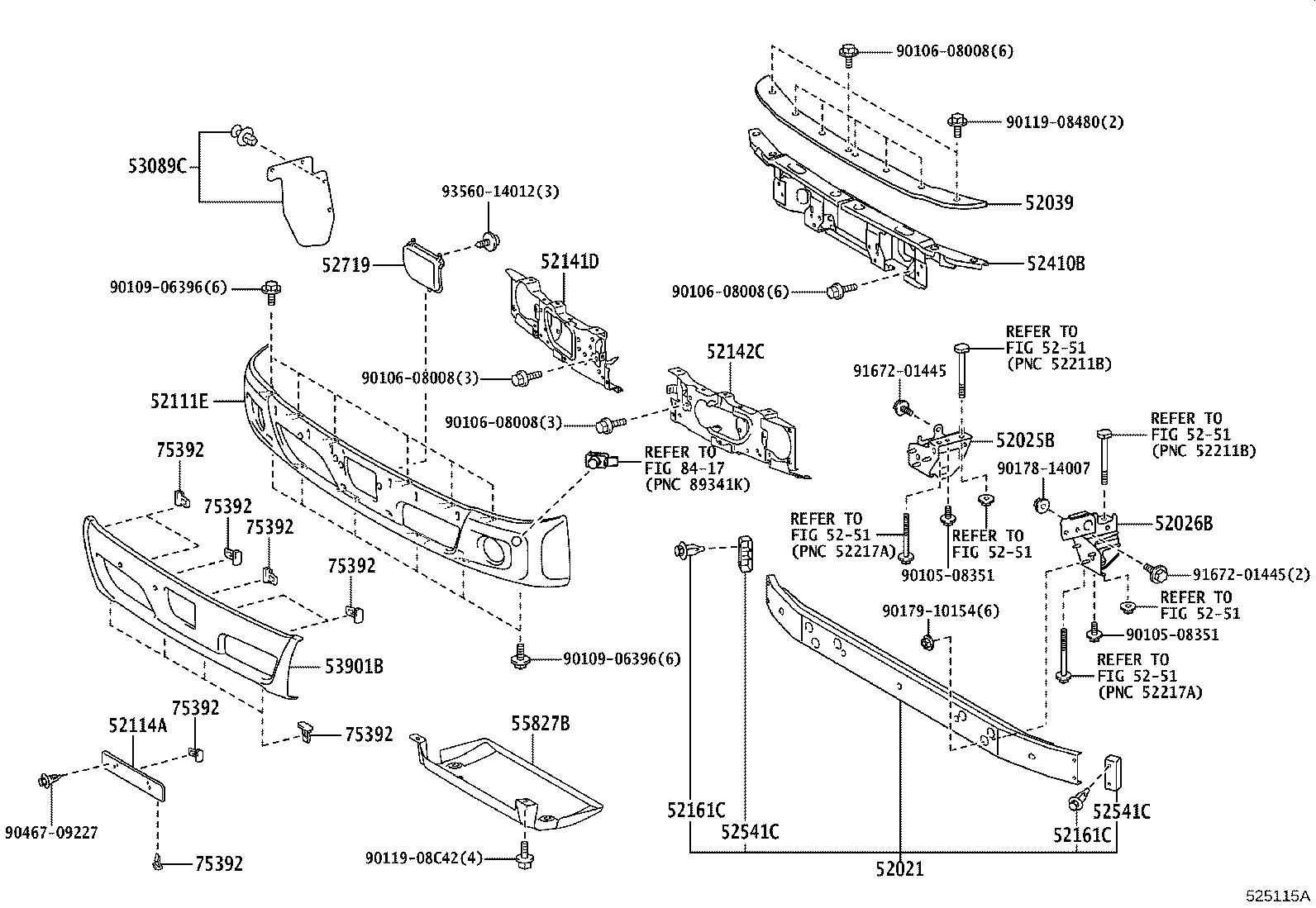

XZU642W-TKTSY6 (2021)
Toyota Dyna
(2103- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52102C - EXTENSION SUB-ASSY, FRONT BUMPER | ||||
| 52102-37060 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
1 | ||
| 52111E - BAR, FRONT BUMPER | ||||
| 52110-3VV70 |
XZC60#,630,645,655,XZU60#,630,64#,65# 塗装不要,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−材料着色(樹脂j&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 52110-3VV60 |
XZC60#,630,645,655,XZU60#,630,64#,65# 塗装不要,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−材料着色(樹脂j |
1 | ||
| 52110-3VV80A0 |
XZC60#,630,645,655,XZU60#,630,64#,65# WHITE,058 |
1 | ||
| 52110-3VV90B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ),SILVER ME.,199 |
1 | ||
| 52110-3VV80H0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 TURQUOISE,766 |
1 | ||
| 52110-3VV80B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5) SILVER ME.,199 |
1 | ||
| 52110-3VV90A0 |
XZC60#,630,645,655,XZU60#,630,64#,65# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ),WHITE,058 |
1 | ||
| 52110-3VW00A0 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655 ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,WHITE,058 |
1 | ||
| 52110-3VV90J0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ),BLUE,8P0 |
1 | ||
| 52110-3VV90H0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ),TURQUOISE,766 |
1 | ||
| 52110-3VV80J0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 BLUE,8P0 |
1 | ||
| 52110-3VW00H0 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655..CBU,IV3,IV5,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,TURQUOISE,766 |
1 | ||
| 52110-3VW00B1 |
XZU650..20T,30T,35T;XZC605,645,655,XZU60#,64#,652,655..SCB..(T2,T3,T4,T5) ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SILVER ME.,199 |
1 | ||
| 52110-3VW00J0 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655..CBU,IV3,IV5,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,BLUE,8P0 |
1 | ||
| 52110-3VW10H0 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,TURQUOISE,766 |
1 | ||
| 52110-3VW10A0 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,WHITE,058 |
1 | ||
| 52110-3VW10J0 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,BLUE,8P0 |
1 | ||
| 52110-3VW10B1 |
XZU650..20T,30T,35T;XZC605,645,655,XZU60#,64#,652,655..SCB..(T2,T3,T4,T5) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SILVER ME.,199 |
1 | ||
| 52110-3VW20B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),SILVER ME.,199 |
1 | ||
| 52110-3VW20H0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),TURQUOISE,766 |
1 | ||
| 52110-3VW20A0 |
XZC60#,630,645,655,XZU60#,630,64#,65# ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),WHITE,058 |
1 | ||
| 52110-3VW20J0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),BLUE,8P0 |
1 | ||
| 52110-3VW30A0 |
XZC60#,630,645,655,XZU60#,630,64#,65# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),WHITE,058 |
1 | ||
| 52110-3VW30H0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),TURQUOISE,766 |
1 | ||
| 52110-3VW30J0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),BLUE,8P0 |
1 | ||
| 52110-3VW40A0 |
XZC60#,630,645,655,XZU60#,630,64#,65# ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,WHITE,058 |
1 | ||
| 52110-3VW30B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),SILVER ME.,199 |
1 | ||
| 52110-3VW40B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SILVER ME.,199 |
1 | ||
| 52110-3VW40H0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,TURQUOISE,766 |
1 | ||
| 52110-3VW40J0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,BLUE,8P0 |
1 | ||
| 52110-3VW50A0 |
XZC60#,630,645,655,XZU60#,630,64#,65# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,WHITE,058 |
1 | ||
| 52110-3VW50H0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,TURQUOISE,766 |
1 | ||
| 52110-3VW50J0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,BLUE,8P0 |
1 | ||
| 52110-3VW50B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SILVER ME.,199 |
1 | ||
| 52111E - BAR, FRONT BUMPER | ||||
| 52110-3VV70 |
XZC60#,630,645,655,XZU60#,630,64#,65# 塗装不要,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−材料着色(樹脂j&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 52110-3VV60 |
XZC60#,630,645,655,XZU60#,630,64#,65# 塗装不要,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−材料着色(樹脂j |
1 | ||
| 52110-3VV80A0 |
XZC60#,630,645,655,XZU60#,630,64#,65# WHITE,058 |
1 | ||
| 52110-3VV90B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ),SILVER ME.,199 |
1 | ||
| 52110-3VV80H0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 TURQUOISE,766 |
1 | ||
| 52110-3VV80B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5) SILVER ME.,199 |
1 | ||
| 52110-3VV90A0 |
XZC60#,630,645,655,XZU60#,630,64#,65# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ),WHITE,058 |
1 | ||
| 52110-3VW00A0 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655 ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,WHITE,058 |
1 | ||
| 52110-3VV90J0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ),BLUE,8P0 |
1 | ||
| 52110-3VV90H0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ),TURQUOISE,766 |
1 | ||
| 52110-3VV80J0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 BLUE,8P0 |
1 | ||
| 52110-3VW00H0 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655..CBU,IV3,IV5,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,TURQUOISE,766 |
1 | ||
| 52110-3VW00B1 |
XZU650..20T,30T,35T;XZC605,645,655,XZU60#,64#,652,655..SCB..(T2,T3,T4,T5) ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SILVER ME.,199 |
1 | ||
| 52110-3VW00J0 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655..CBU,IV3,IV5,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,BLUE,8P0 |
1 | ||
| 52110-3VW10H0 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,TURQUOISE,766 |
1 | ||
| 52110-3VW10A0 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,WHITE,058 |
1 | ||
| 52110-3VW10J0 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,BLUE,8P0 |
1 | ||
| 52110-3VW10B1 |
XZU650..20T,30T,35T;XZC605,645,655,XZU60#,64#,652,655..SCB..(T2,T3,T4,T5) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SILVER ME.,199 |
1 | ||
| 52110-3VW20B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),SILVER ME.,199 |
1 | ||
| 52110-3VW20H0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),TURQUOISE,766 |
1 | ||
| 52110-3VW20A0 |
XZC60#,630,645,655,XZU60#,630,64#,65# ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),WHITE,058 |
1 | ||
| 52110-3VW20J0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),BLUE,8P0 |
1 | ||
| 52110-3VW30A0 |
XZC60#,630,645,655,XZU60#,630,64#,65# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),WHITE,058 |
1 | ||
| 52110-3VW30H0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),TURQUOISE,766 |
1 | ||
| 52110-3VW30J0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),BLUE,8P0 |
1 | ||
| 52110-3VW40A0 |
XZC60#,630,645,655,XZU60#,630,64#,65# ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,WHITE,058 |
1 | ||
| 52110-3VW30B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),SILVER ME.,199 |
1 | ||
| 52110-3VW40B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SILVER ME.,199 |
1 | ||
| 52110-3VW40H0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,TURQUOISE,766 |
1 | ||
| 52110-3VW40J0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,BLUE,8P0 |
1 | ||
| 52110-3VW50A0 |
XZC60#,630,645,655,XZU60#,630,64#,65# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,WHITE,058 |
1 | ||
| 52110-3VW50H0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,TURQUOISE,766 |
1 | ||
| 52110-3VW50J0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,BLUE,8P0 |
1 | ||
| 52110-3VW50B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SILVER ME.,199 |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-37171 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 81481-37040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 塗装不要 |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 81482-37040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 塗装不要 |
1 | ||
| 52141D - STAY, FRONT BUMPER, RH | ||||
| 52011-37140 |
XZU650,685,695..SCB..(20T,30T,35T);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 52142C - STAY, FRONT BUMPER, LH | ||||
| 52012-37140 |
XZU650,685,695..SCB..(20T,30T,35T);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
4 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
4 | ||
| 52719 - COVER, FRONT BUMPER MOULDING | ||||
| 52719-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 52719-37020 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 52719-37020 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
1 | ||
| 52719-37020 |
XZU650..20T,30T,35T;XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
1 | ||
| 52719-37020 |
XZU650..20T,30T,35T;XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
1 | ||
| 53901B - PANEL SUB-ASSY, FRONT VALANCE | ||||
| 53901-37040 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655 ﾒｯｷ,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟNﾘｰﾅ−有り |
1 | ||
| 53901-37040 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655 ﾒｯｷ,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟNﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
1 | ||
| 53901-37040 |
XZU650..20T,30T,35T;XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695 ﾒｯｷ,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫOﾗﾝﾌﾟ−有り(LED) |
1 | ||
| 53901-37040 |
XZU650..20T,30T,35T;XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695 ﾒｯｷ,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
5 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
5 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
5 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
5 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
5 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
5 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
5 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
5 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
5 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| Common parts | ||||
| 90106-08008 | ||||
| 90109-06396 | ||||
| 90119-06678 | ||||
| 90467-09227 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 8417 | ||||
(2103- )
ｱﾘ(ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52111E - BAR, FRONT BUMPER | ||||
| 52110-3VV70 |
XZC60#,630,645,655,XZU60#,630,64#,65# 塗装不要,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−材料着色(樹脂j&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 52110-3VV60 |
XZC60#,630,645,655,XZU60#,630,64#,65# 塗装不要,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−材料着色(樹脂j |
1 | ||
| 52110-3VV80A0 |
XZC60#,630,645,655,XZU60#,630,64#,65# WHITE,058 |
1 | ||
| 52110-3VV90B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ),SILVER ME.,199 |
1 | ||
| 52110-3VV80H0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 TURQUOISE,766 |
1 | ||
| 52110-3VV80B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5) SILVER ME.,199 |
1 | ||
| 52110-3VV90A0 |
XZC60#,630,645,655,XZU60#,630,64#,65# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ),WHITE,058 |
1 | ||
| 52110-3VW00A0 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655 ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,WHITE,058 |
1 | ||
| 52110-3VV90J0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ),BLUE,8P0 |
1 | ||
| 52110-3VV90H0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ),TURQUOISE,766 |
1 | ||
| 52110-3VV80J0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 BLUE,8P0 |
1 | ||
| 52110-3VW00H0 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655..CBU,IV3,IV5,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,TURQUOISE,766 |
1 | ||
| 52110-3VW00B1 |
XZU650..20T,30T,35T;XZC605,645,655,XZU60#,64#,652,655..SCB..(T2,T3,T4,T5) ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SILVER ME.,199 |
1 | ||
| 52110-3VW00J0 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655..CBU,IV3,IV5,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,BLUE,8P0 |
1 | ||
| 52110-3VW10H0 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,TURQUOISE,766 |
1 | ||
| 52110-3VW10A0 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,WHITE,058 |
1 | ||
| 52110-3VW10J0 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,BLUE,8P0 |
1 | ||
| 52110-3VW10B1 |
XZU650..20T,30T,35T;XZC605,645,655,XZU60#,64#,652,655..SCB..(T2,T3,T4,T5) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SILVER ME.,199 |
1 | ||
| 52110-3VW20B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),SILVER ME.,199 |
1 | ||
| 52110-3VW20H0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),TURQUOISE,766 |
1 | ||
| 52110-3VW20A0 |
XZC60#,630,645,655,XZU60#,630,64#,65# ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),WHITE,058 |
1 | ||
| 52110-3VW20J0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),BLUE,8P0 |
1 | ||
| 52110-3VW30A0 |
XZC60#,630,645,655,XZU60#,630,64#,65# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),WHITE,058 |
1 | ||
| 52110-3VW30H0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),TURQUOISE,766 |
1 | ||
| 52110-3VW30J0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),BLUE,8P0 |
1 | ||
| 52110-3VW40A0 |
XZC60#,630,645,655,XZU60#,630,64#,65# ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,WHITE,058 |
1 | ||
| 52110-3VW30B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ),SILVER ME.,199 |
1 | ||
| 52110-3VW40B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SILVER ME.,199 |
1 | ||
| 52110-3VW40H0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,TURQUOISE,766 |
1 | ||
| 52110-3VW40J0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,BLUE,8P0 |
1 | ||
| 52110-3VW50A0 |
XZC60#,630,645,655,XZU60#,630,64#,65# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,WHITE,058 |
1 | ||
| 52110-3VW50H0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,TURQUOISE,766 |
1 | ||
| 52110-3VW50J0 |
XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,BLUE,8P0 |
1 | ||
| 52110-3VW50B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(T2,T3,T4,T5) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SILVER ME.,199 |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-37171 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 52141D - STAY, FRONT BUMPER, RH | ||||
| 52011-37140 |
XZU650,685,695..SCB..(20T,30T,35T);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 52142C - STAY, FRONT BUMPER, LH | ||||
| 52012-37140 |
XZU650,685,695..SCB..(20T,30T,35T);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 52719 - COVER, FRONT BUMPER MOULDING | ||||
| 52719-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 52719-37020 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 52719-37020 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
1 | ||
| 52719-37020 |
XZU650..20T,30T,35T;XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
1 | ||
| 52719-37020 |
XZU650..20T,30T,35T;XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
1 | ||
| 53901B - PANEL SUB-ASSY, FRONT VALANCE | ||||
| 53901-37040 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655 ﾒｯｷ,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟNﾘｰﾅ−有り |
1 | ||
| 53901-37040 |
XZU650..20T,30T,35T;XZC60#,630,645,655,XZU60#,630,64#,652,655 ﾒｯｷ,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟNﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
1 | ||
| 53901-37040 |
XZU650..20T,30T,35T;XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695 ﾒｯｷ,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫOﾗﾝﾌﾟ−有り(LED) |
1 | ||
| 53901-37040 |
XZU650..20T,30T,35T;XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695 ﾒｯｷ,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
5 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
5 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
5 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
5 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
5 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
5 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) |
5 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| 75392-35220 |
XZU600,602,640,642..40T;XZU605,652..(DM6,T3)..(CBU,IV3,IV5) ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) & 有り(ﾒｯｷｶﾞｰﾆｯｼｭ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
13 | ||
| Common parts | ||||
| 90105-08351 | ||||
| 90106-08008 | ||||
| 90109-06396 | ||||
| 90119-08480 | ||||
| 90119-08C42 | ||||
| 90178-14007 | ||||
| 90179-10154 | ||||
| 90467-09227 | ||||
| 91672-01445 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 5251 | ||||
| 8417 | ||||
(2103- )
ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06325 | ||||
| 90179-08241 | ||||
| 91511-80825 | ||||
| 91551-80818 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
