XZU640W-TKFSY6 (2021)
Toyota Dyna
(2103- )XZC600,630,XZU600,602,630,640,642,650,652

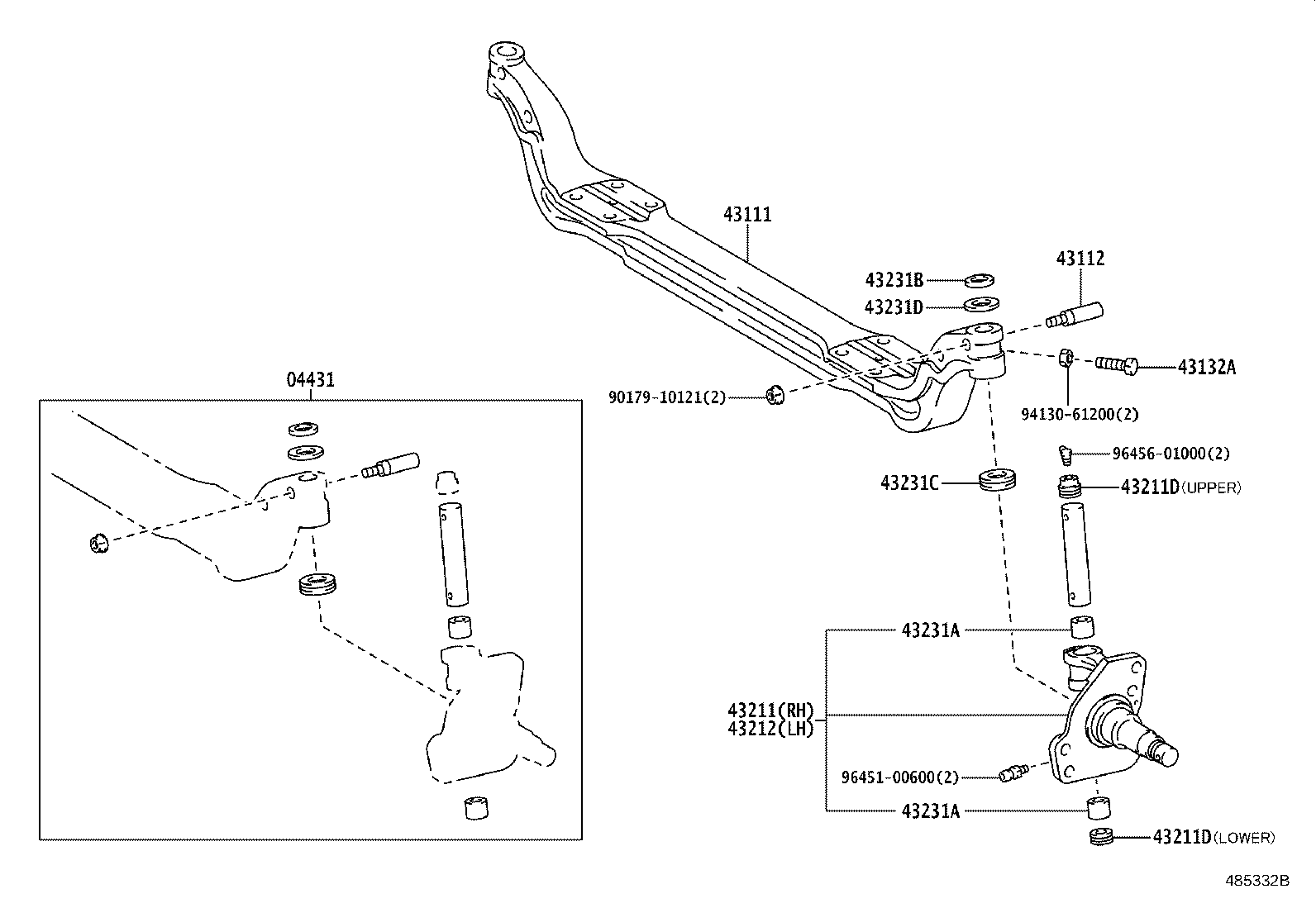

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43111 - I BEAM, FRONT AXLE | ||||
| 43111-37040 |
XZU600,602,640,642,650,652..35T,40T |
1 | ||
| 43112 - PIN, KING PIN LOCK | ||||
| 43112-36020 |
XZC600,630,XZU600,602,630,640,642,650,652 |
2 | ||
| 43132A - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT) | ||||
| 90106-12001 |
XZU600,602,640,642,650,652..35T,40T |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43201-37110 |
XZC600,630,XZU600,602,630,640,642,650,652 |
1 | ||
| 43211D - PLUG (FOR STEERING KNUCKLE) | ||||
| 90345-33003 |
XZC600,630,XZU600,602,630,640,642,650,652 下側 |
2 | ||
| 90345-33004 |
XZC600,630,XZU600,602,630,640,642,650,652 上側 |
2 | ||
| 43211D - PLUG (FOR STEERING KNUCKLE) | ||||
| 90345-33003 |
XZC600,630,XZU600,602,630,640,642,650,652 下側 |
2 | ||
| 90345-33004 |
XZC600,630,XZU600,602,630,640,642,650,652 上側 |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-37110 |
XZC600,630,XZU600,602,630,640,642,650,652 |
1 | ||
| 43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS | ||||
| 90999-73086 |
XZC600,630,XZU600,602,630,640,642,650,652 |
4 | ||
| 43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS | ||||
| 90999-73086 |
XZC600,630,XZU600,602,630,640,642,650,652 |
4 | ||
| 43231B - SEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN) | ||||
| 90312-28003 |
XZC600,630,XZU600,602,630,640,642,650,652 |
2 | ||
| 43231C - BEARING (FOR STEERING KNUCKLE KING PIN) | ||||
| 90367-28001 |
XZC600,630,XZU600,602,630,640,642,650,652 |
2 | ||
| 43231D - SHIM (FOR KING PIN) | ||||
| 90564-28002 |
XZC600,630,XZU600,602,630,640,642,650,652 厚さ=2.0 |
1 | ||
| 90564-28004 |
XZC600,630,XZU600,602,630,640,642,650,652 厚さ=2.2 |
1 | ||
| 90564-28001 |
XZC600,630,XZU600,602,630,640,642,650,652 厚さ=1.9 |
1 | ||
| 90564-28007 |
XZC600,630,XZU600,602,630,640,642,650,652 厚さ=1.7 |
1 | ||
| 90564-28003 |
XZC600,630,XZU600,602,630,640,642,650,652 厚さ=2.1 |
1 | ||
| 90564-28005 |
XZC600,630,XZU600,602,630,640,642,650,652 厚さ=2.3 |
1 | ||
| 90564-28006 |
XZC600,630,XZU600,602,630,640,642,650,652 厚さ=2.4 |
1 | ||
| 90564-28008 |
XZC600,630,XZU600,602,630,640,642,650,652 厚さ=1.8 |
1 | ||
| Common parts | ||||
| 90179-10121 | ||||
| 94130-61200 | ||||
| 96451-00600 | ||||
| 96456-01000 | ||||
