XZU640-PKTQY4 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

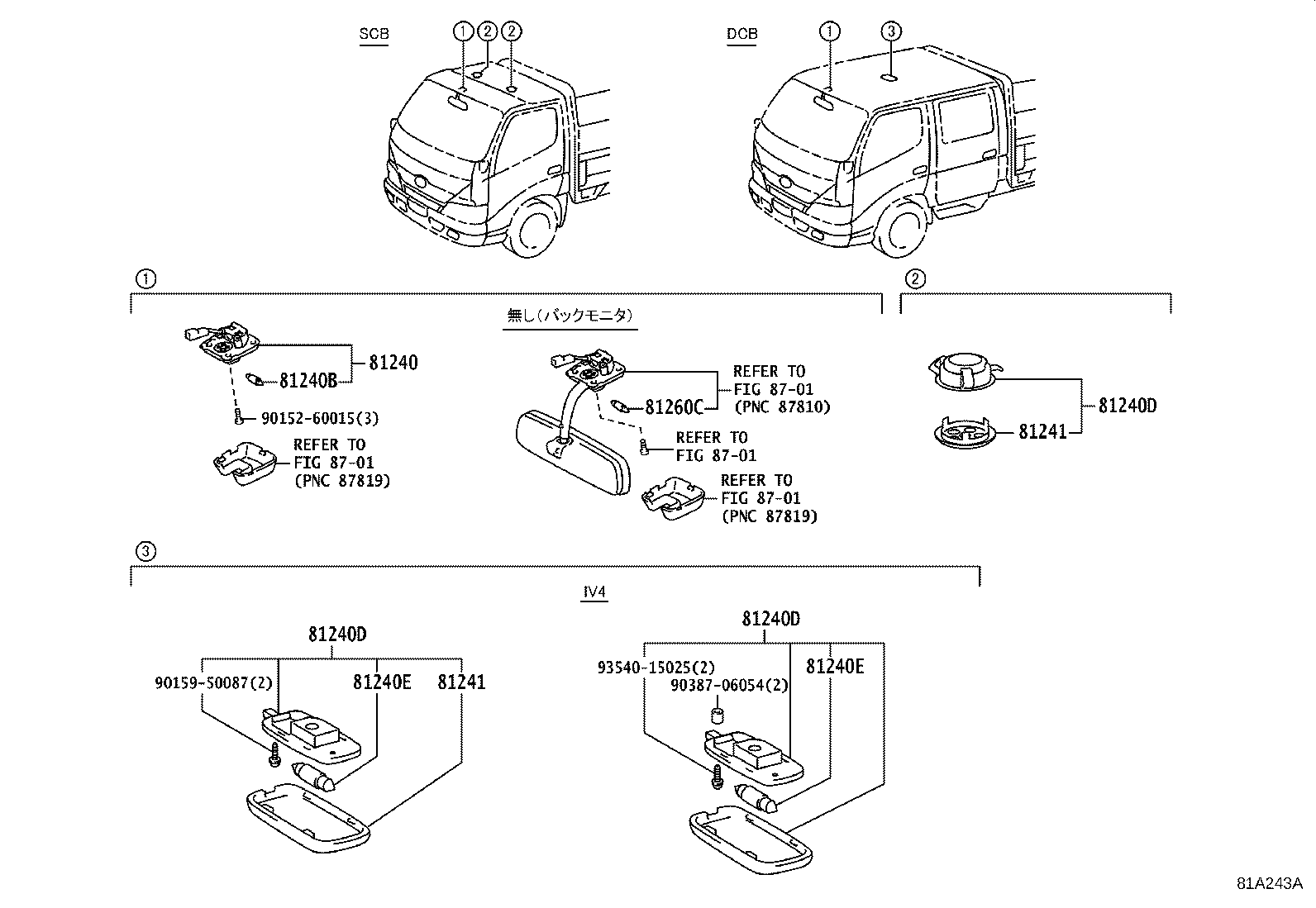

Click highlighted areas on diagram

diagram 81240 81240B 81240D 81240D 81240D 81240E 81240E 81241 81241 81260C 8701 8701 8701 8701 9015260015 9015950087 9038706054 9354015025
Part # Description Qty Price
81240D - LAMP ASSY, ROOM, NO.2
81240-37080B0

XZU600,640,685..IV4

MD.CHARCOAL,TRIM1#

 1
81240D - LAMP ASSY, ROOM, NO.2
81240-37080B0

XZU600,640,685..IV4

MD.CHARCOAL,TRIM1#

 1
81240D - LAMP ASSY, ROOM, NO.2
81240-37080B0

XZU600,640,685..IV4

MD.CHARCOAL,TRIM1#

 1
81240E - BULB, ROOM LAMP, NO.2
90981-16019

XZU600,605,640,655,685,695..DCB

24V 10W

 1
81240E - BULB, ROOM LAMP, NO.2
90981-16019

XZU600,605,640,655,685,695..DCB

24V 10W

 1
81260C - BULB(FOR MAP LAMP)
90981-16019

XZU675..T4..IV3;XZC600,630,XZU600,602,630,642,675..DM3,DM5,DM6,DM7,T3;XZC605,645,655,675,XZU605,640,645,65#,685,695..IV3,IV4,IV5,IV6

24V 10W

 1
Common parts
90152-60015
90159-50087
90387-06054
93540-15025
Linked diagrams
8701
