XZU640-PKTQY4 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )DCB

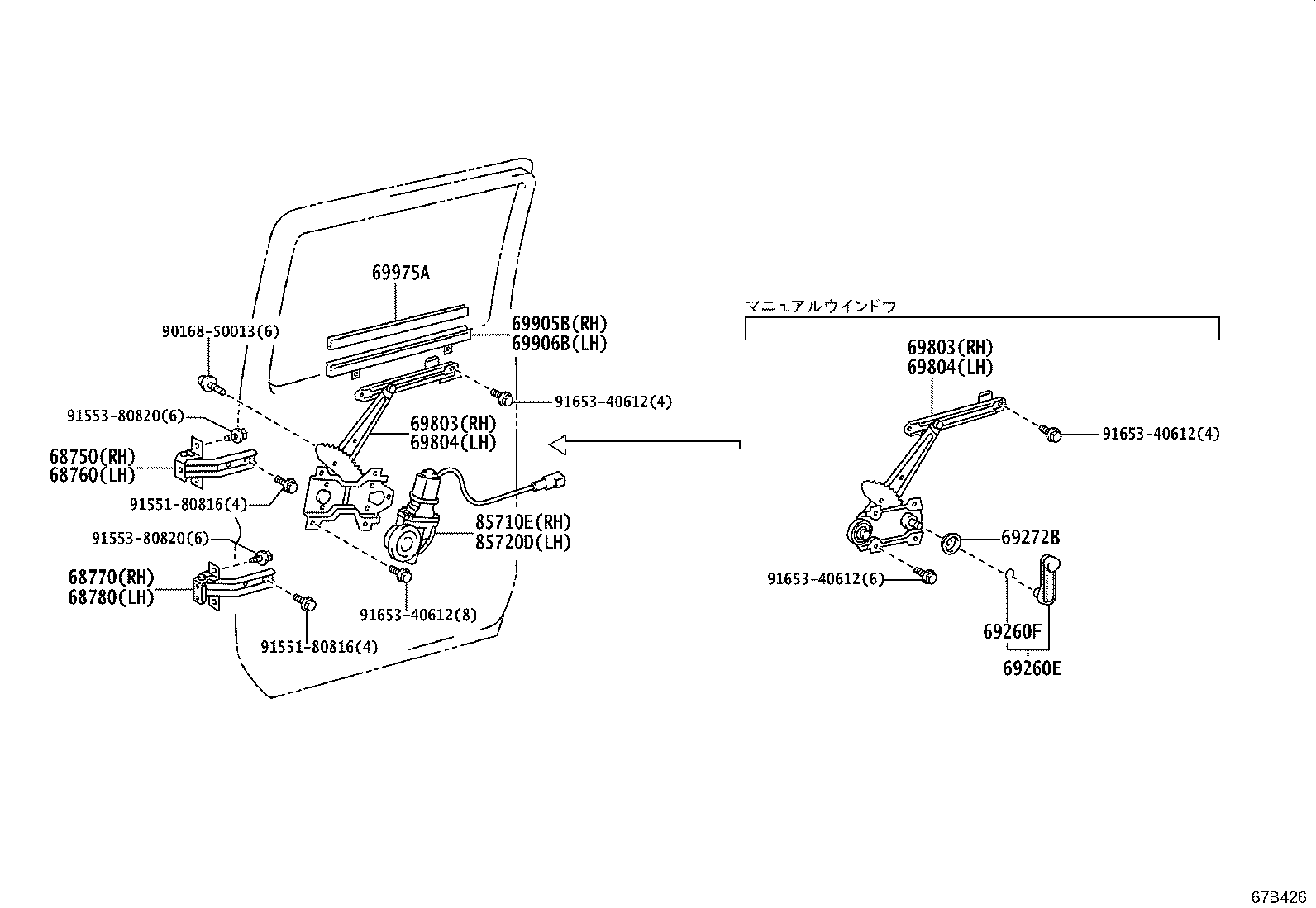

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69260F 69272B 69803 69803 69804 69804 69905B 69906B 69975A 85710E 85720D 9016850013 9155180816 9155180816 9155380820 9155380820 9165340612 9165340612 9165340612 9165340612
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-37010

XZU600,605,640,655,685,695..DCB

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68750-37010

XZU600,605,640,655,685,695..DCB

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-37012

XZU600,605,640,655,685,695..DCB

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-37012

XZU600,605,640,655,685,695..DCB

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-89104B5

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 2
69260-89104B5

XZU600,605,640,655,685,695..DCB

ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(ﾌﾛﾝﾄ & ﾘﾔ),GRAY,TRIM1#

 2
69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01274

XZU600,605,640,655,685,695..DCB

ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(ﾌﾛﾝﾄ & ﾘﾔ)

 2
90520-01274

XZU600,605,640,655,685,695..DCB

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69285-22010

XZU600,605,640,655,685,695..DCB

 2
69285-22010

XZU600,605,640,655,685,695..DCB

ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(ﾌﾛﾝﾄ & ﾘﾔ)

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-37020

XZU600,605,640,655,685,695..DCB

ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(ﾌﾛﾝﾄ & ﾘﾔ)

 1
69830-37010

XZU600,605,640,655,685,695..DCB

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-37020

XZU600,605,640,655,685,695..DCB

ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(ﾌﾛﾝﾄ & ﾘﾔ)

 1
69830-37010

XZU600,605,640,655,685,695..DCB

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-37010

XZU600,605,640,655,685,695..DCB

 1
69804-37020

XZU600,605,640,655,685,695..DCB

ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(ﾌﾛﾝﾄ & ﾘﾔ)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-37010

XZU600,605,640,655,685,695..DCB

 1
69804-37020

XZU600,605,640,655,685,695..DCB

ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(ﾌﾛﾝﾄ & ﾘﾔ)

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-37010

XZU600,605,640,655,685,695..DCB

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-37010

XZU600,605,640,655,685,695..DCB

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-37010

XZU600,605,640,655,685,695..DCB

 2
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85720-37060

XZU600,605,640,655,685,695..DCB

ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(ﾌﾛﾝﾄ & ﾘﾔ)

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85710-37050

XZU600,605,640,655,685,695..DCB

ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(ﾌﾛﾝﾄ & ﾘﾔ)

 1
Common parts
90168-50013
91551-80816
91553-80820
91653-40612
