XZU640-PKTQY4 (2021)
Toyota Dyna
Production
Mar 2021
-
Sep 9999
Engine
N04C
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2103- )

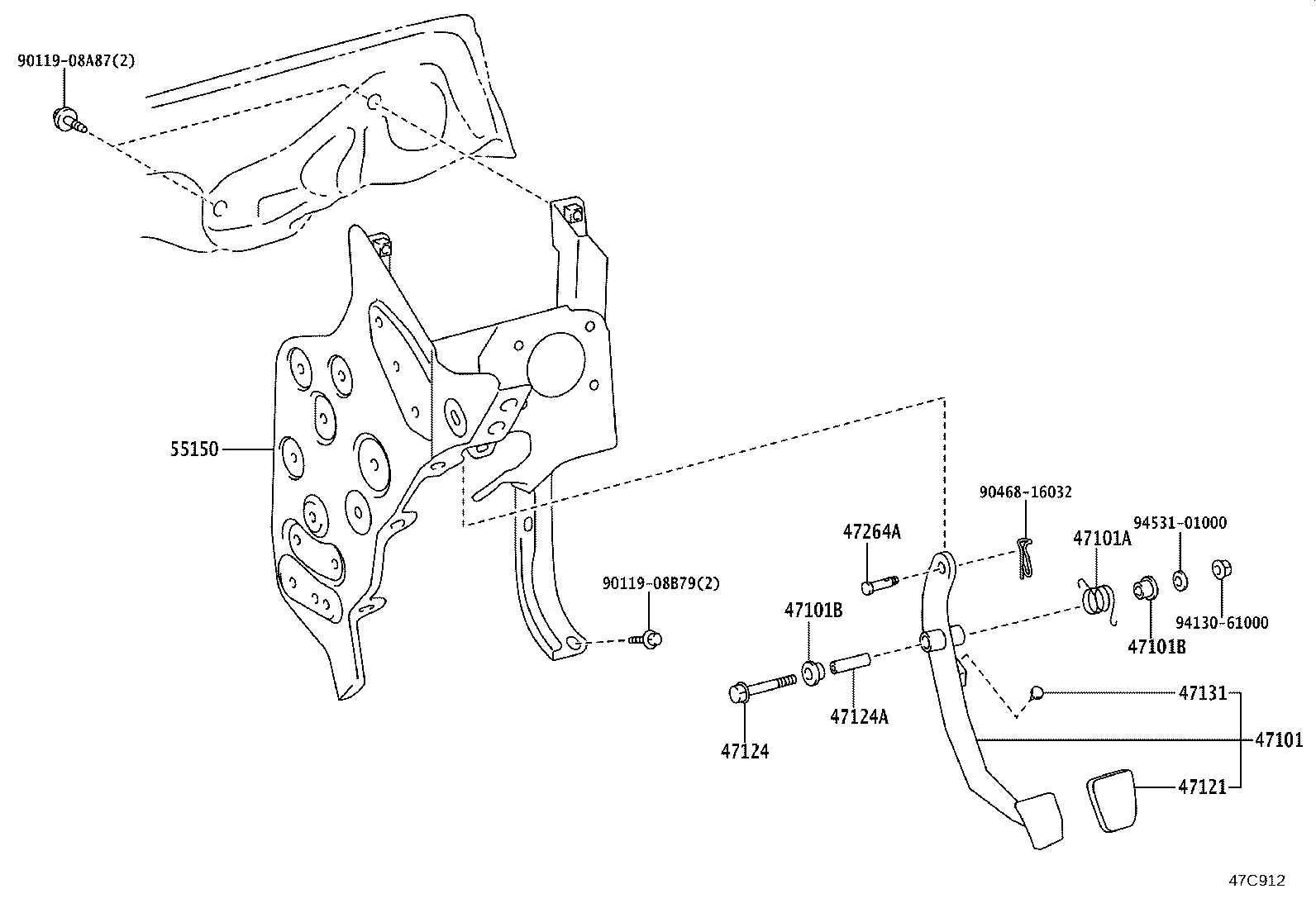

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-37150 |
XZC675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90508-35039 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13007 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13007 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-52020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 91112-61070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10004 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90240-10037 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 55150 - BRACKET ASSY, PEDAL | ||||
| 55150-37450 |
XZC675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| Common parts | ||||
| 90119-08A87 | ||||
| 90119-08B79 | ||||
| 90468-16032 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
