XZU605A-TYTQY5 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

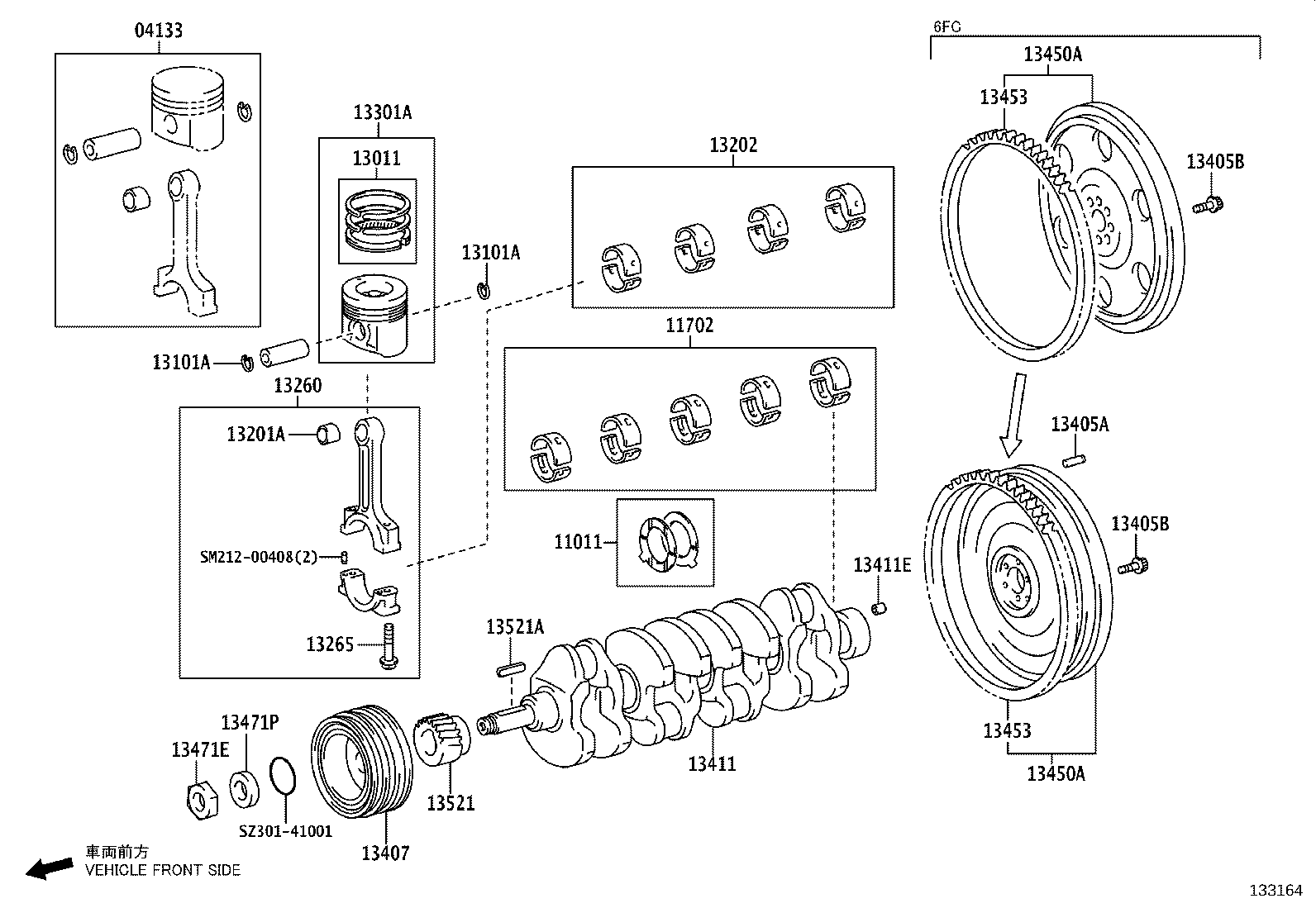

Click highlighted areas on diagram

diagram 04133 11011 11702 13011 13101A 13101A 13201A 13202 13260 13265 13301A 13405A 13405B 13405B 13407 13411 13411E 13450A 13450A 13453 13453 13471E 13471P 13521 13521A SM21200408 SZ30141001
Part # Description Qty Price
04133 - PIN KIT, PISTON
04133-E0320

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 4
11011 - WASHER SET, CRANKSHAFT THRUST
11011-E0030

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

STD

 1
11702 - BEARING SET, CRANKSHAFT
11705-E0050

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

U/S 0.50

 1
11701-78160

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

STD

 1
11707-E0040

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

U/S 1.00

 1
11706-E0040

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

U/S 0.75

 1
11704-E0050

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

U/S 0.25

 1
13011 - RING SET, PISTON
S1304-E0710

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
SZ520-37001

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
SZ520-37001

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 8
13201A - BUSH(FOR CONNECTING ROD SMALL END)
13271-78100

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 4
13202 - BEARING SET, CONNECTING ROD
13041-78430

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

STD

 1
13041-E0B10

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

U/S 0.50

 1
13041-E0B30

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

U/S 1.00

 1
13041-E0B20

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

U/S 0.75

 1
13041-E0B00

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

U/S 0.25

 1
13260 - ROD ASSY, CONNECTING
13260-78111

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 4
13265 - BOLT, CONNECTING ROD
13265-E0010

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 8
13301A - PISTON SET, W/PISTON RING
S130B-E0R40

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 4
13405B - BOLT, FLYWHEEL SETTING
S1345-51550

N04C..XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)

 8
13405B - BOLT, FLYWHEEL SETTING
S1345-51550

N04C..XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)

 8
13407 - DAMPER SUB-ASSY, CRANKSHAFT
13407-78020

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
13411 - CRANKSHAFT
13411-78070

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
13411E - COLLAR(FOR CRANKSHAFT)
SZ910-29013

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
13450A - FLYWHEEL ASSY
13450-78281

N04C..XZC60#,645,655,XZU60#,64#,65#..6FC

 1
13450A - FLYWHEEL ASSY
13450-78281

N04C..XZC60#,645,655,XZU60#,64#,65#..6FC

 1
13453 - GEAR, FLYWHEEL RING
13453-E0080

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
13453 - GEAR, FLYWHEEL RING
13453-E0080

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
13471E - NUT(FOR CRANKSHAFT PULLEY)
SZ170-27001

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
13471P - SPACER(FOR CRANKSHAFT PULLEY)
SZ910-16034

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-78110

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
SM171-01028

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
Common parts
SM212-00408
SZ301-41001
