XZU605A-TYFMY5 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )XZC605,645,655,XZU605,645,655

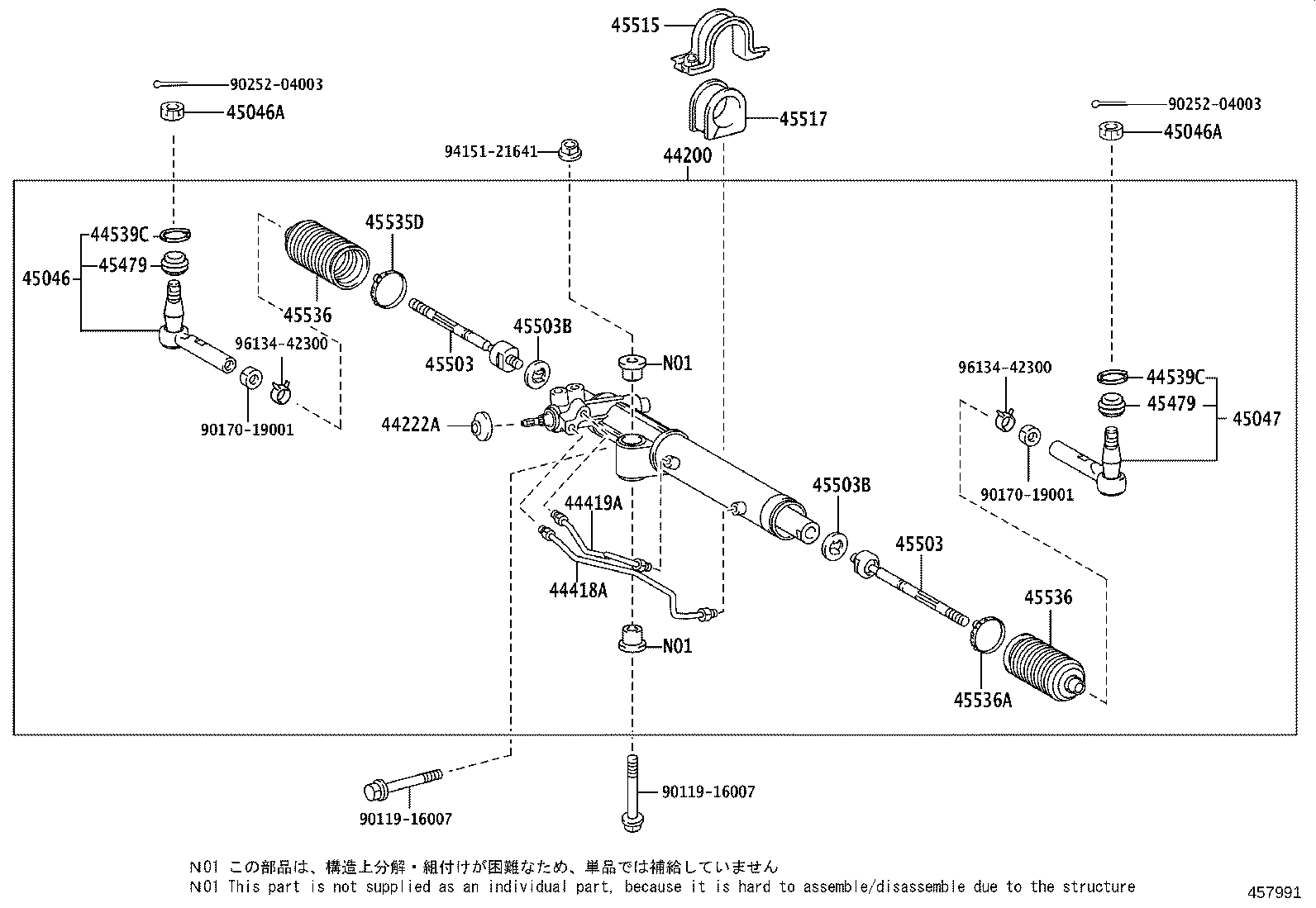

Click highlighted areas on diagram

diagram 44200 44222A 44418A 44419A 44539C 44539C 45046 45046A 45046A 45047 45479 45479 45503 45503 45503B 45503B 45515 45517 45535D 45536 45536 45536A 9011916007 9011916007 9017019001 9017019001 9025204003 9025204003 9415121641 9613442300 9613442300
Part # Description Qty Price
44200 - LINK ASSY, POWER STEERING
44200-37080

XZU605..30T;XZC645,655,XZU645,655;XZC605,XZU605..(DM6,T2,T5)..20T

 1
44222A - COVER, DUST(FOR POWER STEERING GEAR)
45222-37030

XZC605,645,655,XZU605,645,655

 1
44418A - TUBE, STEERING RIGHT TURN PRESSURE
44418-37050

XZC605,645,655,XZU605,645,655

 1
44419A - TUBE, STEERING LEFT TURN PRESSURE
44419-37050

XZC605,645,655,XZU605,645,655

 1
44539C - RING, SET(FOR POWER STEERING RACK END DUST SEAL)
90522-30034

XZC605,645,655,675,XZU605,645,655,675,685,695

 2
44539C - RING, SET(FOR POWER STEERING RACK END DUST SEAL)
90522-30034

XZC605,645,655,675,XZU605,645,655,675,685,695

 2
45046 - END SUB-ASSY, TIE ROD, RH
45046-37120

XZC605,645,655,675,XZU605,645,655,675,685,695

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-16005

XZC605,645,655,675,XZU605,645,655,675,685,695

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-16005

XZC605,645,655,675,XZU605,645,655,675,685,695

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-37120

XZC605,645,655,675,XZU605,645,655,675,685,695

 1
45479 - SEAL, STEERING LINK JOINT DUST
45479-37030

XZC605,645,655,675,XZU605,645,655,675,685,695

 2
45479 - SEAL, STEERING LINK JOINT DUST
45479-37030

XZC605,645,655,675,XZU605,645,655,675,685,695

 2
45503 - END SUB-ASSY, STEERING RACK
45503-37030

XZC605,645,655,XZU605,645,655

 2
45503 - END SUB-ASSY, STEERING RACK
45503-37030

XZC605,645,655,XZU605,645,655

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-24001

XZC605,645,655,XZU605,645,655

外径=47

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-24001

XZC605,645,655,XZU605,645,655

外径=47

 2
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-37020

XZC605,645,655,675,XZU605,645,655,675,685,695

 1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-37010

XZC605,645,655,675,XZU605,645,655,675,685,695

 1
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-62006

XZC605,645,655,675,XZU605,645,655,675,685,695

 1
45536 - BOOT, STEERING RACK, NO.2
45535-37010

XZC605,645,655,675,XZU605,645,655,675,685,695

 2
45536 - BOOT, STEERING RACK, NO.2
45535-37010

XZC605,645,655,675,XZU605,645,655,675,685,695

 2
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-62006

XZC605,645,655,675,XZU605,645,655,675,685,695

 1
Common parts
90119-16007
90170-19001
90252-04003
94151-21641
96134-42300
