XZU605-TQTQY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )SCB

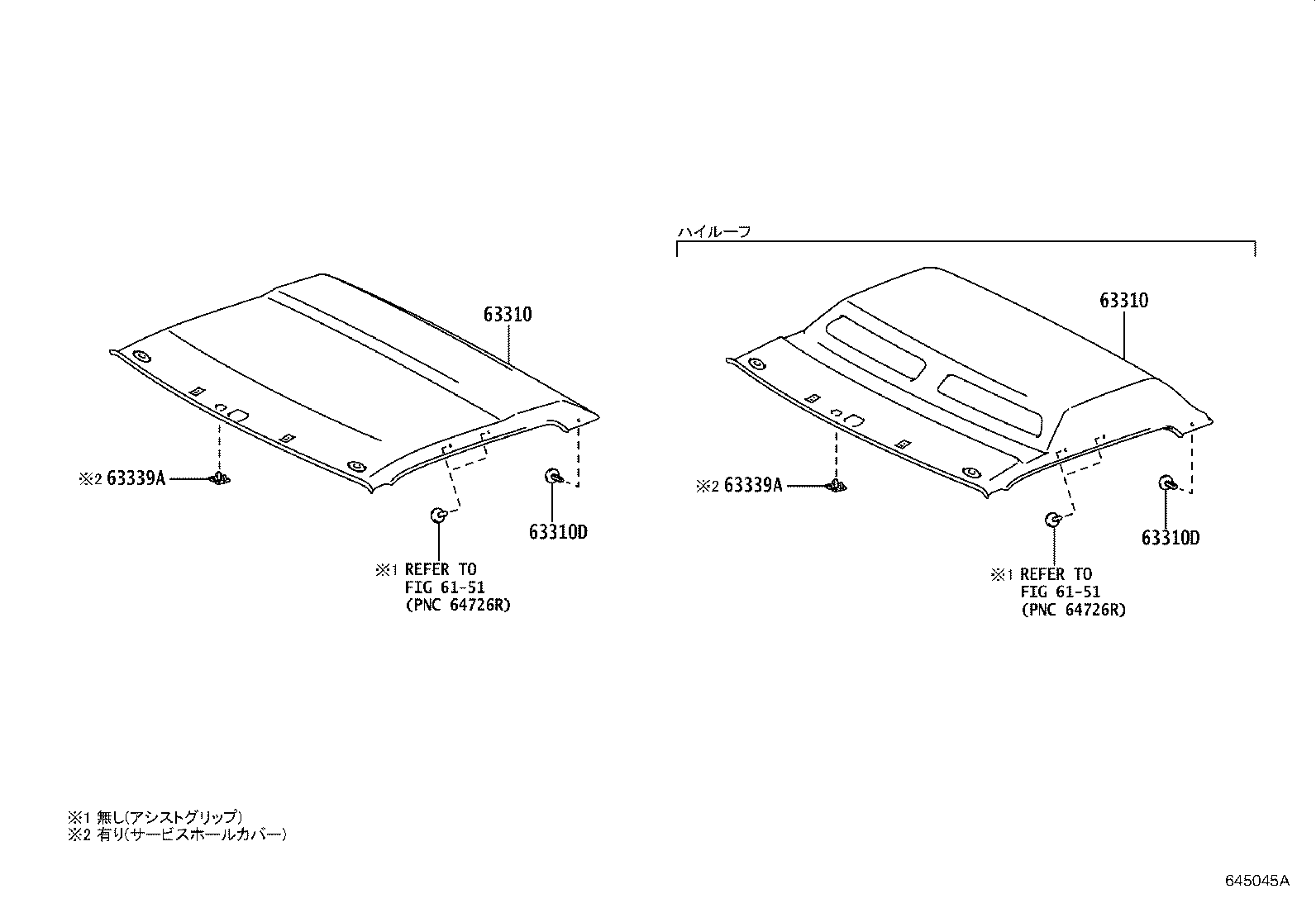

Click highlighted areas on diagram

diagram 6151 6151 63310 63310 63310D 63310D 63339A 63339A
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-37830B0

XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU

ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED)&ﾊﾞｯｸﾓﾆﾀ−無し,GRAY,TRIM1#

 1
63310-37A00B0

XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU

ﾊﾞｯｸﾓﾆﾀ−無し,GRAY,TRIM1#

 1
63310-37890B0

XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU

ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED),GRAY,TRIM1#

 1
63310-37850B0

XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU

GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-37830B0

XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU

ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED)&ﾊﾞｯｸﾓﾆﾀ−無し,GRAY,TRIM1#

 1
63310-37A00B0

XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU

ﾊﾞｯｸﾓﾆﾀ−無し,GRAY,TRIM1#

 1
63310-37890B0

XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU

ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED),GRAY,TRIM1#

 1
63310-37850B0

XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU

GRAY,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-06048B9

XZU600..CBU,IV6;XZU600..(DM3,DM5)..IV3;XZU640,642,650,652,685..IV6;XZC60#,630,675,XZU602,605,630,675..SCB..(CBU,IV3,IV6)

MD.CHARCOAL,TRIM1#

 7
63310D - CLIP, ROOF HEADLINING
90467-06048B9

XZU600..CBU,IV6;XZU600..(DM3,DM5)..IV3;XZU640,642,650,652,685..IV6;XZC60#,630,675,XZU602,605,630,675..SCB..(CBU,IV3,IV6)

MD.CHARCOAL,TRIM1#

 7
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-37010

XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU

ﾊﾞｯｸﾓﾆﾀ−無し

 1
63339-37010

XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU

 1
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-37010

XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU

ﾊﾞｯｸﾓﾆﾀ−無し

 1
63339-37010

XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU

 1
Linked diagrams
6151
