XZU605-TQTQY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

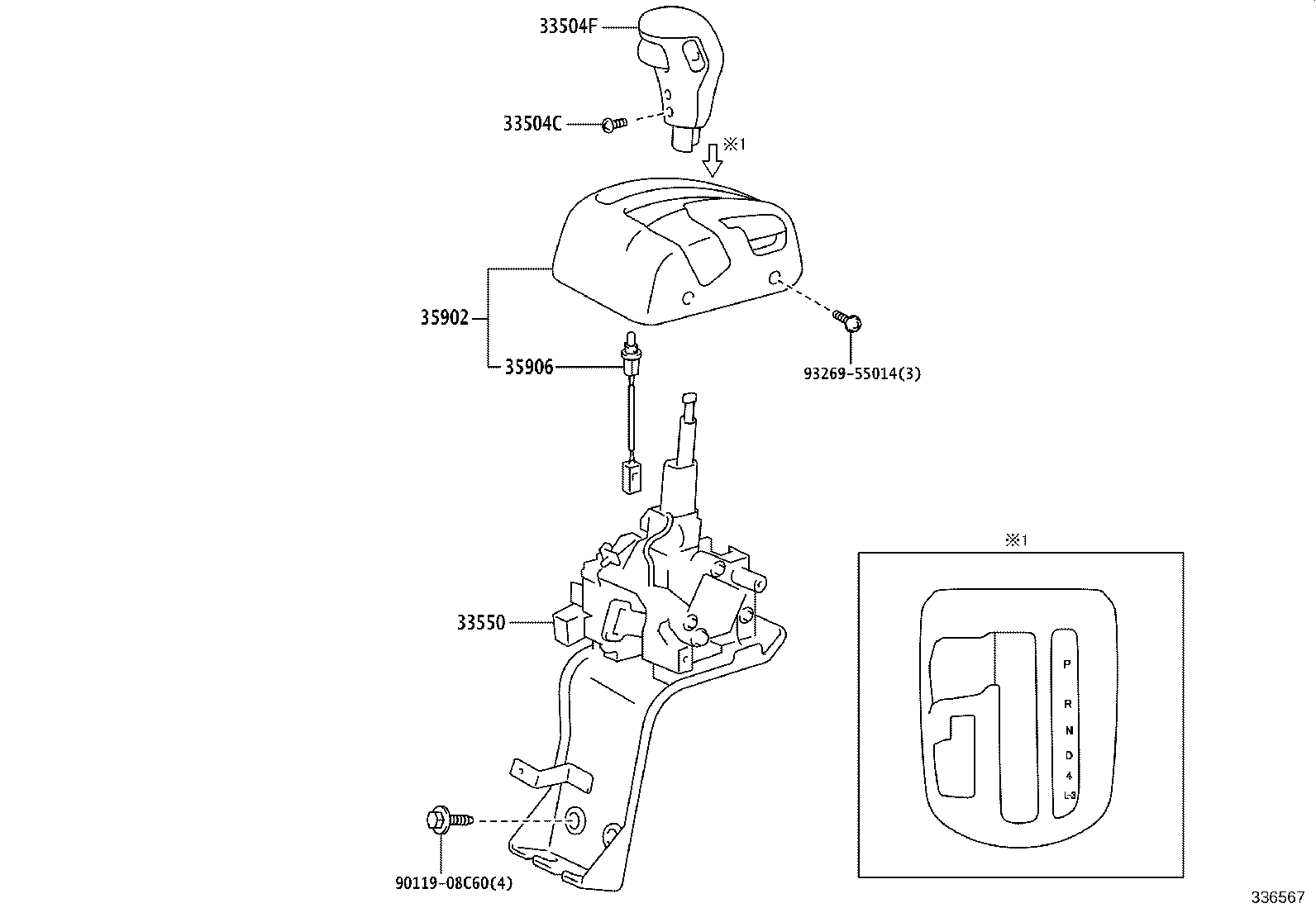

ILLUST NO. 1 OF 2(2103- )6FC

Click highlighted areas on diagram

diagram 33504C 33504F 33550 35902 35906 9011908C60 9326955014
Part # Description Qty Price
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90152-40003

XZC60#,645,655,XZU60#,64#,65#..6FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-37091C0

XZC60#,645,655,XZU60#,64#,65#..6FC

BLACK,TRIM1#

 1
33504-37060C0

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

BLACK,TRIM1#

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-37350C0

XZC60#,645,655,XZU60#,64#,65#..6FC

BLACK,TRIM1#

 1
33550-37341C0

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

BLACK,TRIM1#

 1
35902 - COVER SUB-ASSY, POSITION INDICATOR HOUSING
35902-37082C0

XZC60#,645,655,XZU60#,64#,65#..6FC

BLACK,TRIM1#

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
82232-37020

XZC60#,645,655,XZU60#,64#,65#..6FC

 1
Common parts
90119-08C60
93269-55014

ILLUST NO. 2 OF 2(2103- )XZC605,645,655,XZU605,645,655..6FC

Click highlighted areas on diagram

diagram 33820B 33821E 33823 33825 33826A 33826B 33826C 33826D 33826E 33829 33829B 9017908233 9020110042 9046814016 9046814016 9155180825 9155180825 9155281030 9155480825 9155480825 91611G0820 91612B1020 9167480820 9415180800 9418560800
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-37Q01

XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3,IV5,IV6)

 1
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33829-37390

XZC605,645,655,675,XZU605,645,655,675,685,695

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37880

XZC60#,645,655,XZU60#,64#,65#..6FC

 1
33825 - INSULATOR, TRANSMISSION CONTROL CABLE
33825-37040

XZC60#,645,655,XZU60#,64#,65#

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-37210

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33826-37580

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33827-37210

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5
33827-37360

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6
33828-37310

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-37400

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37210

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 2
Common parts
90179-08233
90201-10042
90468-14016
91551-80825
91552-81030
91554-80825
91611-G0820
91612-B1020
91674-80820
94151-80800
94185-60800
