XZU605-TPTQY (2021)
Toyota Dyna
(2103- )6F
RE62

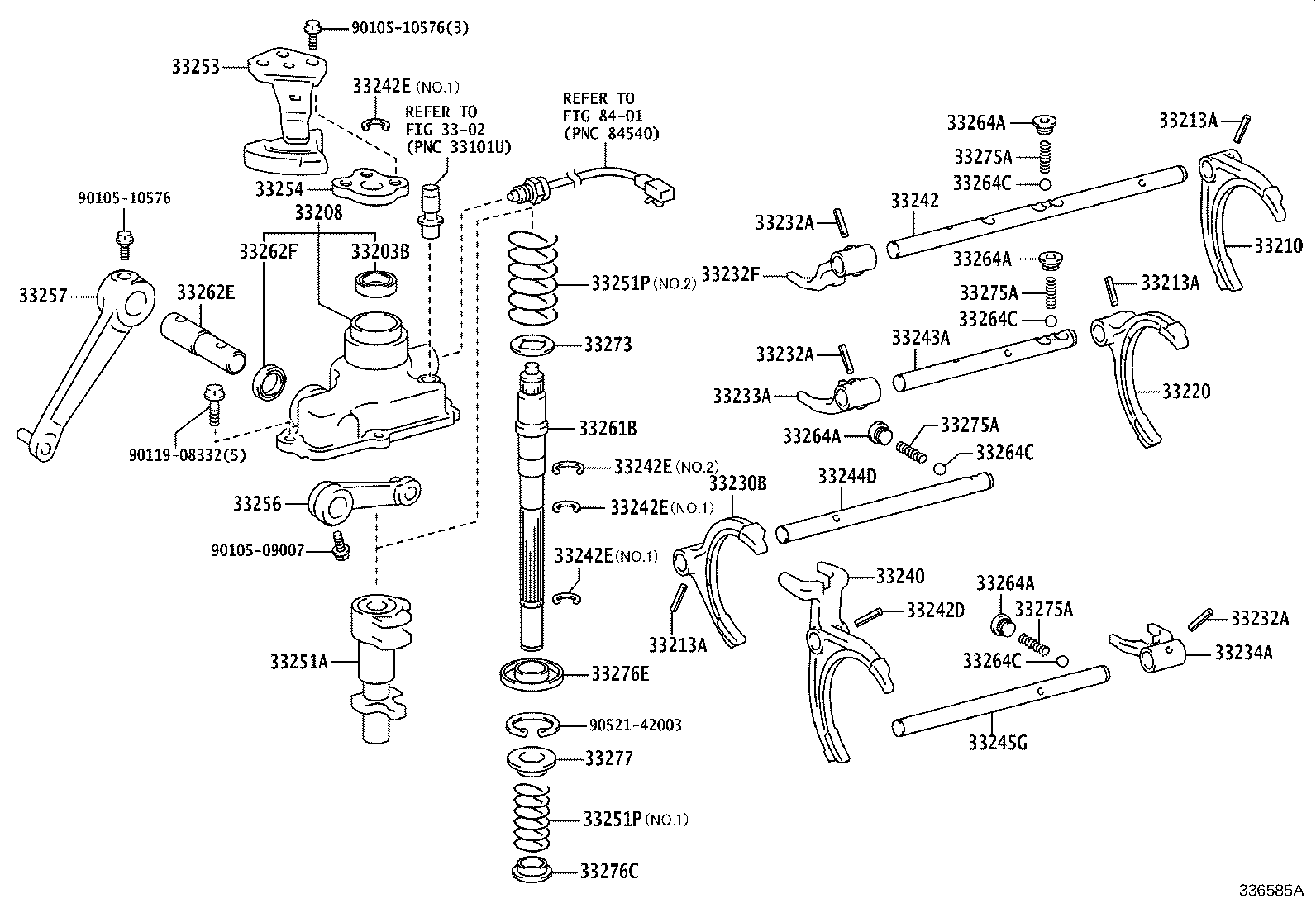

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| 33234-37030 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-37030 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 33242D - PIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT) | ||||
| 90254-05016 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-19017 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90520-15009 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F NO.1:ｲﾗｽﾄ参照 |
3 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-19017 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90520-15009 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F NO.1:ｲﾗｽﾄ参照 |
3 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-19017 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90520-15009 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F NO.1:ｲﾗｽﾄ参照 |
3 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-19017 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90520-15009 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F NO.1:ｲﾗｽﾄ参照 |
3 | ||
| 33244D - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-37090 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-37050 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-27041 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90501-17048 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-27041 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90501-17048 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 33261B - SHAFT, SHIFT LEVER | ||||
| 33261-37050 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 33262E - SHAFT, SELECT LEVER | ||||
| 33262-37050 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 33264A - PLUG, INTER LOCK HOLE | ||||
| 90341-12008 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F 外径=18 |
4 | ||
| 33264A - PLUG, INTER LOCK HOLE | ||||
| 90341-12008 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F 外径=18 |
4 | ||
| 33264A - PLUG, INTER LOCK HOLE | ||||
| 90341-12008 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F 外径=18 |
4 | ||
| 33264A - PLUG, INTER LOCK HOLE | ||||
| 90341-12008 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F 外径=18 |
4 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
4 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
4 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
4 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14194 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F 長さ=31.7 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14194 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F 長さ=31.7 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14194 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F 長さ=31.7 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14194 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F 長さ=31.7 |
4 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-37070 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| Common parts | ||||
| 90105-09007 | ||||
| 90105-10576 | ||||
| 90119-08332 | ||||
| 90521-42003 | ||||
| Linked diagrams | ||||
| 3302 | ||||
| 8401 | ||||
